Product Description

Multi-Channel Laboratory Syringe Pump

Product introduction

It can assemble one/two/four/ten syringes, other quantity can be customized; Good performance, high precision and high accuracy; Durable mechanical transmission design, long life and good reliability. Support for multiple working mode; High resolution color touch screen LCD, simple and easy to set parameters, status display intuitive and clear; With adjustable protection agencies and alarm mechanism; The RS-485 communication, support the MODBUS protocol, easy to connect to other devices; All stainless steel shell, easy to clean and maintain.

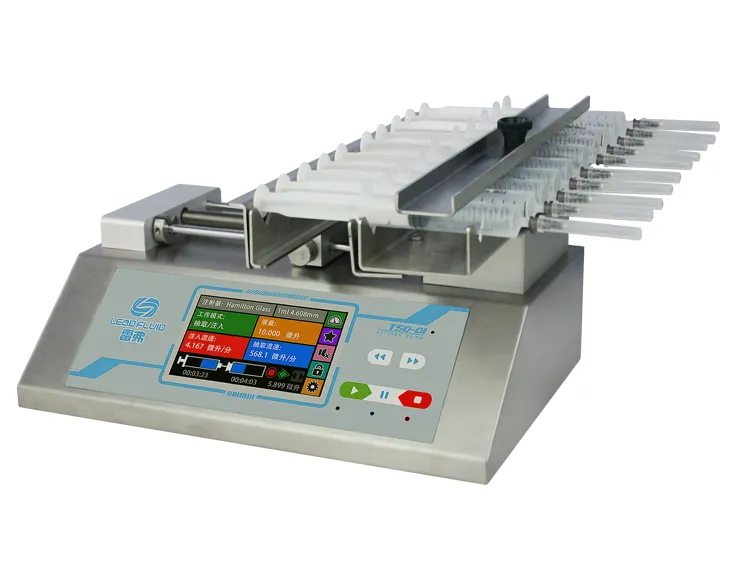

Multi-Channel Laboratory Syringe Pump (Stainless Steel Shell)

Function and Feature:

• It can assemble one/two/four/ten syringes;
•  A variety of working mode choice;
•  Color touch screen, LCD display, convenient and quick operation;
•  Support screen lock, key mute operation;
•  With lights, buttons, clearly working state;
•  Support a variety of standard syringe, customize syringe;
•  High precision control;
•  Syringe protection and traffic jam alarm;
•  RS485 communication, support the MODBUS protocol;
•  External signal control start-stop and direction;
•  A wide range of power input;
•  Full metal shell.

Technical Specifications

Model	TYD02-01	TYD02-02	TYD02-04		TYD02-10
Syringe size	10ul - 140ml	10ul - 140ml	10ul - 10ml	10ul - 10ml
Work mode	infusion, withdraw, infusion/withdraw, withdraw/infusion, continuous mode
Channel number	1	2	4		10
Stroke of pump	140 mm
Pusher advance per microstep	0.156 um/ustep
Linear speed	1 um/min - 150 um/min
Linear resolution	1 um/min
Linear travel accuracy	error <± 0.35% (>30% of pump stroke)
Linear force: maximum rated	> 20 KGF
Thrust regulation	1-100% arbitrary adjustable
Syringe selection	built-in main manufacturers, the main model syringe to choose; Can use custom syringe, direct input syringe size & diameter
Flow calibration	through the calibration procedure to obtain more accurate fluid volume
Display	4.3 -inch color LCD, 480 * 272 resolution, color 65 k; With screen display and transfusion volume, quantity of liquid, flow, operation direction, syringe specification, etc.; Animation display operation status
Operation mode	touch screen + button
Power-off memory	storing the running parameters automatically
Other features	pause and stop; The sound tip;The lock parameters; Fast forward and retreat quickly
State signal output	1 road stop state, 1 state road direction
Control signal input	1 way down along the priming, 1 way down along the trigger to stop
Communication interface	RS485, MODBUS protocol
Applicable power	AC90-264V/ 20W
Working temperature	5 to 40 ºC
Relative humidity	< 80% RH
Dimension	290205141 mm	290205141 mm	290230175 mm		290280175 mm
Weight	4.4 kg	4.4 kg	4.8 kg		5.2 kg
