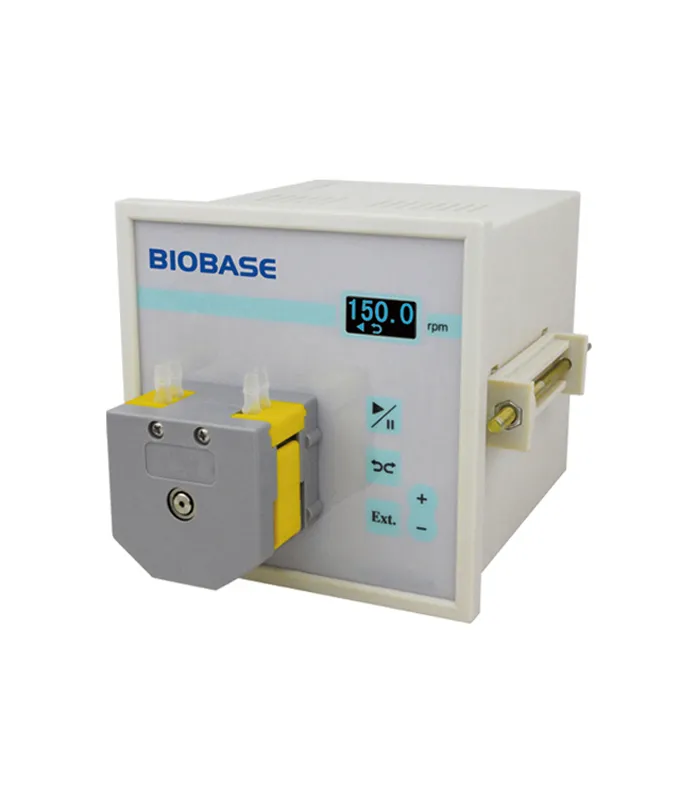

Product Description

Feature

* Low power consumption

* 304 stainless steel housing, resist corrosion. (CPP-SP series)

* Support RS485 with MODBUS protocol, convenient to connect with PLC.

* Embedded design,small volume, suitable for installing in other instruments. (CPP-EM series).

Parameters

Model	CPP-EM1				CPP-SP1			CPP-EM2		CPP-SP2
Drive	MEM-MiniPump				SP-MiniPump			EM-MiniPump		SP-MiniPump
Pump Head	MiniPump 01							MiniPump 02
Channel	1							2
Tubing	13#	14#	16#			25#		1*1	2*1		2.5*1
Flow Rate( ml/min)	0.0024--8.28	0.0112--33.88	0.0394--114.31			0.0652 --190.00		0.005--15.01	0.018--54.63		0.0256 --76.84
Flow Rate Range	0.0024~190ml/min
Speed Range	0.1~300rpm, reversible
Speed Resolution	0.1rpm
Flow Rate Resolution	0.01ml
Motor Type	42 stepper motor
Display	OLED screen				LED screen			OLED screen		LED screen
Control Method	Mask keypad				Toggle switch and digital knob			Mask keypad		Toggle switch and digital knob
External Control	0~5V, 0~10V, 4~20mA; RS485 communication interface, MODBUS protocol.
Environment Temperature	0~40ºC
Relative Humidity	<80%
IP Rate	IP31
Power Supply	24V DC, with power adapter
Consumption	<15W
Drive External Size (LWH)mm	110120120mm			136113108mm			110120120mm			136113108mm
