Factory Price Peristaltic Hose Pump for Textile Mill

factory price peristaltic hose pump for textile millDescription:LH series industrial hose pump (peristaltic pump) consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed.......

Send Inquiry

Product Description

factory price peristaltic hose pump for textile mill

Description:

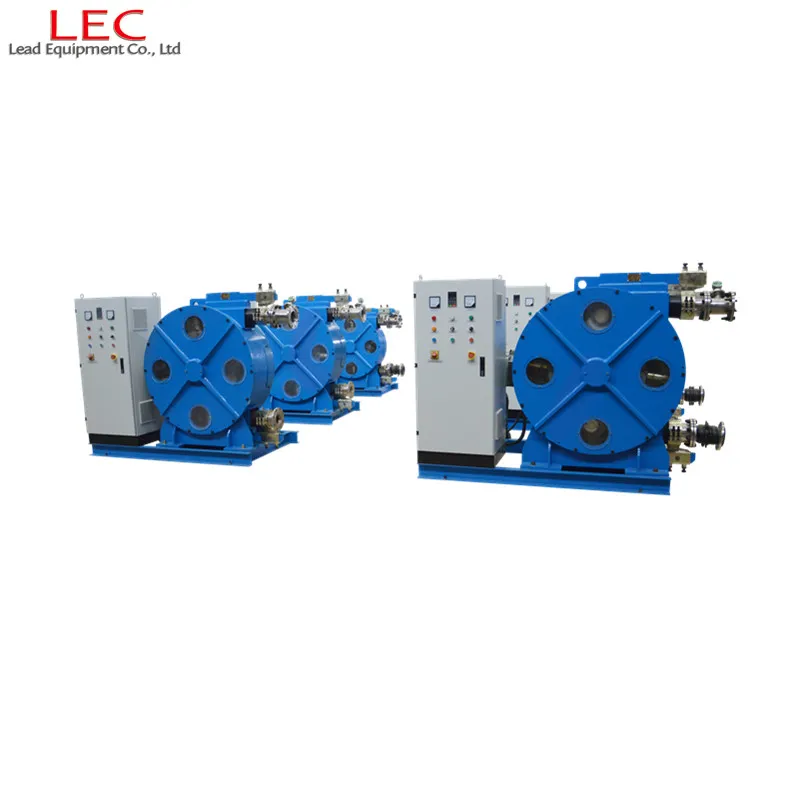

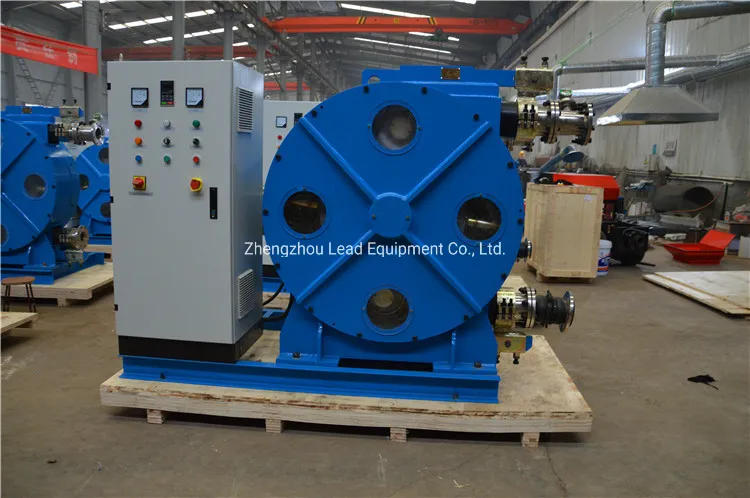

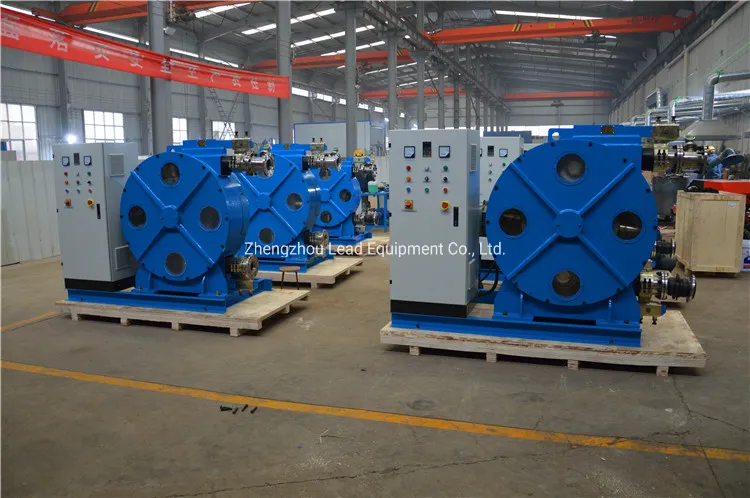

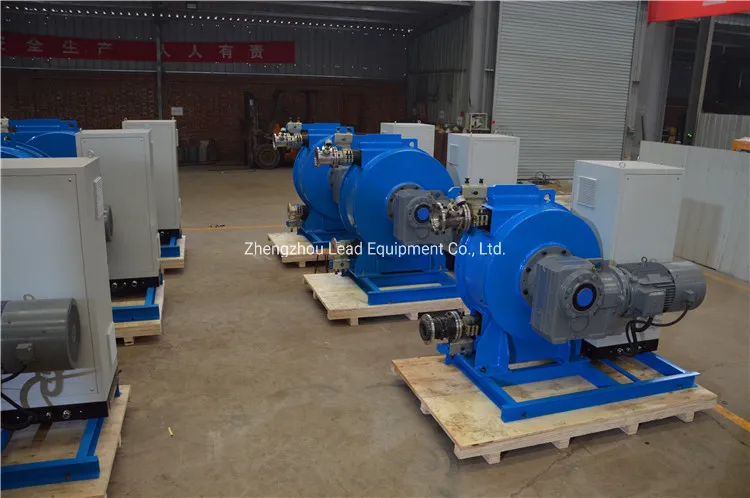

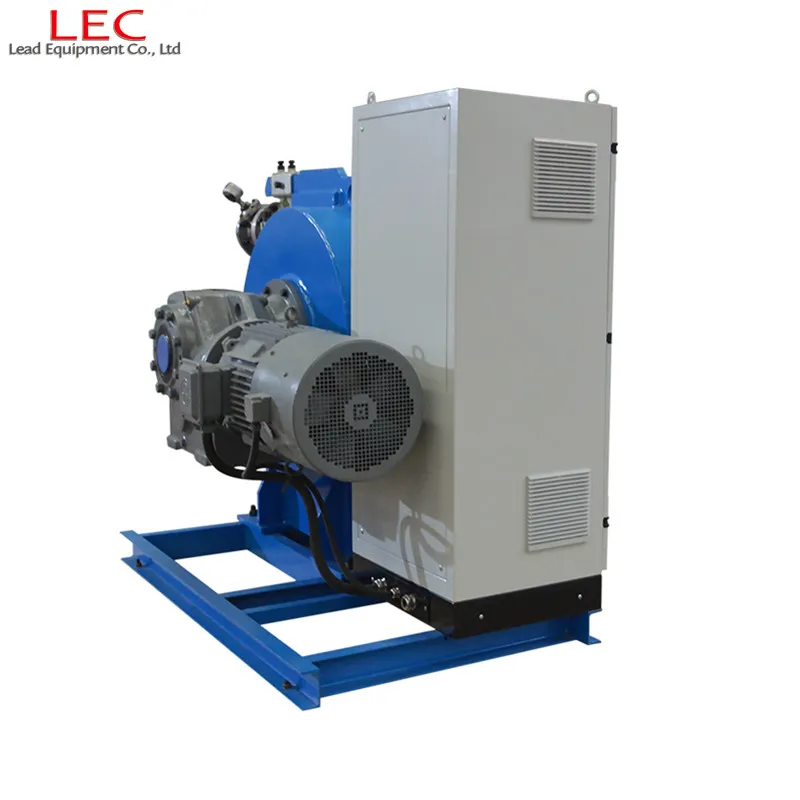

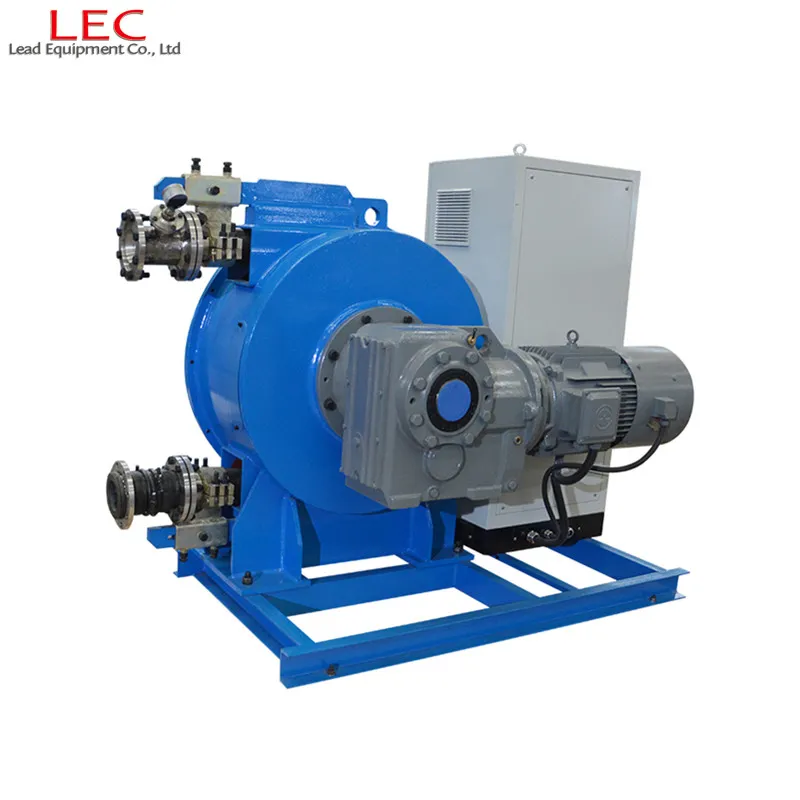

LH series industrial hose pump (peristaltic pump) consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller's push, finally forms pressure conveying of slurries.

LH series industrial hose pump are mainly applied in distant conveying, grouting and dosing of viscous slurries in construction, mining, food, papermaking, ceramic, etc.

Application
LEC industrial peristaltic pumps can be used in following field: Construction, pharmacy, textile mill, dye making, water treatment, paper making, mining, ceramic, brewery and beverage, underground engineering, etc. It's perfect to pump corrosive, abrasives, shear sensitive fluids, high viscosity fluids, high density fluids, large solids, metering(±1%), high pressure(3Mpa).

Features:
No seals
No valves
Self -priming
Only tube to replace
Dry running without damage
Reversible
No contact between product and mechanical parts
Able to pump products with solid parts inside
Easy maintenance, low-cost, short down time

Model	Output capacity	Pressure	Rotate Speed	Squeeze Hose ID	Motor Power
LH15-200	0.3m3/h	1.5Mpa	60rpm	15mm	0.75Kw
LH25-265	0.6m3/h	1.5Mpa	36rpm	25mm	1.5Kw
LH32-330	1.3m3/h	1.5Mpa	36rpm	32mm	2.2Kw
LH38-430B	2.2m3/h	1.5Mpa	32rpm	38mm	3Kw
LH50-445B	4.6m3/h	1.5Mpa	38rpm	50mm	4Kw
LH50-558B	6m3/h	1.5Mpa	40rpm	50mm	5.5Kw
LH50-680B	6.4m3/h	1.5Mpa	34rpm	50mm	7.5Kw
LH65-600B	8m3/h	1.5Mpa	34rpm	65mm	7.5Kw
LH65-680B	13m3/h	1.5Mpa	41rpm	65mm	11Kw
LH76-770B	18m3/h	1.5Mpa	38rpm	76mm	18.5Kw
LH100-915B	32m3/h	2.5Mpa	32rpm	100mm	45Kw
LH125-915B	55m3/h	0.6Mpa	35rpm	125mm	22Kw
LCP15H-E	15m3/h	2.5Mpa	37rpm	75mm	22Kw
LCP40H-E	45m3/h	2.5Mpa	39rpm	100mm	45Kw
We could customize the hose pump according to output capacity and working pressure of clients' requirement.
