Product Description

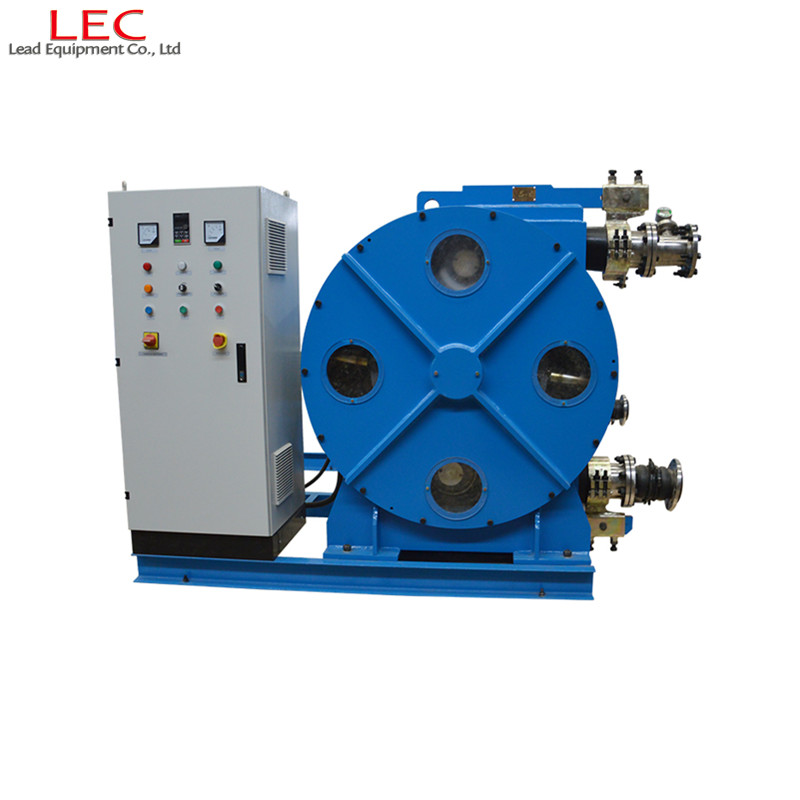

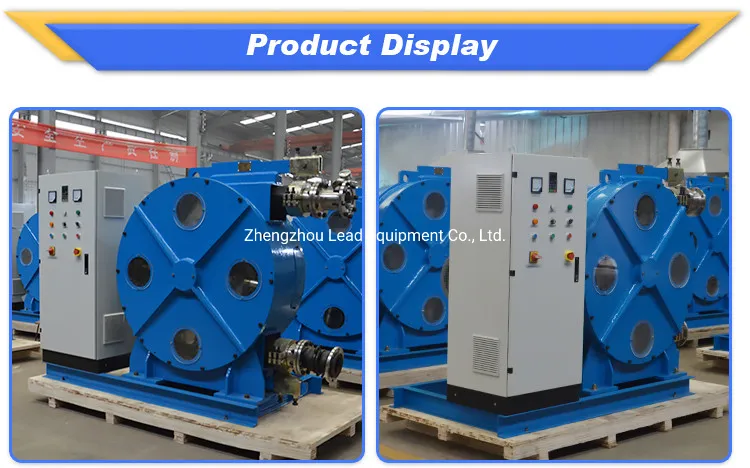

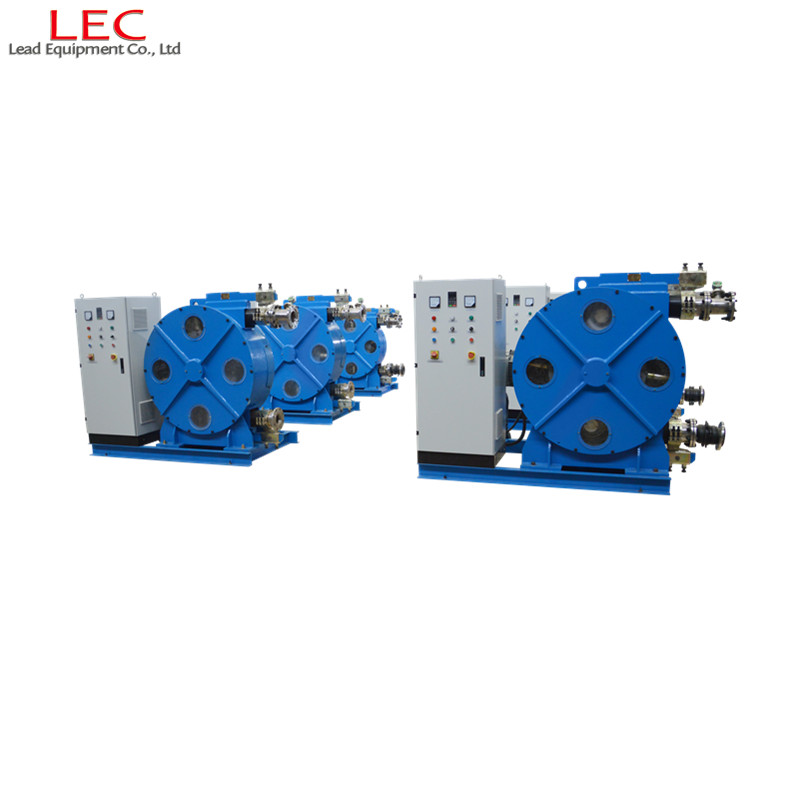

LH125-915B Peristaltic hose pump for pumping slurries

Description:

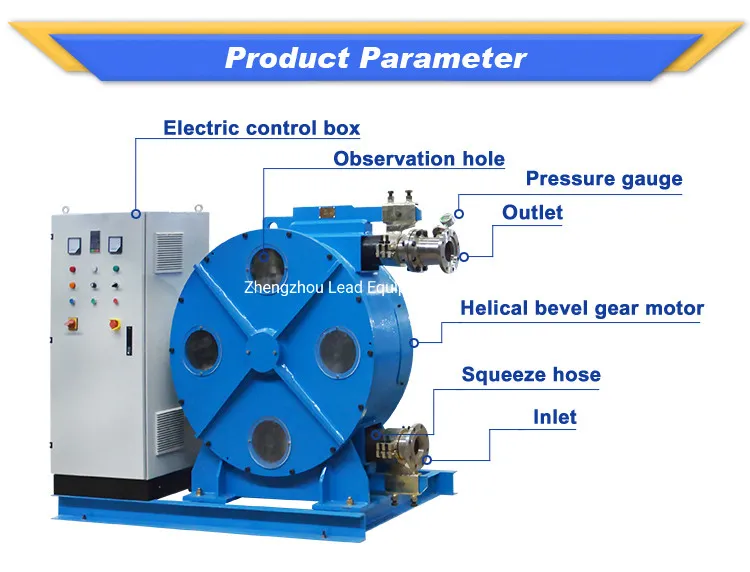

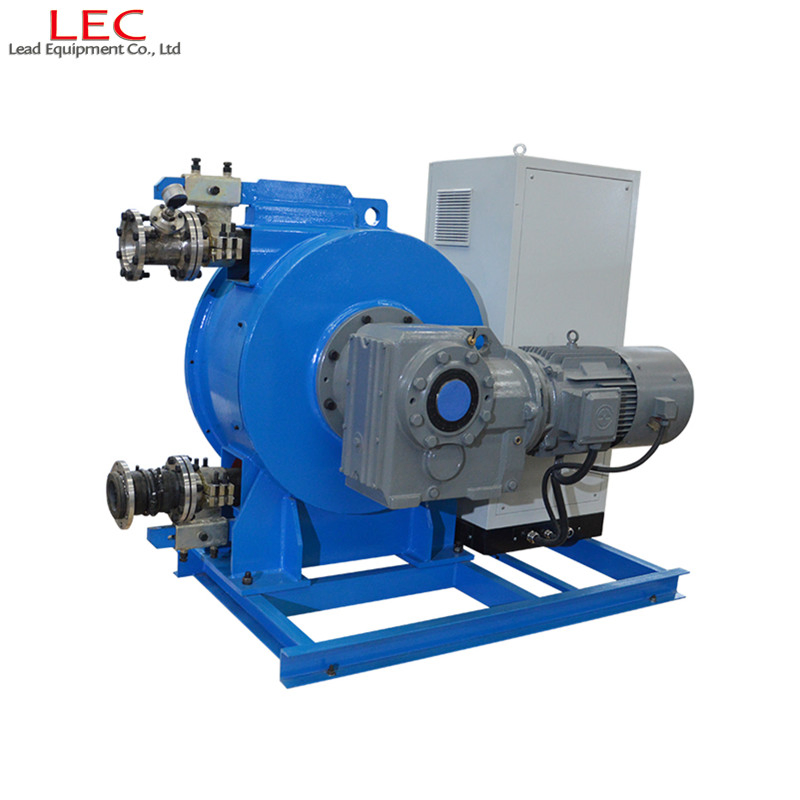

LH series industrial hose pump (peristaltic pump) consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller's push, finally forms pressure conveying of slurries.
LH series industrial hose pump are mainly applied in distant conveying, grouting and dosing of viscous slurries in construction, mining, food, papermaking, ceramic, etc.

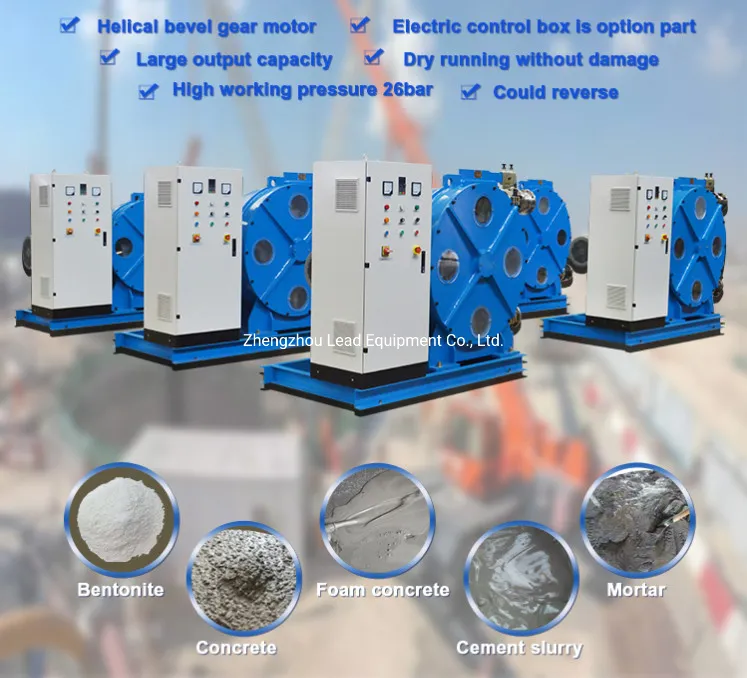

LH125-915B series industrial hose pump (squeeze pump), large output capacity, Max. Output is 60m3/h, the electric control box motor power is 22kw.
LH125-915B series squeeze-type industrial peristaltic hose pump are mainly applied in distant conveying, grouting and slurries in construction, mining, food, papermaking, ceramic, etc.
Lh125-915b Peristaltic Hose Pump for Pumping Slurries

Model	LH125-915B
Max.Output	60m3/h
Rotation	40rpm
Motor Power	45kw
Squeeze Hose ID	125mm
Working pressure	26bar
Max.Aggregate Size	15mm
Max.Suction Lift	5m
WeiGHt	1630kg

Features:
No seals
No valves
Self -priming

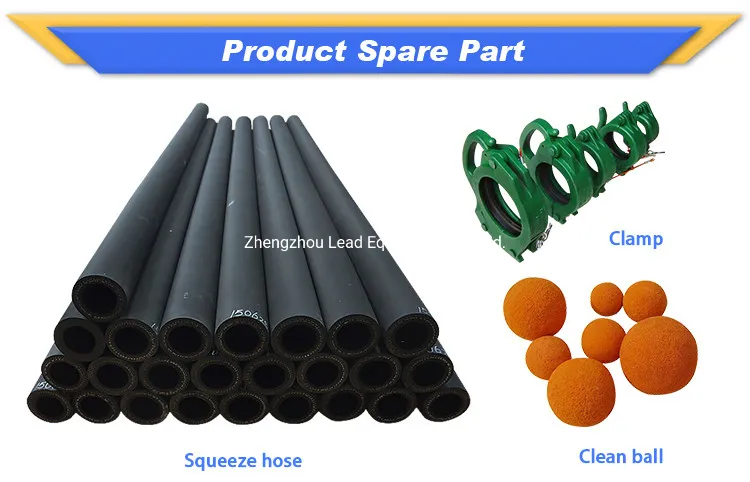

Only tube to replace
Dry running without damage
Reversible
No contact between product and mechanical parts
Able to pump products with solid parts inside
Easy maintenance, low-cost, short down time
Lh125-915b Peristaltic Hose Pump for Pumping Slurries

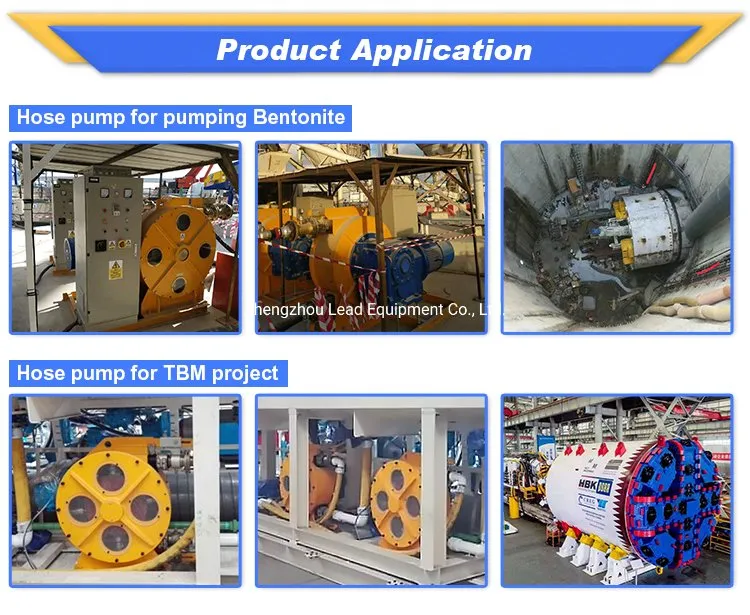

Application
LEC industrial peristaltic pumps can be used in following field: Construction, pharmacy, textile mill, dye making, water treatment, paper making, mining, ceramic, brewery and beverage, underground engineering, etc. It's perfect to pump corrosive, abrasives, shear sensitive fluids, high viscosity fluids, high density fluids, large solids, metering(±1%), high pressure(3Mpa).
