Product Description

Brief introduction of peristaltic pump:

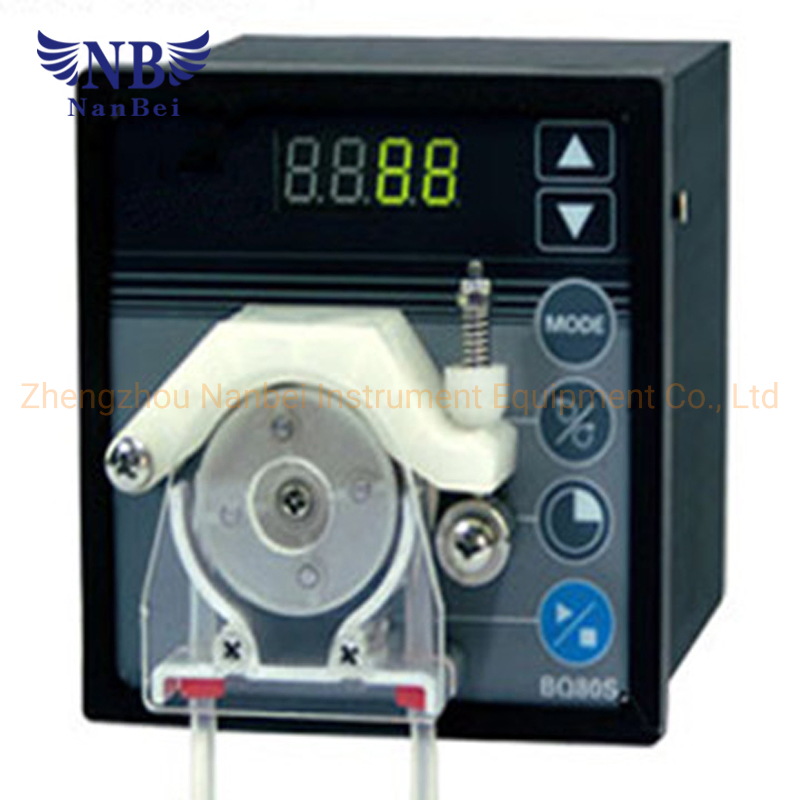

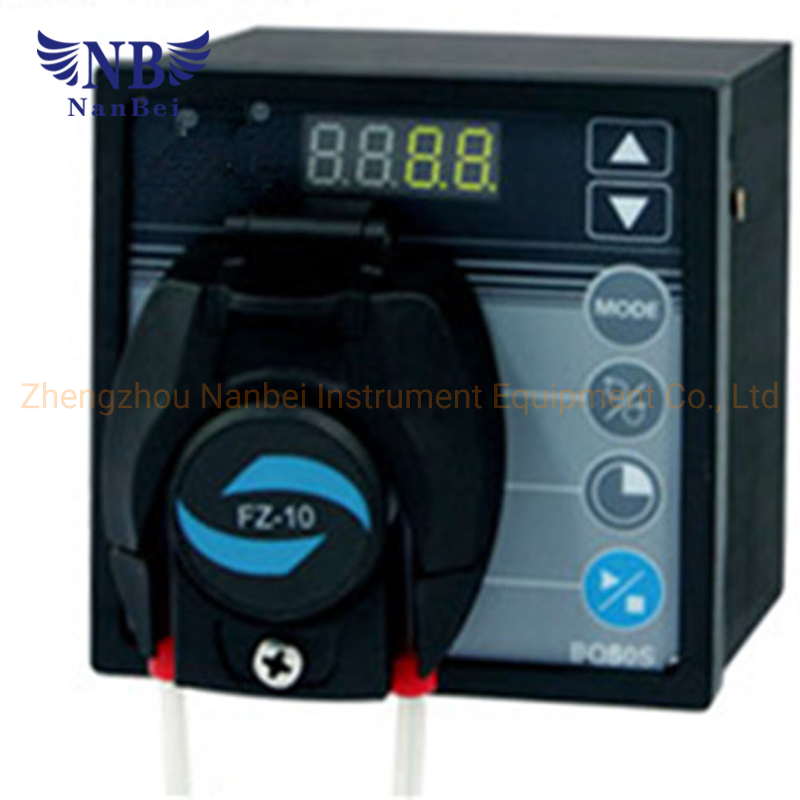

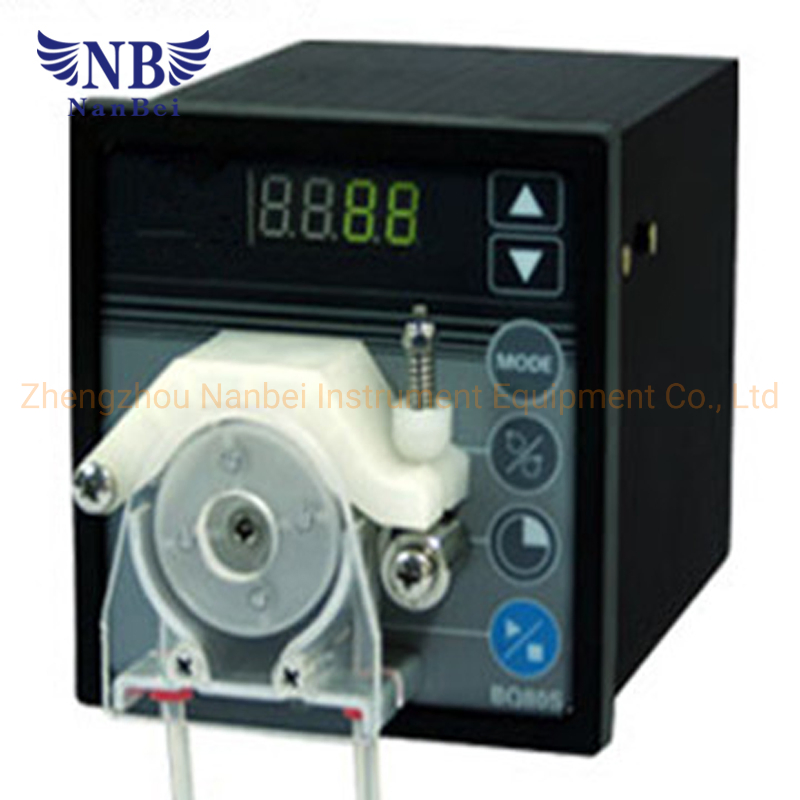

BQ80S Micrometeror Speed -Variable Peristaltic Pump can work on the desktop without any fixed plate, meanwhile, embedded design makes the pump can assort with other equipments conveniently .Its flow range is 0.005-64ml/min,Speed range is 0.1-80rpm.Having basic functions such as reversible direction, start/stop, full speed (fast cleaning, empty) and speed- variable. Dispensing function realizes the repeat timing quantitative dispensing. The pump head loads Pharmed BPT tubing whose working life is up to 12000 hours under continuously running. RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer, human machine interface and PLC. The peristaltic pump has IP31 grade.
Features of NANBEI peristaltic pump:

1. Simple operation, small size, easy installation, suitable for ancillary equipment and laboratories.
2. Built-in Pharmed BPT tubing whose working life is up to 12000 hours under continuously running
3. Four-figure digital LED indicator displays working speed.
4. The LED indicator displays the internal, external control mode.
5. Mask keypad operation.
6. Reversible direction, start/stop, adjust speed and full speed, state memory (power-down memory).
7. Easy dispensing function, it realizes the repeat timing quantitative dispensing.
8. Speed resolution is 0.1rpm.
9. Plastic housing, adopts embedded design, also can work on the desktop separately.
10. The circuit board with conformal coating makes it dust-proof and moisture-proof.
11. Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
12. External high-low electrical level controls the start/stop, reversible direction and easy dispensing function,
optically coupled isolator.
13 Can input the electrical level 5V,12V or 24V.
14. RS485 interface, MODBUS protocol is available, easy to connect other equipments.
15. Optional footswitch or timer for dispensing fluid.

Flow range	Speed range	Flow accuracy	Speed resolution	Power supply
0.005-64ml/min	0.1-80rpm.	<0.5%	0.1rpm	AC 220V±10%,50Hz/60Hz(standard)AC 110V±10%,50Hz/60Hz(optional)
Power consumption	External control	External communication interface	Ambient temperature	Relative humidity
<10W	Input electrical level 5V,12V(standard),24V(optional)	RS485 communication interface support the MODBUS protocol.	0 ~ 40ºC	<80%
Drive type	Pump head	Channel number	Tubing(mm)	One channel flow rate(ml/min)
BQ80S	FZ10	1	Wall 0.8~1,ID1~3.17	0.005~32
	DW10-1	1	Wall 0.8~1,ID1~3.17	0.005~32
	DW10-2	2	Wall 0.8~1,ID1~3.17	0.005~19
	DW10-3	3	Wall 0.8~1,ID1~3.17	0.005~32
	DW15-1	1	13#,14#,19#,16#,25#	0.005~64

FAQ

1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.

Pre-sale service

· 24hours online to ensure quick response to customers' inquiry or online message;

· Guide customers to choose the best suitable machine model;

· Offer detailed specification and competitive prices;

Contract execution

· Machine production will be arranged strictly according to the contract;

· Machine photos will be sent to you for inspection during production;

· Send customs clearance documents by DHL;

· Update latest news after delivery and prepare customs clearance;

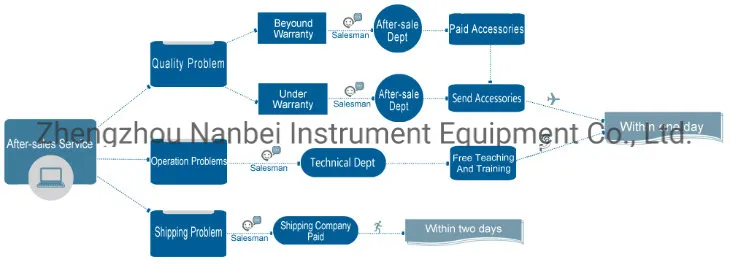

After-sale service

· 12 months warranty except for wear parts;

· Broken spare parts (except for wear parts) will be sent for free due to quality problems;

· In time response to customers technical problems;

· New products update for customers' reference

Our Company:
Since 2008, We have become a professional laboratory instrument manufacturer.
Since the establishment of the International Department in 2010, the products are exported to Europe, America and Asia and Africa!
Whether it is technology, factory area, multi-language sales. We are all professional!

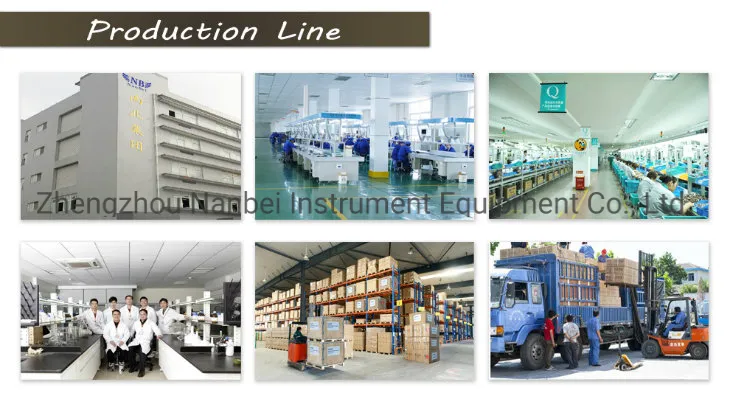

Factory Show:

Certification:
Our products have international certifications such as SGS, CE, ISO!

Warranty And After-sale Service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥
