Miran Butter Electric Lubricate Oil Pump Mgh- 1232 -100tb

Product Description

Product Description

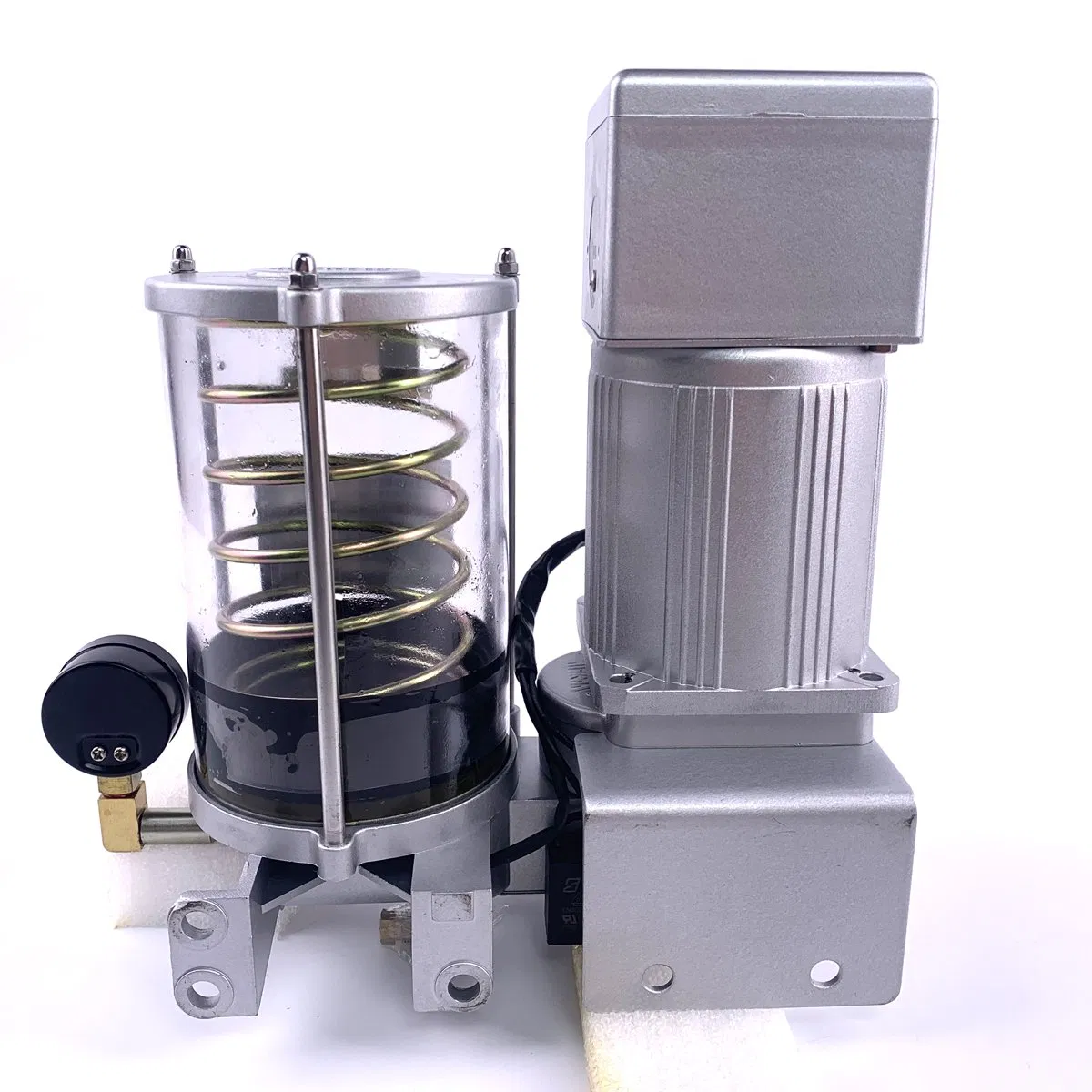

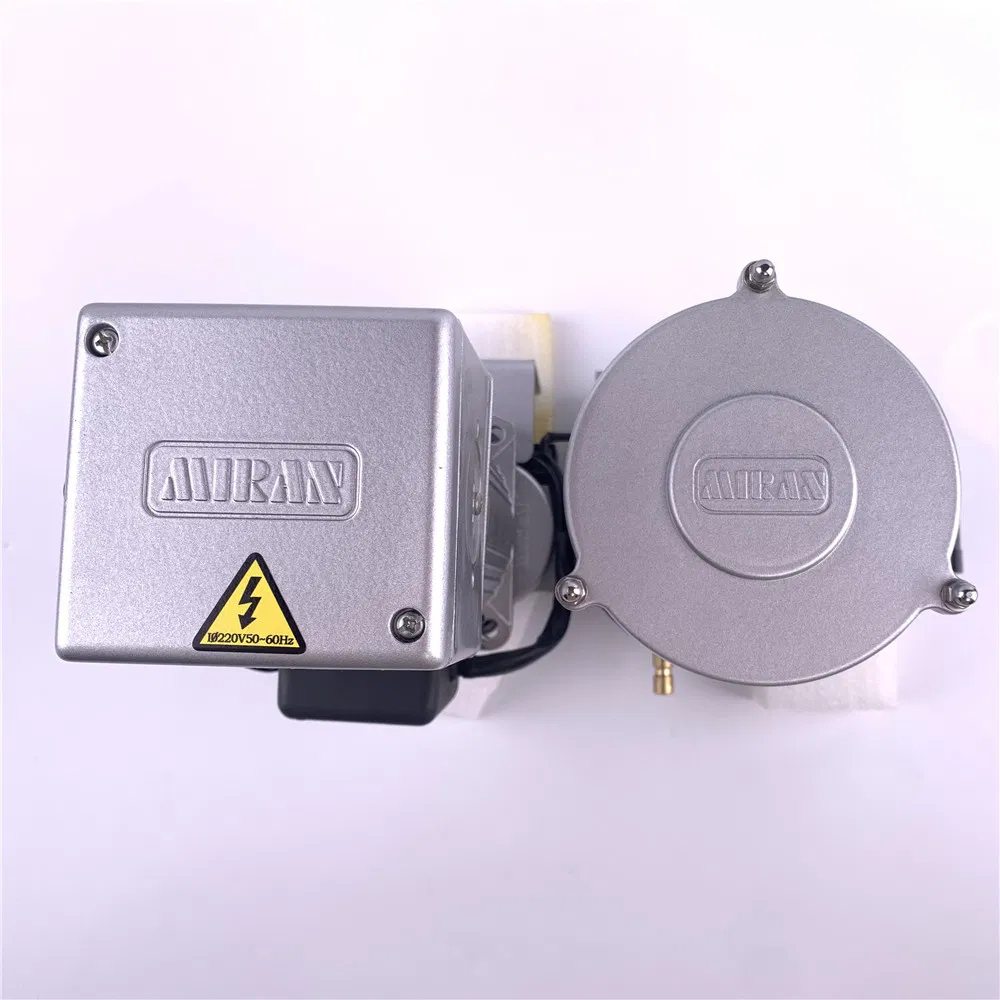

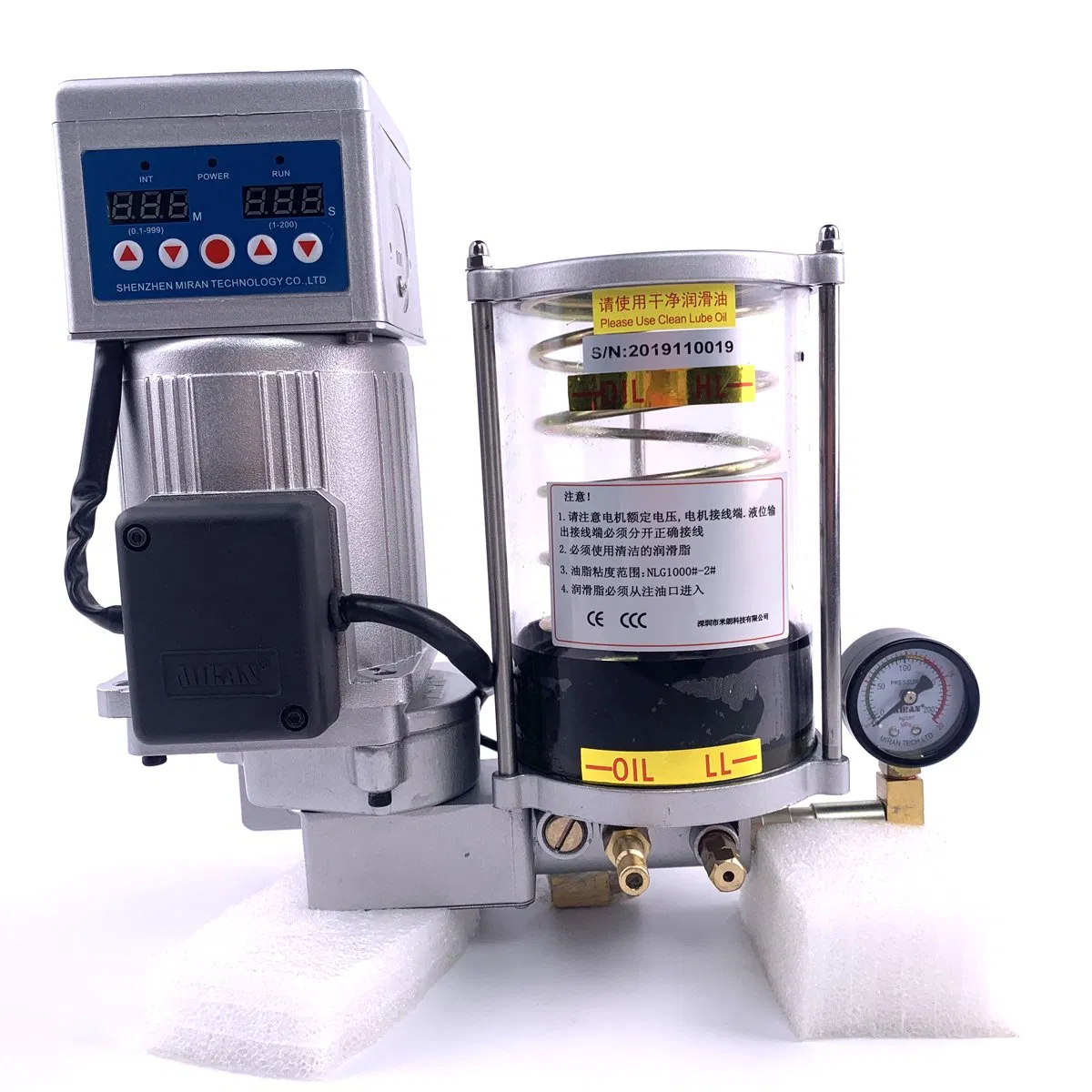

Miran MGH-1232(1L) Self-control Grease and Thin Oil Lubrication Pump with PLC Type

This pump isSelf-control type, with a Liquid Level Alarm, both suitable for oil and butter. NC / COM / NO outputs, oil outlet at the bottom, damper type or volumetric type perferrable, suitable for various lubricating systems.

Basic info.

Model No.	MGH-1232-100T	Fuel	butter
Brand	MIRAN	Power source	Electricity
Application	Lubrication, automotive industry	Method	Damper Type SLR/ Volumetric PDI
Working voltage	220V/380V AC	Theoretical discharge	Grease oil 50 ml/min
Power	40W	Oil viscosity	32~750 mm²/s
Tank capacity	1/2/3/4 L	Oil pressure	0~100 Kgf/cm²
Structure	Gear pump	Viscosity range	000#~1#
Operation type	Self control	HS code	8481804090
Specification	Aluminum case	Outlet pipe size	Diameter 4mm/6mm
Transport package	Carton box	Place of Origin	Guangdong, China

Specifications:
Operation	Host Control / an External Special Controller
Oil Injection Cycle	intermittent; ajustable by a PC contoller
Oil Pressure	0~100 kgf/cm2
Oil Flow	thin oil 300ml/min; grease oil 50ml/min
Working Voltage	220/380 VAC
Power	40 W
Oil Viscosity	0#~2# kgf/cm2
Tank Capacity	1L
Oil Pipe Size	Φ6mm
Applicable System	Damper Type SLR / Volumetric PDI
More Details: MRH-1232-100TB the oil injection is controlled by Host or a special controller, with a Liquid Level Alarm, NC / COM / NO outputs, water outlet at the bottom, damper type or volumetric type perferrable, suitable for various lubricating systems.
1. What is the difference between: 3202 and 3232 ? 3202 type is half-controlled,it needs your machine to control the oil offering time and resting time. 3232 type is self-controlled,there is the controller inside,it can control the oil offering time (0-200 seconds) and resting time(0-999 mins). 2. How long can be the hose? You can buy our plastic hose,it is from 1 meter to 100 meters,200 meters or 300 meters. 3. How many lubrication points can be used for each pump? You can buy our lubricating points from 2 points to 14 points. 4. What is the main application for lubricating pump? Normally our pumps are suitable for plastic machinery,engineering machinery,and machinery for textile,printing,woodworking,chemical,etc. ,ensuring lubrication performance of various kinds of machinery products, for longer service life and accuracy.
