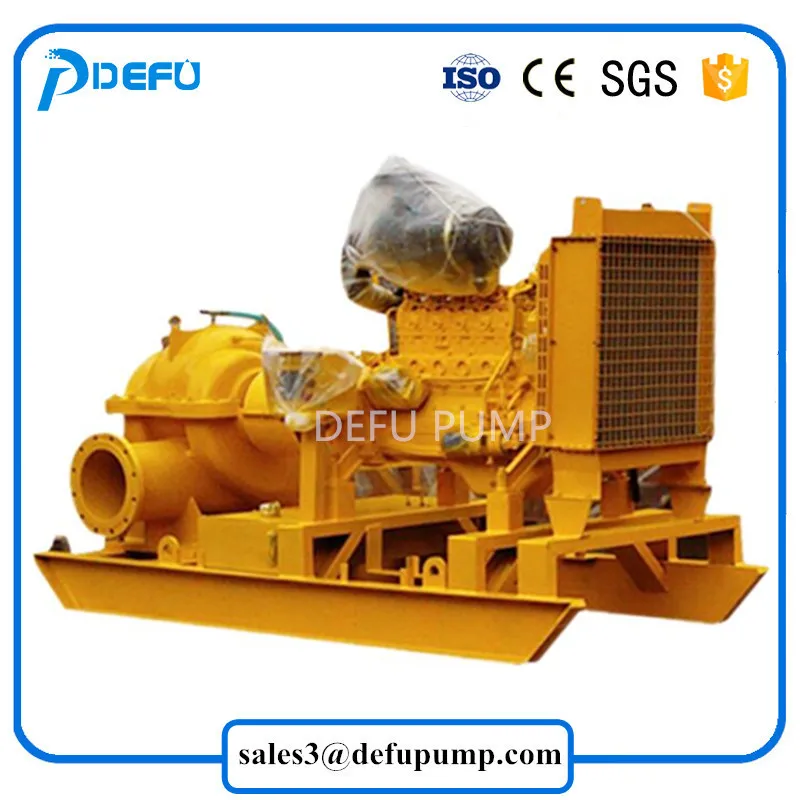

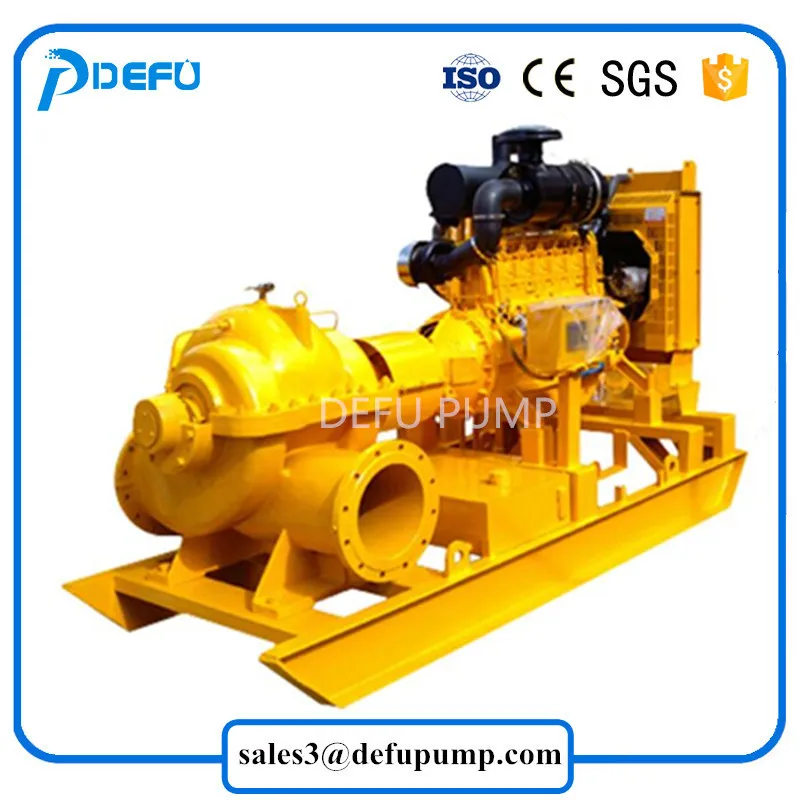

Ce Approved High Capacity Diesel Engine Flood Water Pump
1.Product DescriptionTPOW series double suction centrifugal pump is mainly used for transporting water or liquid which has the similar physical and chemical properties to water, It has large flow because there are two suction inlets on the impeller, so our centrifugal pump can be applied to urban f......
Send Inquiry
Product Description
1.Product Description
TPOW series double suction centrifugal pump is mainly used for transporting water or liquid which has the similar physical and chemical properties to water, It has large flow because there are two suction inlets on the impeller, so our centrifugal pump can be applied to urban flood drainage, power station, water supply, farm irrigation, water plant, pumping station, water circulation for air conditioner, heating water circulation, industrial water supply system, fire water supply and other fields.
2.Pump Technical Parameters
1.Flow:0-36000m3/h;
2.Head:0-220m;
3.Power:7.5-355kw;
4.Rotary speed:1450rpm,1750rpm,2900rpm,3500rpm
5..Temperature:-15-150°C.
3.Partial Models Specifications (More Information Pls Feel Free To Contact Us)

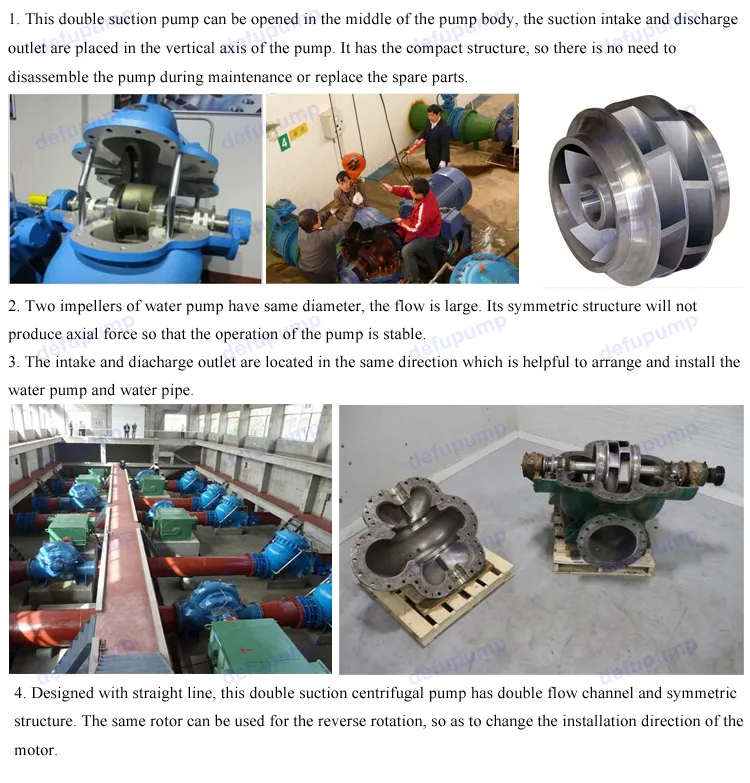

4.Pump Features

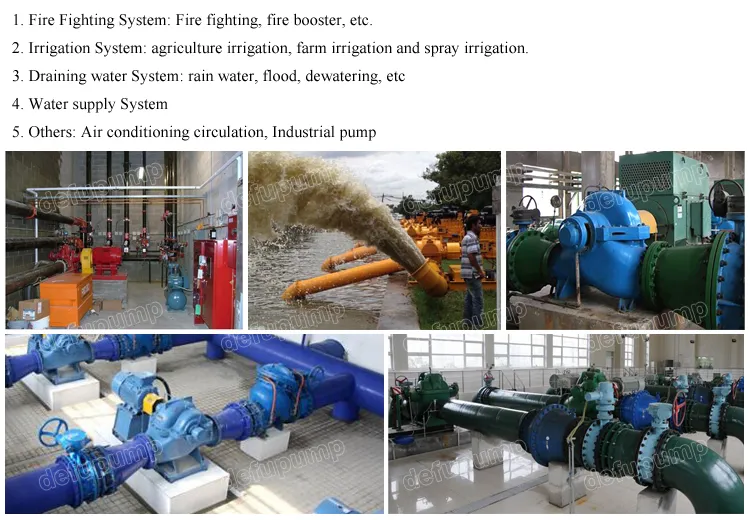

5.Applications(Show from Our Clients)
6.Our Services
1. Delivery: Delivery time will be on time as the contract. Usually, our company need 25 working days for diesel engine pump, and for bare shaft pump, it takes 15 working days,
2. Warranty: 12 month for the pump body, 3 month for the main working parts.
3. Package: We use plywood case to pack our pump, which is durable for ocean transport.
4. On-sales Service: we will clear show you everything in fact when you place an order with us. We will
take photos or videos to show you our production situation, and report the production situation to you.
5. Quality: we will test our pump before delivery, and we will follow up the pump working conditions per three months when the pump put into use. If you need spare parts, we can send to you in 1 or 2 weeks.

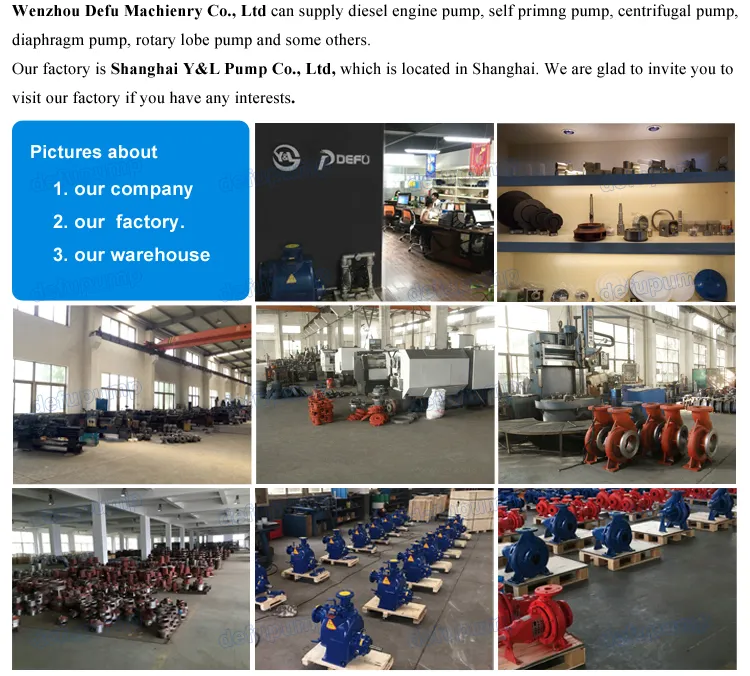

7.Our Factory
Welcome to visit our factory!
All My Striving,For Your Satisfaction.
*********************************************************************************************
Head Office: Wenzhou DEFU Machinery Co.,Ltd
Subsidiary Factory Name:Shanghai Y&L Pump Co.,Ltd
Mobile :+86 -18042130095 Fax: +86-577-86553150
WebSite:defucc-machinery.en.made-in-china.com
TPOW series double suction centrifugal pump is mainly used for transporting water or liquid which has the similar physical and chemical properties to water, It has large flow because there are two suction inlets on the impeller, so our centrifugal pump can be applied to urban flood drainage, power station, water supply, farm irrigation, water plant, pumping station, water circulation for air conditioner, heating water circulation, industrial water supply system, fire water supply and other fields.
2.Pump Technical Parameters
1.Flow:0-36000m3/h;
2.Head:0-220m;
3.Power:7.5-355kw;
4.Rotary speed:1450rpm,1750rpm,2900rpm,3500rpm
5..Temperature:-15-150°C.
3.Partial Models Specifications (More Information Pls Feel Free To Contact Us)
| Pump Model | Capacity | Head (m) | Speed (r/min) | Power | Efficiency (%) | NPSHr (m) | Impeller's Dia(mm) | Net Pump Weight(kg) | ||
| m3/h | L/S | Shaft Power (kw) | Motor Power (kw) | |||||||
| TPOW80-220 | 17 | 4.7 | 16 | 1480 | 1.9 | 4 | 39 | 1.7 | 215 | 181 |
| 66.5 | 18.5 | 12.8 | 2.9 | 81 | ||||||
| 108 | 30 | 7.8 | 3.3 | 69 | ||||||
| TPOW80-220A | 16 | 4.4 | 13.9 | 1.6 | 3 | 38 | 200 | |||
| 71 | 17 | 10.8 | 2.6 | 80 | ||||||
| 98 | 27.2 | 7 | 2.7 | 68 | ||||||
| TPOW80-220B | 15 | 4.2 | 11.8 | 1.3 | 3 | 36 | 185 | |||
| 55 | 15.5 | 9 | 1.7 | 78 | ||||||
| 85 | 23.6 | 6.2 | 2.2 | 66 | ||||||
| TPOW80-220C | 14.5 | 4 | 10 | 1.2 | 2.2 | 32 | 170 | |||
| 57 | 14.3 | 7.6 | 1.6 | 74 | ||||||
| 72 | 20 | 6.1 | 1.9 | 62 | ||||||
| TPOW80-220 | 60 | 16.6 | 58 | 2950 | 24.3 | 37 | 39 | 3.5 | 215 | 181 |
| 134.5 | 37.4 | 51 | 23.1 | 81 | ||||||
| 162 | 45 | 46 | 29.4 | 69 | ||||||
| TPOW80-220A | 58 | 16.1 | 49 | 20.4 | 30 | 38 | 200 | |||
| 124.2 | 34.5 | 43.5 | 18.4 | 80 | ||||||
| 144 | 40 | 39 | 22.5 | 68 | ||||||
| TPOW80-220B | 57 | 15.8 | 41 | 17.6 | 22 | 36.2 | 185 | |||
| 113 | 31.4 | 36 | 14.2 | 78.2 | ||||||
| 129.6 | 36 | 33 | 17.6 | 66.2 | ||||||
| TPOW80-220C | 55 | 15.2 | 35 | 16.4 | 18.5 | 32 | 170 | |||
| 105 | 29.2 | 31 | 12 | 74 | ||||||
| 126 | 35 | 28 | 15.5 | 62 | ||||||
4.Pump Features
5.Applications(Show from Our Clients)
6.Our Services
1. Delivery: Delivery time will be on time as the contract. Usually, our company need 25 working days for diesel engine pump, and for bare shaft pump, it takes 15 working days,
2. Warranty: 12 month for the pump body, 3 month for the main working parts.
3. Package: We use plywood case to pack our pump, which is durable for ocean transport.
4. On-sales Service: we will clear show you everything in fact when you place an order with us. We will
take photos or videos to show you our production situation, and report the production situation to you.
5. Quality: we will test our pump before delivery, and we will follow up the pump working conditions per three months when the pump put into use. If you need spare parts, we can send to you in 1 or 2 weeks.
7.Our Factory
Welcome to visit our factory!
All My Striving,For Your Satisfaction.
*********************************************************************************************
Head Office: Wenzhou DEFU Machinery Co.,Ltd
Subsidiary Factory Name:Shanghai Y&L Pump Co.,Ltd
Mobile :+86 -18042130095 Fax: +86-577-86553150
WebSite:defucc-machinery.en.made-in-china.com
