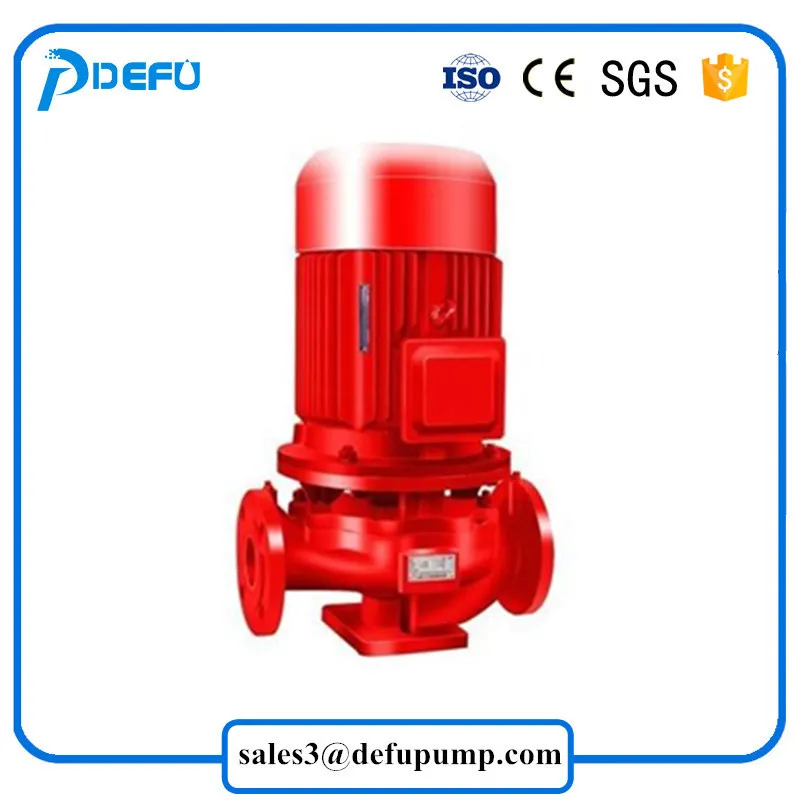

Isg High Pressure Booster Jockey Fire Pump with Best Price
1.Product DescriptionISG series pump is single-stage , single-suction centrifugal pump , designed as per the interational standard ISO2858 . It is a replacement of type BA water pump which is applicable to industrial and urban water supply and discharge as well as the agriculture irrigation . It can......
Send Inquiry
Product Description
1.Product Description
ISG series pump is single-stage , single-suction centrifugal pump , designed as per the interational standard ISO2858 . It is a replacement of type BA water pump which is applicable to industrial and urban water supply and discharge as well as the agriculture irrigation . It can be used to transport liquid which have physical and chemical properties similar to clean water with a temperature not exceeding 80°C. IHG type motor drive chemical pump designed for transferingchemical liquid, oil, petrochemical industry, metallurgy, light industry, printing dyeing, pharmaceutics, environment protect, seawater desalt, paper making, food and etc .industrial departments to transport corrosive medium without suspended grain or medium.
2.Pump Technical Parameters
1.Flow:0-1800m3/h;
2.Head:0-150m;
3.Power:0.75-250kw;
4.Rotary speed:1450rpm,1750rpm,2900rpm,3500rpm
5..Temperature:-15-120°C.
3.Partial Models Specifications for Clients Choosing(More Model Information Pls Feel Free To Contact Us)
4.Pump Structure
5.Pump Features
1. Easy to mount. Because the inlet and outlet is located on the same central line, the pump can be directly mounted on any part of the pipeline just as a valve. Covered with a rain-proof cap, it can be operated outdoors.
2. Impeller mounted directly on the long axis of the motor, pump and motor bearing arrangement is reasonable, pump operation can effectively balance the radial and axial loads, thus ensuring the smooth operation of the pump, small vibration and low noise.
3. Mechanical shaft seal, use of imported titanium alloy seal ring, medium and high temperature mechanical seal with carbide materials, anti-wearing no leakage.
4. Easy installation and maintenance, no need to open pipeline system, the rotation parts of the pump can be pulled out by removing the screws on the pump.
5. According to the needs of flow and head, the pump can be used in series or parallel operation mode.
6..Applications(Show from Our Clients)
7.Our Services
1. Delivery: Delivery time will be on time as the contract. Usually, our company need 7 working days for vertical inline pump, and for stainless steel material pump, it takes 15 working days,
2. Warranty: 12 month for the pump body, 3 month for the main working parts.
3. Package: We use plywood case to pack our pump, which is durable for ocean transport.
4. On-sales Service: we will clear show you everything in fact when you place an order with us. We will
take photos or videos to show you our production situation, and report the production situation to you.
5. Quality: we will test our pump before delivery, and we will follow up the pump working conditions per three months when the pump put into use. If you need spare parts, we can send to you in 1 or 2 weeks.
8.Our Factory
Welcome to visit our factory!
All My Striving,For Your Satisfaction.
*********************************************************************************************
Head Office: Wenzhou DEFU Machinery Co.,Ltd
Subsidiary Factory Name:Shanghai Y&L Pump Co.,Ltd
Mobile :+86 -18042130095 Fax: +86-577-86553150
WebSite:defucc-machinery.en.made-in-china.com
ISG series pump is single-stage , single-suction centrifugal pump , designed as per the interational standard ISO2858 . It is a replacement of type BA water pump which is applicable to industrial and urban water supply and discharge as well as the agriculture irrigation . It can be used to transport liquid which have physical and chemical properties similar to clean water with a temperature not exceeding 80°C. IHG type motor drive chemical pump designed for transferingchemical liquid, oil, petrochemical industry, metallurgy, light industry, printing dyeing, pharmaceutics, environment protect, seawater desalt, paper making, food and etc .industrial departments to transport corrosive medium without suspended grain or medium.
2.Pump Technical Parameters
1.Flow:0-1800m3/h;
2.Head:0-150m;
3.Power:0.75-250kw;
4.Rotary speed:1450rpm,1750rpm,2900rpm,3500rpm
5..Temperature:-15-120°C.
3.Partial Models Specifications for Clients Choosing(More Model Information Pls Feel Free To Contact Us)
| No. | Model | Capacity (m3/h) | Head (m) | Speed (rpm) | Power Kw | Voltage (V) |
| 1 | 15-80 | 1.5 | 8 | 2900 | 0.18 | 220 |
| 2 | 20-110 | 2.5 | 15 | 2900 | 0.37 | 220 |
| 3 | 20-125 | 2.5 | 20 | 2900 | 0.75 | 220 |
| 4 | 20-160 | 2.5 | 32 | 2900 | 1.1 | 220 |
| 5 | 25-110 | 4 | 15 | 2900 | 0.75 | 220 |
| 6 | 25-125 | 4 | 20 | 2900 | 0.75 | 220 |
| 7 | 25-125A | 3.6 | 16 | 2900 | 0.75 | 220 |
| 8 | 25-160A | 3.7 | 28 | 2900 | 1.1 | 220 |
| 9 | 32-100 | 4.5 | 12.5 | 2900 | 0.75 | 220 |
| 10 | 32-100(I) | 5.3 | 12.5 | 2900 | 0.75 | 220 |
| 11 | 32-125 | 5 | 20 | 2900 | 0.75 | 220 |
| 12 | 32-125A | 4.5 | 16 | 2900 | 0.75 | 220 |
| 13 | 32-160A | 4 | 25 | 2900 | 1.1 | 220 |
| 14 | 40-100 | 6.3 | 12.5 | 2900 | 0.75 | 220 |
| 15 | 40-l00A | 5.6 | 10 | 2900 | 0.37 | 220 |
| 16 | 40-125 | 6.3 | 20 | 2900 | 1.1 | 220 |
| 17 | 40-125A | 5.6 | 16 | 2900 | 0.75 | 220 |
| 18 | 40-100(I) | 12.5 | 12.5 | 2900 | 1.1 | 220 |
| 19 | 40-100(I)A | 11 | 10 | 2900 | 0.75 | 220 |
| 20 | 40-125(I)A | 11 | 16 | 2900 | 1.1 | 220 |
| 21 | 50-100 | 12.5 | 12.5 | 2900 | 1.1 | 220 |
| 22 | 50-l00A | 11 | 10 | 2900 | 0.75 | 220 |
| 23 | 50-125A | 11 | 16 | 2900 | 1.1 | 220 |
| 24 | 50-100(I)A | 22.3 | 10 | 2900 | 1.1 | 220 |
| 25 | 65-l00A | 22.3 | 10 | 2900 | 1.1 | 220 |
| 26 | 20-160 | 2.5 | 32 | 2900 | 1.1 | 380 |
| 27 | 25-125 | 4 | 20 | 2900 | 0.75 | 380 |
| 28 | 25-160 | 4 | 32 | 2900 | 1.5 | 380 |
| 29 | 25-160A | 3.7 | 28 | 2900 | 1.1 | 380 |
| 30 | 32-100(I) | 5.3 | 12.5 | 2900 | 0.75 | 380 |
| 31 | 32-125 | 5 | 20 | 2900 | 0.75 | 380 |
| 32 | 32-125A | 4.5 | 16 | 2900 | 0.75 | 380 |
| 33 | 32-125(I) | 6.3 | 20 | 2900 | 1.1 | 380 |
| 34 | 32-160 | 5 | 32 | 2900 | 1.5 | 380 |
| 35 | 32-160A | 4 | 25 | 2900 | 1.1 | 380 |
| 36 | 32-160(I) | 6.3 | 32 | 2900 | 2.2 | 380 |
| 37 | 32-200 | 4.5 | 50 | 2900 | 3 | 380 |
| 38 | 32-200A | 4 | 44 | 2900 | 3 | 380 |
| 39 | 32-200(I) | 6.3 | 50 | 2900 | 4 | 380 |
| 40 | 40-125 | 6.3 | 20 | 2900 | 1.1 | 380 |
| 41 | 40-125A | 5.6 | 16 | 2900 | 0.75 | 380 |
| 42 | 40-160 | 6.3 | 32 | 2900 | 2.2 | 380 |
| 43 | 40-160A | 5.9 | 28 | 2900 | 1.5 | 380 |
| 44 | 40-160B | 5.5 | 24 | 2900 | 1.1 | 380 |
| 45 | 40-200 | 6.3 | 50 | 2900 | 4 | 380 |
| 46 | 40-200A | 5.9 | 44 | 2900 | 3 | 380 |
| 47 | 40-200B | 5.3 | 36 | 2900 | 2.2 | 380 |
| 48 | 40-250 | 6.3 | 80 | 2900 | 7.5 | 380 |
| 49 | 40-250A | 5.9 | 70 | 2900 | 7.5 | 380 |
| 50 | 40-250B | 5.5 | 60 | 2900 | 5.5 | 380 |
| 51 | 40-100(I) | 12.5 | 12.5 | 2900 | 1.1 | 380 |
| 52 | 40-100(I)A | 11 | 10 | 2900 | 0.75 | 380 |
| 53 | 40-125(I) | 12.5 | 20 | 2900 | 1.5 | 380 |
| 54 | 40-125(I)A | 11 | 16 | 2900 | 1.1 | 380 |
| 55 | 40-160(I) | 12.5 | 32 | 2900 | 3 | 380 |
| 56 | 40-160(I)A | 11.7 | 28 | 2900 | 2.2 | 380 |
| 57 | 40-160(I)B | 10.4 | 22 | 2900 | 1.5 | 380 |
| 58 | 40-200(I) | 12.5 | 50 | 2900 | 5.5 | 380 |
| 59 | 40-200(I)A | 11.7 | 44 | 2900 | 4 | 380 |
| 60 | 40-200(I)B | 10.6 | 36 | 2900 | 3 | 380 |
| 61 | 40-250(I) | 12.5 | 80 | 2900 | 11 | 380 |
| 62 | 40-250(I)A | 11.6 | 70 | 2900 | 7.5 | 380 |
| 63 | 40-250(I)B | 10.8 | 60 | 2900 | 7.5 | 380 |
| 64 | 40-250(I)C | 10 | 52 | 2900 | 5.5 | 380 |
| 65 | 50-100 | 12.5 | 12.5 | 2900 | 1.1 | 380 |
| 66 | 50-l00A | 11 | 10 | 2900 | 0.75 | 380 |
| 67 | 50-125 | 12.5 | 20 | 2900 | 1.5 | 380 |
| 68 | 50-125A | 11 | 16 | 2900 | 1.1 | 380 |
| 69 | 50-160 | 12.5 | 32 | 2900 | 3 | 380 |
| 70 | 50-160A | 11.7 | 28 | 2900 | 2.2 | 380 |
| 71 | 50-160B | 10.4 | 22 | 2900 | 1.5 | 380 |
| 72 | 50-200 | 12.5 | 50 | 2900 | 5.5 | 380 |
| 73 | 50-200A | 11.7 | 44 | 2900 | 4 | 380 |
| 74 | 50-200B | 10.6 | 36 | 2900 | 3 | 380 |
| 75 | 50-250 | 12.5 | 80 | 2900 | 11 | 380 |
| 76 | 50-250A | 11.6 | 70 | 2900 | 7.5 | 380 |
| 77 | 50-250B | 10.8 | 60 | 2900 | 7.5 | 380 |
| 78 | 50-250C | 10 | 52 | 2900 | 5.5 | 380 |
| 79 | 50-100(I) | 25 | 12.5 | 2900 | 1.5 | 380 |
| 80 | 50-100(I)A | 22.3 | 10 | 2900 | 1.1 | 380 |
| 81 | 50-125(I) | 25 | 20 | 2900 | 3 | 380 |
| 82 | 50-125(I)A | 22.3 | 16 | 2900 | 2.2 | 380 |
| 83 | 50-160(I) | 25 | 32 | 2900 | 4 | 380 |
| 84 | 50-160(I)A | 23.4 | 28 | 2900 | 4 | 380 |
| 85 | 50-160(I)B | 21.6 | 24 | 2900 | 3 | 380 |
| 86 | 50-200(I) | 25 | 50 | 2900 | 7.5 | 380 |
| 87 | 50-200(I)A | 23.5 | 44 | 2900 | 7.5 | 380 |
| 88 | 50-200(I)B | 21.8 | 38 | 2900 | 5.5 | 380 |
| 89 | 50-250(I) | 25 | 80 | 2900 | 15 | 380 |
| 90 | 50-250(I)A | 23.4 | 70 | 2900 | 11 | 380 |
| 91 | 50-250(I)B | 21.6 | 60 | 2900 | 11 | 380 |
| 92 | 50-315(I) | 25 | 125 | 2900 | 30 | 380 |
| 93 | 50-315(I)A | 23.7 | 113 | 2900 | 22 | 380 |
| 94 | 50-315(I)B | 22.5 | 101 | 2900 | 18.5 | 380 |
| 95 | 50-315(I)C | 20.6 | 85 | 2900 | 18.5 | 380 |
| 96 | 65-100 | 25 | 12.5 | 2900 | 1.5 | 380 |
| 97 | 65-100A | 22.3 | 10 | 2900 | 1.1 | 380 |
| 98 | 65-125 | 25 | 20 | 2900 | 3 | 380 |
| 99 | 65-125A | 22.3 | 16 | 2900 | 2.2 | 380 |
| 100 | 65-160 | 25 | 32 | 2900 | 4 | 380 |
| 101 | 65-160A | 23.4 | 28 | 2900 | 4 | 380 |
| 102 | 65-160B | 21.6 | 24 | 2900 | 3 | 380 |
| 103 | 65-200 | 25 | 50 | 2900 | 7.5 | 380 |
| 104 | 65-200A | 23.5 | 44 | 2900 | 7.5 | 380 |
| 105 | 65-200B | 21.8 | 38 | 2900 | 5.5 | 380 |

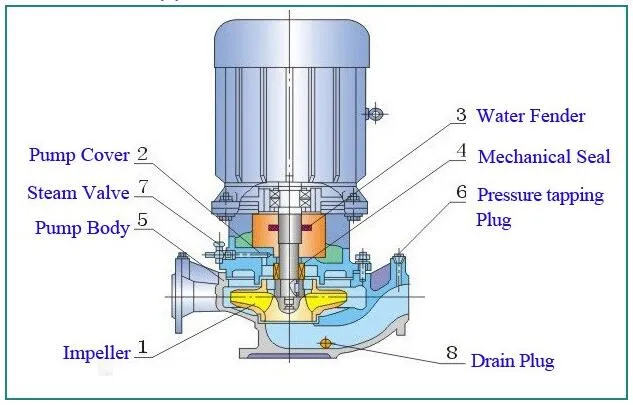

4.Pump Structure
5.Pump Features
1. Easy to mount. Because the inlet and outlet is located on the same central line, the pump can be directly mounted on any part of the pipeline just as a valve. Covered with a rain-proof cap, it can be operated outdoors.
2. Impeller mounted directly on the long axis of the motor, pump and motor bearing arrangement is reasonable, pump operation can effectively balance the radial and axial loads, thus ensuring the smooth operation of the pump, small vibration and low noise.
3. Mechanical shaft seal, use of imported titanium alloy seal ring, medium and high temperature mechanical seal with carbide materials, anti-wearing no leakage.
4. Easy installation and maintenance, no need to open pipeline system, the rotation parts of the pump can be pulled out by removing the screws on the pump.
5. According to the needs of flow and head, the pump can be used in series or parallel operation mode.

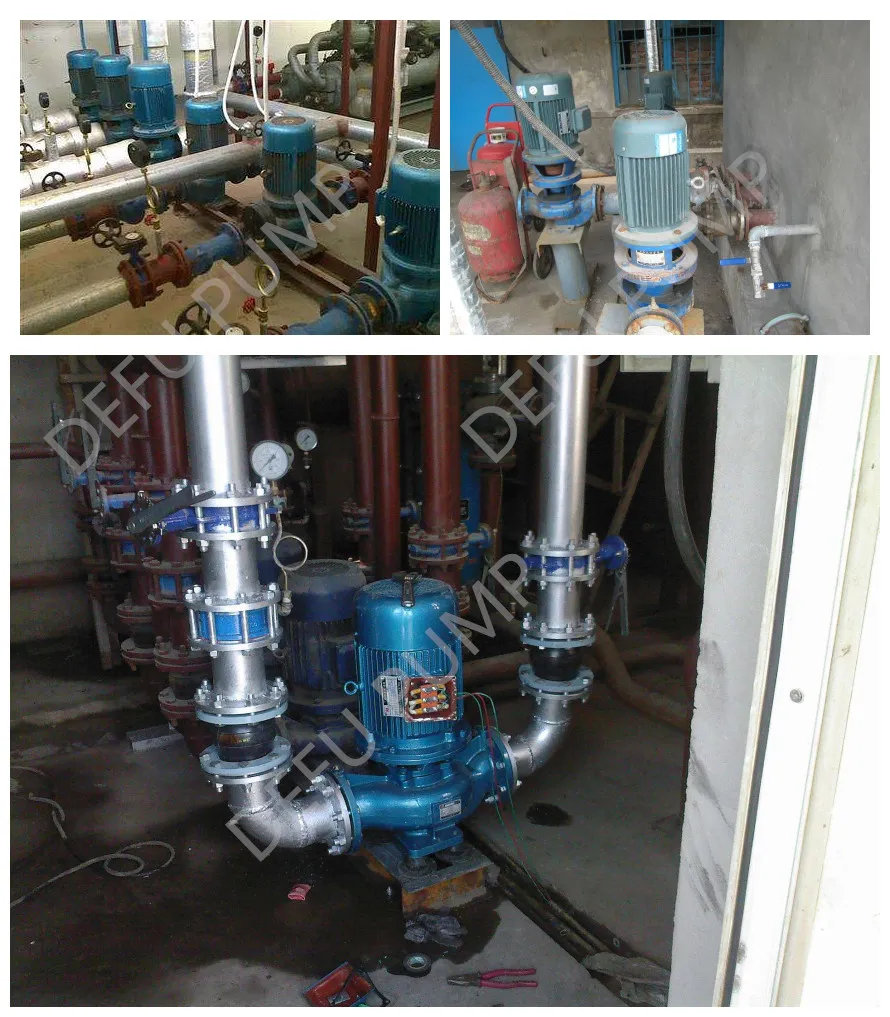

6..Applications(Show from Our Clients)
7.Our Services
1. Delivery: Delivery time will be on time as the contract. Usually, our company need 7 working days for vertical inline pump, and for stainless steel material pump, it takes 15 working days,
2. Warranty: 12 month for the pump body, 3 month for the main working parts.
3. Package: We use plywood case to pack our pump, which is durable for ocean transport.
4. On-sales Service: we will clear show you everything in fact when you place an order with us. We will
take photos or videos to show you our production situation, and report the production situation to you.
5. Quality: we will test our pump before delivery, and we will follow up the pump working conditions per three months when the pump put into use. If you need spare parts, we can send to you in 1 or 2 weeks.

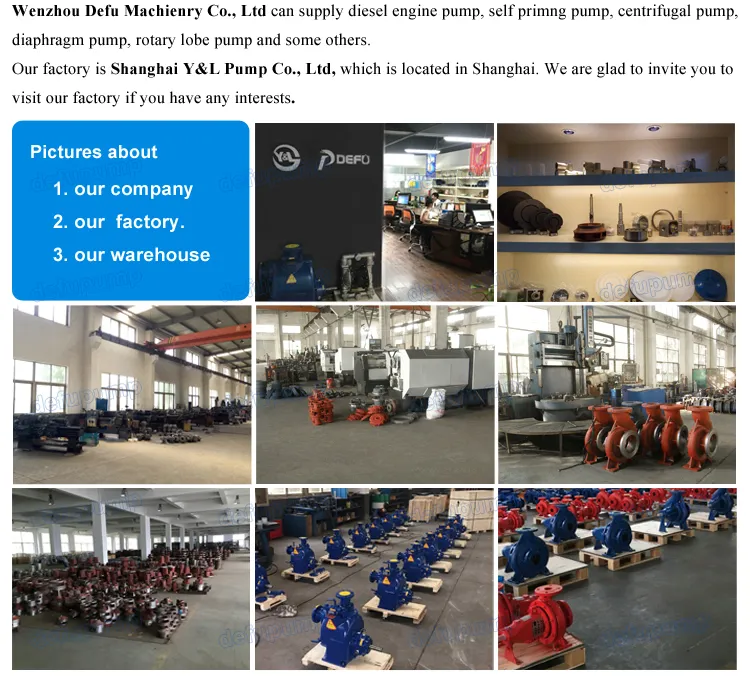

8.Our Factory
Welcome to visit our factory!
All My Striving,For Your Satisfaction.
*********************************************************************************************
Head Office: Wenzhou DEFU Machinery Co.,Ltd
Subsidiary Factory Name:Shanghai Y&L Pump Co.,Ltd
Mobile :+86 -18042130095 Fax: +86-577-86553150
WebSite:defucc-machinery.en.made-in-china.com
