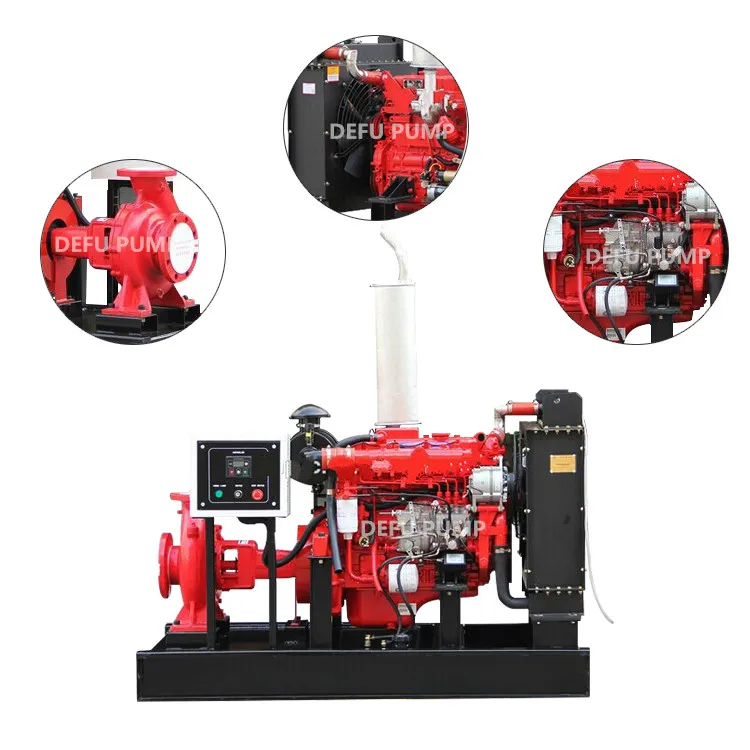

China High Efficiency River Irrigation Diesel Engine Fire Fighting Pumps

Product Description

1.Product Description

DA series centrifugal pump is specialized in pumping water, liquid, chemical substances, etc. The rotation speed is 1450rpm, 1750rpm, 2900rpm, 3500rpm for optional. This water pump can be widely used in water transfer system, farmland irrigation ,fire water supply, urban drainage, cooling water circulation for air conditioner, sewage treatment and other fields.

2.Pump Technical Parameters

1.Flow:0-1080m3/h;
2.Head:0-150m;
3.Power:0.75-315kw;
4.Rotary speed:1450rpm,1750rpm,2900rpm,3500rpm
5..Temperature:-15-120°C.

3.Partial Models Specifications for Clients Choosing(More Information Pls Feel Free To Contact Us)

Model	Capacity		Head	Rotation Speed	Frequency	Power		Efficiency	Impeller Dia.	Diameter
	Capacity		Head	Rotation Speed	Frequency	Shaft	Motor	Efficiency	Impeller Dia.	Inlet	Outlet
	m3/h	L/s	m	r/min	hz	kw	kw	%	mm	mm	mm
DA40/13	8.7	2.42	6.4	1450	50	0.26	0.55	59	139	65	40
	14.5	4.03	6.0			0.33	0.55	71
	17.4	4.84	5.6			0.37	0.55	72
	18.0	5.00	25.3	2900	50	2.03	2.2	61
	30.0	8.33	23.5			2.63	3	73
	36.0	10.00	21.8			2.91	4	73.5
	8.7	2.92	9.3	1750	60	0.37	0.55	59
	14.5	4.86	8.7			0.49	0.75	71
	17.4	5.84	8.2			0.54	0.75	72
	21.7	6.03	36.9	3500	60	3.57	5.5	61
	36.2	10.05	34.2			4.62	7.5	73
	43.4	12.06	31.8			5.11	7.5	73.5
DA40/13A	8.1	2.26	5.6	1450	50	0.21	0.55	58	130	65	40
	13.6	3.77	5.2			0.27	0.55	71
	16.3	4.52	4.8			0.30	0.55	71
	16.8	4.67	22.0	2900	50	1.63	2.2	62
	28.0	7.79	20.2			2.11	3	73.2
	33.7	9.35	18.5			2.32	3	73.2
	8.1	2.73	8.2	1750	60	0.31	0.55	58
	13.6	4.55	7.6			0.40	0.55	71
	16.3	5.46	7.0			0.44	0.75	71
	20.3	5.64	32.0	3500	60	2.86	4	62
	33.8	9.40	29.4			3.70	5.5	73.2
	40.6	11.28	26.9			4.07	5.5	73.2
DA40/13B	7.5	2.09	4.8	1450	50	0.17	0.55	56	120	65	40
	12.5	3.48	4.3			0.21	0.55	69
	15.0	4.17	3.9			0.23	0.55	68.5
	15.5	4.31	18.5	2900	50	1.28	1.5	61
	25.9	7.19	17.0			1.64	2.2	73
	31.1	8.63	15.3			1.77	2.2	73
	7.5	2.52	6.9	1750	60	0.25	0.55	56
	12.5	4.20	6.3			0.31	0.55	69
	15.0	5.04	5.7			0.34	0.55	68.5
	18.7	5.21	26.9	3500	60	2.25	4	61
	31.2	8.68	24.8			2.89	4	73
	37.5	10.42	22.3			3.12	4	73
DA40/13C	6.9	1.91	4.0	1450	50	0.15	0.55	51	110	65	40
	11.5	3.19	3.6			0.18	0.55	64
	13.8	3.83	3.3			0.19	0.55	63.5
	14.2	3.96	15.5	2900	50	1.00	1.5	60
	23.7	6.59	13.7			1.23	1.5	72
	28.5	7.91	12.2			1.31	2.2	72
	6.9	2.31	5.8	1750	60	0.21	0.55	51
	11.5	3.85	5.3			0.26	0.55	64
	13.8	4.62	4.8			0.28	0.55	63.5
	17.2	4.77	22.6	3500	60	1.77	2.2	60
	28.6	7.96	20.0			2.16	3	72
	34.4	9.55	17.8			2.31	3	72
DA40/13D	6.3	1.74	3.3	1450	50	0.11	0.55	50.5	100	65	40
	10.4	2.90	3.0			0.15	0.55	58
	12.5	3.48	2.6			0.15	0.55	58
	12.9	3.60	12.5	2900	50	0.76	1.1	58
	21.6	5.99	11.0			0.92	1.5	70
	25.9	7.19	9.5			0.97	1.5	69
	6.3	2.10	4.8	1750	60	0.16	0.55	50.5
	10.4	3.50	4.3			0.21	0.55	58
	12.5	4.20	3.8			0.22	0.55	58
	15.6	4.34	18.2	3500	60	1.34	2.2	58
	26.0	7.23	16.0			1.62	2.2	70
	31.2	8.68	13.8			1.71	2.2	69

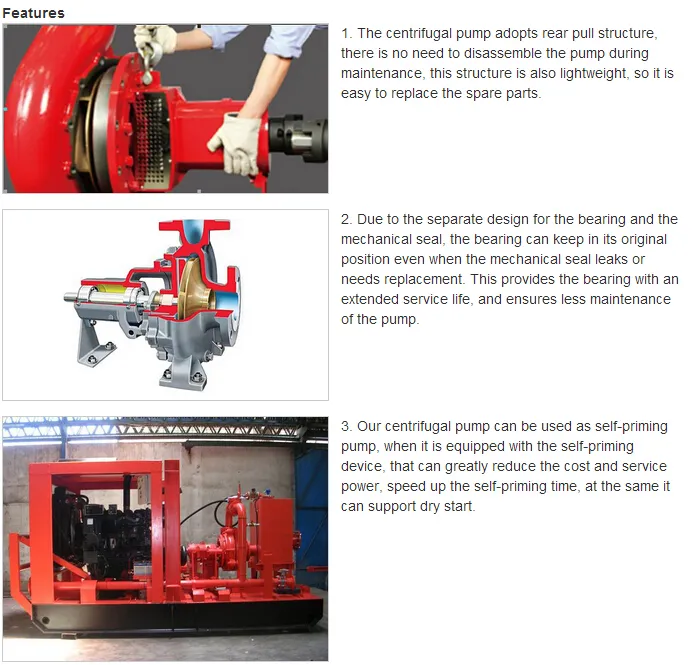

4.Pump Features

High Efficiency River Irrigation Diesel Engine Fire Fighting Pumps

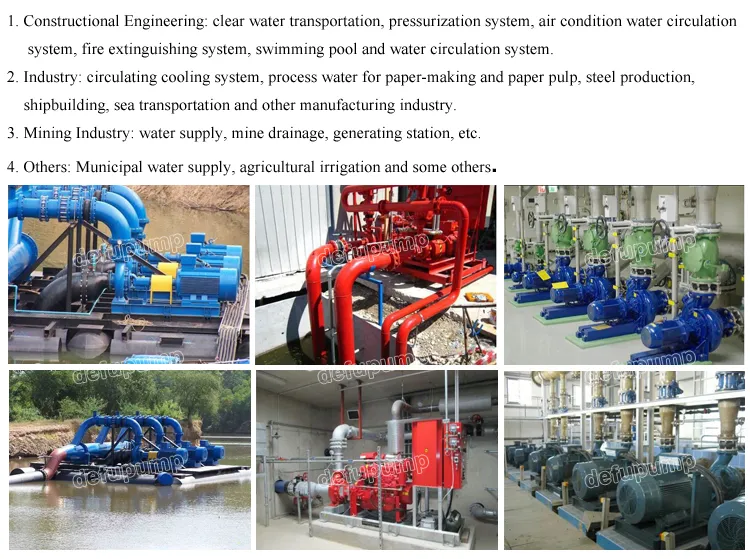

5.Applications(Show from Our Clients)

High Efficiency River Irrigation Diesel Engine Fire Fighting Pumps

6.Our Services

1. Delivery: Delivery time will be on time as the contract. Usually, our company need 25 working days for diesel engine pump, and for bare shaft pump, it takes 15 working days,

2. Warranty: 12 month for the pump body, 3 month for the main working parts.

3. Package: We use plywood case to pack our pump, which is durable for ocean transport.

4. On-sales Service: we will clear show you everything in fact when you place an order with us. We will
take photos or videos to show you our production situation, and report the production situation to you.

5. Quality: we will test our pump before delivery, and we will follow up the pump working conditions per three months when the pump put into use. If you need spare parts, we can send to you in 1 or 2 weeks.

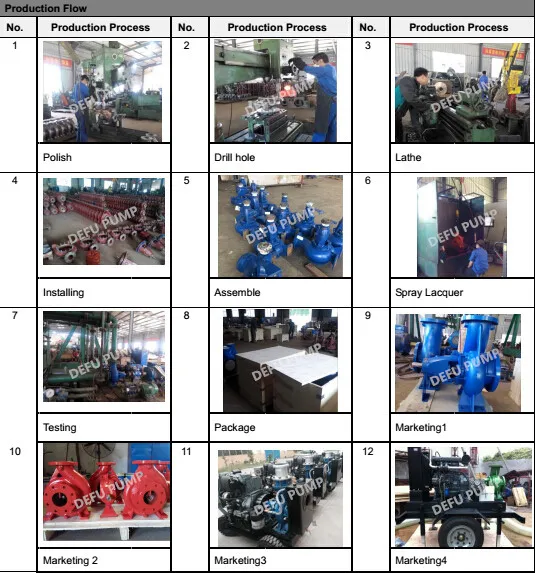

7.Pump Productive Process

High Efficiency River Irrigation Diesel Engine Fire Fighting Pumps

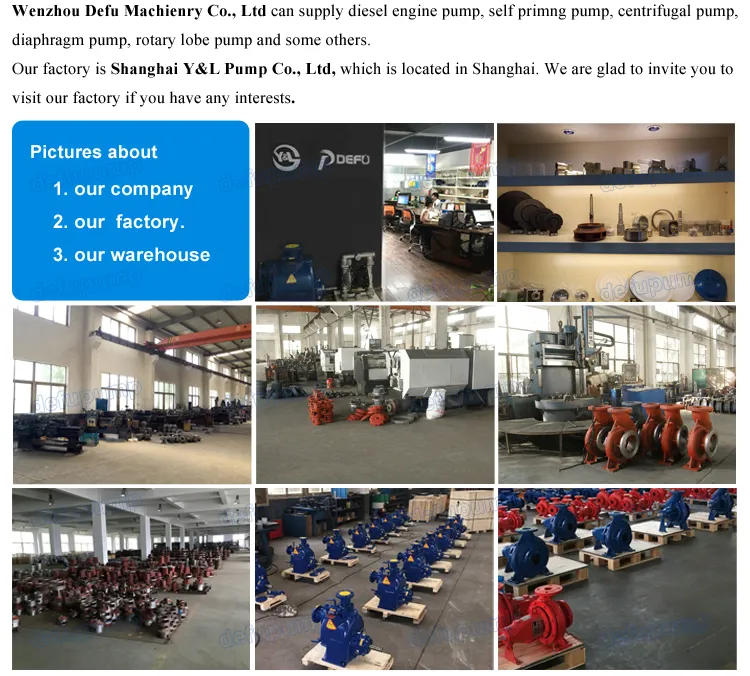

8.Our Factory

High Efficiency River Irrigation Diesel Engine Fire Fighting Pumps

Welcome to visit our factory!
