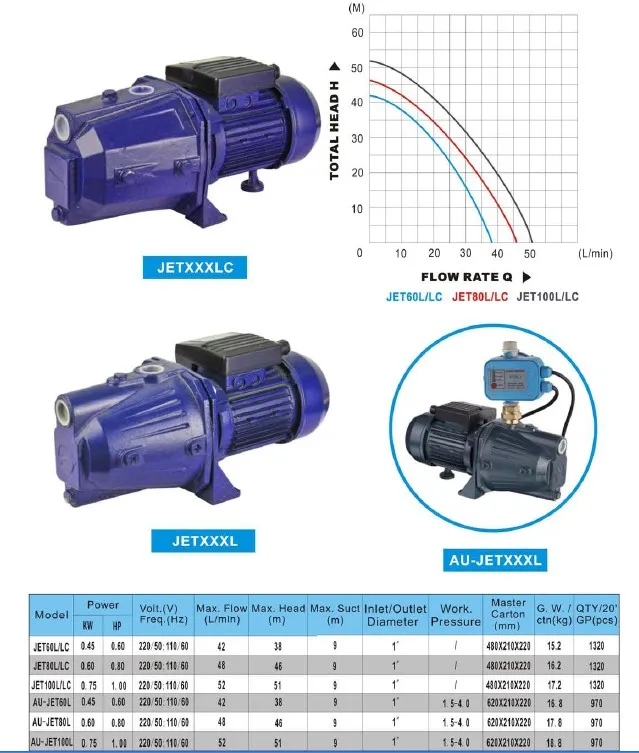

Self-Priming Jet Pump (JET-LC) with CE Approved

JET-LC series self-priming pumps are high efficient jet pumps with excellent suction even when there are air bubbles. The pump consists of a single impeller, centrifugal pump and a jet pipe with a nozzle.
The series pumps are particularly suitable for water supplying in domestic installations, small-scale agriculture watering and where self-priming operation is demanded.

PUMP
Pump Body: Cast Iron
Impeller: Brass / Techno-polymer (P. P. O)
Mechanical Seal: Carbon / Ceramic / Stainless Steel

MOTOR
Single Phase
Heavy Duty Continuous Work
Motor Housing: Aluminum
Shaft: Carbon Steel / Stainless Steel
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation

OPERATING CONDITIONS
Liquid temperature up to 60C
Ambient temperature up to 40C
Total suction lift up to 9m
Continuous duty
220V/50Hz, 230V/50Hz, 110V/60Hz & 115V/60Hz models are available on request.
