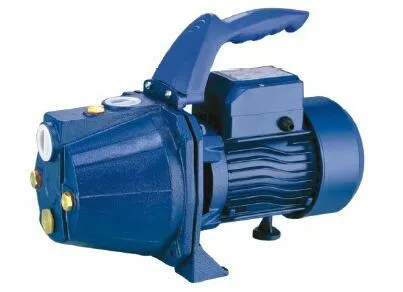

China Self-Priming Jet Pump (JET-100H) with CE Approved

Product Description

JET series self-priming pumps are high efficient jet pumps with excellent suction even when there are air bubbles. The pump consists of a single impeller, centrifugal pump and a jet pipe with a nozzle. The series pumps are particularly suitable for water supplying in domestic installations, small-scale agriculture watering and where self-priming operation is demanded.

PUMP
Pump Body: Cast Iron
Impeller: Brass/Techno-polymer (P. P. O)
Mechanical Seal: Carbon / Ceramic / Stainless Steel

MOTOR
Single Phase
Heavy Duty Continuous Work
Motor Housing: Aluminum
Shaft: Carbon Steel / Stainless Steel
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation

OPERATING CONDITIONS
Liquid temperature up to 60 Degree
Ambient temperature up to 40 Degree
Total suction lift up to 9m
Continuous duty
220V/50Hz, 230V/50Hz, 110V/60Hz & 115V/60Hz models are available on request
Self-Priming Jet Pump (JET-100H) with CE Approved

Self-Priming Jet Pump (JET-100H) with CE Approved

Model	Power		Q.MAX L/min	H.MAX m	S.Head m	Inlet/Outlet	Packaging Dimension mm	G.W. Kg
Model	KW	HP	Q.MAX L/min	H.MAX m	S.Head m	Inlet/Outlet	Packaging Dimension mm	G.W. Kg
JET60H	0.46	0.6	40	38	9	1"/1"	410×210×220	12.3
JET80H	0.6	0.8	46	45	9	1"/1"	410×210×220	12.8
JET100H	0.75	1	52	50	9	1"/1"	410×210×220	13.4
