Product Description

1.Product Description

YW Non-Clogging Submerged Sewage pumps with unique impeller structure and new mechanical seal, can effectively transfer solids and long fiber. Compared with the traditional impeller, this impeller use single channel, or dual channel format, similar to a section of the same size as the elbow, with very good over-current resistance.

2.Operating Conditions

Flow: 8-2600m³/h
Head: 5-60m
Power: 0.75-250kw
Rotary speed: 580-2900r/min
Calibre: 25-500mm
Temperature range: ≤60 Deg.C

3.Pump Material

Structure of pump	Material	Can be selected
Pump body	Cast-Iron	Stainless steel
Impeller	Cast-Iron	Stainless Steel
Pump shaft	45 # Steel	Stainless steel
Cable	Arbitrary length

4.Model Technical Parameters(More Information Pls Don't Hesitate To Contact Us)

Model	Diameter (mm)	Capacity Q (m3/h)	Head (m)	Power (kW)	Speed (r/min)	Eff. (%)
25-8-22-1.1	25	8	22	1.1	2825	38.5
32-12-15-0.75	32	12	15	0.75	2825	40
40-15-15-1.5	40	15	15	1.5	2840	45.1
40-15-25-2.2	40	15	25	2.2	2840	48
50-20-7-0.75	50	20	7	0.75	2840	54
50-10-10-0.75	50	10	10	0.75	2840	56
50-20-15-1.5	50	20	15	1.5	2840	55
50-15-25-2.2	50	15	25	2.2	2840	56
50-18-30-3	50	18	30	3	2880	58
50-25-32-5.5	50	25	32	5.5	2900	53
50-20-40-7.5	50	20	40	7.5	2900	55
65-25-15-2.2	50	25	15	2.2	2840	52
65-37-13-3	65	37	13	3	2880	55
65-25-30-4	65	25	30	4	2890	58
65-30-40-7.5	65	30	40	7.5	2900	56
65-35-50-11	65	35	50	11	2930	60
65-35-60-15	65	35	60	15	2930	63
80-40-7-2.2	80	40	7	2.2	2900	52
80-43-13-3	80	43	13	3	2880	50
80-40-15-4	80	40	15	4	2890	57
80-65-25-7.5	80	65	25	7.5	2900	56
100-80-10-4	100	80	10	4	1450	62
100-110-10-5.5	100	110	10	5.5	1450	66
100-100-15-7.5	100	100	15	7.5	1450	67
100-85-20-7.5	100	85	20	7.5	2900	68
100-100-25-11	100	100	25	11	2900	65
100-100-30-15	100	100	30	15	2900	66
100-100-35-18.5	100	100	35	18.5	2900	65
125-130-15-11	125	130	15	11	1450	62
125-130-20-15	125	130	20	15	1450	63
150-145-9-7.5	150	145	9	7.5	1450	63
150-180-15-15	150	180	15	15	1450	65
150-180-20-18.5	150	180	20	18.5	1450	75
150-180-25-22	150	180	25	22	1450	76
150-130-30-22	150	130	30	22	1450	75
150-180-30-30	150	180	30	30	1450	73
150-200-30-37	150	200	30	37	1480	70
200-300-7-11	200	300	7	11	1450	73
200-250-11-15	200	250	11	15	1450	74
200-400-10-22	200	400	10	22	1470	76
200-400-13-30	200	400	13	30	1470	73
200-250-15-18.5	200	250	15	18.5	1470	72
200-300-15-22	200	300	15	22	1470	73
200-250-22-30	200	250	22	30	1470	71
200-350-25-37	200	350	25	37	1450	75
200-400-30-55	200	400	30	55	1480	70
250-600-9-30	250	600	9	30	980	74
250-600-12-37	250	600	12	37	1480	78
250-600-15-45	250	600	15	45	1480	75
250-600-20-55	250	600	20	55	1480	73
250-600-25-75	250	600	25	75	1480	73
300-800-12-45	300	800	12	45	980	76
300-500-15-45	300	500	15	45	980	70
300-800-15-55	300	800	15	55	980	73
300-600-20-55	300	600	20	55	980	75
300-800-20-75	300	800	20	75	980	78
300-950-20-90	300	950	20	90	980	80
300-1000-25-110	300	1000	25	110	980	82
350-1100-10-55	350	1100	10	55	980	84.5
350-1500-15-90	350	1500	15	90	980	82.5
350-1200-18-90	350	1200	18	90	980	83.1
350-110-28-132	350	1100	28	132	740	83.2
350-1000-36-160	350	1000	36	160	740	78.5
400-1500-10-75	400	1500	10	75	980	82.1
400-2000-15-132	400	2000	15	132	740	85.5
400-1700-22-160	400	1700	22	160	740	82.1
400-1500-26-160	400	1500	26	160	740	83.5
400-1700-30-200	400	1700	30	200	740	83.5
400-1800-32-250	400	1800	32	250	740	82.1
500-2500-10-110	500	2500	10	110	740	82
500-2600-15-160	500	2600	15	160	740	83
500-2400-22-220	500	2400	22	220	740	84
500-2600-24-250	500	2600	24	250	740	82

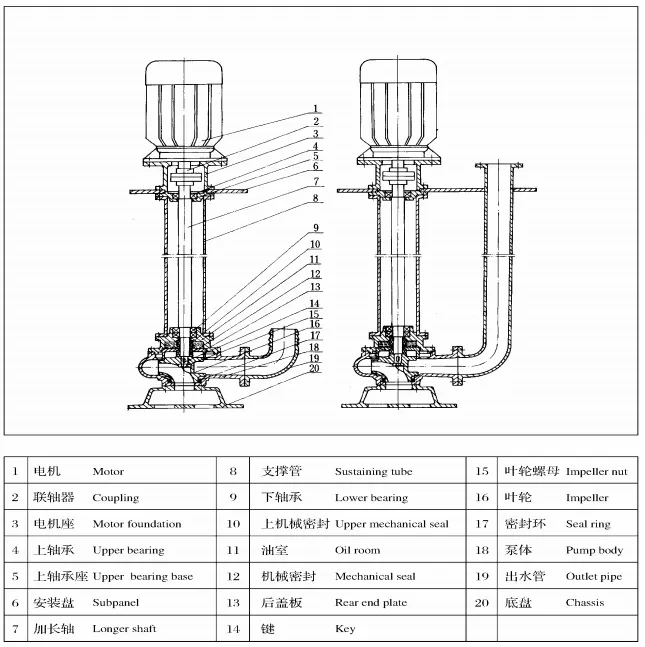

5.Pump Structures

Yw Non-Clogging Submerged Depth Sewage Centrifugal Pump with Factory Price

6.Our Services

1. Delivery: Delivery time will be on time as the contract. Usually, our company need 10 working days for cast iron submersible pump,30 days for stainless steel submersible pump.

2. Warranty: 12 month for the pump body, 3 month for the main working parts.

3. Package: We use plywood case to pack our pump, which is durable for ocean transport.

4. On-sales Service: we will clear show you everything in fact when you place an order with us. We will take photos or videos to show you our production situation, and report the production situation to you.

5. Quality: we will test our pump before delivery, and we will follow up the pump working conditions per three months when the pump put into use. If you need spare parts, we can send to you in 1 or 2 weeks.

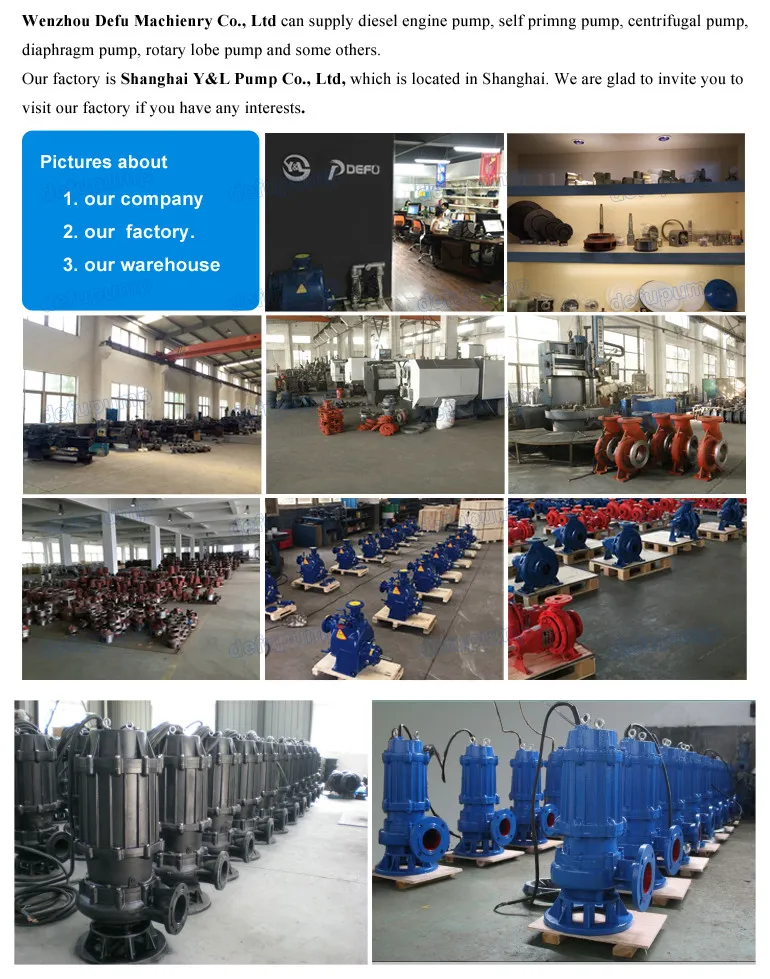

7.Our fatory
Yw Non-Clogging Submerged Depth Sewage Centrifugal Pump with Factory Price

Welcome to visit our factory!
