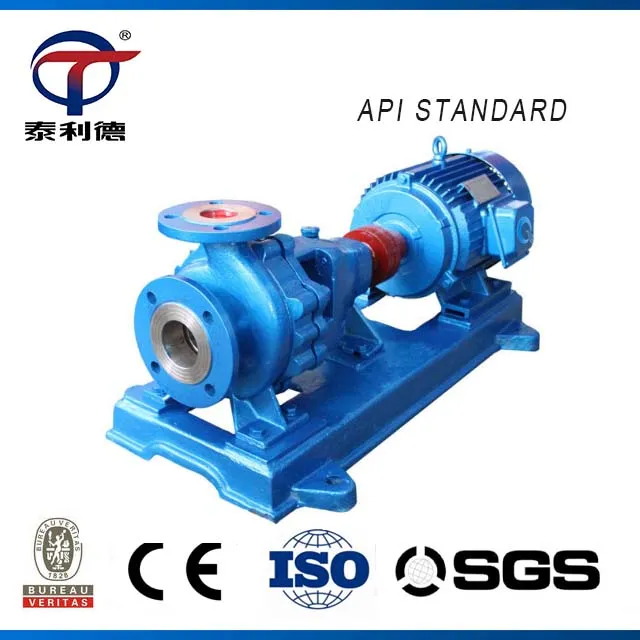

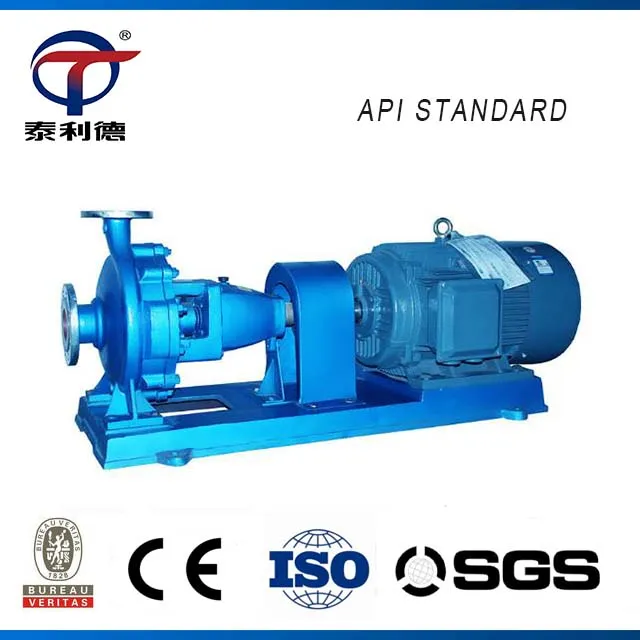

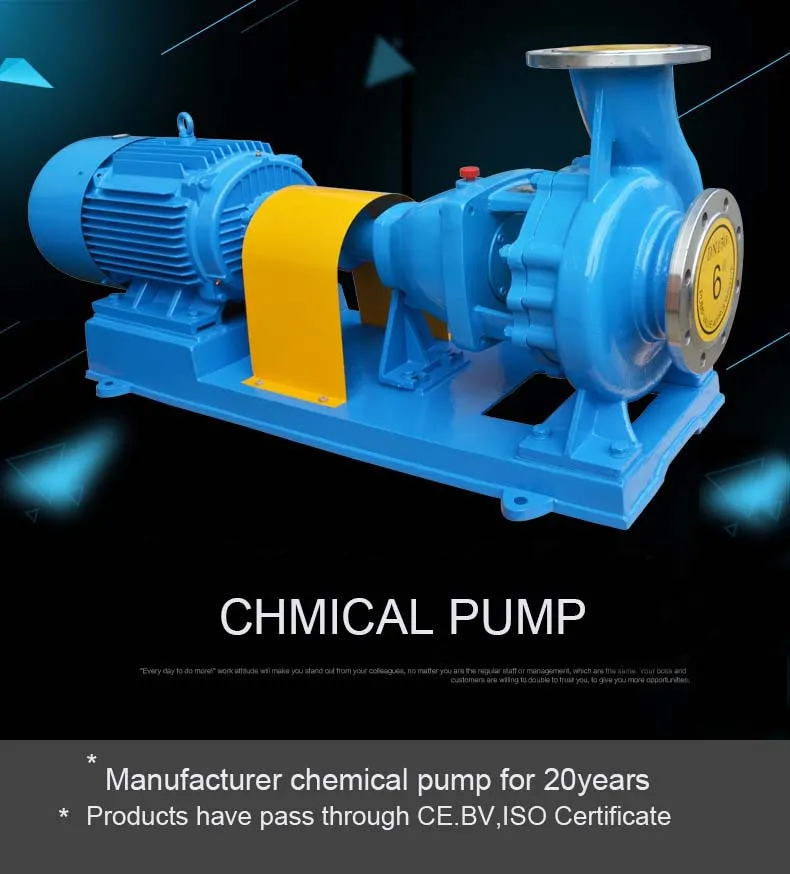

High Quality Hot Oil Pumplqry 300 Degree Temperature Hot Oil Pump

Chemical pump used in chemical industry, pertroleum ,metallurgy ,electric power,food,pharmaceutical, synthetic fiber and other industrial sectors conveying corrosive medium, it can meet in chemical process in conbveying a corrosive viscosity similar to liquid water.



Advantage
Organic acid and inorganic acid,such as sulfuric acid ,hydrochloric acid and phosphoric acid, etc ,Alkaline solution of various concentrations of sodium hydroxide and sodium carbonate.All kinds of liquid petroleum products,organic and other corrosive materials and products .

Performance Range:

• Capacity: Q =2.6-460m3/h
• Head:       H =11-132m
• Temperature: T =20-105C

Feature:

• Rated performance and the size of pump depends on ISO2858-1975(E).
• The size of cavity for assembling mechanical seal and soft packing depends on ISO3069-1974(E)
• The structure do not need disassemble the piping system can remove the rotor parts for maintenance.
• The pump's discharge and pipeline located at the middle top of pump ,the pump body stength even with small vibration
• low noise.

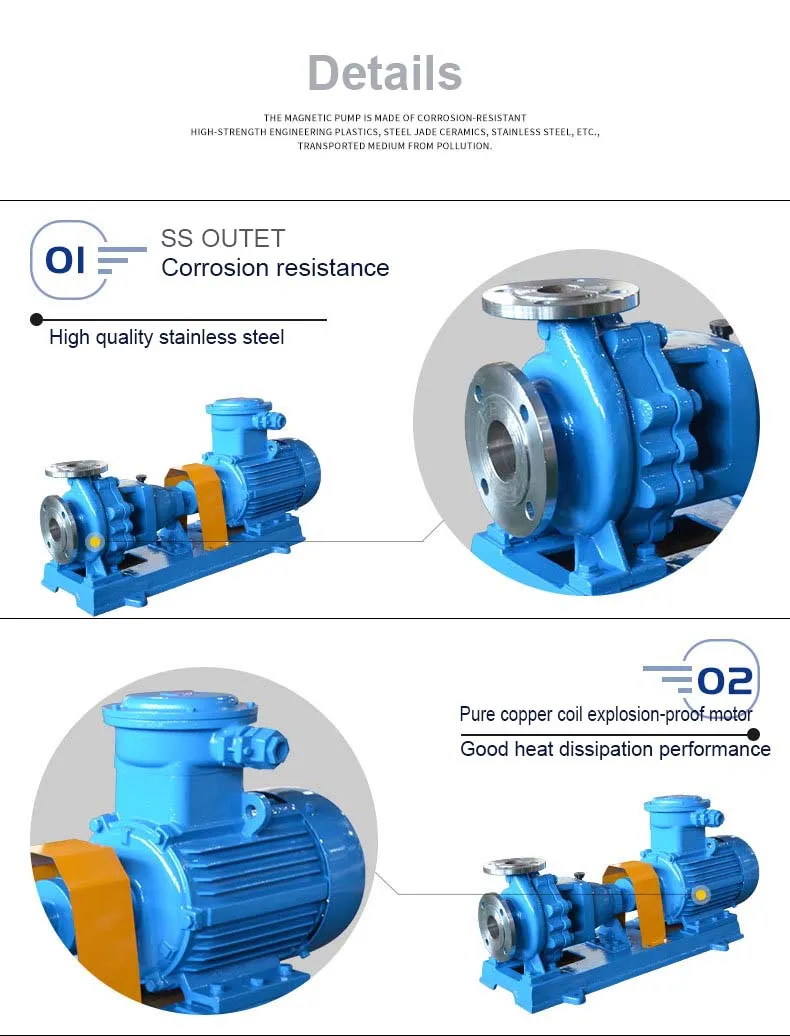

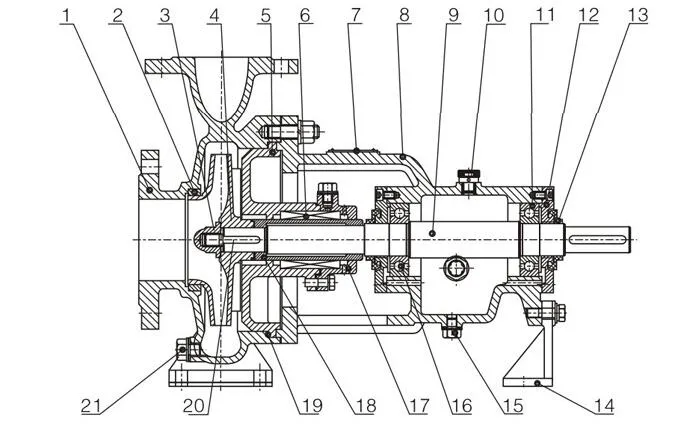

Structure:




Model meaning

IH65 --50--160A S1
IH:International standard chemical pump system products;

65: pump's suction diameter .(mm)

50: pump's discharge diameter;(mm)

160: In the name of impeller diameter ;(mm)

A:  The same model impeller was cut by one time;

S1: Pump sealing form is S1- Single end mechanical seal)

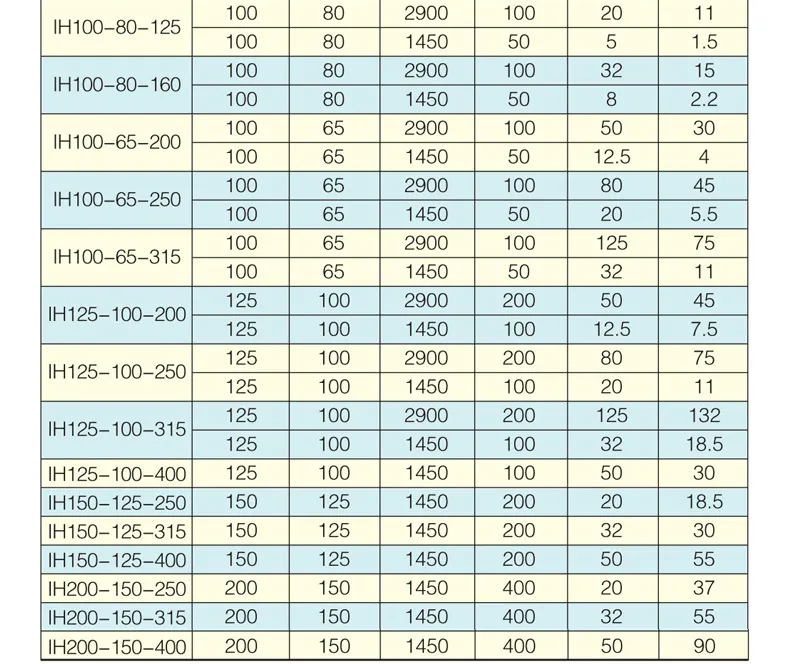

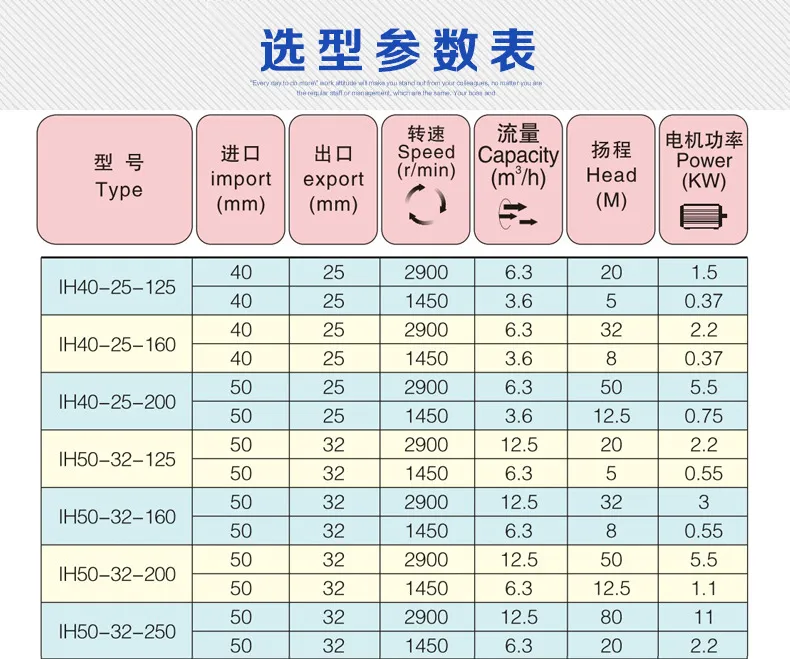

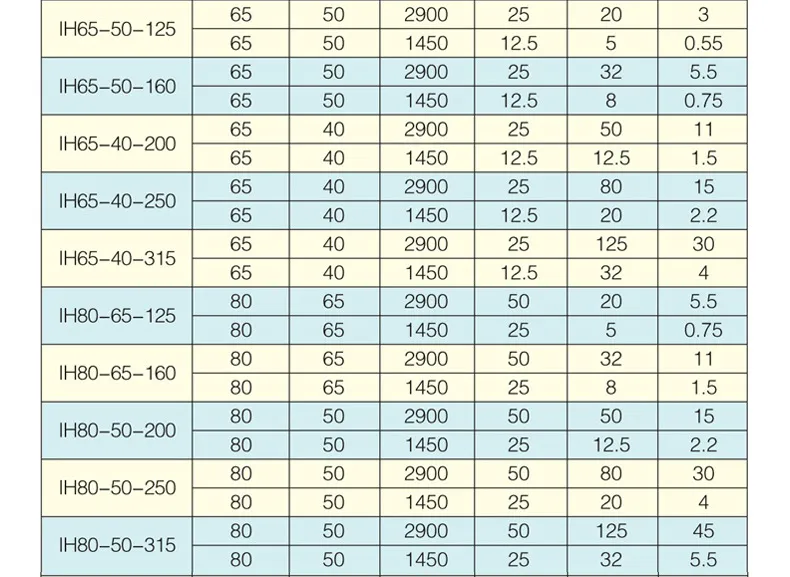

Parameter




Certificate we got

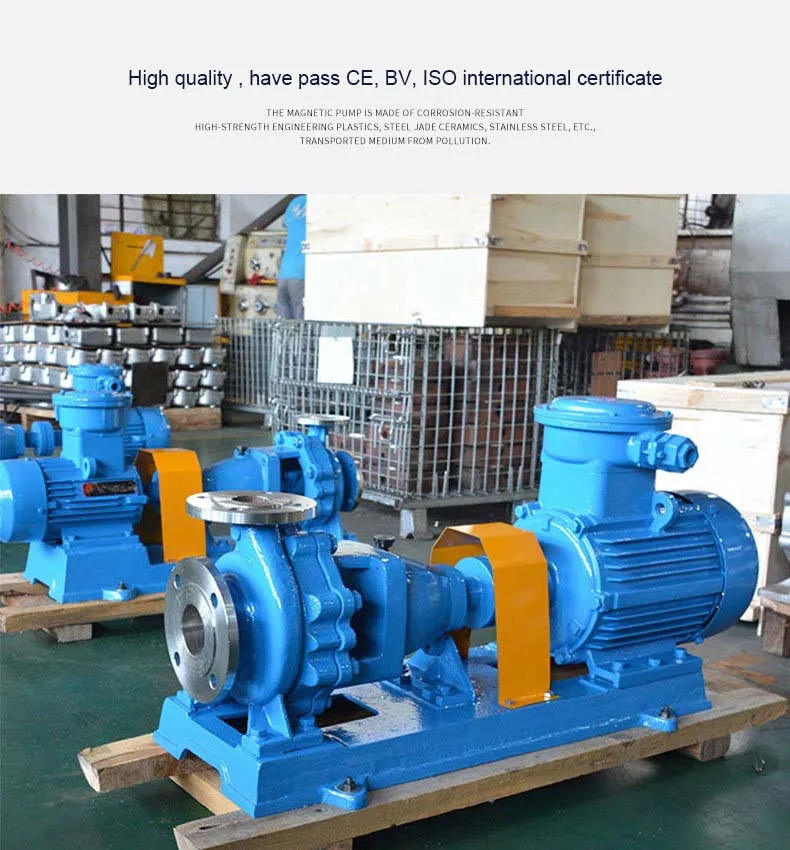

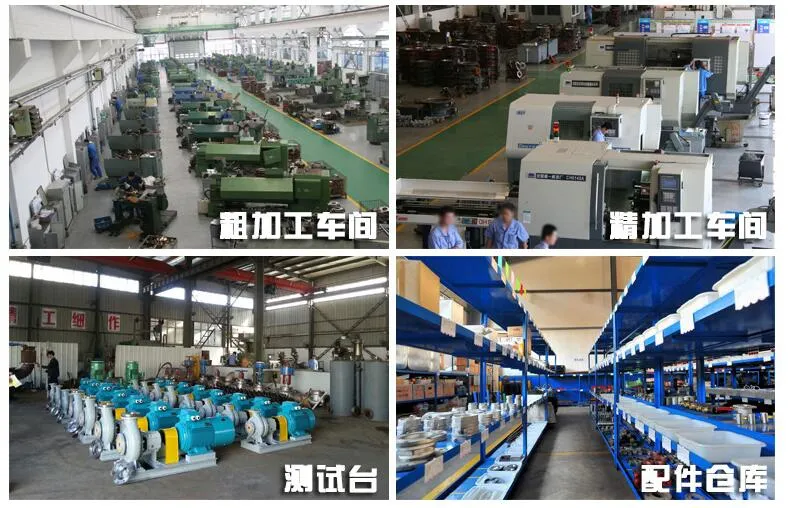

Warehouse



Why chose us ?
1. We are factory for nearly 15 years  , we can provide OEM service ..
2. We have professional overseas sales team ..
3. We have overseas sales agent , after sales service is very convenience...
4. Any quotation will be send within 24 hours.
5. All technology is from sulzer , best quality ..

For more questions , pls contact with us !
