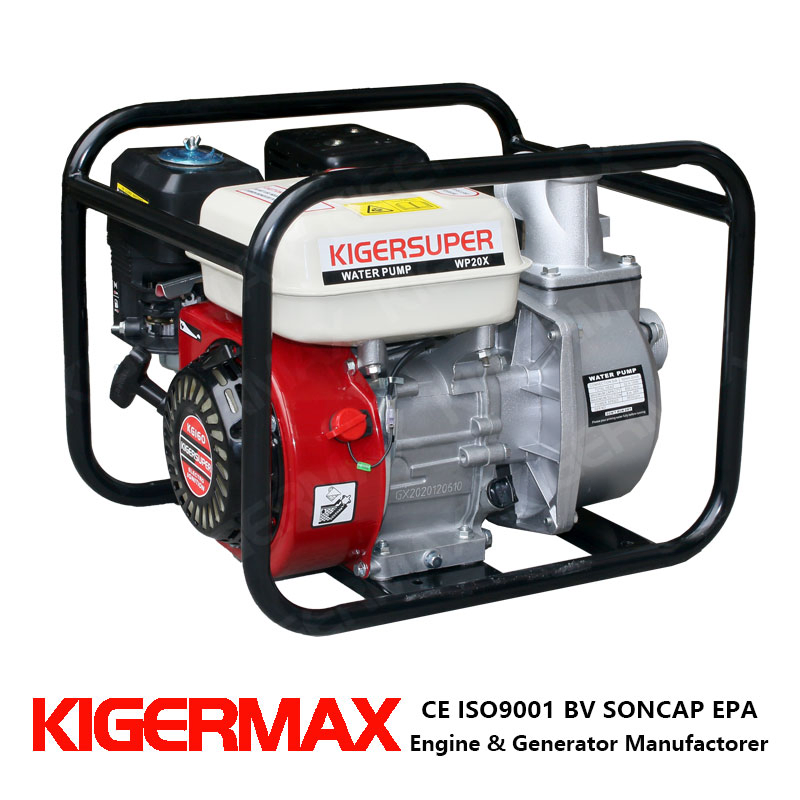

Wp20/Wp30 Petrol 5.5/6.5HP 2/3inch Gasoline Honda Style Water Pump
Wp20/Wp30 Petrol 5.5/6.5HP 2/3inch Gasoline Honda Style Water PumpFeatures:1. Economical, reliable and durable2. Easy to strt, durable OHV, high quality3. Oil alert to shut down engine automatically when low oil is detected4. Pump body made of light-weight but strong aluminum alloy5. Cast iron volut......
Send Inquiry
Product Description
Wp20/Wp30 Petrol 5.5/6.5HP 2/3inch Gasoline Honda Style Water Pump
Features:
1. Economical, reliable and durable
2. Easy to strt, durable OHV, high quality
3. Oil alert to shut down engine automatically when low oil is detected
4. Pump body made of light-weight but strong aluminum alloy
5. Cast iron volute and impeller
6. High-quality ceramic mechanical sealling
7. Max. pump lift of 26m, Max. suction of 7m
8. CE, SONCAP, ISO9001:2000 certification approved
9. One year or 1000 hours warranty
KIGERMAX PUMP PARAMETER
ABOUT US

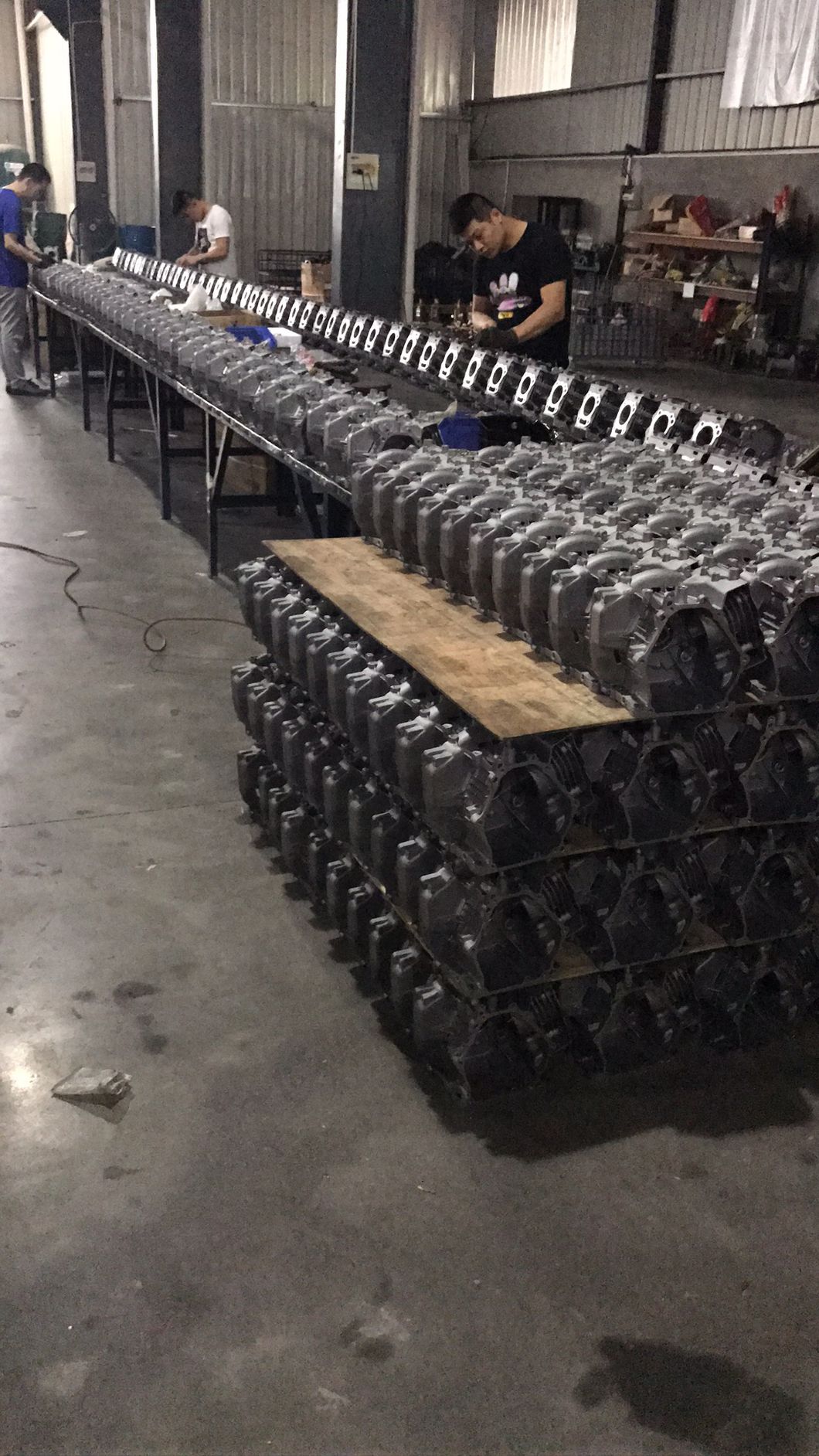

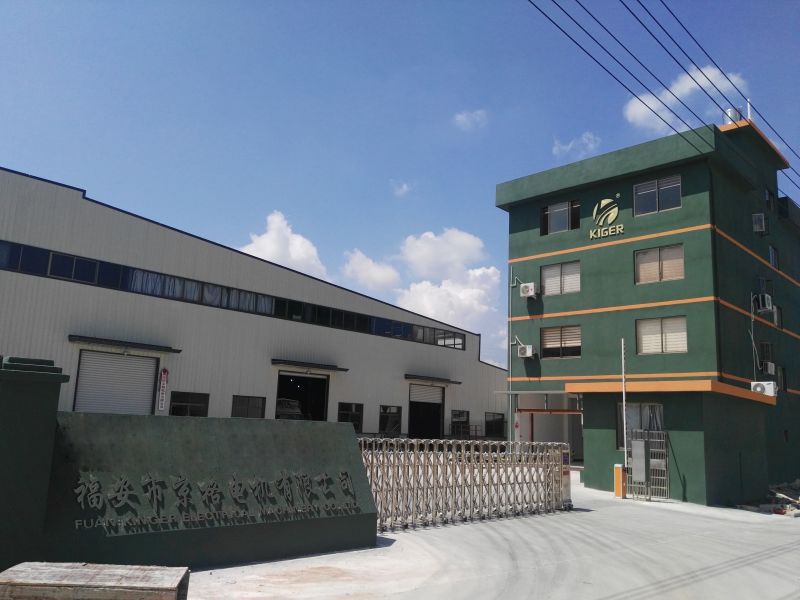

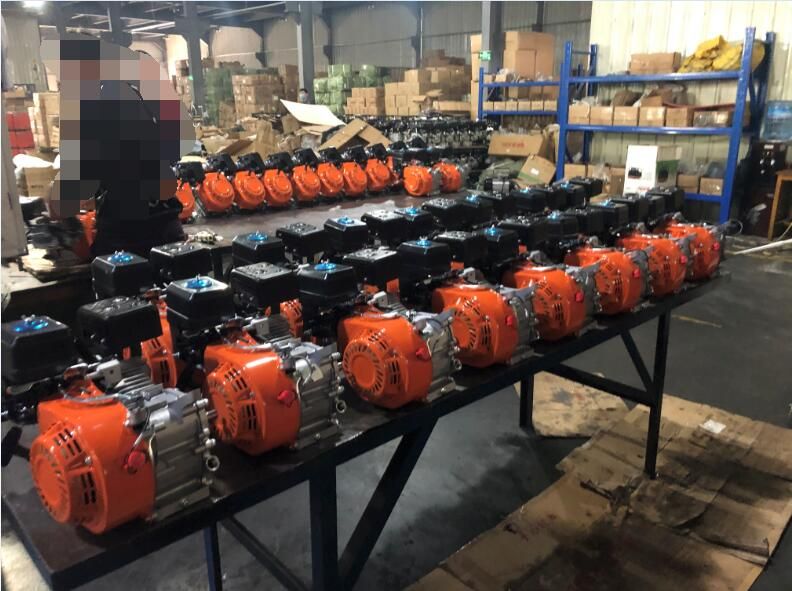

FACTORY PICTURE
Features:
1. Economical, reliable and durable
2. Easy to strt, durable OHV, high quality
3. Oil alert to shut down engine automatically when low oil is detected
4. Pump body made of light-weight but strong aluminum alloy
5. Cast iron volute and impeller
6. High-quality ceramic mechanical sealling
7. Max. pump lift of 26m, Max. suction of 7m
8. CE, SONCAP, ISO9001:2000 certification approved
9. One year or 1000 hours warranty
KIGERMAX PUMP PARAMETER
| Pump | |||||||
| Model | WP15 | WP20X | WP20 | WP30 | WP40 | WP60 | WP30S |
| Name | Gasoline Engine Self-Priming Water Pump | Sewage Pump | |||||
| Cont.capacity(m3/h) | 24 | 30 | 36 | 60 | 87 | 120 | 56 |
| Total head(m) | 30 | 32 | 32 | 28 | 25 | 20 | 26 |
| Suction(m) | 6 | 8 | 8 | 8 | 8 | 7 | 8 |
| ENGINE | |||||||
| Model | KG154 | KG156 | GX160 | GX200 | GX390 | GX420 | GX200 |
| Type | 4-Stroke,25°inclinde,single cylinder with air-cooled | ||||||
| Bore x Stroke(mm) | 54*38 | 56*38 | 68*45 | 68*54 | 88*64 | 90*66 | 68*54 |
| Displacement(cc) | 87 | 87 | 163 | 196 | 389 | 420 | 196 |
| Compression ratio | 5.5:1 | 5.5:1 | 8.5:1 | 8.5:1 | 8:1 | 8:1 | 8.5:1 |
| Max.Output(HP/rpm) | 3.5/3600 | 4/3600 | 5.5/3600 | 6.5/3600 | 13/3600 | 15/3600 | 6.5/3600 |
| Ignition System | Non-contact transistorized ignition(T.C.I.) | ||||||
| Starting System | Recoil Starting/Electric starting | ||||||
| Muffer | Half-dry,double-strainer | ||||||
| Fuel Tank (L) | 1.7 | 1.7 | 3.6 | 3.6 | 6 | 6 | 3.6 |
| Oil Capacity (L) | 0.4 | 0.4 | 0.6 | 0.6 | 1.1 | 1.1 | 0.6 |
| PACKING | |||||||
| Dimension(LxWxH)mm | 440*330*350 | 440*330*350 | 485*385*390 | 510*385*425 | 630*460*500 | 720*500*630 | 540*385*425 |
| G.W (kg) | 16 | 18 | 22 | 23 | 47 | 72 | 34 |
KINGER has 7 production lines and produces 0.1 million sets of generators annually. We have obtained ISO9001:2008, CE and SONCAP certifications. Our company has over 10 series and 100 specifications of gasoline/diesel machines and 95% of our products are exported to international markets, such as the Middle East, Africa, Southeast Asia, South America, Europe, etc.

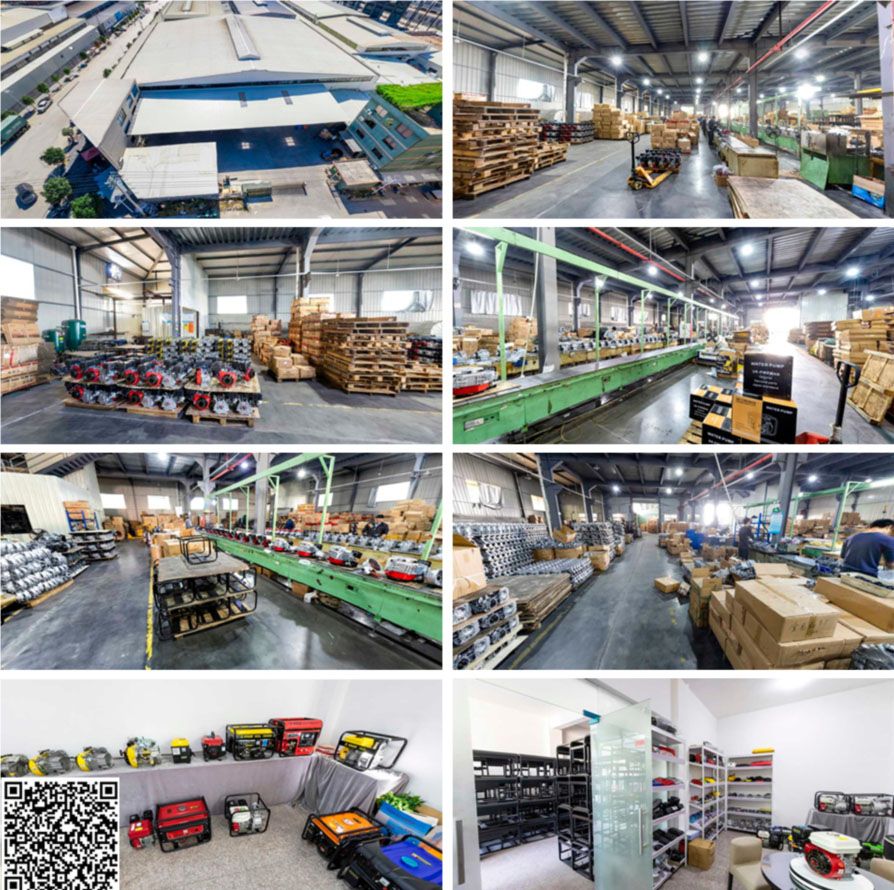

FACTORY PICTURE
