UJET Shallow Well Jet Pumps 60Hz
UJET60A / UJET80A / UJET100ASingle phase, dual voltage 115/230V, 60Hz, 3450RPMAluminium die-casting motor housing and durable cast iron pump bodyThermoplastic impeller and diffuserDual voltage conversion switchPermanent split capacitor motor equipped with built-in automatic thermal over load protect......
Send Inquiry
Product Description

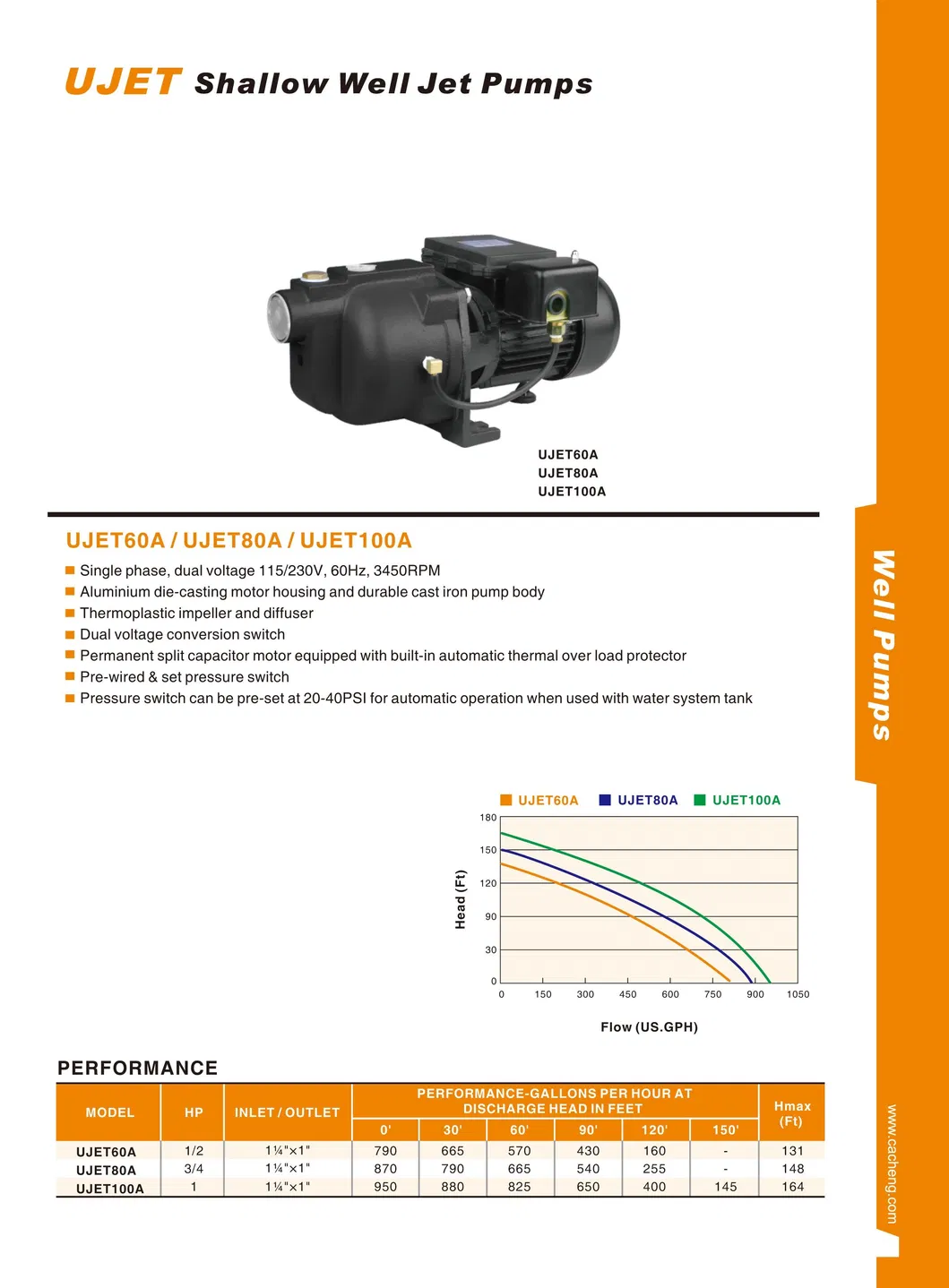

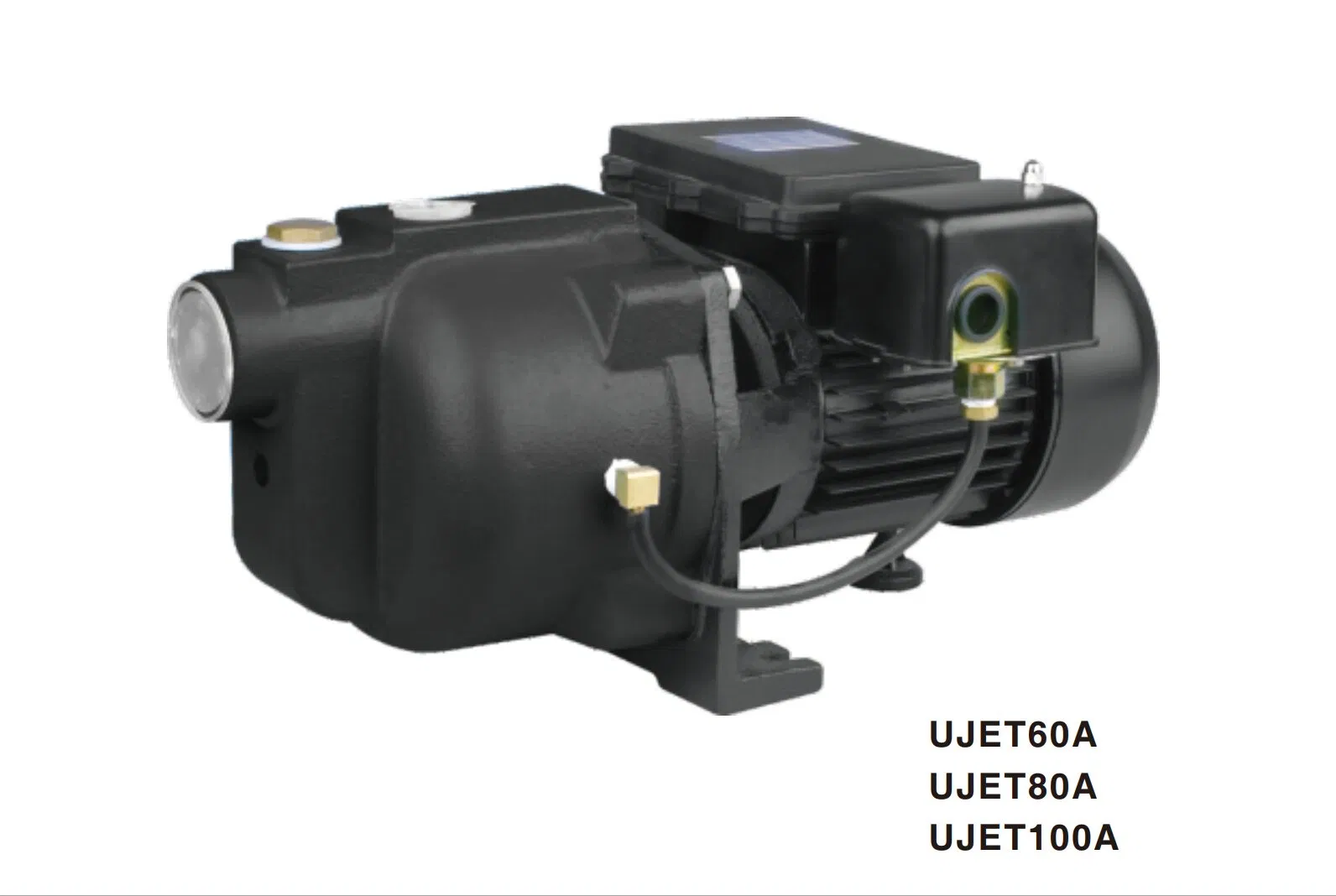

UJET60A / UJET80A / UJET100A
Single phase, dual voltage 115/230V, 60Hz, 3450RPM
Aluminium die-casting motor housing and durable cast iron pump body
Thermoplastic impeller and diffuser
Dual voltage conversion switch
Permanent split capacitor motor equipped with built-in automatic thermal over load protector
Pre-wired & set pressure switch
Pressure switch can be pre-set at 20-40PSI for automatic operation when used with water system tank

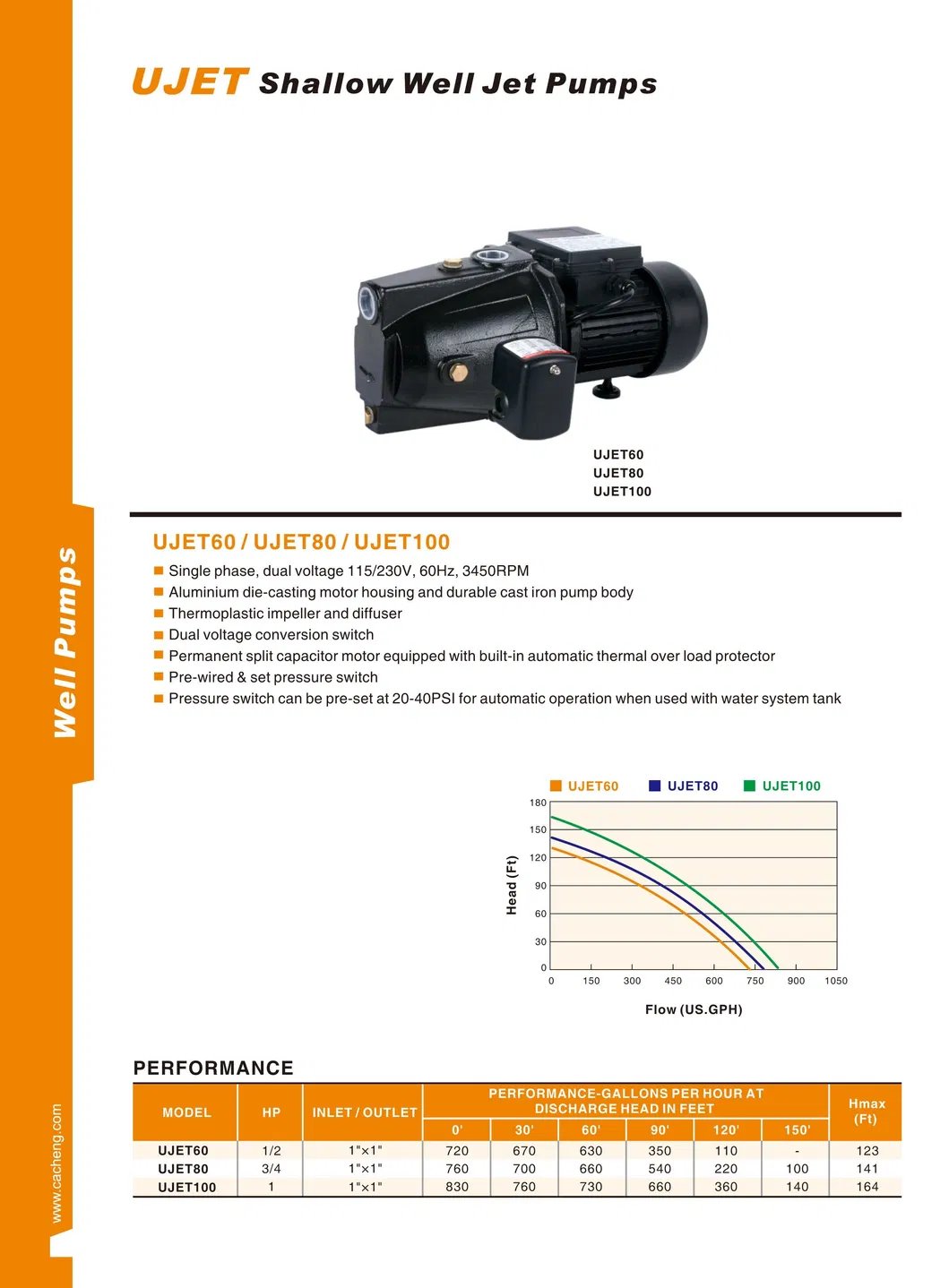

UJET60 / UJET80 / UJET100
Single phase, dual voltage 115/230V, 60Hz, 3450RPM
Aluminium die-casting motor housing and durable cast iron pump body
Thermoplastic impeller and diffuser
Dual voltage conversion switch
Permanent split capacitor motor equipped with built-in automatic thermal over load protector
Pre-wired & set pressure switch
Pressure switch can be pre-set at 20-40PSI for automatic operation when used with water system tank
Single phase, dual voltage 115/230V, 60Hz, 3450RPM
Aluminium die-casting motor housing and durable cast iron pump body
Thermoplastic impeller and diffuser
Dual voltage conversion switch
Permanent split capacitor motor equipped with built-in automatic thermal over load protector
Pre-wired & set pressure switch
Pressure switch can be pre-set at 20-40PSI for automatic operation when used with water system tank
UJET60 / UJET80 / UJET100
Single phase, dual voltage 115/230V, 60Hz, 3450RPM
Aluminium die-casting motor housing and durable cast iron pump body
Thermoplastic impeller and diffuser
Dual voltage conversion switch
Permanent split capacitor motor equipped with built-in automatic thermal over load protector
Pre-wired & set pressure switch
Pressure switch can be pre-set at 20-40PSI for automatic operation when used with water system tank
| MODEL | HP | INLET/ OUTLET | PERFORMANCE-GALLONS PER HOUR AT DISCHARGE HEAD IN FEET | Hmax (Ft) | |||||
| 0' | 30' | 60' | 90' | 120' | 150' | ||||
| UJET60 | 1/2 | 1"×1" | 720 | 670 | 630 | 350 | 110 | - | 123 |
| UJET80 | 3/4 | 1"×1" | 760 | 700 | 660 | 540 | 220 | 100 | 141 |
| UJET100 | 1 | 1"×1" | 830 | 760 | 730 | 660 | 360 | 140 | 164 |
