Stainless Steel Centrifugal Theory Electric Power Submersible Pump for Drinking Water
Product description:About "stainless steel centrifugal theory electric power submersible pump for drinking water".The capacity:from 20m3/h to 600m3/h.The head:up to 1500meters.Can work in borehole in water tank in river and so on.We also have ss304/ss316/316L/duplex stainless steel and bro......
Send Inquiry
Product Description
Product description:
About "stainless steel centrifugal theory electric power submersible pump for drinking water".
The capacity:from 20m3/h to 600m3/h.
The head:up to 1500meters.
Can work in borehole in water tank in river and so on.We also have ss304/ss316/316L/duplex stainless steel and bronze that can be chosen for sea water usage.
There are many different types and series you can choose for different projects.
The flow and head can be customize.
Type list for example:

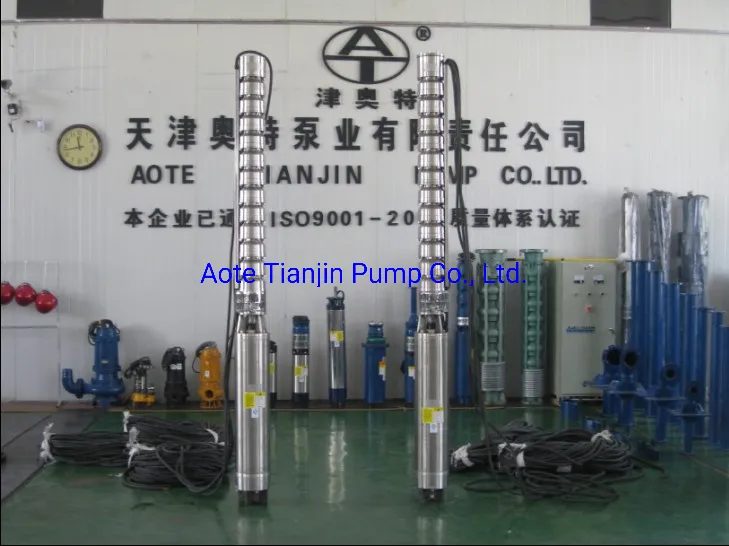

Photo:

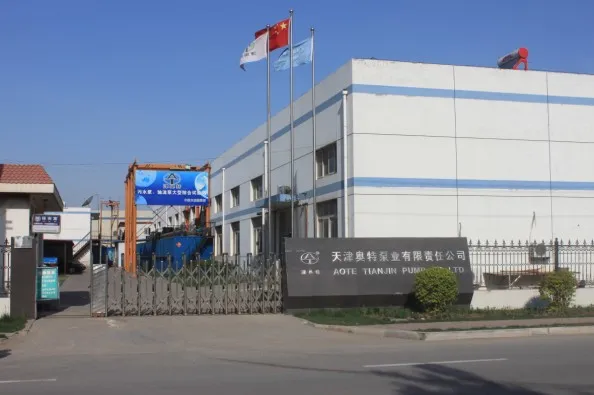

Our company:
Aote Tianjin pump co.,ltd was established in 2004,which is a professional organization that engages in designing and producing electric submersible oil pumping unit and electric submersible water pumping unit.We are recognized by CCS and ABS, and have got the certification of ISO9001.
Main products:Electrical submersible pump for oil/Large submersible motor pump(mine submersible pump)/Submersible motor/Submersible pump/Axial flow pump/mixed-flow pump/Submersible screw centrifugal pump/Submersible axial flow screw pump/Sewage pump.Related business: Kinds of Water pipes, switch cabinets, pump control system, pump cast-iron parts and etc..
Collaboration is the foundation of our business. We listen to our customers' requirments and provide best solutions accordingly with minimized cost. Best quality, fast delivery, good after sale service are our core values.
Contact us:
About "stainless steel centrifugal theory electric power submersible pump for drinking water".
The capacity:from 20m3/h to 600m3/h.
The head:up to 1500meters.
Can work in borehole in water tank in river and so on.We also have ss304/ss316/316L/duplex stainless steel and bronze that can be chosen for sea water usage.
There are many different types and series you can choose for different projects.
The flow and head can be customize.
Type list for example:
| Type | Capacity | Head | Power | Outer diameter | Outlet | Height | Weight | |
| m3/h | m | (mm) | (kg) | |||||
| hp | kw | |||||||
| AT250QJ63-28/1 | 63 | 28 | 10 | 7.5 | 9.32 inch | 4 inch | 1260 | 122 |
| AT250QJ63-56/2 | 56 | 20 | 15 | 1513 | 189 | |||
| AT250QJ63-84/3 | 84 | 33.3 | 25 | 1738 | 229 | |||
| AT250QJ63-112/4 | 112 | 40 | 30 | 1938 | 261 | |||
| AT250QJ63-140/5 | 140 | 49.3 | 37 | 2133 | 287 | |||
| AT250QJ63-168/6 | 168 | 60 | 45 | 2338 | 326 | |||
| AT250QJ63-196/7 | 196 | 73.3 | 55 | 2568 | 365 | |||
| AT250QJ63-224/8 | 224 | 84 | 63 | 2875 | 428 | |||
| AT250QJ63-252/9 | 252 | 100 | 75 | 3100 | 467 | |||
| AT250QJ63-280/10 | 280 | 100 | 75 | 3255 | 486 | |||
| AT250QJ63-308/11 | 308 | 120 | 90 | 3530 | 525 | |||
| AT250QJ63-336/12 | 336 | 133.3 | 100 | 3805 | 640 | |||
| AT250QJ63-364/13 | 364 | 146.7 | 110 | 4030 | 690 | |||
| AT250QJ63-392/14 | 392 | 146.7 | 110 | 4185 | 709 | |||
| AT250QJ63-420/15 | 420 | 166.7 | 125 | 4420 | 756 | |||
| AT250QJ63-448/16 | 448 | 176 | 132 | 9.4 inch | 4695 | 927 | ||
| AT250QJ63-476/17 | 476 | 176 | 132 | 4850 | 946 | |||
| AT250QJ63-504/18 | 504 | 200 | 150 | 5005 | 1000 | |||
| AT250QJ63-532/19 | 532 | 246.7 | 185 | 5253 | 1023 | |||
| AT250QJ63-560/20 | 560 | 246.7 | 185 | 5408 | 1100 | |||
| Type | Capacity | Head | Power | outer diameter | Outlet | Height | Weight | |
| m3/h | m | hp | kw | (mm) | (kg) | |||
| AT350QJ450-23/1 | 450 | 23 | 84 | 63 | 12.8 inch | 8 inch | 1900 | 343 |
| AT350QJ450-46/2 | 46 | 160 | 120 | 3070 | 704 | |||
| AT350QJ450-69/3 | 69 | 240 | 180 | 3580 | 877 | |||
| AT350QJ450-92/4 | 92 | 346.7 | 260 | 14.4 inch | 3300 | 1104 | ||
| AT350QJ450-115/5 | 115 | 400 | 300 | 3610 | 1207 | |||
| AT350QJ450-138/6 | 138 | 466.7 | 350 | 3970 | 1340 | |||
| AT350QJ450-161/7 | 161 | 546.7 | 410 | 4330 | 1473 | |||
Photo:
Our company:
Aote Tianjin pump co.,ltd was established in 2004,which is a professional organization that engages in designing and producing electric submersible oil pumping unit and electric submersible water pumping unit.We are recognized by CCS and ABS, and have got the certification of ISO9001.
Main products:Electrical submersible pump for oil/Large submersible motor pump(mine submersible pump)/Submersible motor/Submersible pump/Axial flow pump/mixed-flow pump/Submersible screw centrifugal pump/Submersible axial flow screw pump/Sewage pump.Related business: Kinds of Water pipes, switch cabinets, pump control system, pump cast-iron parts and etc..
Collaboration is the foundation of our business. We listen to our customers' requirments and provide best solutions accordingly with minimized cost. Best quality, fast delivery, good after sale service are our core values.
Contact us:
