Solar Powered Irrigation Submersible Pump (HL-150) DC Mini Diaphragm Pump

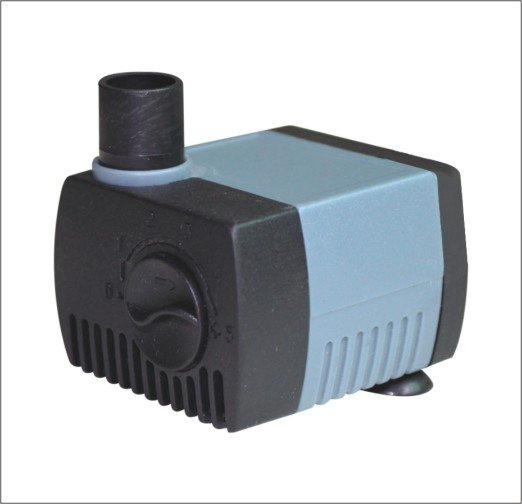

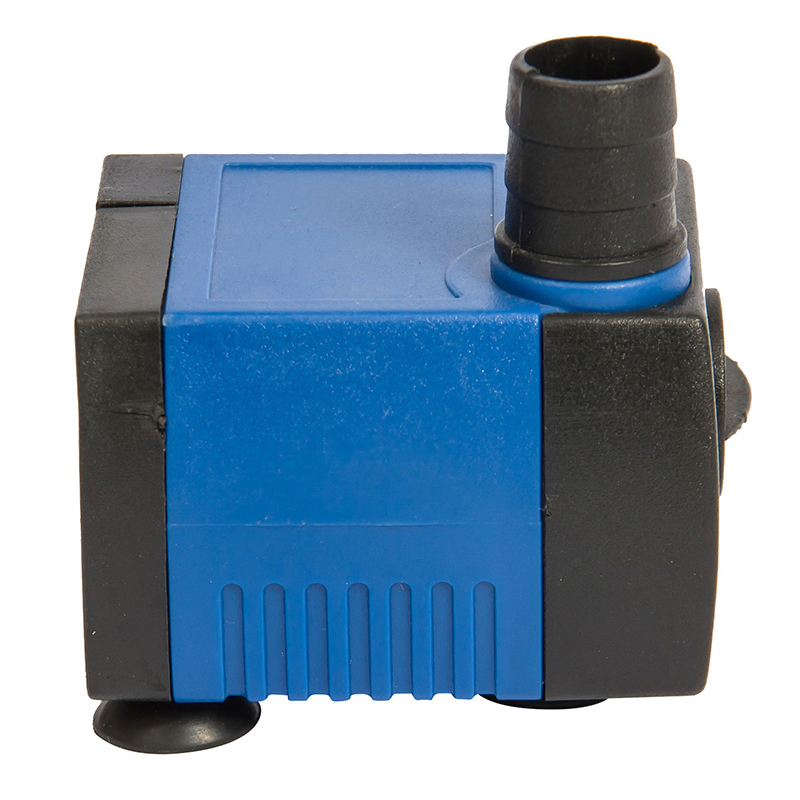

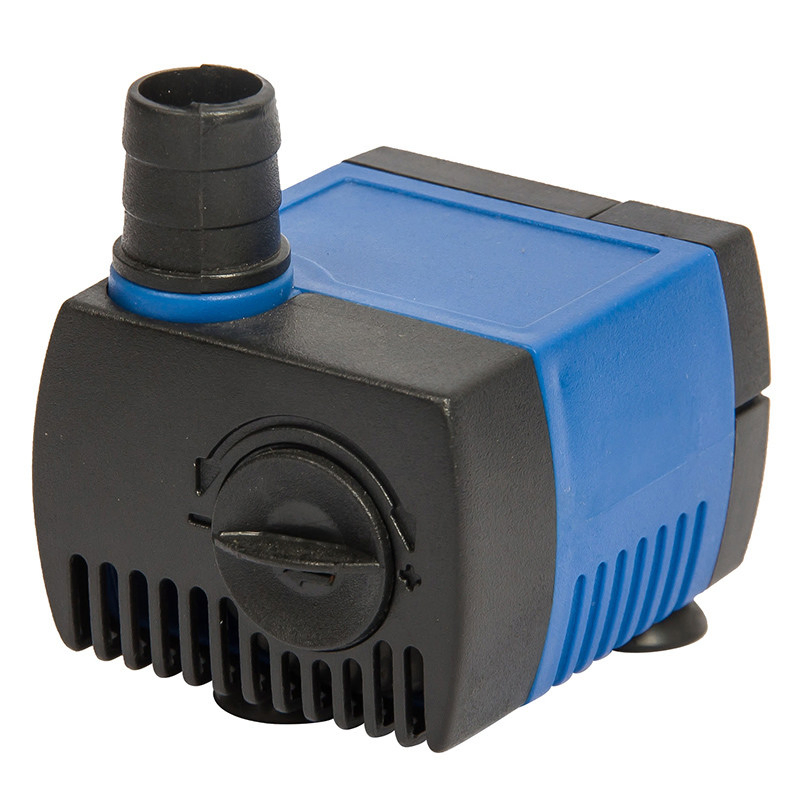

Solar powered irrigation water pump HL-150
Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: Holinpump
Model Number: HL-150
Theory: Centrifugal Pump
Structure: Single-stage Pump
Usage: Water
Power: Electric
Standard or Nonstandard: Standard
Fuel: Other
Pressure: High Pressure
Application: Submersible
Certification: TUV, GS
Packaging & Delivery
Packaging Details: Color box, or simple package, OEM is acceptable
Delivery Detail: 15 days

Specifications

Fountain pump with different delivery heads, adjustable flow control. Perfect for indoor or outdoor use. Compact design, quiet, small.


TUV/CE table aquarium fountain small pump with different delivery heads, adjustable flow control. Perfect for indoor or outdoor use. Compact design, quiet, safe and long lasting. High efficient-save on operating cost. Completely Non-corrosive.
Holinpump, water pump, fountain pump, garden fountain pump, submersible pump
Holinpump
Model: HL-150
Watt3.2W
Hmax50cm(1.6Ft)
Flow rate150L/H(40G/H)
Flow controlYes
Outlet connection8mm
Size41X36X31 mm
ApprovedGS, CE, UL, cUL, SAA
Operateing Voltage120V, 220-240V



Professionals for a variety of handicrafts, a rockery, fountain garden dedicated, aquarium tank, water fountains and other decorative works.


Usage for solar powered irrigation water pump
1. Fountain
2. Aquarium
3. Garden/Farm irrigation
4 Aquarium Small fish pond
5. Water supply for remote ares etc all water feature system
6. Koi pond and all other water features due to the advanced technology used in our pump.
7, Professionals for a variety of handicrafts, a rockery, fountain garden dedicated, aquarium tank, water fountains and other decorative works.
Features
1. Perfect for indoor or outdoor use.
2. Compact design, quiet, safe and long lasting.
3. High efficient-save on operating cost, and energy saving up to 50% than before
4. Completely non-corrosive
5. It has good waterproof, high dielectric strength
6. Pumps are suitable for fresh & saltwater environments

Warning
1, Risk of electric shock is certain that it is connected only to properly grounding-type receptacle.
2, Do not connect to any voltage other than that shown on the pump.
3, Do not pump flammable liquids
4, To reduce the risk of electrical shock, use only on portable self-contained fountains no larger than 5 feet in any dimension.
5, Do not use with water above 35C (95F).
6, Operate pump completely submerged for proper cooling.
7, Not for swimming pool.

Clearing
1, To clean the pump, remove the back cover and the impeller.
2, Use a small brush or stream of water to remove any debris
3, IF THE PUMP FAILS TO OPERATE, CHECK THE FOLLOWING:
4, Check the circuit breaker and try another outlet to ensure the pump is getting electrical power.
5, Check the pump discharge and tubing for kinks and obstructions. Algae build up can be flushed out with a garden hose.
6, Check the inlet to ensure it is not clogged with debris.
7, Remove the pump inlet to access the impeller area. Turn the rotor to ensure it is not broken or jammed.
8, Monthly maintenance will add to your pump's life
9, We guarantee our products for a period of 12 months
