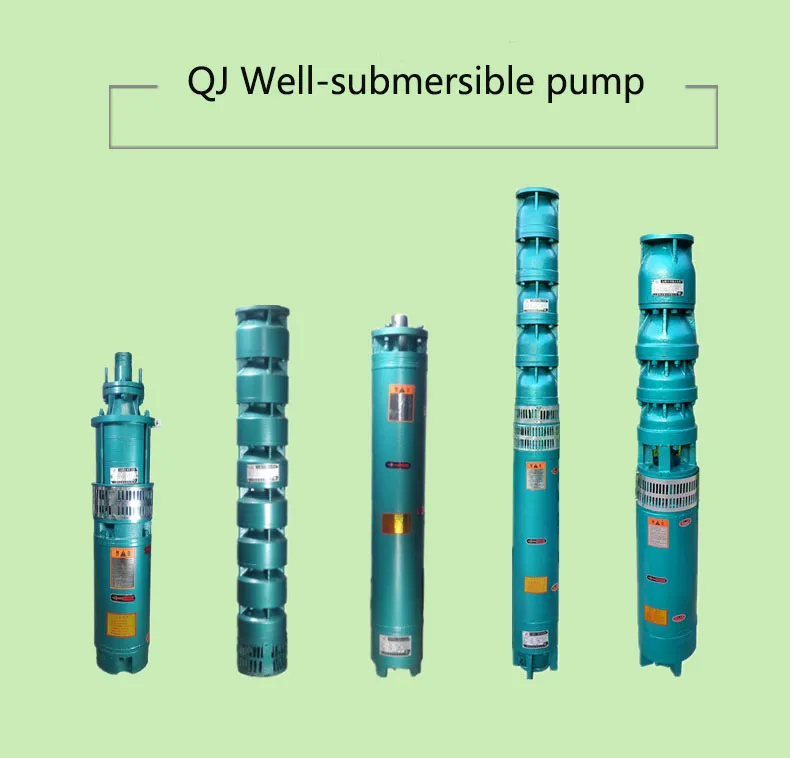

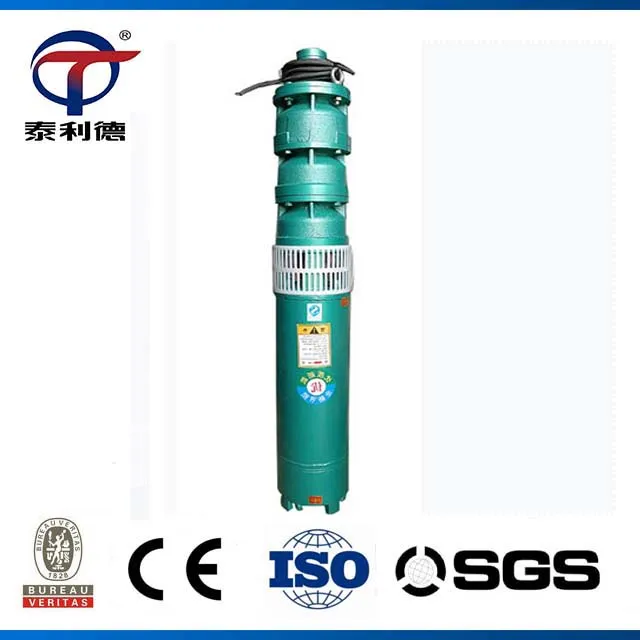

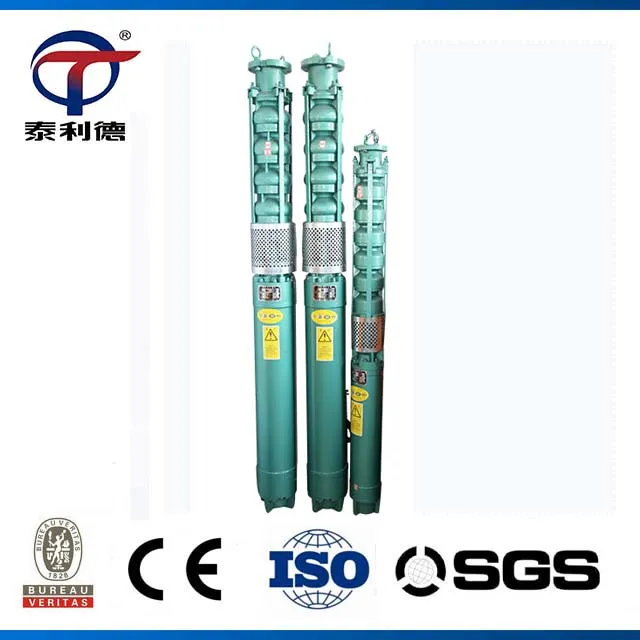

QJ Submersible Water Pump for Farm Irrigation

Pump Name:Deep Well Submersible Pump

Product introduction:

1. Submersible Pump high head water pump centrifugal submersible pump is simple structure,easy installation,
    convenient operation and maintenance.
2. Pump is equipped with inner motor, and special designed for whole submerge work. (Electrical machine and pump wok
    as a whole, it's safe very much.)
3. It is suitable to transport water for extraction of deep groundwater, can also be used in deep well, rivers,  reservoirs
    and ditch water projects.
4. The centrifugal submersible pump is mainly used for irrigation and livestock water system, also for city, factory,railways,
    mining, water supply and drainage construction site.
5. Stainless steel submersible pump for models less than DN100mm(4inch) and cast iron pumps for models with larger
    diameter.

Applications:
1. Water supply and irrigation system
2. Lowering underground water
3. Booster
4. Various industrial applications

Features:

1. Compact structure, small volume, light
2. Smaller O.D , easy to install and maintenance.
3.CE standard, more safety.
4.More material choice, suitable for various operation conditions.

Operation conditions:

1.Power source: three phase AC, 380V/460V,50HZ/60HZ;
2.Water source
3.Water temperature: QJ type≤30ºC, QJR type ≤90ºC;
4.Sand content (weight ratio) in water should not exceed 0.01%;
5.Chlorine ion not exceed 400mg/l;
6.PH=6.5-8.5;

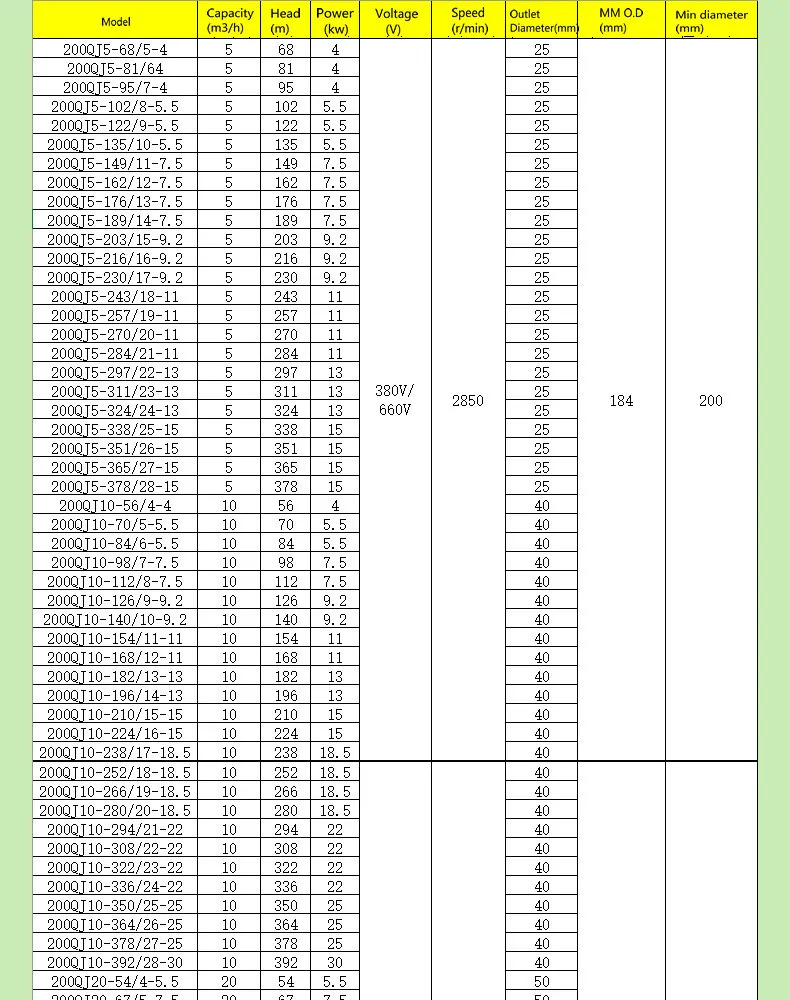

Model meaning:

Deep Well Submersible Pump:

150QJ(R)20-18A
150:Min. well Dia. In mm;
QJ : Submersible pump for well;
R : For hot water;
20: Capacity in m³/h;
18: Total head in m;
A:first time inproved;
submersible motor:
YQS T 200-45
YQS:submersible motor for well;
T: high down thrust bearing;
200: min. well Dia. In mm;
45:Motor power(kw)

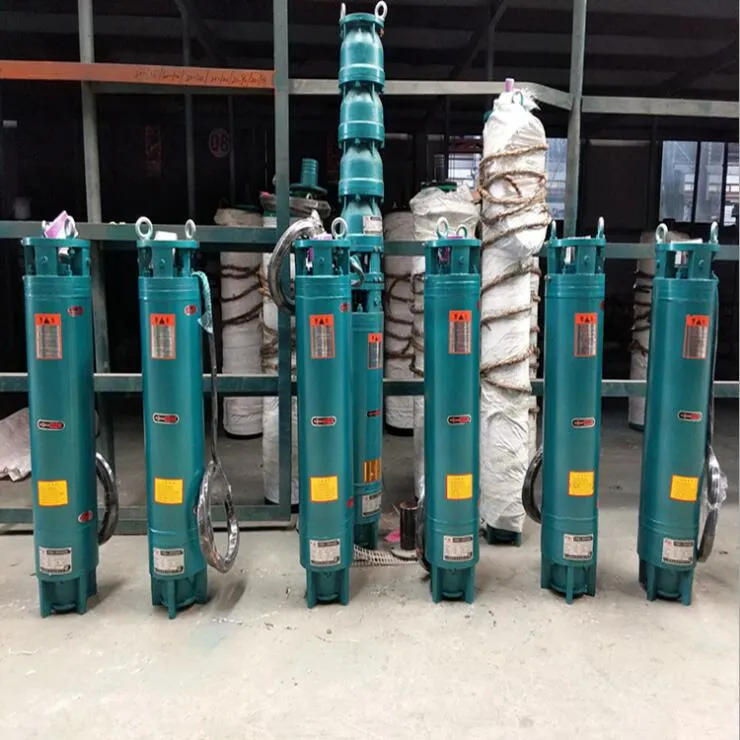

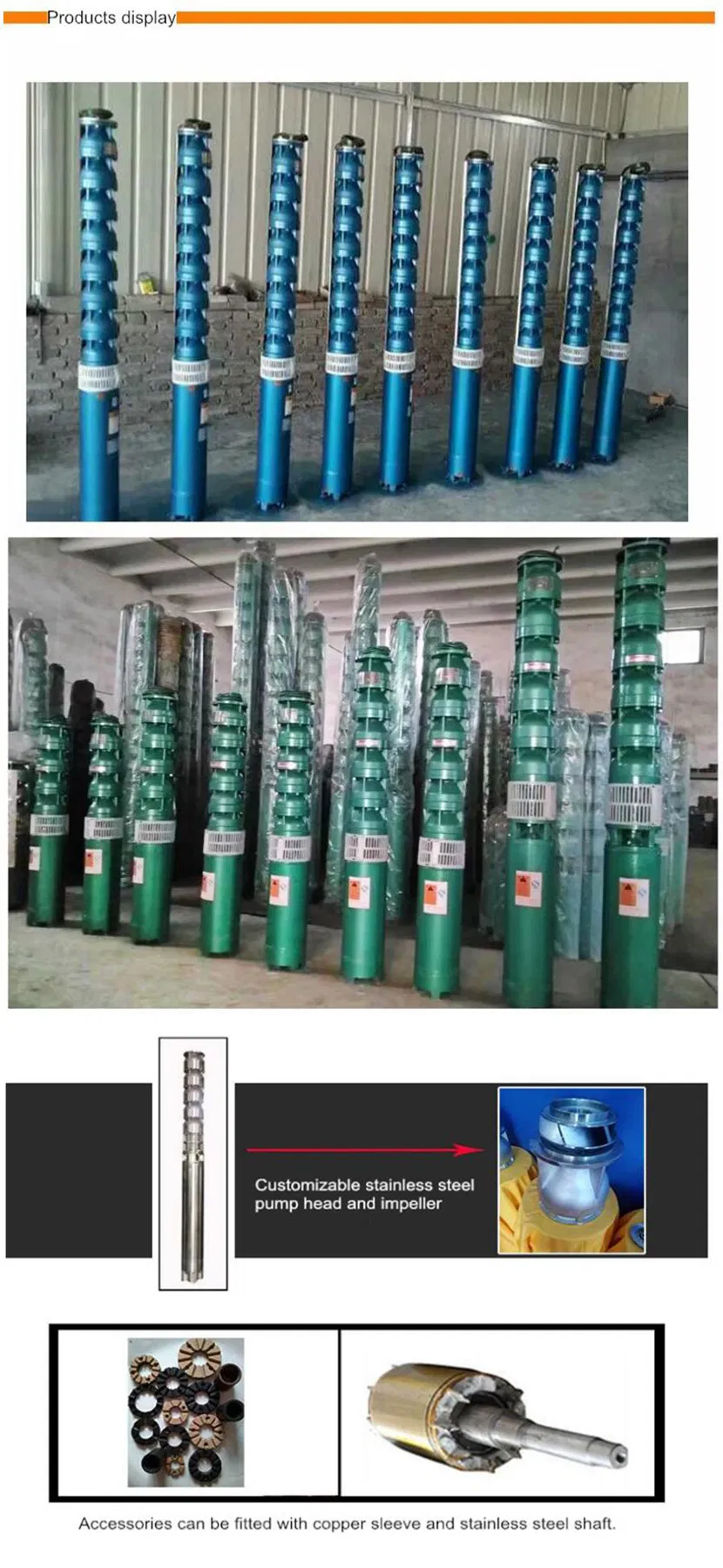

Real Picture

For more details ,pls contact with us!
