Powervalue Zh20cx 2-Inch Intake 5.5 HP Ohv 4-Cycle 168-Gallon-Per-Minute Gas-Powered Portable Water Pump
European Stand 2inch with 5.5hp GX160 engine Gasoline Water PumpPowerful pump is light, compact and efficient.Quiet, dependable OHV engine turns at 3750 RPM max.Silicon carbide mechanical seals last many times longer than ceramic seals because the......
Send Inquiry
Product Description

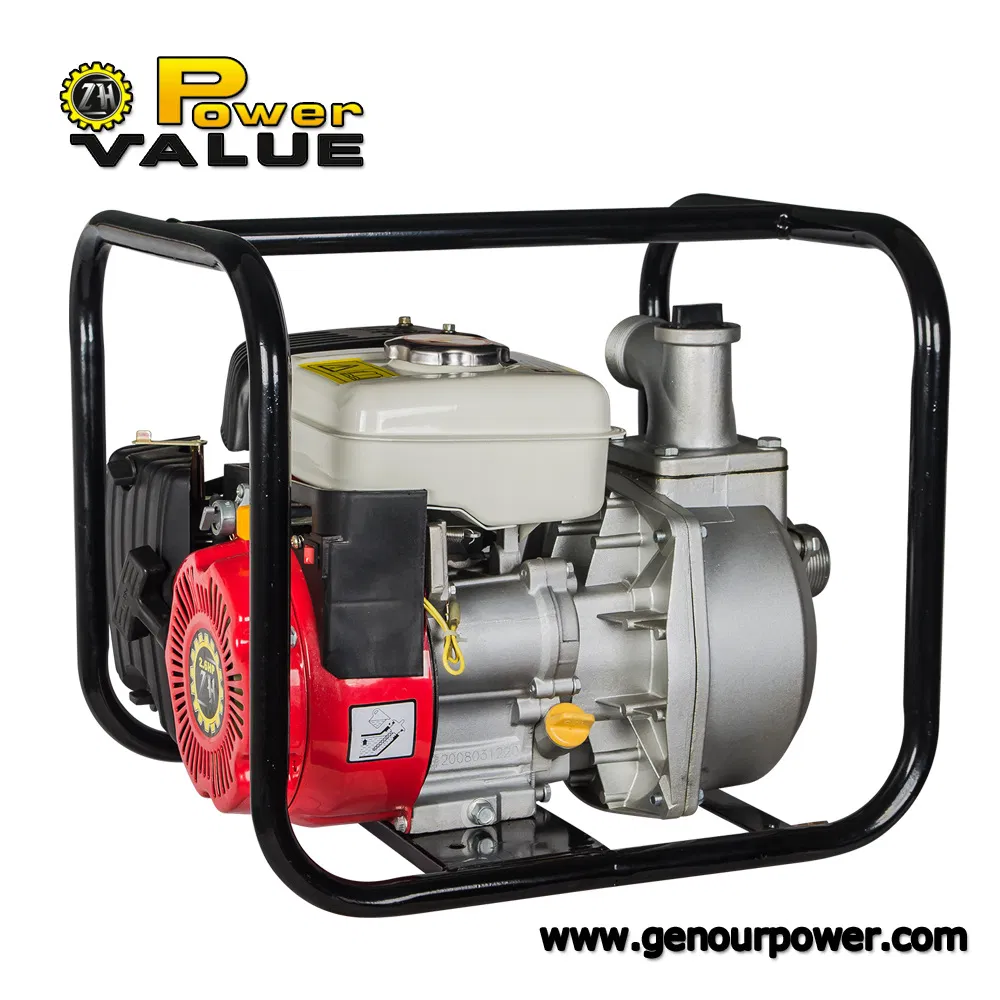

European Stand 2inch with 5.5hp GX160 engine Gasoline Water Pump
Powerful pump is light, compact and efficient.
Quiet, dependable OHV engine turns at 3750 RPM max.
Silicon carbide mechanical seals last many times longer than ceramic seals because they're far more resistant to corrosion, wear and heat.
Model | ZH15CX | ZH15H | ZH20CX | ZH20H | ZH30CX | ZH40CXA | ZH40CXB |
| Inlet and outlet size: | 40 (1.5") | 40 (1.5") | 50 (2.0") | 50 (2.0") | 80 (3.0") | 80 (3.0") | 100(4.0") |
| Rated speed: | 3600rpm | 3600rpm | 3600rpm | 3600rpm | 3600rpm | 3600rpm | 3600rpm |
| Displacement: | 20m3/h | 35m3/h | 36m3/h | 42m3/h | 60m3/h | 75m3/h | 90m3/h |
| Pump lift : | 20m | 55m | 26m | 50m | 30m | 25m | 30m |
| Suction height : | 7m | 6m | 8m | 7m | 8m | 7m | 8m |
| Engine model: | ZH90 | ZH160 | ZH160 | ZH210 | ZH200 | ZH210 | ZH270 |
| Displacement: | 87ml | 163ml | 163ml | 210ml | 196ml | 210ml | 269ml |
| Engine max output: Hp/rpm: | 2.6hp/3000 | 5.5hp/3600 | 5.5hp/3600 | 7.0hp/3600 | 6.5hp/3600 | 7.0hp/3600 | 9.0hp/3600 |
| Fuel volume (L): | 1.6L | 3.6L | 3.6L | 3.6L | 3.6L | 3.6L | 6.0L |
| Bore x stroke: | 54*38mm | 68*45mm | 68*45mm | 70*52mm | 68*52mm | 70*52mm | 77*58mm |
| Compression ratio: | 7.7:1 | 8.5:1 | 8.5:1 | 8.5:1 | 8.5:1 | 8.5:1 | 8.2:1 |
| Oil volume (L): | 0.37L | 0.6L | 0.6L | 0.6L | 0.6L | 0.6L | 1.1L |
| Start mode: | recoil | recoil | recoil | recoil | recoil | recoil | recoil |
| NW/GW (kg): | 28/30kg | 24.5/26kg | 26/28kg | 27/28kg | 28/30kg | 37/39kg | 47/49kg |
| 20GP | 386sets | 385sets | 385sets | 385sets | 330sets | 300sets | 144sets |
| 40HQ | 1586sets | 900sets | 900sets | 900sets | 828sets | 776sets | 375sets |
| Package dimensions (mm): | 420*335*335 | 485*385*380 | 485*385*380 | 485*385*380 | 510*385*425 | 525*385*430 | 635*455*545 |
| Certificate | CE | CE | CE | CE | CE | CE | CE |
