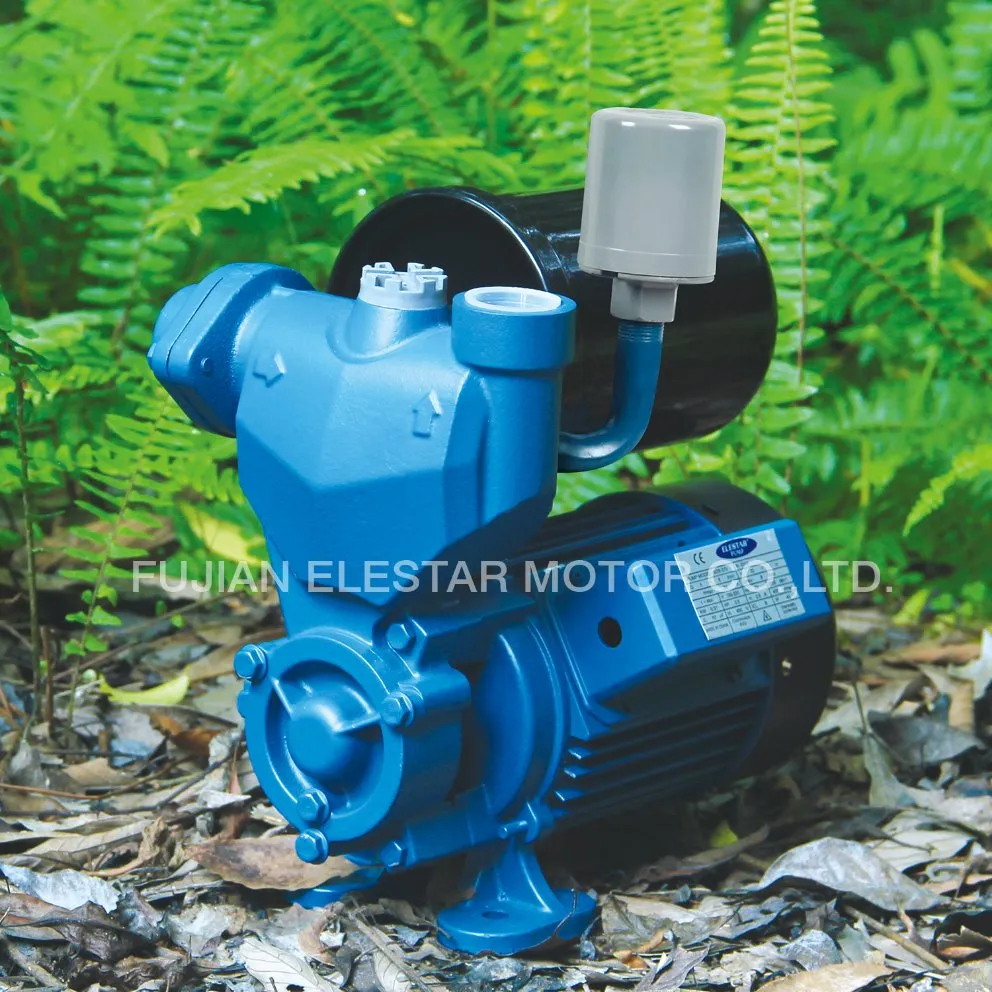

Peripheral Pump Wzb Series 0.5-1HP Clean Water Pumps
WZB Series automatic peripheral self-priming electric water pumpThis series electric pump is an ideal and new type energy-efficient household pump.The pumpis widely used in domestic applications,supply water from wells,gain the tap water pressure,garden irrigation,and supply the water to the vegetab......
Send Inquiry
Product Description
WZB Series automatic peripheral self-priming
electric water pump
This series electric pump is an ideal and new type energy-efficient household pump.The pump
is widely used in domestic applications,supply water from wells,gain the tap water pressure,
garden irrigation,and supply the water to the vegetable greenhouse.The electric pump especially
suitable to gain the pressure in the hot water pipeline when needed.It also can prevent the
instability of the water temperature when supplying the water.
electric water pump
This series electric pump is an ideal and new type energy-efficient household pump.The pump
is widely used in domestic applications,supply water from wells,gain the tap water pressure,
garden irrigation,and supply the water to the vegetable greenhouse.The electric pump especially
suitable to gain the pressure in the hot water pipeline when needed.It also can prevent the
instability of the water temperature when supplying the water.

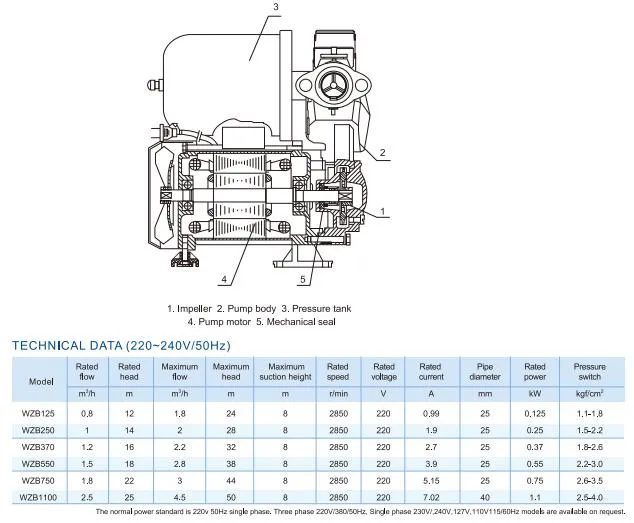

PUMP CONSTRUCT
PUMP
Pump body: Cast Iron
Impeller: Brass
Mechanical seal: Carbon/Ceramic/Stainless Steel
MOTOR
Single Phase
Heavy Duty Continuous Work
Motor Housing: Aluminum
Shaft: Stianless Steel
Insulation: Class B/ Class F
Portecion: IP44/IP54
Cooling: External Ventilatio
PERFOMANCE
| Model | Power | Max.Flow | Max.Head | Max.suct | In/out let | |
| kw | hp | m³/h | m | m | inch | |
| WZB125 | 0.125 | 1.8 | 24 | 9 | 1*1'' | |
| WZB250 | 0.25 | 2.0 | 28 | |||
| WZB370 | 0.37 | 2.2 | 32 | |||
| WZB550 | 0.55 | 2.8 | 38 | |||
| WZB750 | 0.75 | 3.0 | 44 | |||
| WZB1100 | 1.10 | 4.5 | 50 | |||
TECHNICAL DATA(220-240V/50HZ)
According to ISO9001:2008 quality management system, Elestar is provided with advanced inspection equipments and perfect product quality management system.
According to ISO9001:2008 quality management system, Elestar is provided with advanced inspection equipments and perfect product quality management system.
FACTORY PICTURES
Delivery Goods
FAQ Details
A: 100PCS
1.Q: What is your MOQ of this item?
A: 100PCS
1.Q: What is your MOQ of this item?
2.Q: What is the delivery time?
A: 30-45 days after receiving orginal L/C or deposit by TT.
3.Q: Is it all right to make customer's own brand name?
A: Yes we supply OEM service. Please send us a authorization doc.
4.Q: Where is your Loading Port?
A: Fuzhou, Fujian, China Port.
5.Q: What are your payment terms?
A: 30% deposit and balance T/T against copy of Bill of Lading or L/C at sight.
6.Q: What is your company's available production capacity?
A: 50000~60000 pieces of pump per month.
A: 30-45 days after receiving orginal L/C or deposit by TT.
3.Q: Is it all right to make customer's own brand name?
A: Yes we supply OEM service. Please send us a authorization doc.
4.Q: Where is your Loading Port?
A: Fuzhou, Fujian, China Port.
5.Q: What are your payment terms?
A: 30% deposit and balance T/T against copy of Bill of Lading or L/C at sight.
6.Q: What is your company's available production capacity?
A: 50000~60000 pieces of pump per month.
