Product Description

Nitric Acid Chemical Transfer Electric Barrel/Drum Pump
(HD-E2-V+PVDF-1500HP)

Product Description
Drum Pump is a kind of barrel pump. The tube can be directly put into the drum to pump liquid. As per different transferring liquid, the pump wet part can choose Aluminum Alloy, Stainless Steel, PP, RPP, PVDF, PTFE Material. The driving motor can be single phase common motor, Ex-proof motor, no brush motor &high-speed motor for option. It is easy to use, maintenance &high efficiency. It is widely used to transfer acid, petrochemical liquids, treatment water, drinks, gas, kerosene, diesel and some low-viscosity liquids in extensive fields of petrochemical, refinery, food, petro oil, marine, pharmacy, filling station etc.

Nitric Acid Chemical Transfer Electric Barrel/Drum Pump (HD-E2-V+PVDF-1500HP)

Application
1.Chemical: Acid and alkaline substances, high corrosive and toxic substances, solutions, oils, lotions etc.
2.Petrochemical: All kinds of oil, gasoline, kerosene, diesel oil, oil for aviation in oil warehouse, oil station, oil tanker, refineries, gas station etc.
3.Fine chemical: Adhesives, coatings, surfactants, spices, auxiliaries, dyes, catalysts etc.
4.Dyes and chemical industry: Paints, pigment, glue and adhesive etc..
5.Environmental protection: Sewage, waste oil, waste water, fuel oil, ship sewage, water and oil mixture , farm machinery station enterprises and institutions etc.
6.Food sector: Juice, syrup, calcium carbonate emulsion, high pressure water, food additives, alcohol etc.

Technical Parameters

Motor Type	Pump Model	Max.Flow (L/min)	Max.Head (M)	Power (W)	Speed (r/min)	Outlet diameter (mm)	Max. Viscosity (cps)
Motor Type	Pump Model	Max.Flow (L/min)	Max.Head (M)	Power (W)	Speed (r/min)	Outlet diameter (mm)	Max. Viscosity (cps)
Variable speed control motor	HD-E2-V+△-*	165	10	800	10000	25	1000
Variable speed control motor	HD-E2-V+△-*HP	100	28	800	10000	25	1200
Explosion proof electric motor	HD-EX2-V(SB-3)+△-*	198	12	880	12000	25	500
Explosion proof electric motor	HD-EX2-V(SB-3)+△-*HP	120	30	880	12000	25	800
High-speed motor	SB-1100W+△-*	180	11	1100	10000	25	500
	SB-1100W+△-*HP	110	30	1100	10000	25	800
	SB-800W+△-*	170	10	880	10000	25	500
	SB-800W+△-*HP	105	29	880	10000	25	800
	SB-550W+△-*	120	8	550	8000	25	500
	SB-550W+△-*HP	70	22	550	8000	25	800
Explosion proof air motor	HD-A1+△-*	100	7	370	9500	25	300
Explosion proof air motor	HD-A1+△-*HP	60	13	370	9500	25	700
Remarks	The above "△" refers to material of pump tube: AL (Aluminum), SS304, SS316L, PPHT(PP) , PVDF
	The above "" refers to the pump tube length: 700mm, 1000mm, 1200mm, 1500mm*
	The above "HP" refers to the high pressure type, "HV" refers to high volume type, (Do not bid)
	For Example: HD-E2-V+AL-1000 means Aluminum pump tube material/1000mm tube length/ high volume type

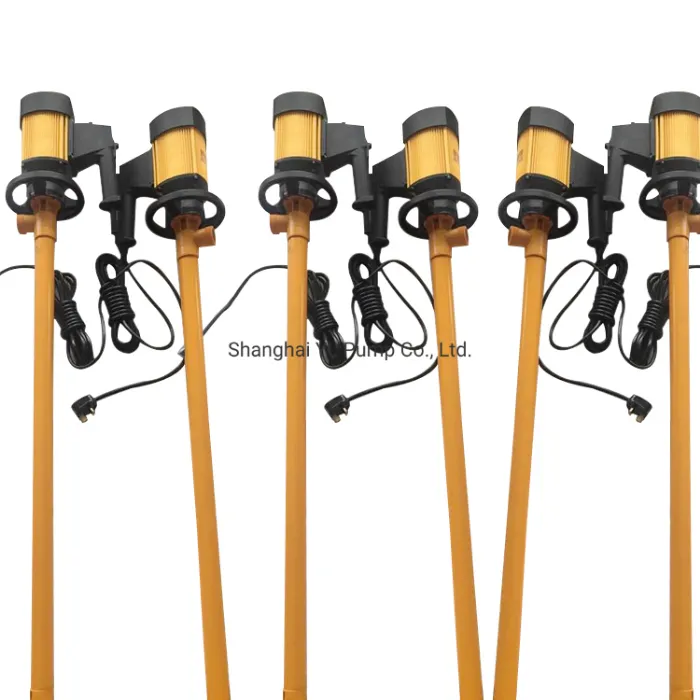

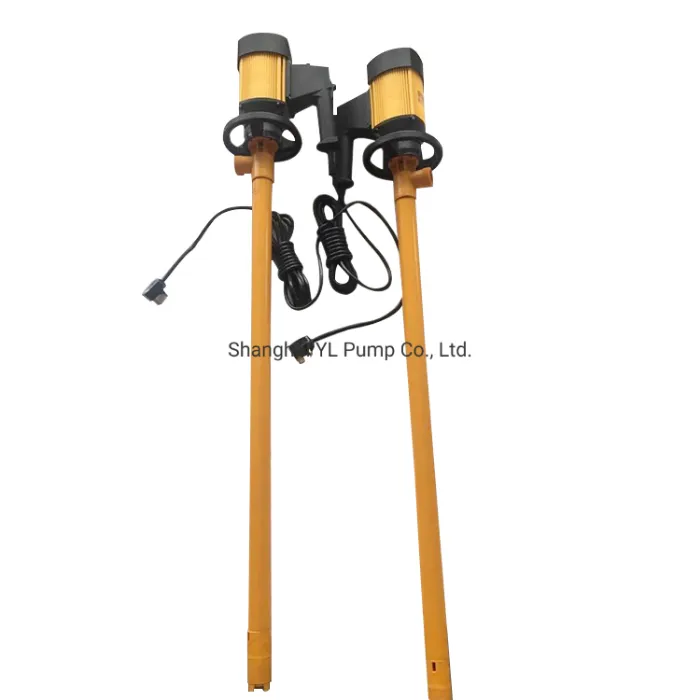

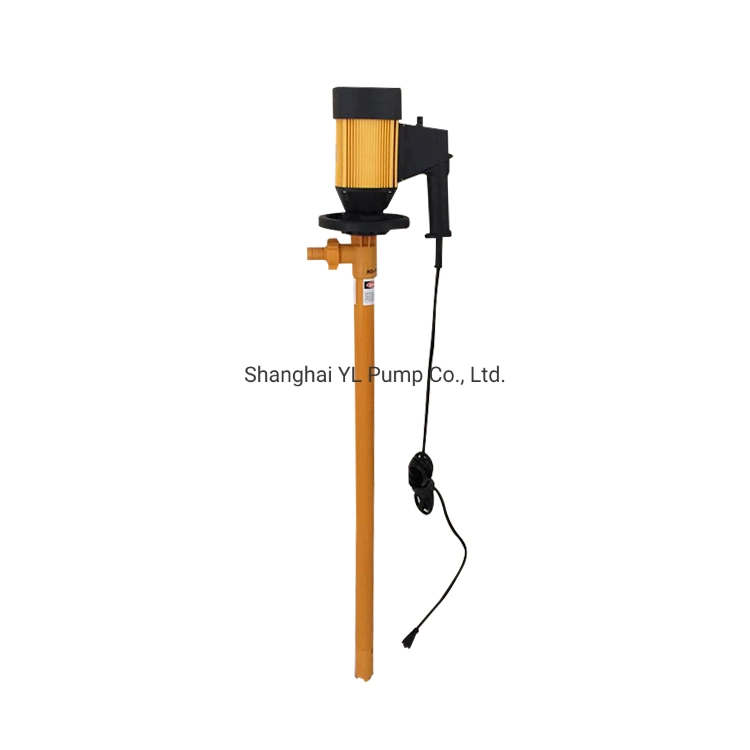

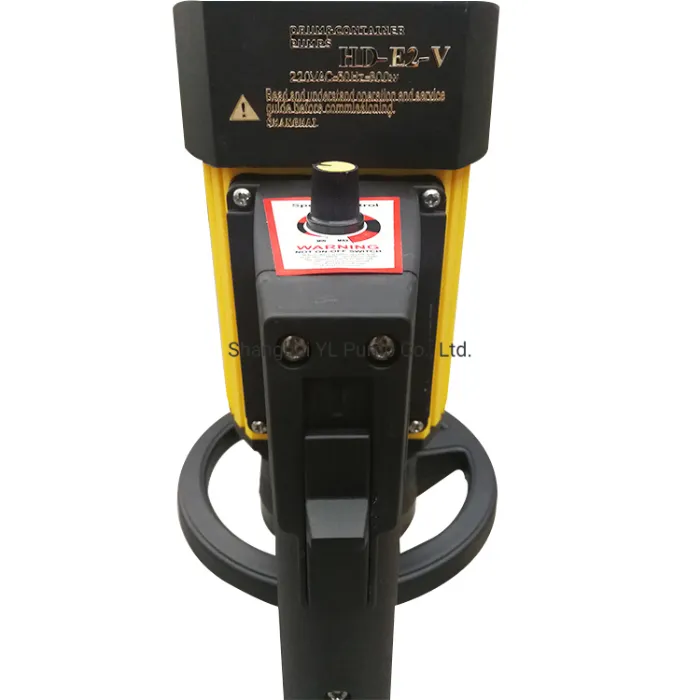

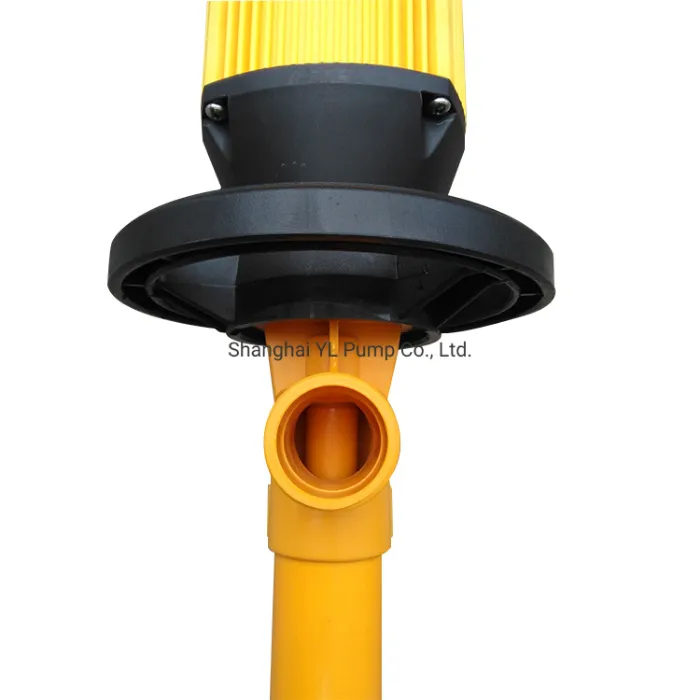

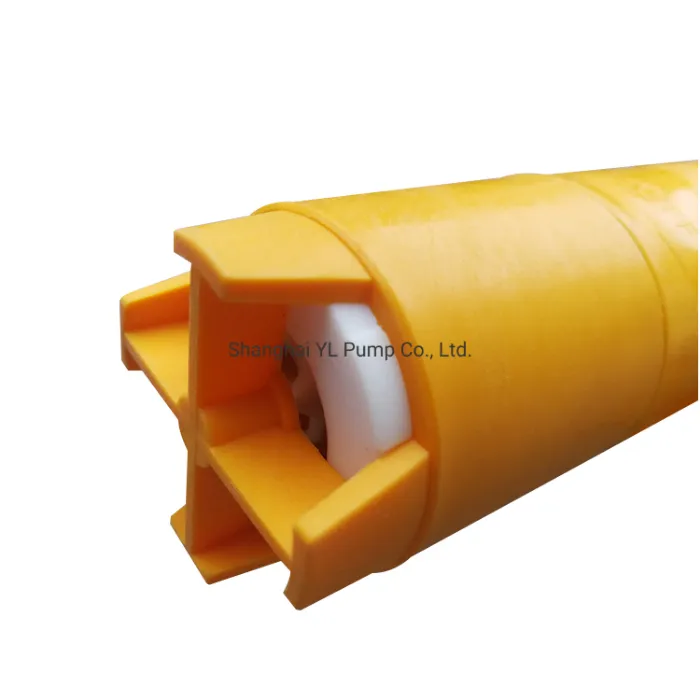

Images
Nitric Acid Chemical Transfer Electric Barrel/Drum Pump (HD-E2-V+PVDF-1500HP)

Our Service
1.Delivery: Delivery time will be on time as the contact. Usually, the delivery time is of drum pump/barrel pump within 7 working days.
2.Warranty: 1 year for the pump body, 3 months for the main working parts.
3.Package:According to your quantity, we use standard exporting carton package.
4.Shipping: By Sea and By Air
5.Payment: We can accept T/T
6.Pre-sales Service:According to your requirement, we will give your our profession advice of pump solution.
7.On-sales Service:We will clearly show you everything in fact when you place an order with us. We will takes photos or videos to show you order production situation.
8.After-sales Service: We will full report you the production progress and plan. Meanwhile, we will follow up the pump working conditions per three months when the pumps put into use, and can send the spare parts to you within one week if you need.

Our Client

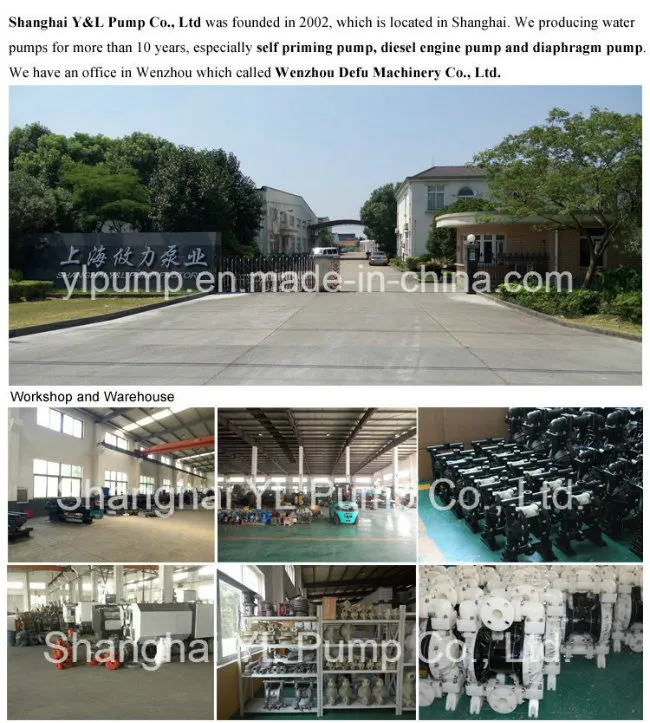

About Us
