Product Description

Product describtion

CDL is a kind of multifunctional product.It can be used to convey various medium from tap water to industrial liquid at different temperature and with different flow rate and pressure.CDL

type is applicable to convey non-corrosive liquid,while CDLF is suitable corrosive liquid..

1.Aplications

1.Water supply: Urban water supply and pressure boosting

2.Industrial liquid conveying: cooling and air-condition system, feed water for boiler, and condensing system

3.Industrial boosting

4.For water treatment: ultrafiltration system, reverse osmosis system, distillation system, separator, swimming pool

5.For irrigation:farmland irrigation, spray irrigation, dripping irrigation.

Nfpa 20 Jockey Pump, Jockey Fire Pump (XBD-L) , Multistage Fire Pump, Vertical Multistage Centrifugal Pump

2.Specifications

Flow: 2-160m3/h

Rotary Speed: 2900r/min

Head: 24-200m

Power: 1.1-110kw

Caliber size: 25-150mm(1inch-6inch)

Operation temperature: -15 °C - +120°C

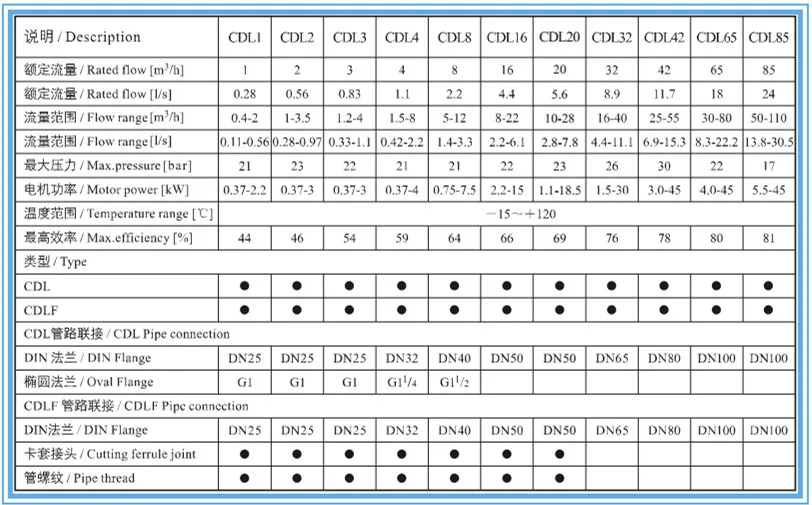

3.Parameters table( more models pls feel free to contact us)

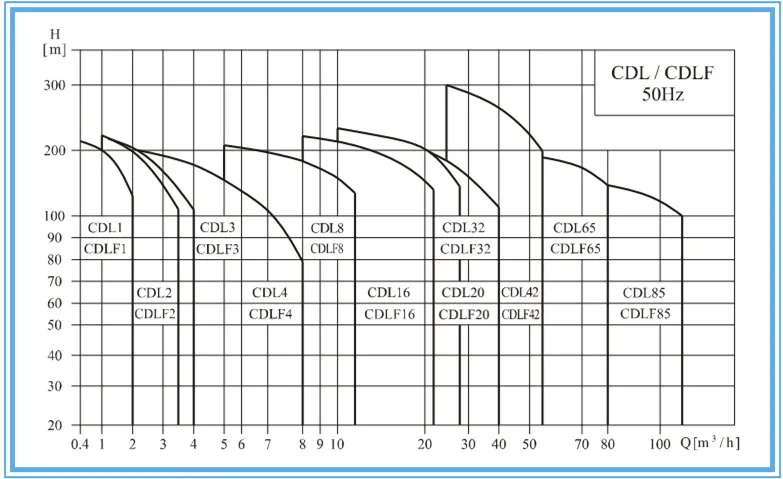

4. Performance curve

5.FAQ

1.Q: Are your company is trading company or manufacture?

A: Pacific Pump Group Co.,Ltd. is a large professional manufacture for more than 18 years in china,and produce with their own factory.

2. Q: What's your factory workshops?

A: Our factory produce include casting,mechanical process,lathe process,heat treatment,assembly,and test,etc.Warmly welcome to visit & test our factory any time.

3. Q: How about your vertical multistage pump price?

A: Our price is factory price,and insist high quality for long-term cooperation.

4. Q: How to do if the pump or parts have operation problem within your warranty?

A: Tell me details timely,and show me pictures,we will send you solution at once without any hesitation.

5. Q: We don't know which pump model we need,can u help us?

A: Yes,pls tell me your detail requirement,include liquid,flow rate,head,etc.and our engineers team will calculate & select most suitable pump model for u,offer pump solution for u.

6.Service

Before-sale service

Product introduction, technical exchange, non-standard product design, problem explanation.

In-sale service

1). Honoring contracts, ensuring on-time delivery, keeping contact with users at any time.
2). For special or complicated [products, arrange persons to provide the users with training and guidance at the product use, troubleshoot, adjustment and repair.

After-sale service

1). Offer a warranty for 18 months from the date of ex-works, with return, replacement and repair available.
2). During the use of products, carry out a periodic organization of the personnel in charge of the technique, quality inspection and service to contact the users to get the feedback on the quality, conditions of use, comments on improvement etc. so as to further enhance the quality.
