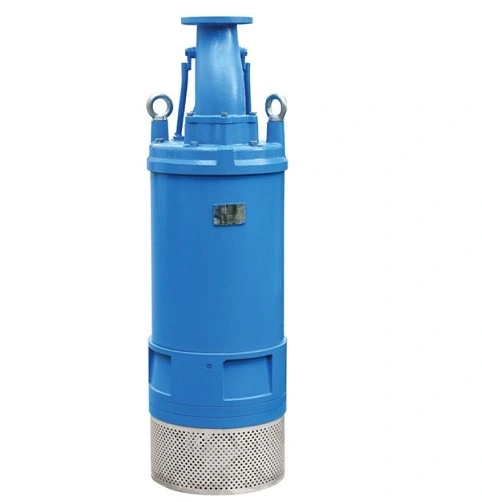

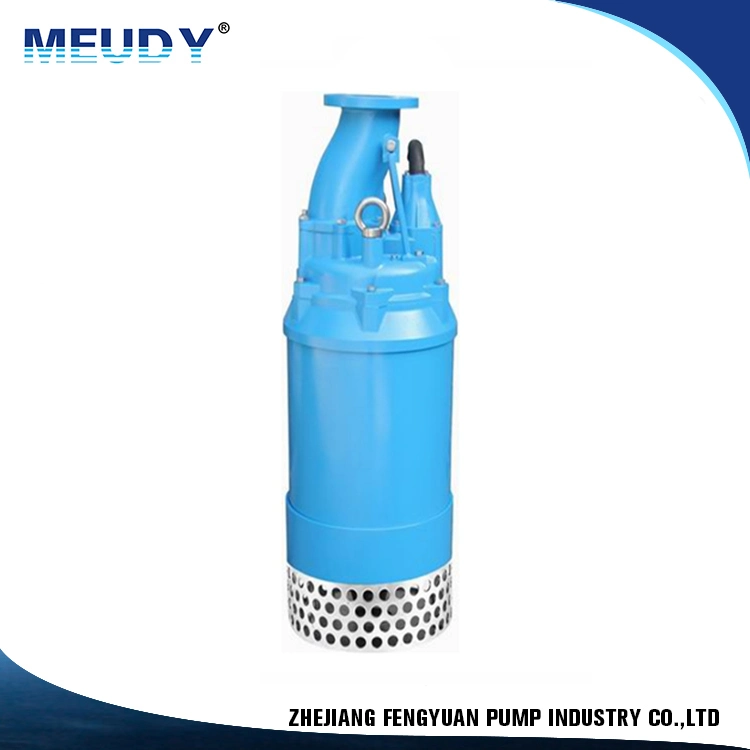

Meudy High Head (Pressure) Submersible Drainage Pump for Ming Construction Works & Civil Engineering
Submersible Dewatering Pump, Sewage Pump, Slurry Pump, Contractors' PumpClacteristcs The body of motor and pump is made of rigid cast iron for long-lasting durability.Greatly increased maximum submersion depth due to double mechanical seal resistant to high pressure Hydraulic part under the moto......
Send Inquiry
Product Description
Submersible Dewatering Pump, Sewage Pump, Slurry Pump, Contractors' Pump
Clacteristcs
The body of motor and pump is made of rigid cast iron for long-lasting durability.
Greatly increased maximum submersion depth due to double mechanical seal resistant to high pressure
Hydraulic part under the motor and motor cooled by the pumped water for safe operation also with the pump only partially immersed. Space economy by a top outlet.
Hermetically sealed motor equipped.
Discharge 100mm(4") to 200mm(8"),motor 22kW(30HP) to 75 kW (100HP)
Motor is dry type submersible induction motor (2 poles).
Specification
Capcity:up to 390 m3/h
Head: up to 130 meters
Power : 22kW(30HP) to 75 kW (100HP)
Supply voltage : Three Phase 400 V±10%, 50Hz 380 V±10%, 60Hz
Insulation class: F
Protection class: IP68
Cable Length :20m
Water temperature: up to 40ºC
Max. water depth: 30 m
Application
Deep-well pre-dewatering or high-head dewatering
Civil engineering and construction works Mines, quarries, coal ore & slurries
Sewage treatment plants General pumping purposes
Special features on request
Other voltages The length of cable is optional
Clacteristcs
The body of motor and pump is made of rigid cast iron for long-lasting durability.
Greatly increased maximum submersion depth due to double mechanical seal resistant to high pressure
Hydraulic part under the motor and motor cooled by the pumped water for safe operation also with the pump only partially immersed. Space economy by a top outlet.
Hermetically sealed motor equipped.
Discharge 100mm(4") to 200mm(8"),motor 22kW(30HP) to 75 kW (100HP)
Motor is dry type submersible induction motor (2 poles).
Specification
Capcity:up to 390 m3/h
Head: up to 130 meters
Power : 22kW(30HP) to 75 kW (100HP)
Supply voltage : Three Phase 400 V±10%, 50Hz 380 V±10%, 60Hz
Insulation class: F
Protection class: IP68
Cable Length :20m
Water temperature: up to 40ºC
Max. water depth: 30 m
Application
Deep-well pre-dewatering or high-head dewatering
Civil engineering and construction works Mines, quarries, coal ore & slurries
Sewage treatment plants General pumping purposes
Special features on request
Other voltages The length of cable is optional
