Product Description

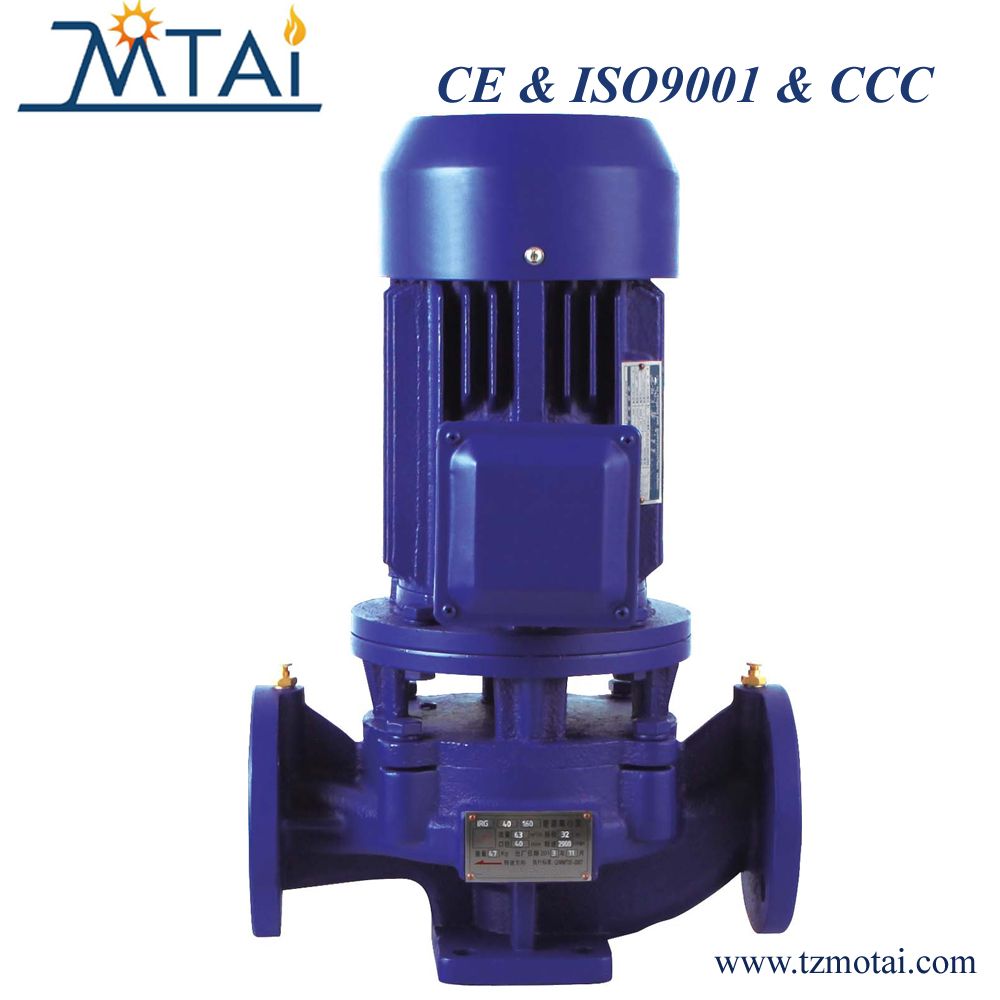

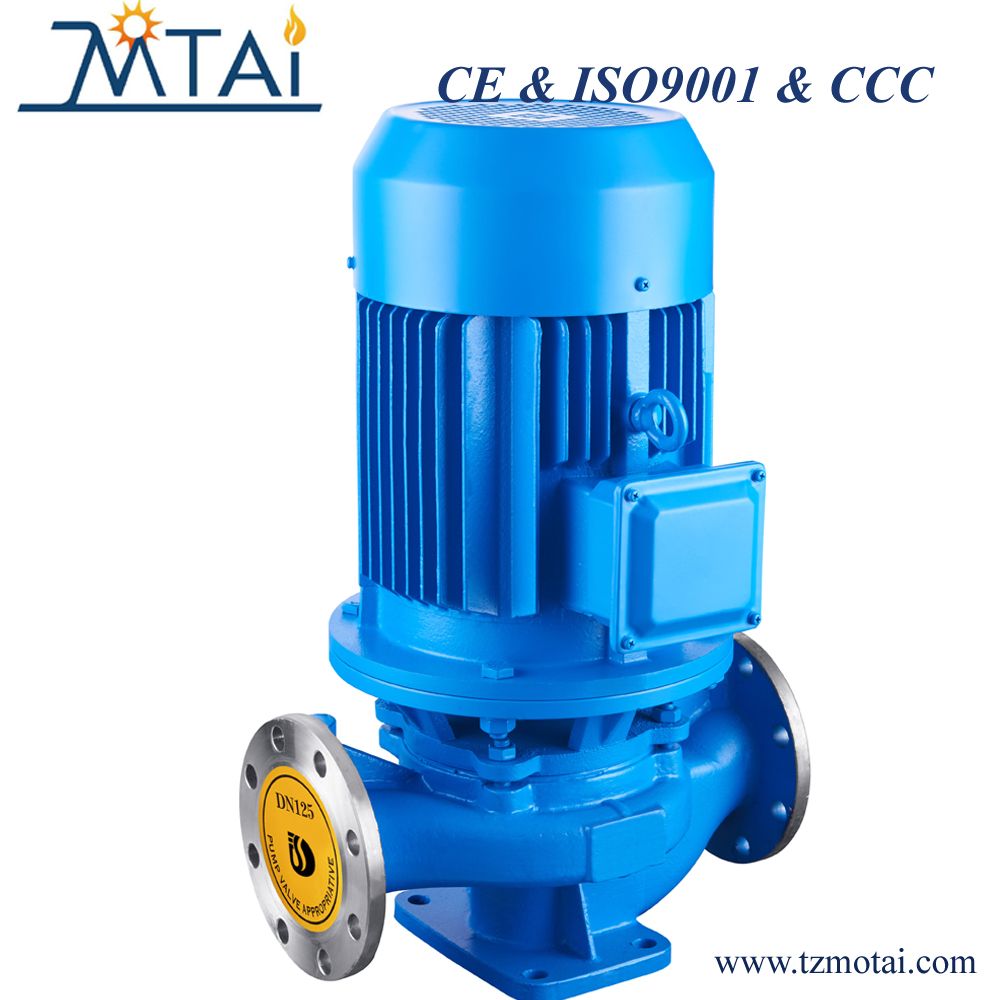

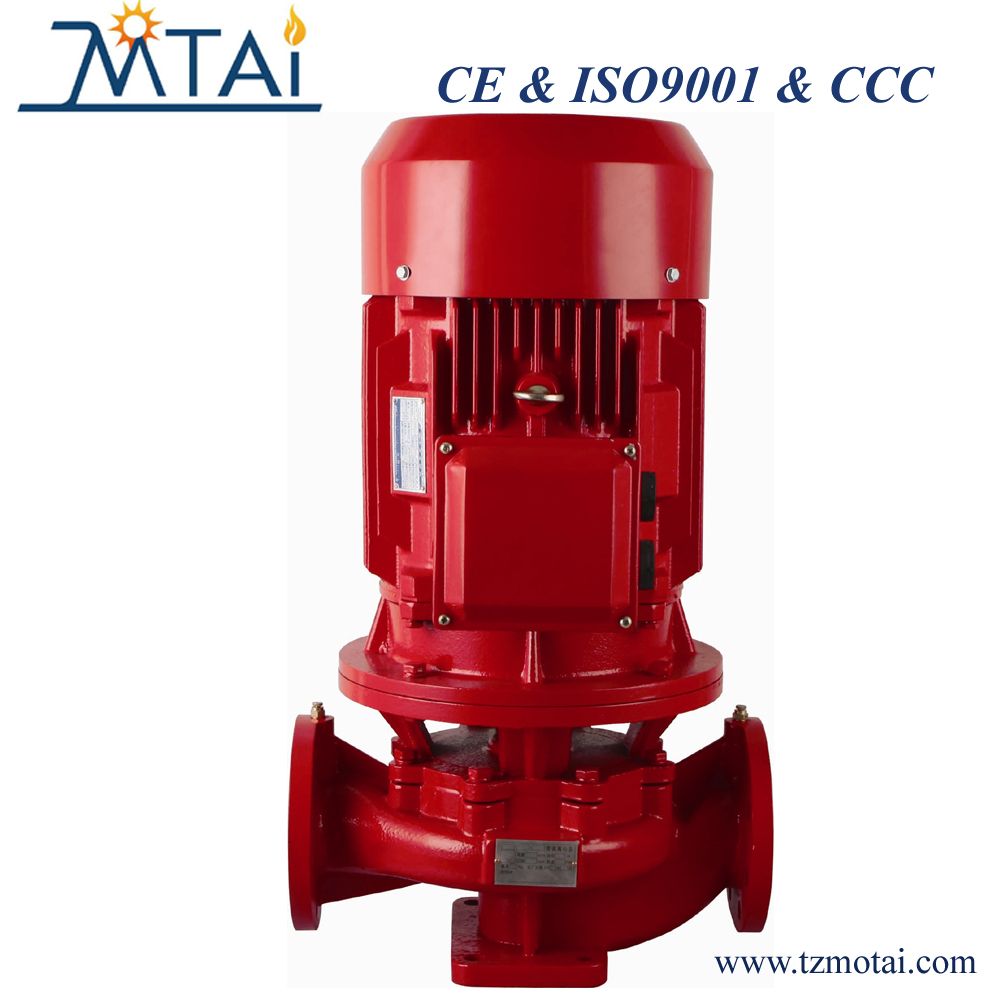

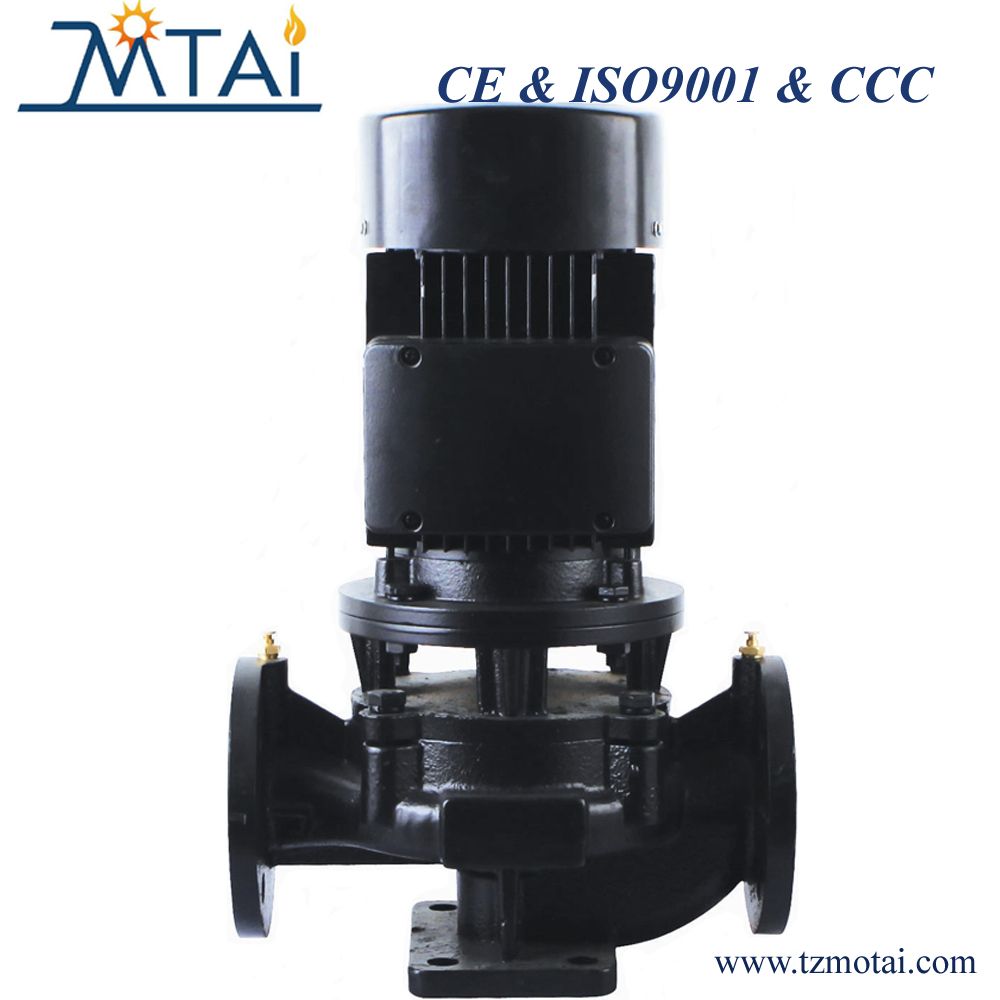

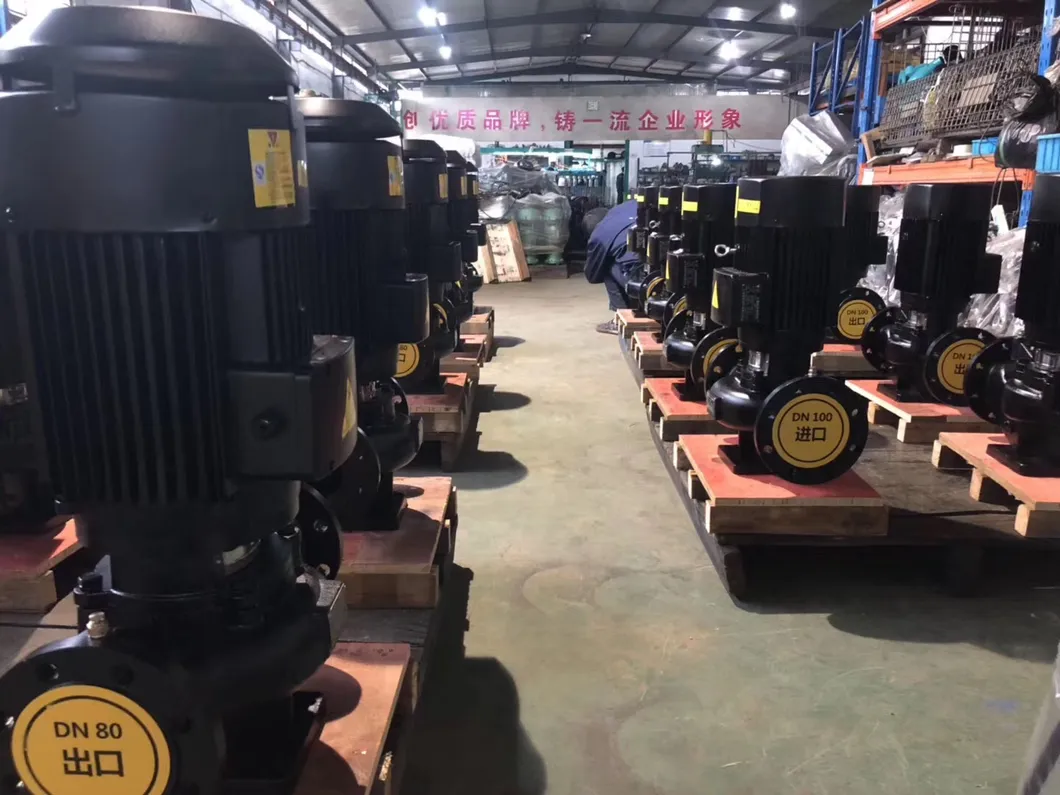

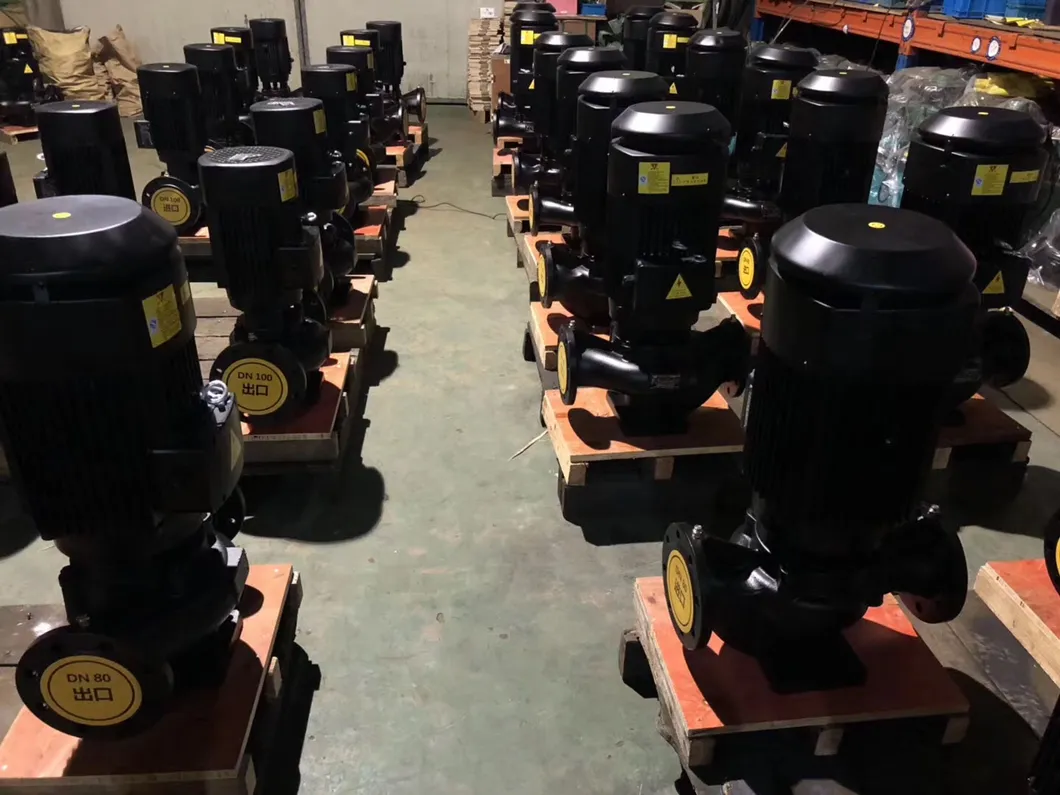

IRG.ISG Series Single Stage Single Suction Vertical Centrifugal Pump
is jointly designed developed by the scientific technicians of our company and other domestic water pump experts.it is shaped on excellent domestic hydraulic models,applies the performance parameter of its centrifugal pumps and skillfully built up based common vertical pump. The pump is also a new generation of ISC type and used as hot water.high temperature and corrosive chemical pump and oil pump according to different temperature and mediums.
This series pump features high energy saving,low noise and reliable performance etc.,complies
with JB/T53058-93standard of the mechanic ministry of china and designed and manufactured strictly according to ISO2858.
Structure Explanation:

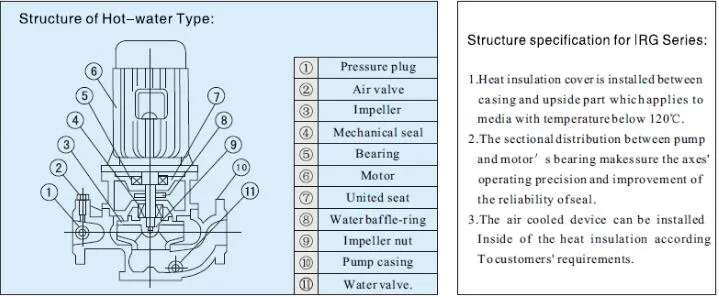

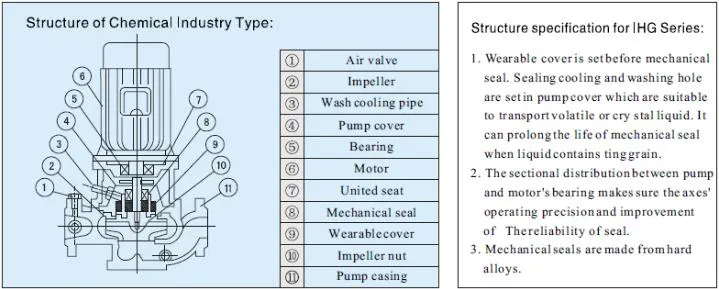

See the structure picture. This pump composes of electric motor and pump with pump structure including the pump body, impeller, pump cover, mechanical seal. The pump is single stage and single suction centrifugal and vertical type with inlet and outlet at the same horizontal line and same dia. Able to mount on any pipe line at any place easily and small occupying place. The
Pump has foot to increase the consolidation of the pump and with the flange of inlet/outlet, a pressure hole can equip with pressure meter to ensure the pump long and lasting operation with in its rated performance.
Technology Parameters
Flow: 6.3-1600m3/h
Head: 5-150m
Rotary Speed: 980-2900r/min
Calibre: Φ15-Φ500
Temperature: 0~+120º C
Working Pressure: ≤ 1.6Mpa
Main Application:
Applied to pumping such liquid which is clean, no solid matter or frictional matter, low viscous,
noncorrosive, non-crystallizable, chemically neutral and close to water. Such as:
· Tank filling · Domestic water supply · Water transfer · Pressure boosting · Irrigation
1. ISG vertical centrifugal pump used for pumping clear water and clear water like other liquid with temperature not exceeding 80 degree, suitable for industrial and city water supply and drainage, pressurizing the pipe pressure for high building, garden watering, fire pipe pressurizing, distance water supply, heating supply, bath room and for cool and warm water recycle, booster and relative equip.

2. IRG vertical hot water pump is used for energy, refinery, wooden process, chemical industrial, textile industrial, paper making, restaurant, bath room, hotel and for hot water recycling of boiler and city heating system with liquid temperature not exceeding 120 degree.

3. IHG series vertical pipeline chemical pump transports the liquid which is corrosive and without solid grain and similar to water in viscosity. It is suitable in petroleum, chemical industry, metallurgy,electric power, paper making, food and pharmacy and synthetic fibre etc. Working temperature is -20 to 120ºC.

Range of Application
Daily and fire water supply for constructions, air conditioning system, cyclic pressuriztion for other cold and hot clean mediums.
Characteristic
1.the pump is in vertical structure.the suction and discharge port shave the same diameter and on a same central line.it can bu install on the pipe line like a valve.the pump is compact with good profile,take less space and low construction investment.it can be used outdoor if covered by protection hood.
2.the impellers are installed directly on the extended shaft of the motor,the axial size is short and structure compact.the pump is rationally fitted with motor bearings too effectively balance the radial and axial load generated during pump operation,thus to guarantee the stable pump running low vibration and noise.
3.the shaft is sealed mechanically or with mechanic sealing set.the sealing rings are made of titanium alloy.it is medium-size and high-temperature resistant mechanical seals.the hardened axial metal alloy is wear resistant and can effectively improve the life time of the mechanical seal.
4.installation and repair and done conveniently,no piping systems have to be removed to take out the whole rotor set except the screw linking the pump body and the base.
5.the pumps can be connected in series or parallel in operation according to the need of flow and delivery.
6.the pump can be installed vertically or horizontally according to the piping requirement.
Working Condition:
1. The pump system's max working pressure is 1.6MPa, i. e. The inlet of pump's pressure +pump head≤ 1.6MPa, working pressure is 2.5MPa, inlet pressure not exceed 0.3MPa, please note that if exceeding 0.3MPa, the seal of the impeller balance hole is needed to keep balance of shaft force.
2. Suitable liquid: Solid particle should not exceed 0.1% of total volume with shape not exceed 0.2mm, if the liquid containing the small particle, the mechanical seal should adopt durable type.
3. Environmental temperature should be less than 40degree. Relative moisture should not exceed 95%.
Performance & Advantages
Highly efficiency, Energy saving, With tube-type structure, easy for installation, Electro-mechanically integrated design, Space efficient,
Easy for service just by disassembling the nut of the pump bonnet and taking out the motor and the actuator unit. Wide application scope.
Feature
1. Single stage and single suction pipeline centrifugal pump of type ISG series are designed by domestic pump experts and our technical personnel with domestic excellent hydraulic model, and adopt centrifugal pump performance parameters of type IS based on vertical pump design.

2. The pump is vertical structure, and import caliber equal to export's and located in the same center line and installed in the pipeline as the valve. The appearance of the pump is compact and beautiful. It is low construction investment with small size. It can be placed outdoor with shield.

3. The impeller installs in extension of the motor shaft directly. The axial dimension is short, compact structure, reasonable allocation of pump and motor shaft. It can effectively balance radial and axial load when pump operates, thus it ensures the operation smoothly of the pump, and it is low vibration noise.

NO	Model	Flow(Q)		Head (m)	Eff (%)	Speed (r/min)	Motor Power (kw)	Needed Air Containr (m)	Weight (KG)
NO	Model	(m3/h)	L/S	Head (m)	Eff (%)	Speed (r/min)	Motor Power (kw)	Needed Air Containr (m)	Weight (KG)
001	15-80	1.1 1.5 2..0	0.3 0.42 0.55	8.5 8 7	26 34 34	2900	0.18	2.3	17
002	20-110	1.8 2.5 3.3	0.5 0.69 0.91	16 15 13.5	25 34 35	2800	0.37	2.3	25
003	20-160	1.8 2.5 3.3	0.5 0.69 0.91	33 32 30	19 25 23	2900	0.75	2.3	29
004	25-110	2.5 4 5.2	0.78 1.11 1.44	16 15 13.5	34 42 41	2900	0.55	2.3	26
005	25-125	2.8 4 5.2	0.78 1.11 1.44	20.6 20 18	28 36 35	2900	0.75	2.3	28
006	25-125A	2.5 3.6 4.6	0.69 1.0 1.28	17 16 14.4	35	2900	0.55	2.3	27
007	25-160	2.8 4 5.2	0.78 1.1 1.44	33 32 30	24 32 33	2900	1.5	2.3	39
008	25-160A	2.6 3.7 4.9	0.72 1.03 1.36	29 28 26	31	2900	1.1	2.3	34
009	32-125	3.5 5 6.5	0.97 1.39 1.8	22 20 18	40 44 42	2900	0.75	2.3	28
010	32-125A	3.1 4.5 5.8	0.86 1.25 1.61	17.6 16 14.4	43	2900	0.55	2.3	28
011	40-100	4.4 6.3 8.3	1.22 1.75 2.31	13.2 12.5 11.3	48 54 53	2900	0.55	2.3	32
012	40-100A	3.9 5.6 7.4	1.08 1.56 2.06	10.6 10 9	52	2900	0.37	2.3	32
013	40-125	4.4 6.3 8.6	1.22 1.72 2.31	21 20 18	41 46 43	2900	1.1	2.3	34
014	40-125A	3.9 5.6 7.4	1.08 1.56 2.06	17.6 16 14.4	40 45 41	2900	0.75	2.3	33
015	40-160	4.4 6.3 8.36	1.22 1.72 2.31	33 32 30	34 40 42	2900	2.2	2.5	47
016	40-160A	4 5.5 7	1.11 1.53 1.94	29 28 26.6	33 38 39	2900	1.5	2.2	43
017	40-160B	3.5 5 6.5	0.97 1.39 1.8	25 24 22.5	31.5 37 39	2900	1.1	2.5	38
018	40-200	4.4 6.3 8.3	1.22 1.75 2.31	51 50 48	26 33 32	2900	4	2.3	74
019	40-200A	4 5.5 7	1.1 1.53 1.94	44.6 44 42.7	26 31 32	2900	3	2.3	62
020	40-200B	3.5 5 6.5	0.97 1.39 1.80	39 38 36	29	2900	2.2	2.3	52
021	40-250	4.4 6.3 8.3	1.22 1.72 2.31	82 80 74	24 28 28	2900	7.5	2.3	105
022	40-250A	4 5.5 7	1.11 1.53 1.94	72.5 70 65	24 26 24.5	2900	5.5	2.5	98
023	40-250B	3.5 5 6.5	0.97 1.39 1.80	63 60 55	25	2900	4	2.5	77
024	40-100(I)	8.8 12.5 16.3	2.44 3.47 4.53	13.2 12.5 11.3	55 62 60	2900	1.1	2.3	34
025	40-100(I)A	8 11 14.5	2.22 3.05 4.3	10.6 10 9	60	2900	0.72	2.3	32
026	40-125(I)	8.8 12.5 16.3	2.44 3.47 4.53	21.2 20 7.8	49 58 57	2900	1.5	2.3	38
027	40-125(I)A	8 11 14.5	2.22 3.05 4.03	17 16 4	57	2900	1.1	2.3	33
028	40-160(I)	8.8 12.5 16.3	2.44 3.47 1.53	33 32 30	45 52 1	2900	3	2.3	56

NO	Model	Flow(Q)		Head (m)	Eff (%)	Speed (r/min)	Motor Power (kw)	Needed Air Containr (m)	Weight (KG)
NO	Model	(m3/h)	L/S	Head (m)	Eff (%)	Speed (r/min)	Motor Power (kw)	Needed Air Containr (m)	Weight (KG)
029	40-160(I)A	8 11 14	2.22 3.05 3.89	29 28 26.2	43 48 47	2900	2.2	2.5	47
030	40-160(I)B	7 10 13	1.94 2.78 3.61	26 24 20	50	2900	1.5	2.5	43
031	40-200(I)	8.8 12.5 16.3	2.44 3.47 4.53	51.2 50 48	38 46 46	2900	5.5	2.3	85
032	40-200(I)A	8 11 14	2.22 3.05 3.89	44.7 44 43.	43	2900	4	2.5	75
033	40-200(I)B	7 10 13	1.94 2.78 3.61	40 38 35	44	2900	3	2.5	63
034	40-250(I)	8.8 12.5 16.3	2.44 3.47 4.53	81.2 80 77.5	31 38 40	2900	11	2.3	145
035	40-250(I)A	8 11 14	2.22 3.05 3.89	71.5 70 68	34	2900	7.5	2.5	95
036	40-250(I)B	7 10 13	1.94 2.78 3.61	62 60 57	34	2900	5.5	2.5	94
037	40-250(I)C	7.1 10.0 13.1	1.97 2.78 3.64	53.2 52 50.4	36	2900	5.5	2.3	88
038	50-100	8.8 12.5 16.3	2.44 3.47 4.53	13.6 12.5 11.3	55 62 60	2900	1.1	2.3	36
039	50-100A	8 11 14.5	2.22 3.05 4.03	11 10 9	60	2900	0.72	23	35
040	50-125	8.8 12.5 16.3	2.44 3.47 4.53	21.5 20 14.8	49 58 57	2900	1.5	2.3	43
041	50-125A	8 11 14.5	2.22 3.05 4.03	17 16 14	57	2900	1.1	2.3	38
042	50-160	8.8 12.5 16.3	2.44 3.47 4.53	33 32 30	45 52 51	2900	3	2.3	59
43	50-160A	8 11 14	2.22 3.05 3.89	29 28 26.2	43 48 47	2900	2.2	2.5	51
044	50-160B	7 10 13	1.94 2.78 3.61	26 24 20	50	2900	1.5	2.5	47
045	50-200	8.8 12.5 16.3	2.44 3.47 4.53	51 50 48.5	38 46 49	290	5.5	2.5	101
046	50-200A	8 11 14	2.22 3.05 3.89	44.7 44 43	37 43 43	2900	4	2.5	80
047	50-200B	7 10 13	1.94 2.78 3.61	40 38 35	44	2900	3	2.5	68
048	50-250	8.8 12.5 16.3	2.44 3.47 4.53	81.4 80 77.5	29 36 40	2900	11	2.5	160
049	50-250A	8 11 14	2.22 3.05 3.89	74.5 70 68	29 34 37	1800	7.5	2.5	115
050	50-250B	7 10 63	1.94 2.78 3.61	62 60 57	34	2900	.5.5	2.5	114
051	50-250C	7.1 10.0 13.1	1.97 2.78 3.64	53.2 52 50.4	36	2900	5.5	2.3	108
052	50-100(I)	17.5 25 32.5	4.86 6.94 9.03	13.7 12.5 10.5	67 69 69	2900	1.5	2.5	41
053	50-100(I)A	15.6 22.3 29	4.3 6.19 8.1	11 10 8.4	65 67 68	2900	1.1	2.5	39
054	50-125(I)	17.5 25 32.5	4.86 6.94 9.06	21.5 20 18	60 68 67	2900	3	2.5	56
055	50-125(I)A	16 22 28	4.44 6.11 7.78	17.5 16 3.5	62 63 62	2900	2.2	3	48
056	50-160(I)	17.5 25 32.5	4.86 6.94 9.03	34.4 32 27.5	585 63 60	2900	4	3	72

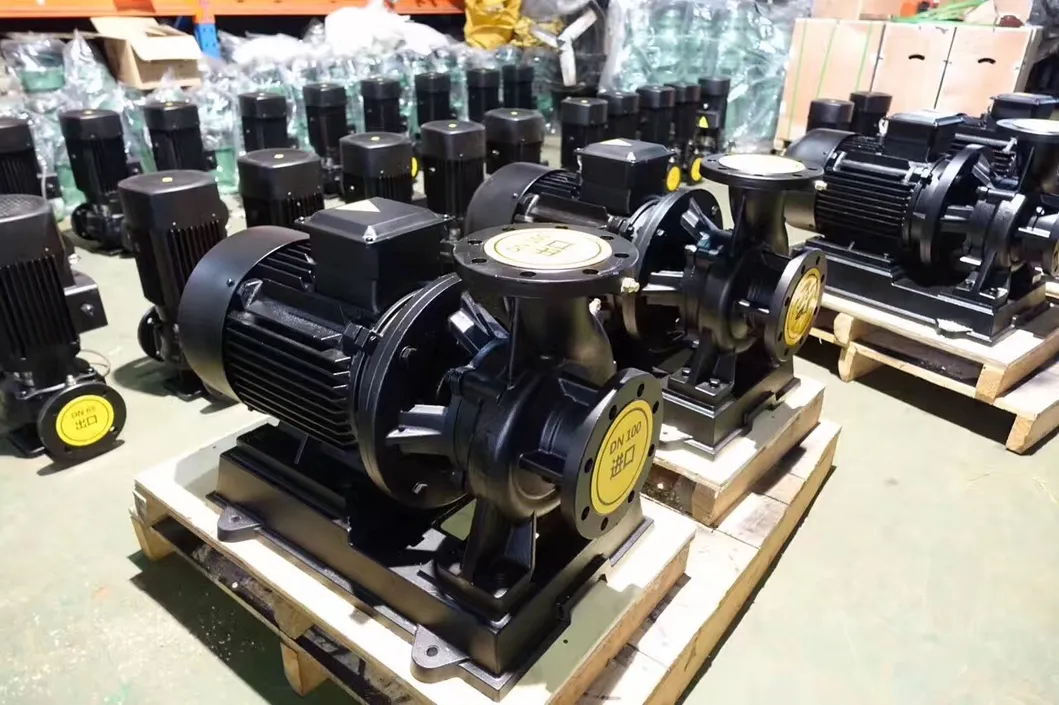

Packing & Shipping :

To avoid damp, inner layer wrapped with plastic paper
To lessen vibration, middle layer filled with foam
To avoild squeeze, motor are packed with plywood or wooden case
Customized package is also accept

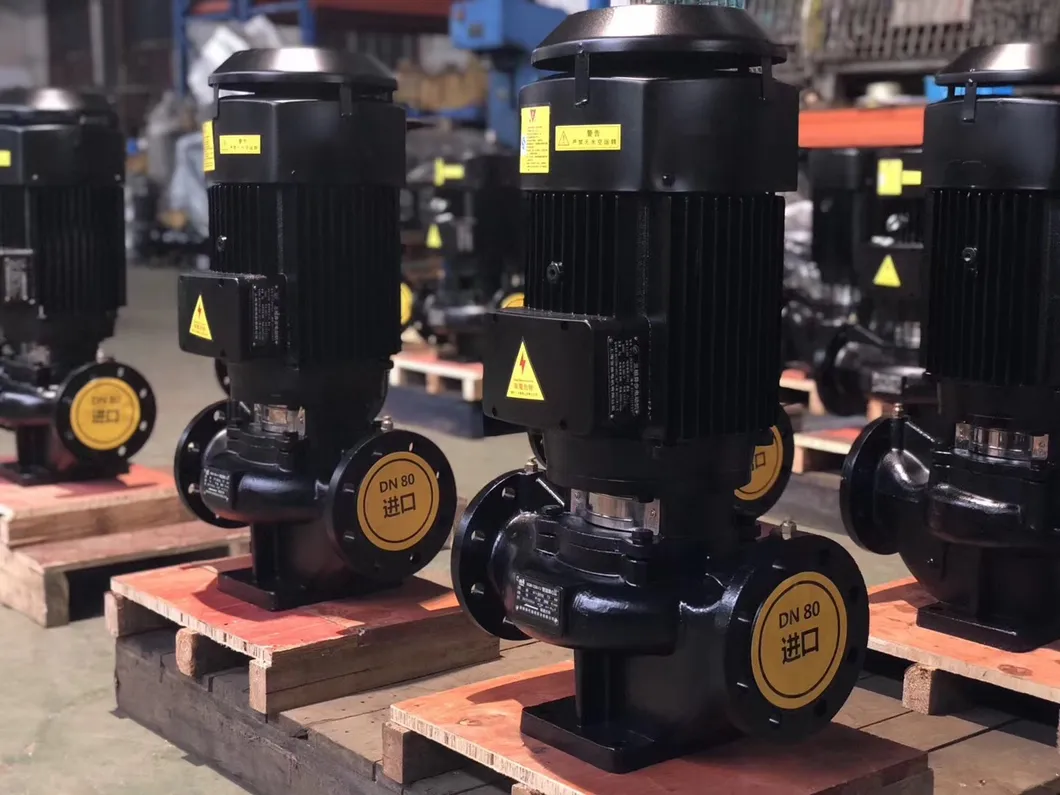

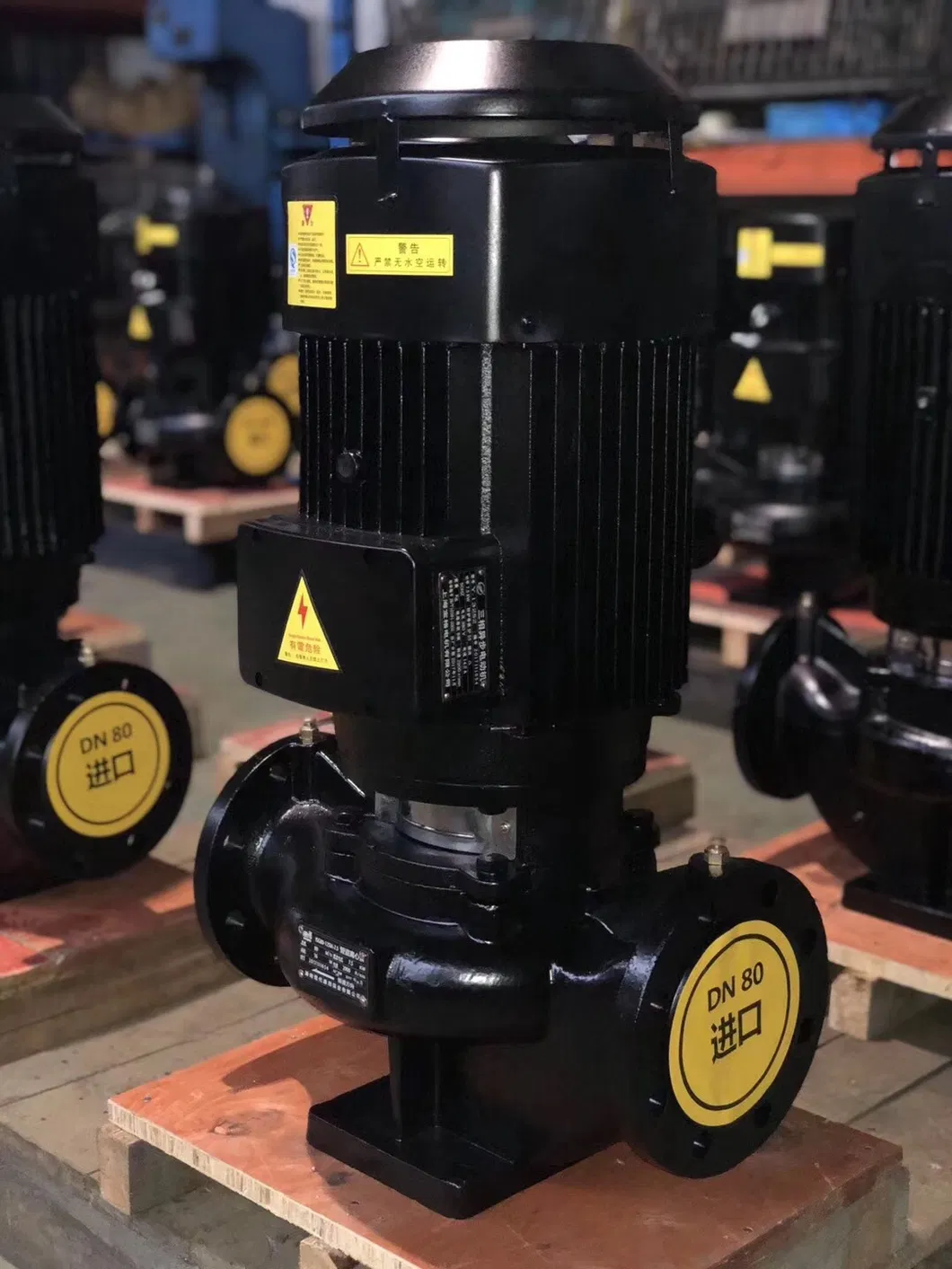

ISG, IRG, IHG ISGB Vertical Single-Stage Single-Suction Centrifugal Pump

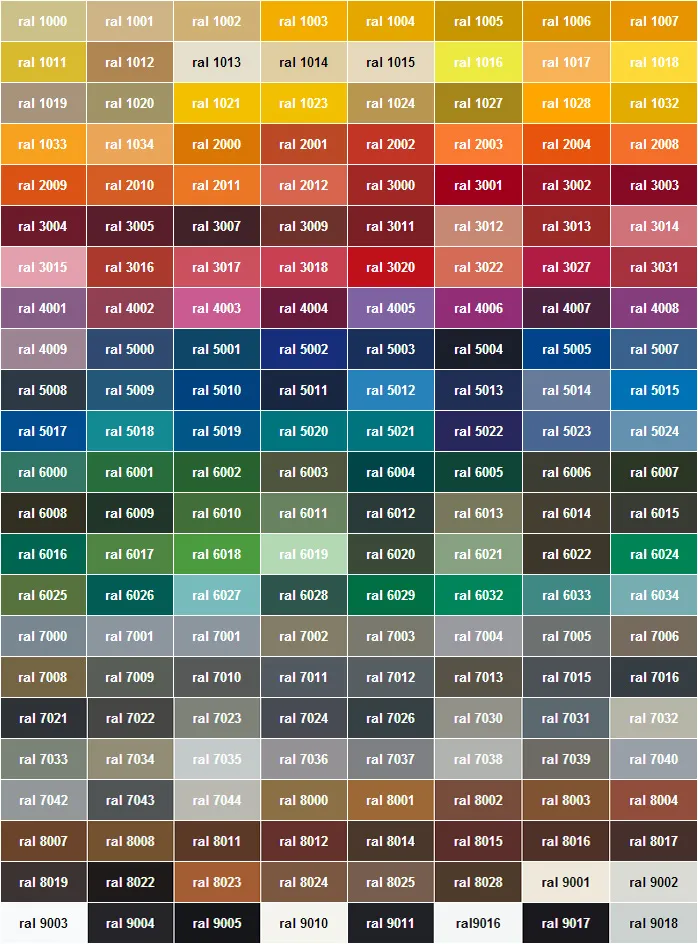

PAINTING COLOR CODE
