Electric Circulation Fire Irrigation Centrifugal Pump (KYSB)
>>> Product Overview Of KYSB Centrifugal PumpAccording to market needs, KYSB series Split-case single-stage double suction centrifugal pump is developed in the broad absorption of advanced technology. Its remarkable characters are as follows: Perfect, excellent general model, novel structur......
Send Inquiry
Product Description
>>> Product Overview Of KYSB Centrifugal Pump
According to market needs, KYSB series Split-case single-stage double suction centrifugal pump is developed in the broad absorption of advanced technology. Its remarkable characters are as follows: Perfect, excellent general model, novel structure, convenient repair. KYSB type pumps currently produced by our company have fall into more than 40 categories, nearly 400 specification products. We had improved pump impeller and impeller diameter to lead to its impact framework and increasing efficiency. In the spectrum performance range, we can provide any pump that meets users' need for pump head and flow.
Sophisticated products and complete quality control, reach domestic advanced standard. We have IS09001 certificate so we can ensure its quality.
This series of pumps are in accordance with lS02548C, GB3216C, GB/T5657 standard.

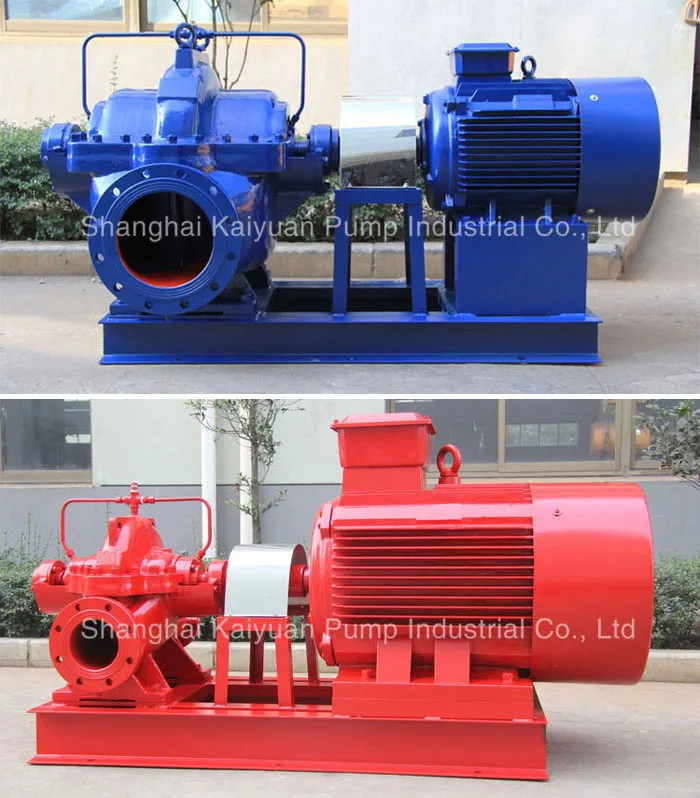

>>> Photos Of KYSB Centrifugal Pump For Irrigation & Fire Fighting
>>> Applications Of KYSB Centrifugal Pump
This product is widely used in city water supply and drainage, urban water supply, water supply and drainage of central heating system, iron and steel metallurgy, petrochemical refineries, paper mills, oil fields, power plant, airport construction, chemical plants, textile mills, sugar refinery, chemical plant, power plant water supply and drainage, the factory, mine fire water supply system, air conditioning system of water supply, farmland irrigation and drainage, and all other kinds of water engineering.
>>> Working Conditions Of KYSB Centrifugal Pump
* Rotation speed: 990, 1480 or 2960rpm
* Voltage: 380, 6kv or 10kv
* Inlet and outlet diameter: 150-600mm (in accordance with GB/T17241.66-1998 flange standard)
* Flow: 68-3975m3/h
* Head: 6-230m
* Temperature: Fluid temperature ≤ 80, ambient temperature≤ 40
* Working pressure: 1.0MPa (G) (Hsp≤ 75m) or 1.6MPa (Hsp>75)
* Medium permitted: Clean water, contact to us for special requirement
* Pipe parts for seal: Can't be installed under condition of above 0.03MPa (G)

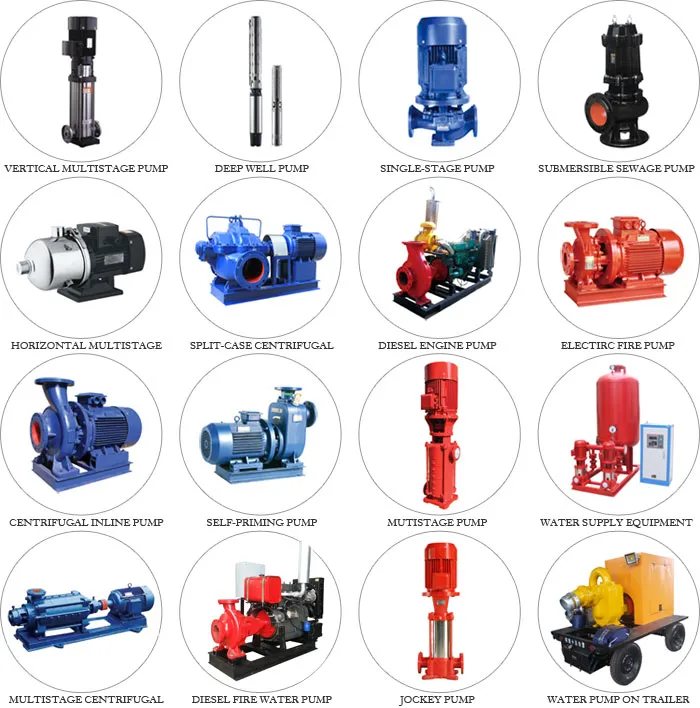

>>> Other Centrifugal Pumps You Might Also Like
>>> About Shanghai Kaiyuan Pump
Shanghai Kaiyuan produces submersible water pump, sewage pump, fire-fighting water pump, multi-stage vertical (horizontal) water pump, diesel engine water pump, water supply equipment and other pumps. Here we have modern production base of 20000 square meters, and 1500 square meters of office, professional R&D institution and technology team, which makes us a world-class company. Here all Kaiyuan machines are designed, produced, assembled and tested according to the ISO9001:2008.
>>> Model Meaning Of KYSB Centrifugal Pump
KYSB200-K6/258-F
KYS: Kaiyuan Single-stage Double-suction Pump
B: New Model Split Centrifugal Pump
200: Inlet Diameter (mm)
K: Impeller Model K-Original Impeller, Z-Modification Of Impeller
6: 1/10 Of Impeller Specific Speed
258: Specification Code (mm)
F: Special Type: Rotation Direction Of Pump Is Anticlockwise. (Standard Type: No Marks)
>>> Model Form Of KYSB Centrifugal Pump
According to market needs, KYSB series Split-case single-stage double suction centrifugal pump is developed in the broad absorption of advanced technology. Its remarkable characters are as follows: Perfect, excellent general model, novel structure, convenient repair. KYSB type pumps currently produced by our company have fall into more than 40 categories, nearly 400 specification products. We had improved pump impeller and impeller diameter to lead to its impact framework and increasing efficiency. In the spectrum performance range, we can provide any pump that meets users' need for pump head and flow.
Sophisticated products and complete quality control, reach domestic advanced standard. We have IS09001 certificate so we can ensure its quality.
This series of pumps are in accordance with lS02548C, GB3216C, GB/T5657 standard.
>>> Photos Of KYSB Centrifugal Pump For Irrigation & Fire Fighting
>>> Applications Of KYSB Centrifugal Pump
This product is widely used in city water supply and drainage, urban water supply, water supply and drainage of central heating system, iron and steel metallurgy, petrochemical refineries, paper mills, oil fields, power plant, airport construction, chemical plants, textile mills, sugar refinery, chemical plant, power plant water supply and drainage, the factory, mine fire water supply system, air conditioning system of water supply, farmland irrigation and drainage, and all other kinds of water engineering.
>>> Working Conditions Of KYSB Centrifugal Pump
* Rotation speed: 990, 1480 or 2960rpm
* Voltage: 380, 6kv or 10kv
* Inlet and outlet diameter: 150-600mm (in accordance with GB/T17241.66-1998 flange standard)
* Flow: 68-3975m3/h
* Head: 6-230m
* Temperature: Fluid temperature ≤ 80, ambient temperature≤ 40
* Working pressure: 1.0MPa (G) (Hsp≤ 75m) or 1.6MPa (Hsp>75)
* Medium permitted: Clean water, contact to us for special requirement
* Pipe parts for seal: Can't be installed under condition of above 0.03MPa (G)
>>> Other Centrifugal Pumps You Might Also Like
>>> About Shanghai Kaiyuan Pump
Shanghai Kaiyuan produces submersible water pump, sewage pump, fire-fighting water pump, multi-stage vertical (horizontal) water pump, diesel engine water pump, water supply equipment and other pumps. Here we have modern production base of 20000 square meters, and 1500 square meters of office, professional R&D institution and technology team, which makes us a world-class company. Here all Kaiyuan machines are designed, produced, assembled and tested according to the ISO9001:2008.
>>> Model Meaning Of KYSB Centrifugal Pump
KYSB200-K6/258-F
KYS: Kaiyuan Single-stage Double-suction Pump
B: New Model Split Centrifugal Pump
200: Inlet Diameter (mm)
K: Impeller Model K-Original Impeller, Z-Modification Of Impeller
6: 1/10 Of Impeller Specific Speed
258: Specification Code (mm)
F: Special Type: Rotation Direction Of Pump Is Anticlockwise. (Standard Type: No Marks)
>>> Model Form Of KYSB Centrifugal Pump
| Model | Capacity Q (m³/h) | Head (m) | Speed (r/min) | Power(kW) | Eff. (%) | |
| Shaft | Motor | |||||
| KYSB150-K6 | 160 | 78 | 2960 | 45 | 55 | 75.5 |
| KYSB150-K9 | 160 | 50 | 2960 | 27.3 | 37 | 80 |
| KYSB200-K6 | 280 | 95 | 2960 | 91.7 | 110 | 79.2 |
| KYSB200-K9 | 280 | 63 | 2960 | 58.3 | 75 | 82.7 |
| KYSB200-K13 | 280 | 42 | 2960 | 38.1 | 45 | 84.2 |
| KYSB250-K6 | 485 | 65 | 1480 | 109 | 132 | 78.6 |
| KYSB250-K9 | 485 | 39 | 1480 | 61.5 | 75 | 83.6 |
| KYSB250-K13 | 485 | 24 | 1480 | 36.9 | 45 | 85.8 |
| KYSB250-K19 | 485 | 14 | 1480 | 21.5 | 30 | 85.8 |
| KYSB300-K6 | 790 | 90 | 1480 | 242.8 | 315 | 79.6 |
| KYSB300-K9 | 790 | 58 | 1480 | 149.9 | 180 | 84.2 |
| KYSB300-K13 | 790 | 32 | 1480 | 79.2 | 110 | 86.8 |
| KYSB300-K19 | 790 | 19 | 1480 | 47 | 55 | 86.8 |
| KYSB300-K27 | 790 | 12 | 1480 | 30.4 | 37 | 84.8 |
| KYSB350-K6 | 1260 | 125 | 1480 | 534 | 710 | 80.5 |
| KYSB350-K9 | 1260 | 75 | 1480 | 303 | 355 | 85.2 |
| KYSB350-K13 | 1260 | 44 | 1480 | 173 | 220 | 87.5 |
| KYSB350-K19 | 1260 | 26 | 1480 | 102 | 132 | 87.5 |
| KYSB350-K27 | 1260 | 16 | 1480 | 64.5 | 75 | 85.3 |
| KYSB500-K6 | 2020 | 98 | 990 | 678 | 800 | 79.5 |
| KYSB500-K9 | 2020 | 59 | 990 | 391 | 450 | 83 |
| KYSB500-K13 | 2020 | 35 | 990 | 219 | 280 | 88 |
| KYSB500-K19 | 2020 | 22 | 990 | 144.4 | 185 | 84 |
| KYSB500-K27 | 2020 | 13 | 990 | 86.2 | 110 | 83 |
| KYSB600-K9 | 3170 | 75 | 990 | 727 | 800 | 89 |
| KYSB600-K13 | 3170 | 47 | 990 | 465 | 560 | 89 |
| KYSB600-K19 | 3170 | 32 | 990 | 310 | 355 | 89 |
| KYSB600-K27 | 3170 | 22 | 990 | 223 | 250 | 85 |
