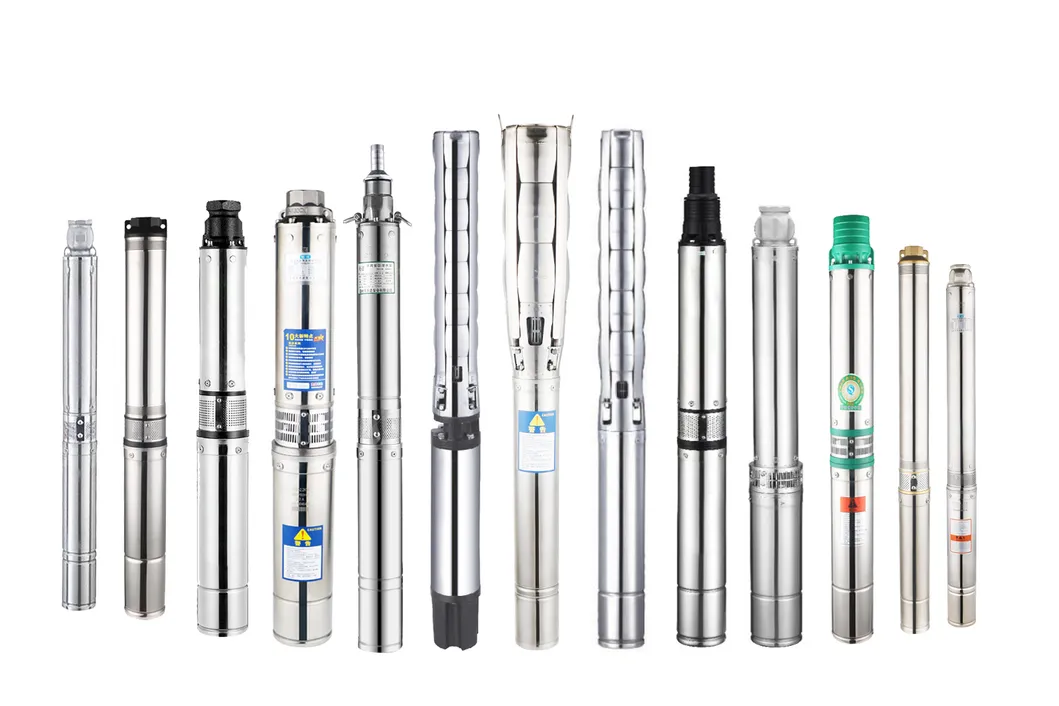

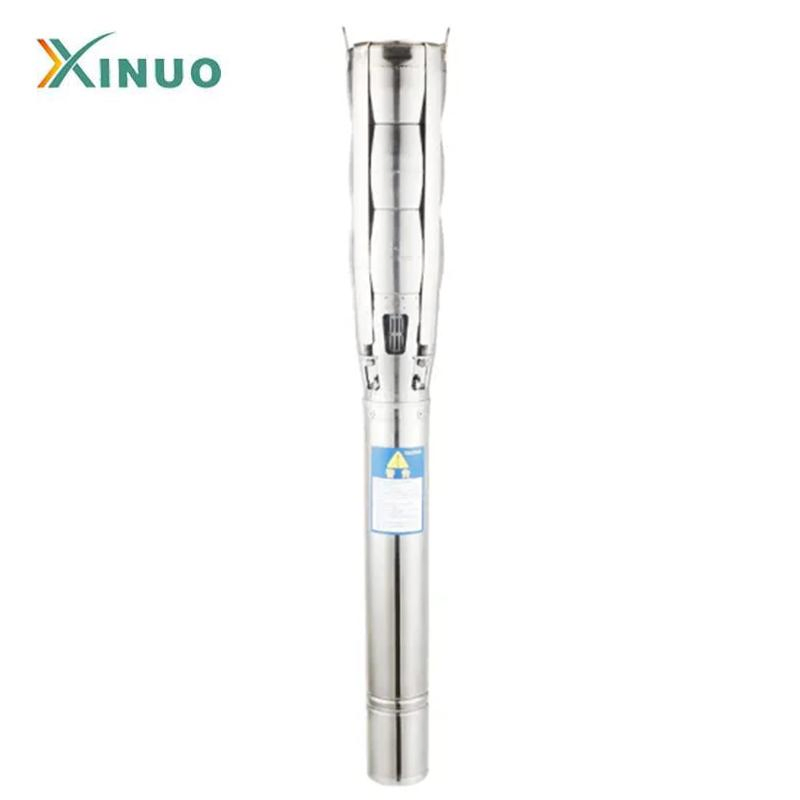

6sp 6 Inches Borehole Pump Submersiblepump for Well

Product Description

Pump's Applications:
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
For garden use and irrigation.
For Tank application
For Pressure boosting

Pump's Operating conditions:
Maximum fluid temperature up to +50 C
Max ambient temperature +40º C
Maximum sand content: 0.25%
Maximum immersion depth: 100m.
Minimum well diameter: 8"
Insulation: B
Protection: IP X8

Motor:
Rewind able motor
Three-phase: 380V-415V/50Hz
Single-phase: 220V-240V/50Hz

Special features available
voltages.380V
Frequency 50Hz.
Other mechanical seal.

Pump's Material:
1, Pump external casing: AISI304ss
2, Delivery casing: Cast-Cu ASTM280 or AISI304ss
3, Suction lantern: Cast-Cu ASTM280 or AISI304ss
4, Diffuser: 304 stainless steel
5, Impeller: 304 stainless steel
6, Shaft: AISI316ss or AISI304ss
7, Shaft coupling: AISI316ss or AISI304ss
8, Wear ring: AISI304ss
9, Motor external casing: AISI304ss
10, Top cover: Cast-Cu ASTM280 or Cast iron G20 UNI5007
11, Bottom support: AISI304ss
12, Mechanical seal: Special seal for deep well (carbon -SIC/TC)
13, Shaft: AISI304ss-C1045
14, Bearing: C&U
15, Seal lubricant oil: Oil for food machinery and pharmaceutical use

6SP(M)17
NO.	TYPE		P2		RATE FLOW (m³/h)	RATE Head(M)	MAX FLOW (m³/h)	MAX Head(M)	Price(USD)
NO.	220V~240V	380V~415V	(KW)	(HP)	RATE FLOW (m³/h)	RATE Head(M)	MAX FLOW (m³/h)	MAX Head(M)	Price(USD)
1	6SPM17-4	6SP17-4	2.2	3	17	30	25	43
2	6SPM17-5	6SP17-5	3	4		38		54
3	6SPM17-7	6SP17-7	4	5.5		53		75
4	6SPM17-9	6SP17-9	5.5	7.5		68		97
5		6SP17-11	7.5	10		83		118
6		6SP17-15	9.2	12.5		113		161
7		6SP17-19	11	15		143		204
8		6SP17-22	13	17.5		165		237
9		6SP17-26	15	20		195		280
10		6SP17-32	18.5	25		240		344
11		6SP17-38	22	30		285		409


6SP(M)30
NO.	TYPE		P2		RATE FLOW (m³/h)	RATE Head(M)	MAX FLOW (m³/h)	MAX Head(M)	Price(USD)
NO.	220V~240V	380V~415V	(KW)	(HP)	RATE FLOW (m³/h)	RATE Head(M)	MAX FLOW (m³/h)	MAX Head(M)	Price(USD)
1	6SPM30-2	6SP30-2	2.2	3	30	16	45	23
2	6SPM30-3	6SP30-3	3	4		24		35
3	6SPM30-4	6SP30-4	4	5.5		32		46
4	6SPM30-6	6SP30-6	5.5	7.5		48		69
5		6SP30-8	7.5	10		64		92
6		6SP30-10	9.2	12.5		80		115
7		6SP30-12	11	15		96		138
8		6SP30-14	13	17.5		112		161
9		6SP30-16	15	20		128		184
10		6SP30-18	18.5	25		144		207
11		6SP30-25	22	30		200		288


6SP(M)46
NO.	TYPE		P2		RATE FLOW (m³/h)	RATE Head(M)	MAX FLOW (m³/h)	MAX Head(M)	Price(USD)
NO.	220V~240V	380V~415V	(KW)	(HP)	RATE FLOW (m³/h)	RATE Head(M)	MAX FLOW (m³/h)	MAX Head(M)	Price(USD)
1	6SPM46-2	6SP46-2	3	4	46	17	60	27
2	6SPM46-3	6SP46-3	4	5.5		25		41
3	6SPM46-4	6SP46-4	5.5	7.5		33		54
4		6SP46-5	7.5	10		42		68
5		6SP46-6	9.2	12.5		50		81
6		6SP46-7	11	15		58		95
7		6SP46-8	13	17.5		66		108
8		6SP46-9	15	20		75		122
9		6SP46-10	15	20		83		135
10		6SP46-11	18.5	25		91		149
11		6SP46-12	18.5	25		100		162
12		6SP46-14	22	30		116		189



6SP(M)60
NO.	TYPE		P2		RATE FLOW (m³/h)	RATE Head(M)	MAX FLOW (m³/h)	MAX Head(M)	Price(USD)
NO.	220V~240V	380V~415V	(KW)	(HP)	RATE FLOW (m³/h)	RATE Head(M)	MAX FLOW (m³/h)	MAX Head(M)	Price(USD)
1	6SPM60-2A	6SP60-2A	4	5.5	60	12	80	21
2		6SP60-2	5.5	7.5		16		28
3		6SP60-3	7.5	10		24		42
4		6SP60-4	9.2	12.5		32		56
5		6SP60-5	11	15		40		70
6		6SP60-6	13	17.5		48		84
7		6SP60-7	15	20		56		98
8		6SP60-9	18.5	25		72		126
9		6SP60-11	22	30		88		154

8SP77
NO.	Model	Power		Flow rate	Delivery n=2850r/min									Price(USD)
NO.	380V~415V	(KW)	(HP)	m³/h	0	12	24	36	48	60	72	84	96	Price(USD)
1	8SP77-2	7.5	10	Head(m)	41	41	40	37	34	31	28	23	17
2	8SP77-3	11	15		61	61	59	55	50	46	41	34	26
3	8SP77-4	15	20		81	81	78	73	66	61	54	45	34
4	8SP77-5	18.5	25		102	101	98	91	83	76	68	56	43
5	8SP77-6	22	30		122	121	118	109	100	91	82	67	52
6	8SP77-7	26	35		142	141	137	127	116	106	95	78	60
7	8SP77-8	30	40		162	161	157	146	133	122	109	90	69
8	8SP77-9	30	40		182	181	176	164	149	136	122	101	77
9	8SP77-10	37	50		202	201	196	182	166	150	136	112	86
10	8SP77-11	37	50		222	221	216	200	183	164	149	123	95
11	8SP77-12	45	60		241	240	235	218	199	180	162	134	103
12	8SP77-13	55	75		263	263	255	237	213	195	176	146	112
13	8SP77-14	55	75		283	283	274	255	230	210	190	157	120
14	8SP77-15	55	75		304	303	294	273	248	225	203	168	128
15	8SP77-16	63	85		324	323	314	291	263	240	216	179	136
16	8SP77-17	63	85		344	343	333	309	280	254	229	190	145
17	8SP77-18	63	85		365	364	353	328	295	268	242	202	153
18	8SP77-19	75	100		385	384	372	346	312	283	256	213	162
19	8SP77-20	75	100		405	403	392	364	330	298	269	224	170

8SP95
NO.	Model	Power		Flow rate	Delivery n=2850r/min
NO.	380V~415V	(KW)	(HP)	m³/h	0	12	24	36	48	60	72	84	96	108	120
1	8SP95-2	9.2	12.5	Head(m)	42	41	40	38	35	33	31	29	26	21	15
2	8SP95-3	13	17.5		63	62	61	58	53	48	46	42	38	31	22
3	8SP95-4	18.5	25		84	83	81	77	70	64	61	56	50	41	29
4	8SP95-5	22	30		106	104	101	96	88	81	76	71	62	51	36
5	8SP95-6	26	35		127	125	121	115	106	97	91	85	75	61	43
6	8SP95-7	30	40		148	146	141	134	123	113	106	99	87	71	50
7	8SP95-8	37	50		169	166	162	154	141	129	122	113	99	81	57
8	8SP95-9	37	50		190	187	182	173	158	145	137	127	111	91	64
9	8SP95-10	45	60		211	208	202	191	176	161	152	140	124	101	71
10	8SP95-11	55	75		232	229	222	210	194	177	167	154	136	111	78
11	8SP95-12	55	75		253	250	242	229	211	193	182	168	149	121	85
12	8SP95-13	55	75		274	270	263	248	229	209	196	182	162	131	92
13	8SP95-14	63	85		295	291	283	267	246	225	211	197	174	141	99
14	8SP95-15	75	100		317	312	303	285	264	242	226	211	186	150	107
15	8SP95-16	75	100		338	333	323	304	282	258	241	224	199	160	114
16	8SP95-17	75	100		359	354	343	323	299	274	257	238	212	170	121
17	8SP95-18	92	125		380	376	364	342	317	290	272	252	224	180	128

6sp 6 Inches Borehole Pump Submersiblepump for Well

FAQ
Q:What is your MOQ
A:Our MOQ is 100 pieces, of course we accept trial order to check quality.

Q:Is it acceptable to use customers' own brand?
A:Sure, we can do OEM.

Q:What are your payment terms?
A:30% T/T as deposit, 70% against copy of bill of lading

Q:How long of warranty?
A:One year

Q:What is the delivery time?
A:15 day as usual,25-30 days at busy season after receiving deposit.
