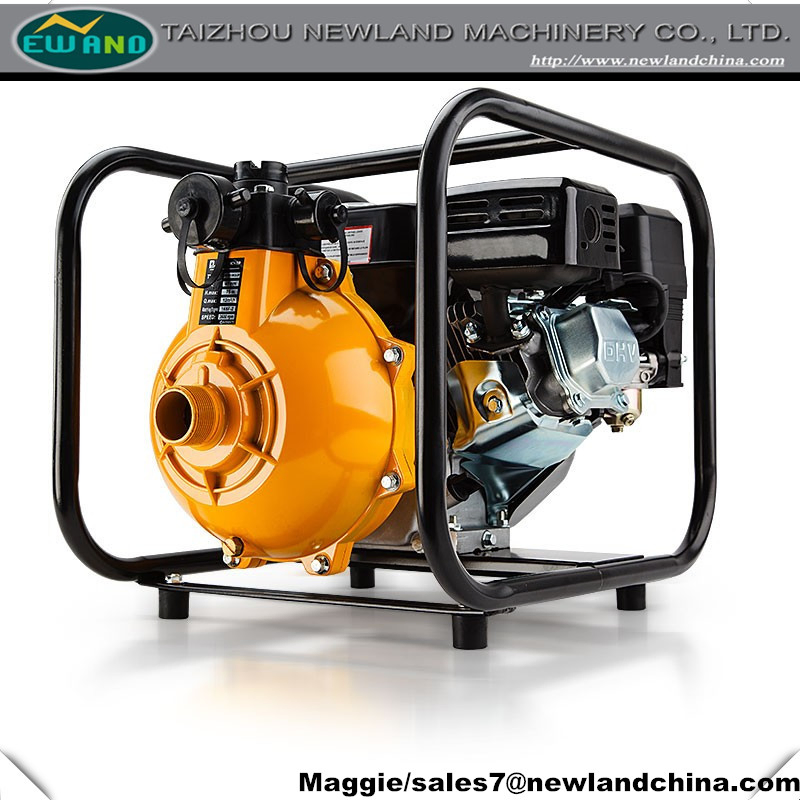

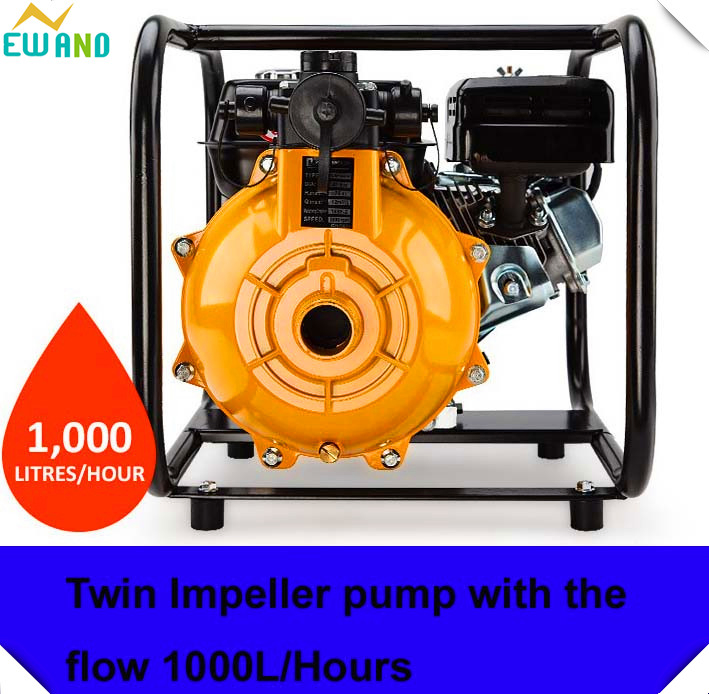

2inch Ohv Engine Petrol Water Pump
2 inch high pressure petrol water pump for industral useFEATURESTypeWP15HWP20HOutlet Size(mm)4050Inlet size(mm)4050Speed (rpm)36003600Displacement Q.max(m3/h)1230Lift H.max(m)7565Suction(m)77Engine Model168F-1168F-1Engine Type4-stroke 25° single-cylinder with air-cooledBore x Stroke(mm)68*54......
Send Inquiry
Product Description
2 inch high pressure petrol water pump for industral use
FEATURES
FAQ
1.Q:How about guarantee?
A: within six months after goods is discharged in the destination.
We will suply the consumables if it broken under normal using.
For example, fuel cock,spark plug,recoil starter,etc.
2.Q:What is the material of your products?
A: Iron,Steel,plastic,etc.
3.Q:What is you deliver time ?
A: Within 15-20days after got your T/T deposit.
4.Q:Is it all right to make customer brand name?
A:If your brand already registed in China and it belong to your company.It is ok we can accept it and do it.
More than 500sets can make color carton.
Contact us
FEATURES
| Type | WP15H | WP20H |
| Outlet Size(mm) | 40 | 50 |
| Inlet size(mm) | 40 | 50 |
| Speed (rpm) | 3600 | 3600 |
| Displacement Q.max(m3/h) | 12 | 30 |
| Lift H.max(m) | 75 | 65 |
| Suction(m) | 7 | 7 |
| Engine Model | 168F-1 | 168F-1 |
| Engine Type | 4-stroke 25° single-cylinder with air-cooled | |
| Bore x Stroke(mm) | 68*54 | 68*54 |
| Displacement(cm3) | 196cc | 196cc |
| Compression Ratio | 8.5:1 | 8.5:1 |
| Max Power Output(HP/rmp) | 6.5/3600 | 6.5/3600 |
| Max Torque(Nm/rpm) | 10/2500 | 11/2500 |
| Start Model | Manual | |
| Air Cleaner | semi-dry or oil bath type | |
| Fuel Tank Capacity (L) | 3.6 | 3.6 |
| Fuel Consumption(g/Kw.h) | 395 | 395 |
| Oil Capacity(L) | 0.6 | 0.6 |
| Packing Dimensions (mm) | 490*390*425 | 520*400*450 |
| G.W/N.W(Kg) | 27.5/26.5 | 29.5/28.5 |
FAQ
1.Q:How about guarantee?
A: within six months after goods is discharged in the destination.
We will suply the consumables if it broken under normal using.
For example, fuel cock,spark plug,recoil starter,etc.
2.Q:What is the material of your products?
A: Iron,Steel,plastic,etc.
3.Q:What is you deliver time ?
A: Within 15-20days after got your T/T deposit.
4.Q:Is it all right to make customer brand name?
A:If your brand already registed in China and it belong to your company.It is ok we can accept it and do it.
More than 500sets can make color carton.
Contact us
