24VDC to 540VDC 0.2HP to 40HP Borehole Submersible Solar Energy Water Pump in Thailand, Philippines
Solar powered water pumps WarrantySolar water pump: 3 yearsMPPT controller: 3years Solar panels: 25 years You can buy solar panels from us or just buy solar water pump and controller .If the controller and motor damaged within 3 years, we will send you a new controller or motor for replacement, s......
Send Inquiry
Product Description
Solar powered water pumps
Solar water pump: 3 years
MPPT controller: 3years
Solar panels: 25 years
You can buy solar panels from us or just buy solar water pump and controller .
If the controller and motor damaged within 3 years, we will send you a new controller or motor for replacement, shipping free.
If the impeller is damaged within 3 years, we will send you spare impellers for replacement, shipping free.
Solar Water Pump System Complete Set:
| 1. Solar pump with 3m cable, longer cable is available if required | ||||
| 2. Controller | ||||
| 3. Water level sensor or float switch:10meter cable, longer cable is available | ||||
| 4. Cable for solar panel: 6m, longer cable is available | ||||
| 5. Cable connector | ||||
| 6. Solar panels are option | ||||
| 7. Installation Manual | ||||

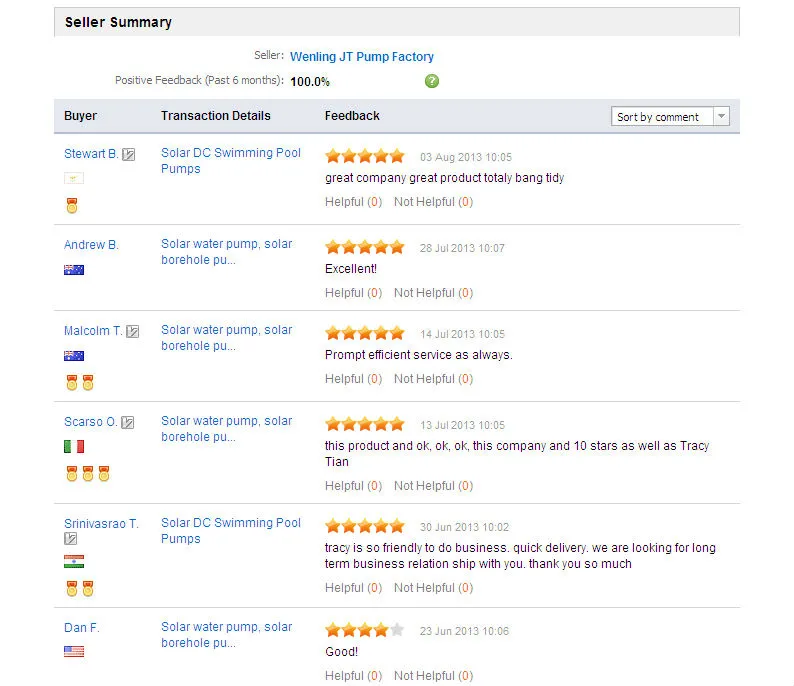

Buyer Feedback
Our solar powered water pumps are mainly used in:
1. Irrigation of agricuture.
4. Fountains.
MATERIAL OF PARTS:
Outlet:brass or stainless steel
Pump body: stainless steel
Motor body:stainless steel
Screw:stainless steel
Impeller: Stainless steel or Plastic.PPO
Bearing:NSK
1.Application innovation
Compared with the traditional alternating current machine,the efficiency is improved 25% by the permanent magnetism,direct current,brushless,
non-sensor motor.
Adopt double plastic package for rotor and stator,
motor insulation≥300MΩ,
the motor security was much improved.
Oil filling,convenient installation and environmental protection.
Performance Data:
Pls select the right pump below yourself, or pls inform us below information, then we can select the right pump for you.
1. Where will the pump be used ?
2. How much water discharge ( liters or gallon or m3) required per day or per hour? 3. Do you need a submersible pump or surface pump?
4. If you want to pump the water from borehole(deep well), the depth of borehole?
5. The pipe distance from the top of borehole or river to destination tank? Is the distance slope or horizontal?
6. The height of tank?
| TYPE | VOLTAGE | RATE POWER | MAX FLOW | MAX HEAD | OUTLET SIZE | DIAMETER OF PUMP |
| (v) | (w) | (m3/h) | m | (in) | (mm) | |
| JS3-0.9-32 | 24 | 100 | 0.9 | 32 | 3/4" | 76 |
| JS3-1.3-50 | 24 | 120 | 1.3 | 50 | 3/4" | 76 |
| JS3-1.8-60 | 24 | 180 | 1.8 | 60 | 3/4" | 76 |
| JS3-1.8-80 | 24 | 210 | 1.8 | 80 | 3/4" | 76 |
| JS3-1.8-100 | 24 | 270 | 1.8 | 100 | 3/4" | 76 |
| JS3-2.1-100 | 48 | 450 | 2.1 | 100 | 3/4" | 76 |
| JS3-2.1-120 | 48 | 540 | 2.1 | 120 | 3/4" | 76 |
| JC3-2.8-14 | 24 | 140 | 2.8 | 14 | 1" | 76 |
| JC3-2.5-28 | 36 | 260 | 2.5 | 28 | 1" | 76 |
| JC3-3.6-33 | 36 | 320 | 3.6 | 33 | 1" | 76 |
| JC3-2.5-39 | 36 | 400 | 2.5 | 39 | 1" | 76 |
| JC3-4.2-38 | 36 | 440 | 4.2 | 38 | 1" | 76 |
| JC3-4.2-54 | 48 | 600 | 4.2 | 54 | 1" | 76 |
| JC3-2.8-62 | 48 | 600 | 2.8 | 62 | 1" | 76 |
| JC3-3.2-85 | 48 | 750 | 3.2 | 85 | 1" | 76 |
| JC3-3.2-115 | 72 | 1000 | 3.2 | 115 | 1" | 76 |
| JS4-3.0-60 | 36 | 450 | 3 | 60 | 1" | 100 |
| JS4-2.5-80 | 48 | 500 | 2.5 | 80 | 1" | 100 |
| JS4-3.6-80 | 48 | 750 | 3.6 | 80 | 1" | 100 |
| JS4-4.0-100 | 72 | 1000 | 4 | 100 | 1" | 100 |
| JS4-3.2-120 | 72 | 1000 | 3.2 | 120 | 1" | 100 |
| JS4-2.5-140 | 72 | 1000 | 2.5 | 140 | 1" | 100 |
| JC4-5.5-32 | 36 | 360 | 5.5 | 32 | 1.25" | 100 |
| JC4-5.8-43 | 48 | 500 | 5.8 | 43 | 1.25" | 100 |
| JC4-3.1-66 | 48 | 500 | 3.1 | 66 | 1.25" | 100 |
| JC4-4.0-60 | 48 | 720 | 4 | 60 | 1.25" | 100 |
| JC4-6.8-60 | 72 | 1000 | 6.8 | 60 | 1.25" | 100 |
| JC4-6.0-88 | 72 | 1000 | 6 | 88 | 1.25" | 100 |
| JC4-8.0-55 | 72 | 1000 | 8 | 55 | 1.5" | 100 |
| JC4-10.0-45 | 72 | 1000 | 10 | 45 | 2" | 100 |
| JC4-14.0-33 | 72 | 1000 | 14 | 33 | 2" | 100 |
| JCS4-5.0-28 | 24 | 250 | 5 | 28 | 1.25" | 100 |
| JCS4-6.0-40 | 48 | 500 | 6 | 40 | 1.25" | 100 |
| JCS4-6.0-52 | 48 | 600 | 6 | 52 | 1.25" | 100 |
| JCS4-7.5-34 | 48 | 750 | 7.5 | 34 | 1.25" | 100 |
| JCS4-5.5-60 | 48 | 750 | 5.5 | 60 | 1.25" | 100 |
| JCS4-10-30 | 48 | 750 | 10 | 30 | 1.5" | 100 |
| JCS4-5.0-128 | 72 | 1200 | 5 | 128 | 1.25" | 100 |
| JCS4-5.5-90 | 72 | 1000 | 5.5 | 90 | 1.25" | 100 |
| JCS4-6.7-88 | 72 | 1000 | 6.7 | 88 | 1.25" | 100 |
| JCS4-7.5-70 | 72 | 1000 | 7.5 | 70 | 1.25" | 100 |
| JCS4-6.5-98 | 72 | 1200 | 6.5 | 98 | 1.25" | 100 |
| JCS4-10-45 | 72 | 1000 | 10 | 45 | 1.5" | 100 |
| JCS4-15-21 | 72 | 1000 | 15 | 21 | 2" | 100 |
| JCS4-10-57 | 72 | 1200 | 10 | 57 | 1.5" | 100 |
| JCS4-15-28 | 72 | 1200 | 15 | 28 | 2" | 100 |
| JCS4-23-21 | 72 | 1200 | 23 | 21 | 2" | 100 |
| JCS4-28-13 | 72 | 1200 | 28 | 13 | 2" | 100 |
| JCS4-22-32 | 220 | 1500 | 22 | 32 | 2" | 100 |
| JCS4-25-40 | 220 | 1800 | 25 | 40 | 2" | 100 |
| JCS4-25-54 | 288 | 2200 | 25 | 54 | 2" | 100 |
| JCS4-25-72 | 288 | 3000 | 25 | 72 | 2" | 100 |
| JCS4-25-96 | 288 | 4000 | 25 | 96 | 2" | 100 |
| JCS6-30-14 | 72 | 1200 | 30 | 14 | 3" | 150 |
| JCS6-30-21 | 216 | 1500 | 30 | 21 | 3" | 150 |
| JCS6-30-28 | 216 | 1800 | 30 | 28 | 3" | 150 |
| JCS6-30-43 | 288V | 2200 | 30 | 43 | 3" | 150 |
| JCS6-30-54 | 288V | 3000 | 30 | 54 | 3" | 150 |
| JCS6-30-65 | 288V | 4000 | 30 | 65 | 3" | 150 |
| JCS6-50-7 | 72 | 1200 | 50 | 7 | 4" | 150 |
| JCS6-50-14 | 216 | 1800 | 50 | 14 | 4" | 150 |
| JCS6-50-22 | 288V | 2200 | 50 | 22 | 4" | 150 |
| JCS6-50-33 | 288V | 3000 | 50 | 33 | 4" | 150 |
| JCS6-50-45 | 288V | 4000 | 50 | 45 | 4" | 150 |
| JCS6-70-11 | 288V | 2200 | 70 | 11 | 4" | 150 |
| JCS6-70-23 | 288V | 3000 | 70 | 23 | 4" | 150 |
| JCS6-70-33 | 288V | 4000 | 70 | 33 | 4" | 150 |
| JQB-2.0-25 | 24 | 120 | 2 | 25 | 1"*1" | SURFACE PUMP |
| JQB-2.2-35 | 36 | 210 | 2.2 | 35 | 1"*1" | SURFACE PUMP |
| JETS-3.5-45 | 48 | 450 | 3.5 | 45 | 1"*1" | SURFACE PUMP |
| JETS-4.2-60 | 72 | 750 | 4.2 | 60 | 1"*1" | SURFACE PUMP |
| JCPS-6.6-34 | 72 | 750 | 6.6 | 34 | 1.25*1" | SURFACE PUMP |
| JCM-5.0-55 | 48 | 500 | 5 | 55 | 1" | SURFACE PUMP |
| JCM-5.0-80 | 48 | 750 | 5 | 80 | 1" | SURFACE PUMP |
| JSDP-7.0-9 | 48 | 400 | 7 | 9 | 1.5" | SEWAGE PUMP |
| JSDP-8.0-11 | 48 | 500 | 8 | 11 | 1.5" | SEWAGE PUMP |
