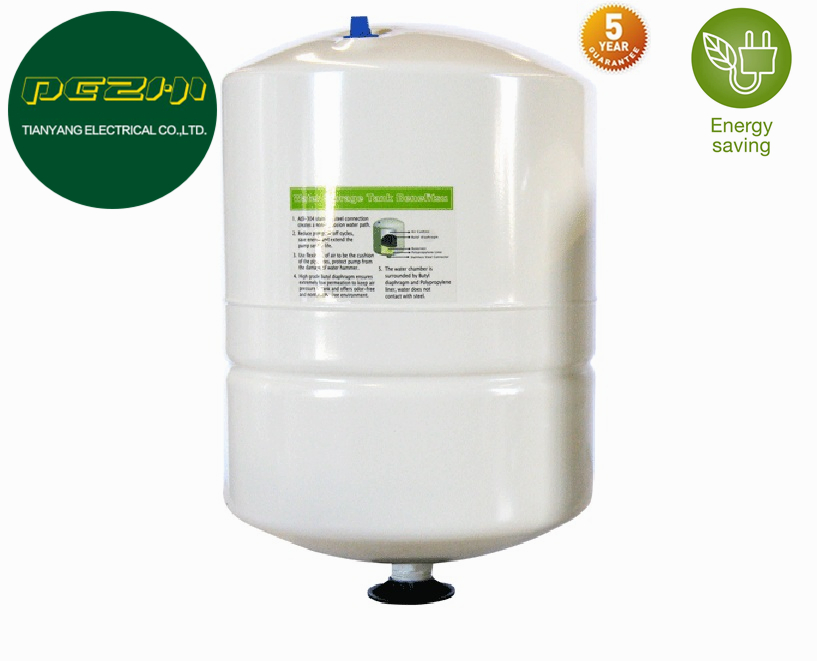

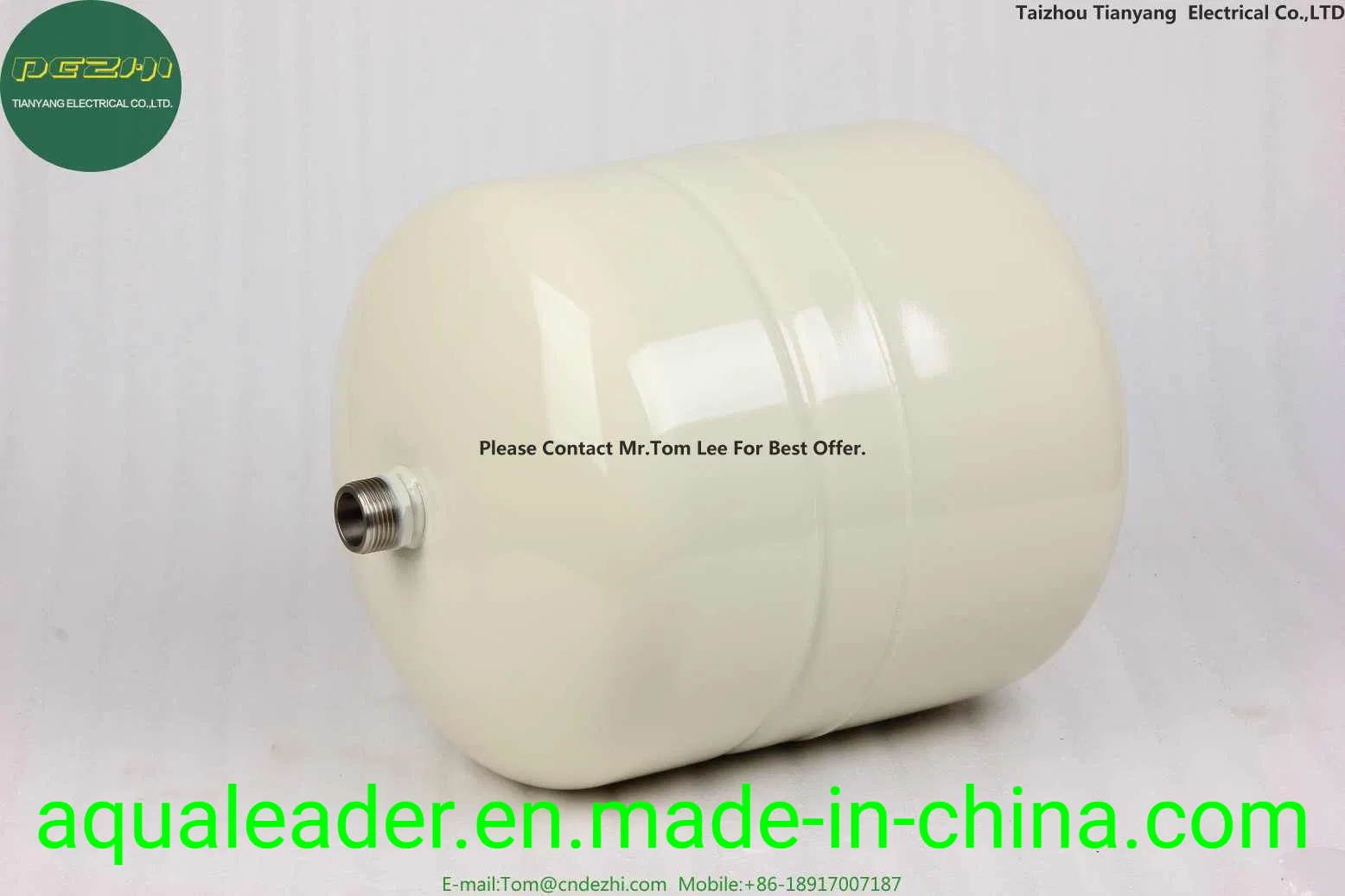

24L Pressure Tank Vessel Expansion for Domestic Water

Best Selling Models




Pressure tanks are essential for whole house applications, toilet blocks and larger pressure systems.   Even basic domestic applications will benefit from the inclusion of a pressure tank. Dezhi® pressure tanks are manufactured either in full Stainless Steel or with a pure Polypropylene liner coupled with a high-grade Butyl diaphragm which is held against the wall of a tank with a special steel ring. The brass air valve is sealed by a threaded O-ring valve cap to prevent air leaks. The threaded water connection fitting is stainless steel to avoid corrosion, and provides a unique water/air seal preventing leaks. The diaphragm and the liner are both reinforced in expected areas of wear, for longer life, and there are no wetted steel parts to avoid corrosion. All the internal parts including the air valve are smooth to prevent damage to the diaphragm. The steel tank exterior is coated with a two-pack polyurethane paint finish over an epoxy undercoating providing excellent long-term UV and corrosion protection.

Applications

•        Domestic and Commercial
•        Irrigation Systems
•        Toilet Blocks
•        Hydraulic Hammer Arresting
•        Multi-Unit Dwellings
•        Pressure Systems

Features & Benefits

•        Reduces cycling of the pump which extends the pump life
•        Also reduces electricity consumption as the pump does not start on every use of the tap.
•        Adjustable pressure via leak-proof standard air valve
•        Comprehensive factory testing

•     Certified under AS4020 for potable water

Construction

•        Single Diaphragm design
•        Two pack polyurethane coating over epoxy primer*
•        Stainless Steel threaded Inlet
•        No wetted Steel parts for prevention of corrosion
•        Virgin Polypropylene Liner* with Butyl Rubber Membrane
(* on the steel tank)

Available as:

•        Pre-tested Assembled System complete with any Dezhi® Pump, Pressure switch and Gauge or Variable Speed Drive

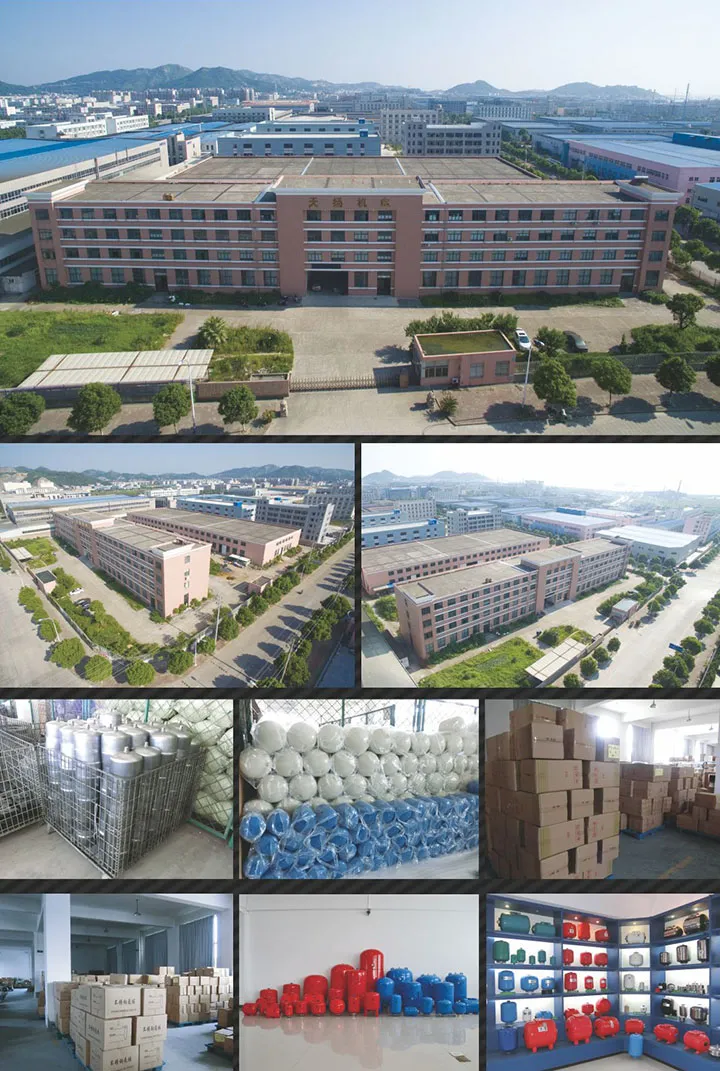

Company profile

Taizhou Tianyang Electrical co.,LTD. Is located in Shangma industrial Zone,Shitang Town,WenlingCity,Zhejiang rovince,covering an area of 15,000 square meters.Our Company has over 30 years experience in mold design and exploition. "DEZHI"and "AQUALEADER" are our proprietary brand of our company.We have produced pressure tank for more than 20 years.Available volumes range from 0.15 to 1500 liters.and working pressure from 4 bar to 25bar. Our products are applied to pump systems .Our products are exported to numerous overseas clients.We can custom design and manufacture products according to client-supplied requirements.
We adhere to the business philosphy"Credibility,Quality and service",our scientific management is based on the domestic market, but facing to the world.Warmly welcome customers both domestic and from abroad.We sincerely hope to cooperate and develop together to create a better future.
Taizhou Tianyang Electrical Co.,Ltd. Is always your most loyal partner.

I would like to take this opportunity to introduce our company to you. I am contacting you on behalf of Taizhou Tianyang Electrical Co., LTD. We are the factory from China for making Pressure Tanks for Fire Protection,Residential Water and Irrigation, Sport Turf and Landscape Irrigation, Agriculture and Horticulture Irrigation, Water Filtration, Treatment & Recycle, Solar and Stock Water System, Rain Water Harvesting, Pump Systems. Based on ISO quality management system, we have obtained CE, KC, ISO 9001, ISO14001, OHSAS 18001, SGS, Water Mark, and Wras Certificates for our company & our Pressure Tanks. Welcome to visit Taizhou Tianyang  Electrical Co.,LTD when it is more convenient for you.

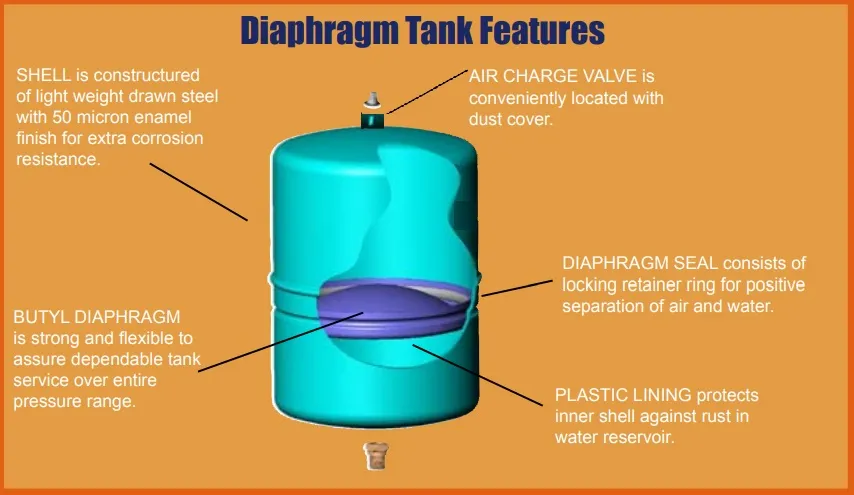

Single Diaphragm Pressure Vessel

A range of reliable vessels, available in 10 and 16 bar pressure ratings and sizes from 3  to 200 litres. The series is constructed of a virgin polypropylene liner combined with an Certificated high grade butyl diaphragm, which is held against the wall of the tank with a steel clench ring. The tanks design includes rounded internal parts to prevent piercing and a unique connection providing a dual water/air seal for a complete leak and maintenance free vessel.


Solar Aqualeader tanks are quality tested at several stages on the production line to insure the structural integrity of every tank. Solar Aqualeader  tanks represent the best value for the investment and are the best quality pressure vessels available today.

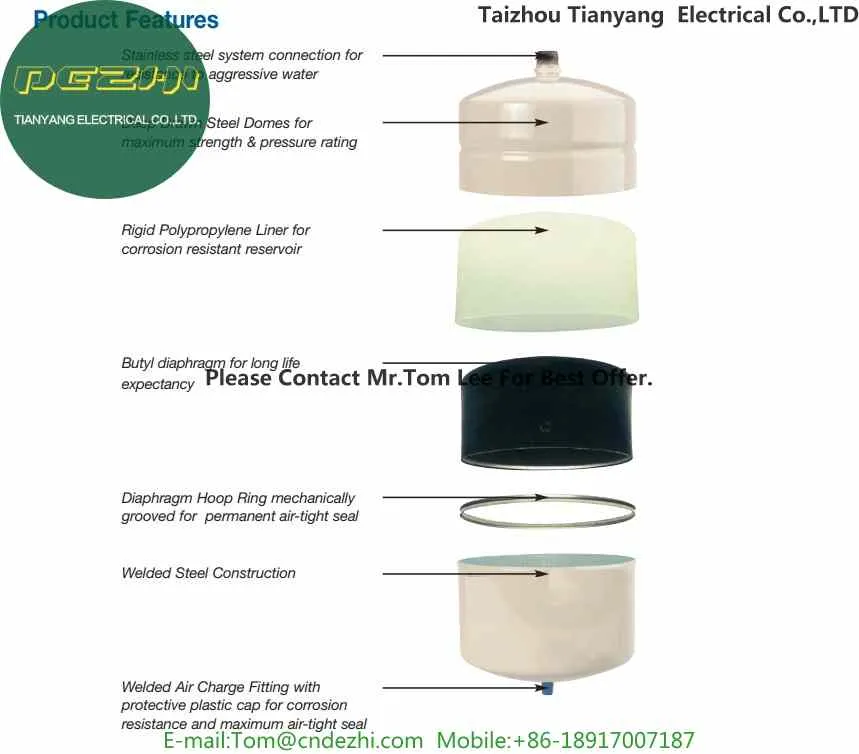

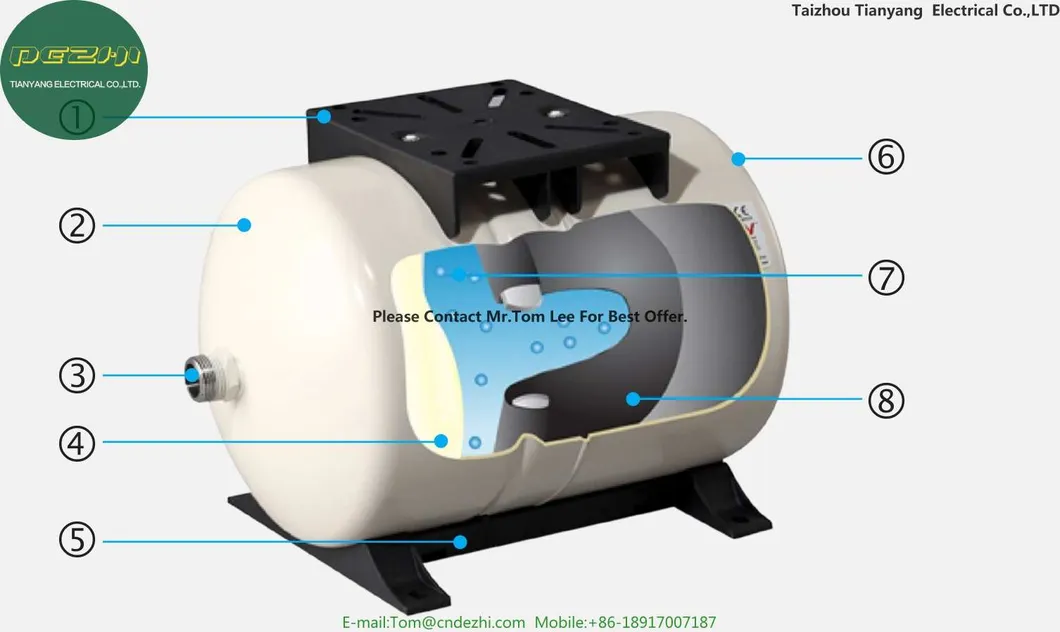

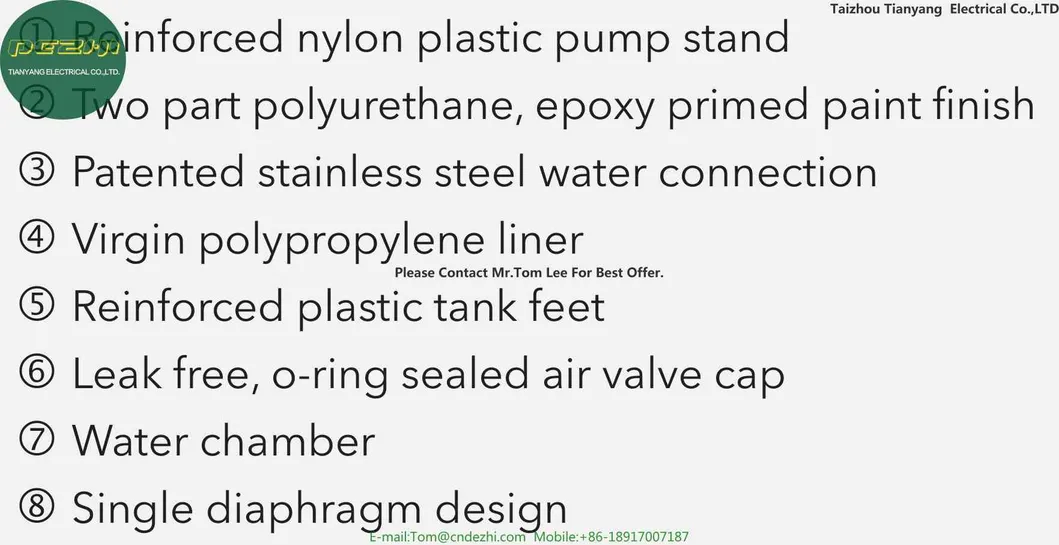

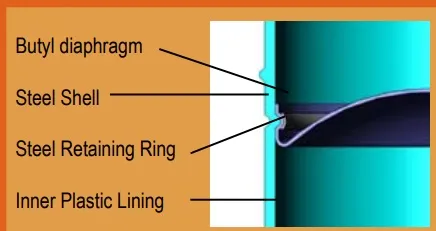

Single Diaphragm Pressure Vessel Structure







Specifications:

• Single diaphragm design 100% potable quality butyl,we also have EPDM Membrane For Irrigation Purpose.
• Patented 316/304 stainless steel connection.
• Virgin polypropylene liner, so no water touches plain steel.
• Internal clench ring becomes more secure at higher pressures.
• High quality two part polyurethane, epoxy primed paint finish - Almond.
• Brass stemmed air valve and O-ring sealed valve cap,we have our own patent pressure valve.No need any maintaince during life time.
• CE, WRAS,KC,Water Mark/UPC/SGS approvals.
• Maximum temperature up to 99 °C.
• Standard maximum pressure 150 PSI / 10 Bar.For Super Aqualeader ,we have appied 240 psi/16 bar
• 5 To 7 Years Warranty  According To Clients Requirements

Materials:

• Diaphragm: high grade butyl
• Liner: polypropylene
• Clench ring: steel
• Air valve: brass
• Valve cap: threaded o-ring
• Water connection: stainless steel SUS 304/SUS316
• Exterior: steel
• Pump stand: Engineering plastic

Market Sectors: (Applied with different membrane---Butyl/Epdm)

• Domestic
• Commercial
• Agricultural
• Industrial
• Irrigation
• Mining

Applications:

• Water booster systems
• Thermal expansion
• Irrigation systems
• Hydraulic hammer arresting

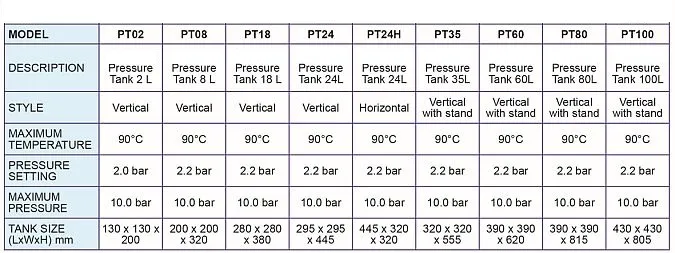

Technical Parameter

FAQ Details:

   1.Q: What is your MOQ of this item?
      A: We are a factory, have stock. 1PCS is ok!

   2.Q: What is the delivery time?
      A: 7-25 days after receiving orginal L/C or deposit by TT.

   3.Q: Is it all right to make customer's own brand name?
      A: Yes we supply OEM service. Please send us a authorization doc.

   4.Q: Where is your Loading Port?
      A: Ningbo, Zhejiang, China.

   5.Q: What are your payment terms?For Bulk Quantity Purchase
      A: 30% deposit and balance T/T against copy of Bill of Lading or L/C at sight.
      For Samll amount Trial Order ,Please arrange the full payment

   6.Q: What is your company's available production capacity?
      A:  50000~60000 pieces of  Pressure Tank per month.
