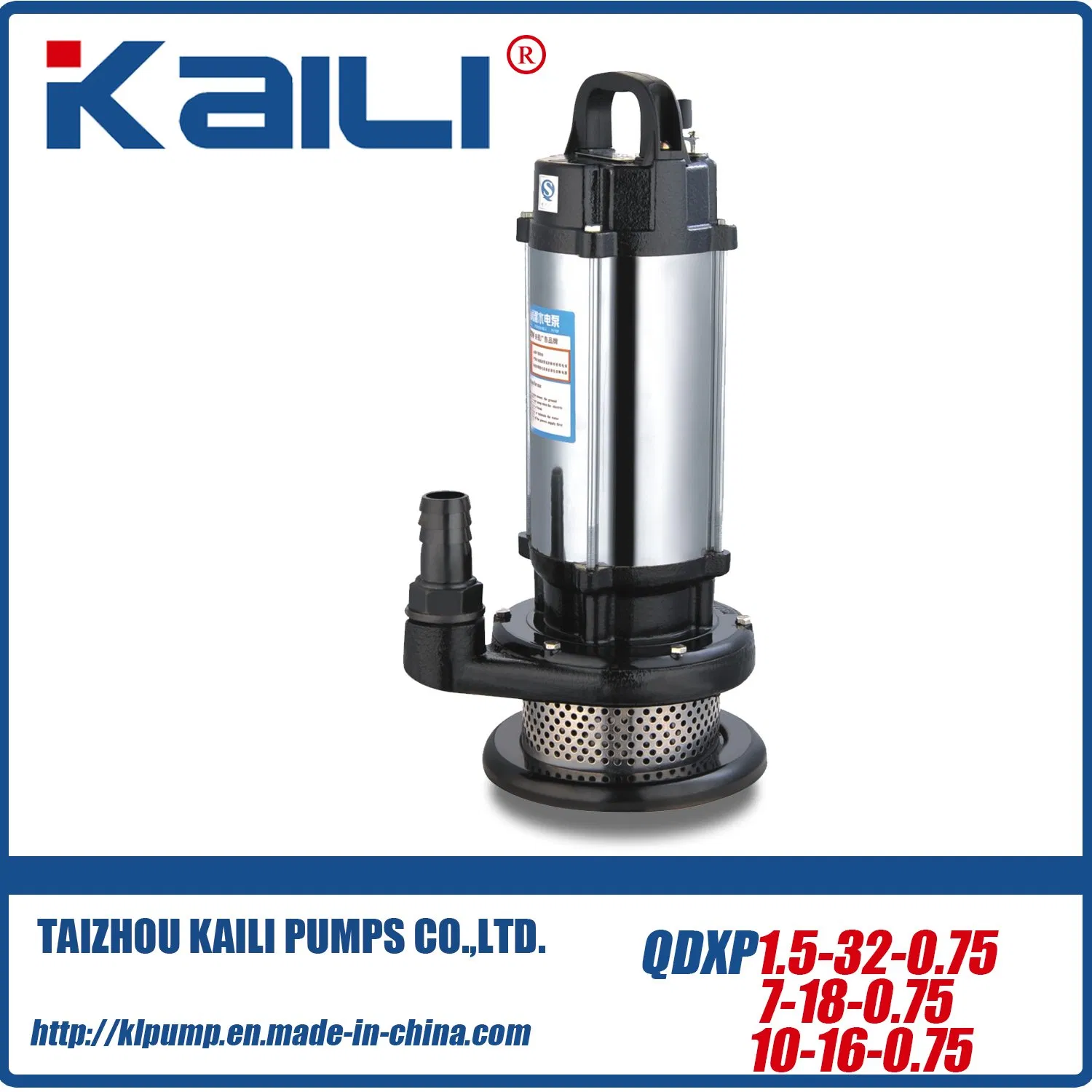

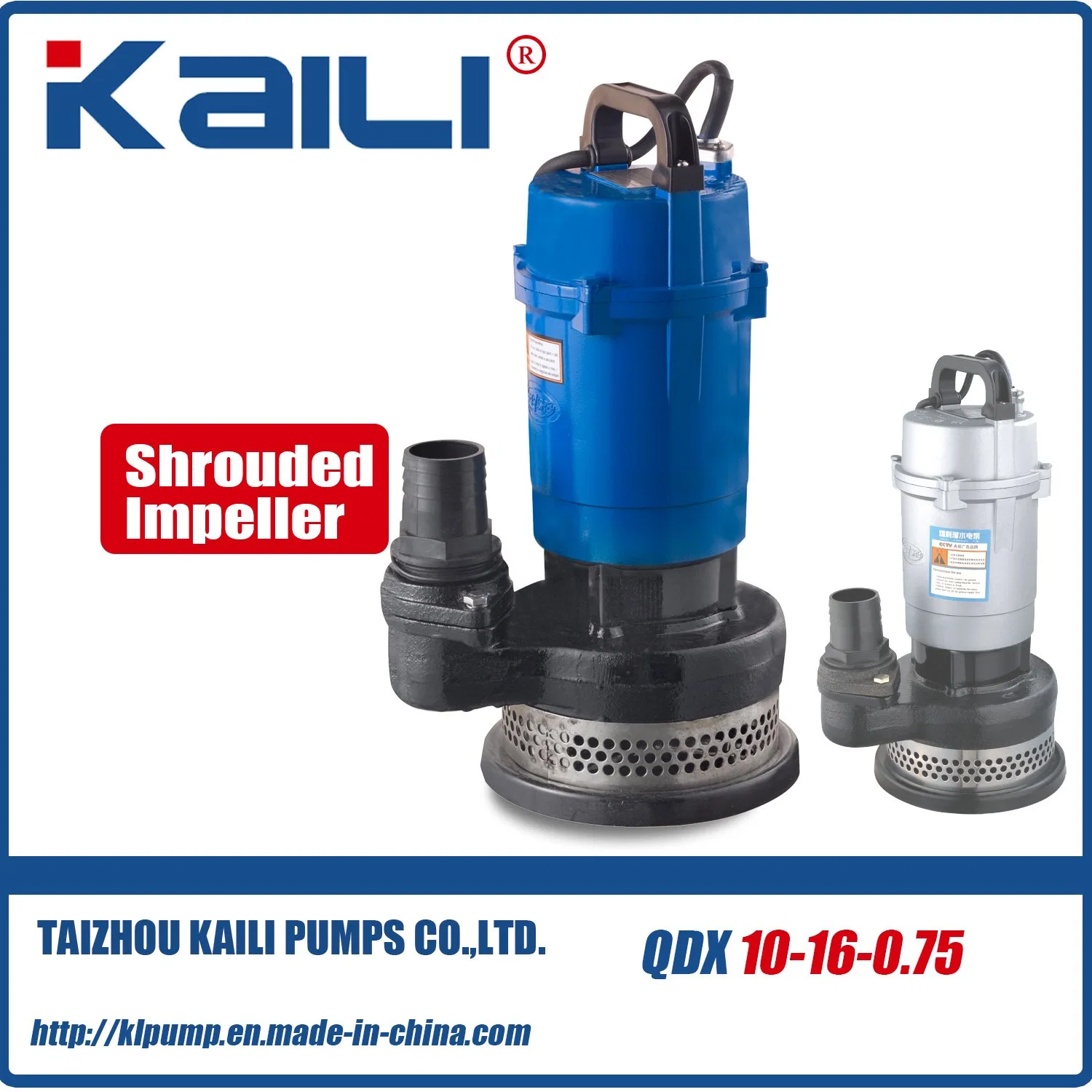

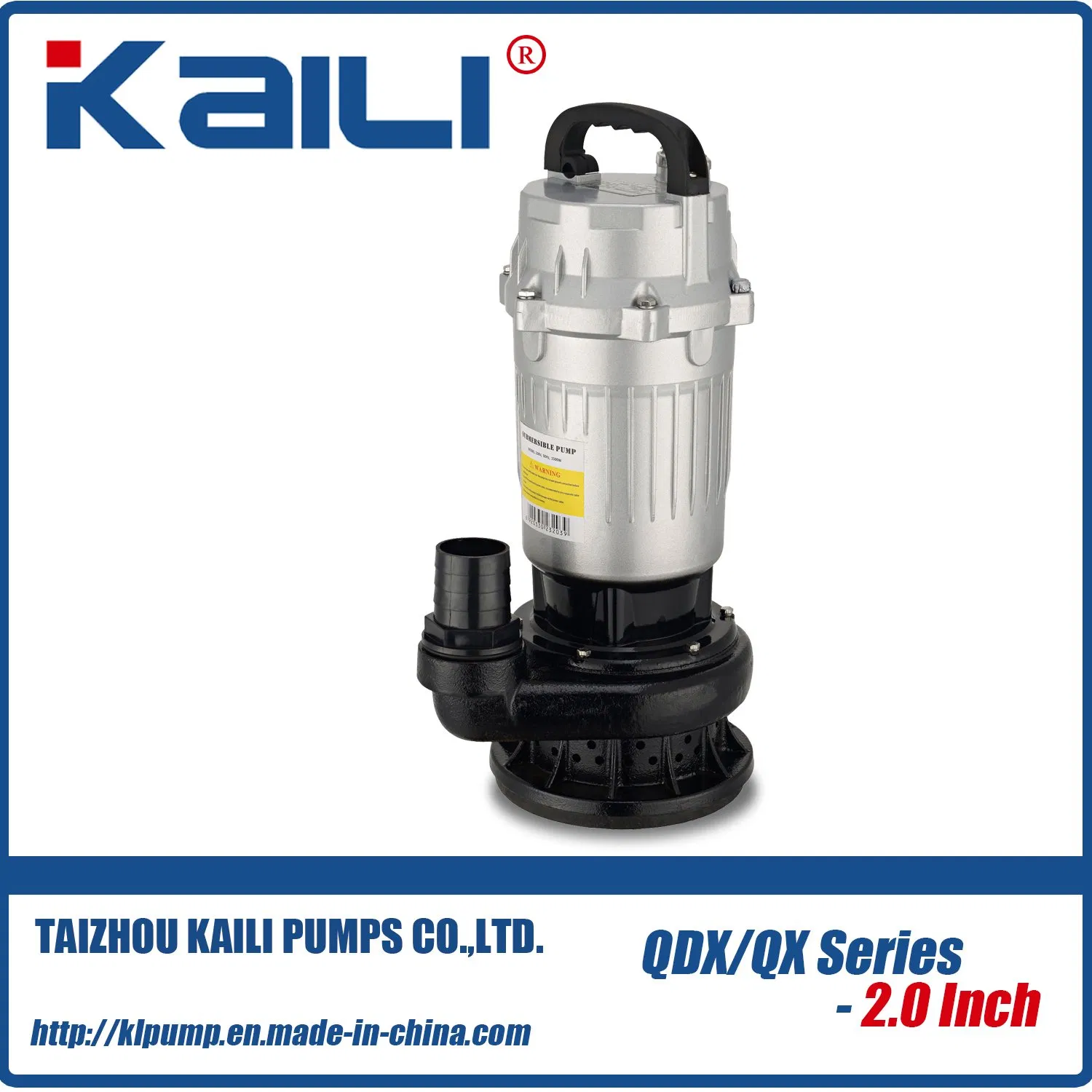

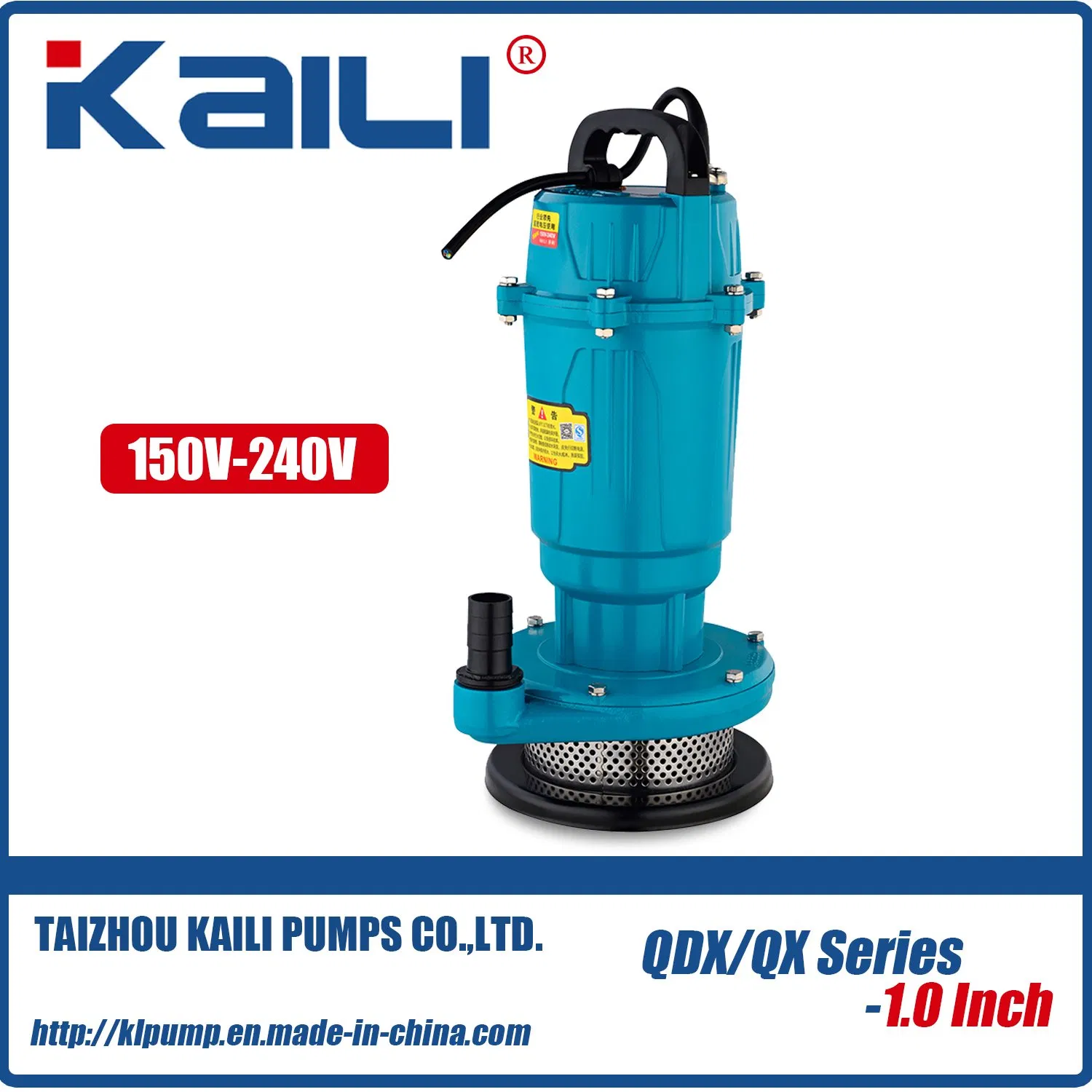

2' Outlet QDX QX Electric Submersible pump with High Quality

Product Description

ump Introduction
   QDX, QX series submersible pump consists of pump, mechanical seal and motor. Pump is at the bottom part of pump, which is adopted centrifugal impeller. Motor which is single-phase or three-phase is at the upper part of pump. Seal is used where pump and motor combine, which is a kind of double-end mechanical seal, O rings are applied to all static joints. Float switch can be equipped to control pump's starting and stopping automatically according to the water level.
ain Application
   This series pump is small and light, which is widely used in countryside for elevating water from well, irrigation, sprinkling and domestic water supply, and also used in draining off water for fishpond and building site.
Work conditions
The pump can work properly and continuously under following operational conditions:
1. Medium is not corrosive,Sand contents should be max. 0.01% by volume and
    granular size should be max. 0.2mm.
2. Medium temperature shouldn't be over 40°C and PH should be 6.5-8.5.
3. The pumps should be operated within rated head.
4. The pumps should be fully submerged into water with depth of less than 3m       mad max. the pump should be min. 0.5m over the water bottom and not be insert into sludge.
5.Power frequency should be 50HZ,single phase voltage 220V,three phase voltage 380V,and voltage fluctuation should be 0.9-1.1 times than the rated.
kplace Show
3'&4' Outlet QDX QX Electric Submersible pump with High Quality

3'&4' Outlet QDX QX Electric Submersible pump with High Quality

Features of Kaili Submersible Pump
1. 100% copper wire
2. Chrome-plated pump rotor (more resistant to wear and corrode)
3. Thermal protector
4. High-end bearing and mechanical seal
arial

Structure of pump	Material	Can be selected
Pump body	Aluminum	Cast-Iron / Stainless steel
Impeller	Aluminum	Stainless steel
Pump shaft	45 # Steel	Stainless steel
Cable	/	Arbitrary length

ecification

Appellation	Model	Flow		Head (m)	Power (kW)	HP	Pipe size		Voltage (v)	Velocity (r/min)
Appellation	Model	m³/h	l/min	Head (m)	Power (kW)	HP	(mm)	(inch)	Voltage (v)	Velocity (r/min)
QDX Single-phase Submersible Pump	QDX 1.5-16-0.37	1.5	25	16	0.37	0.5	25	1	220	2860
	QDX 3-20-0.55	3	50	20	0.55	0.75	25	1
	QDX 10-10-0.55	10	166.7	10	0.55	0.75	40	1.5
	QDX 15-7-0.55	15	250	7	0.55	0.75	50	2
	QDX 1.5-32-0.75	1.5	25	32	0.75	1	25	1
	QDX 7-18-0.75	7	117	18	0.75	1	40	1.5
	QDX 10-16-0.75	10	166.7	16	0.75	1	50	2
	QDX 15-10-0.75	15	250	10	0.75	1	65	2.5
	QDX 10-16-0.8	10	166.7	16	0.8	1.1	25/40/50	1/1.5/2
	QDX 1.5-38-1.1	1.5	25	38	1.1	1.5	25	1
	QDX 10-20-1.1	10	166.7	20	1.1	1.5	50	2
	QDX 15-15-1.1	15	250	15	1.1	1.5	65	2.5
	QDX 30-9-1.1	30	500	9	1.1	1.5	80	3
	QDX 15-18-1.5	15	250	18	1.5	2	65	2.5
	QDX 40-9-1.5	40	667	9	1.5	2	80	3
	QDX 65-7-2.2	65	1083	7	2.2	3	100	4
QX Three-phase Submersible Pump	QX 3-20-0.55	3	50	20	0.55	0.75	25	1	380	3000
	QX 10-10-0.55	10	166.7	10	0.55	0.75	40	1.5
	QX 15-7-0.55	15	250	7	0.55	0.75	50	2
	QX 1.5-32-0.75	1.5	25	32	0.75	1	25	1
	QX 7-18-0.75	7	117	18	0.75	1	40	1.5
	QX 10-16-0.75	10	166.7	16	0.75	1	50	2
	QX 15-10-0.75	15	250	10	0.75	1	65	2.5
	QX 10-20-1.1	10	166.7	20	1.1	1.5	50	2
	QX 15-15-1.1	15	250	15	1.1	1.5	65	2.5
	QX 30-9-1.1	30	500	9	1.1	1.5	80	3
	QX 15-18-1.5	15	250	18	1.5	2	65	2.5
	QX 40-9-1.5	40	667	9	1.5	2	80	3
	QX 65-7-2.2	65	1083	7	2.2	3	100	4
Sewage Submersible Pump	QDX 6-12-0.4	6	100	12	0.4	0.55	25/32	1/1.5	220	2860
	QDX 10-15-0.75	10	166.7	15	0.75	1	25/40	1.5/2
	QDX 10-18-1.1	10	166.7	18	1.1	1.5	25/40	1.5/2
	QX 10-18-1.1	10	166.7	18	1.1	1.5	25/40	1.5/2	380	3000
QDX Cast-iron body Submersible Pump	QDX 3-14-0.37T	3	50	14	0.37	0.5	25	1	220	2860
	QDX 3-18-0.55T	3	50	18	0.55	0.75	25	1
	QDX 3-24-0.75T	3	50	24	0.75	1	25	1
	QDX 3-30-1.1T	3	50	30	1.1	1.5	25	1
	QDX 6-32/2-1.5T	6	100	32	1.5	2	40	1.5
