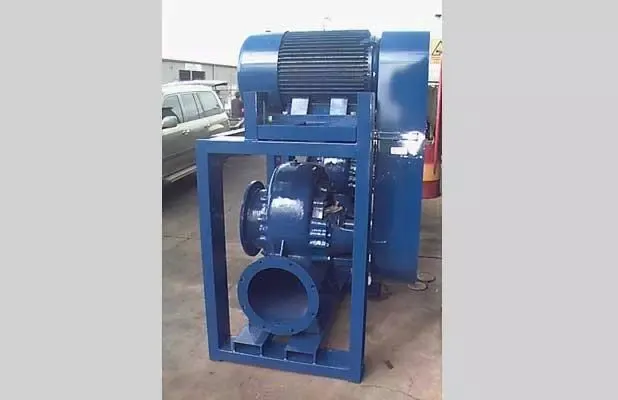

115kw 400mm Outlet Diameter 400hw-10c Low Head High Efficiency Horizontal Volute Mixed Flow Pump
Product DescriptionIntroductionHW pumps are horizontal and volute type single stage and single suction pumps for delivery of clean water or other liquid having similar physical and chemical prooerties as that of chean water.The temperature of water pumped should be less than 50 degree centigrede.It ......
Send Inquiry
Product Description
Introduction
HW pumps are horizontal and volute type single stage and single suction pumps for delivery of clean water or other liquid having similar physical and chemical prooerties as that of chean water.The temperature of water pumped should be less than 50 degree centigrede.It is suitable for farmland for water supply and drainage for municipal works as well as flood irrigation and water conservancy for farmland.
This type of pump could be fitted with 90°,33°,55°,27° elbows or bends in accordance with your requirements.
Model Explanation
Product model and name
For example, 500HW-6A
500-inlet and outlet diameter of the pump in mm
HW-horizontal volute mixed-flow pump
8-designed head in m
A-reduction in diameter of the impeller
Application range
Main performance range of HWG pumps:
Capacity130m/h-9000m/h
Head:3.5-22m
The direction of Rotation
As viewed from the suction side of the pump, the rotation of the impeller is anti-clockwise. However, the direction of rotation of model 650HW- 5,-7,-10 pumps is just opposite to the above statement

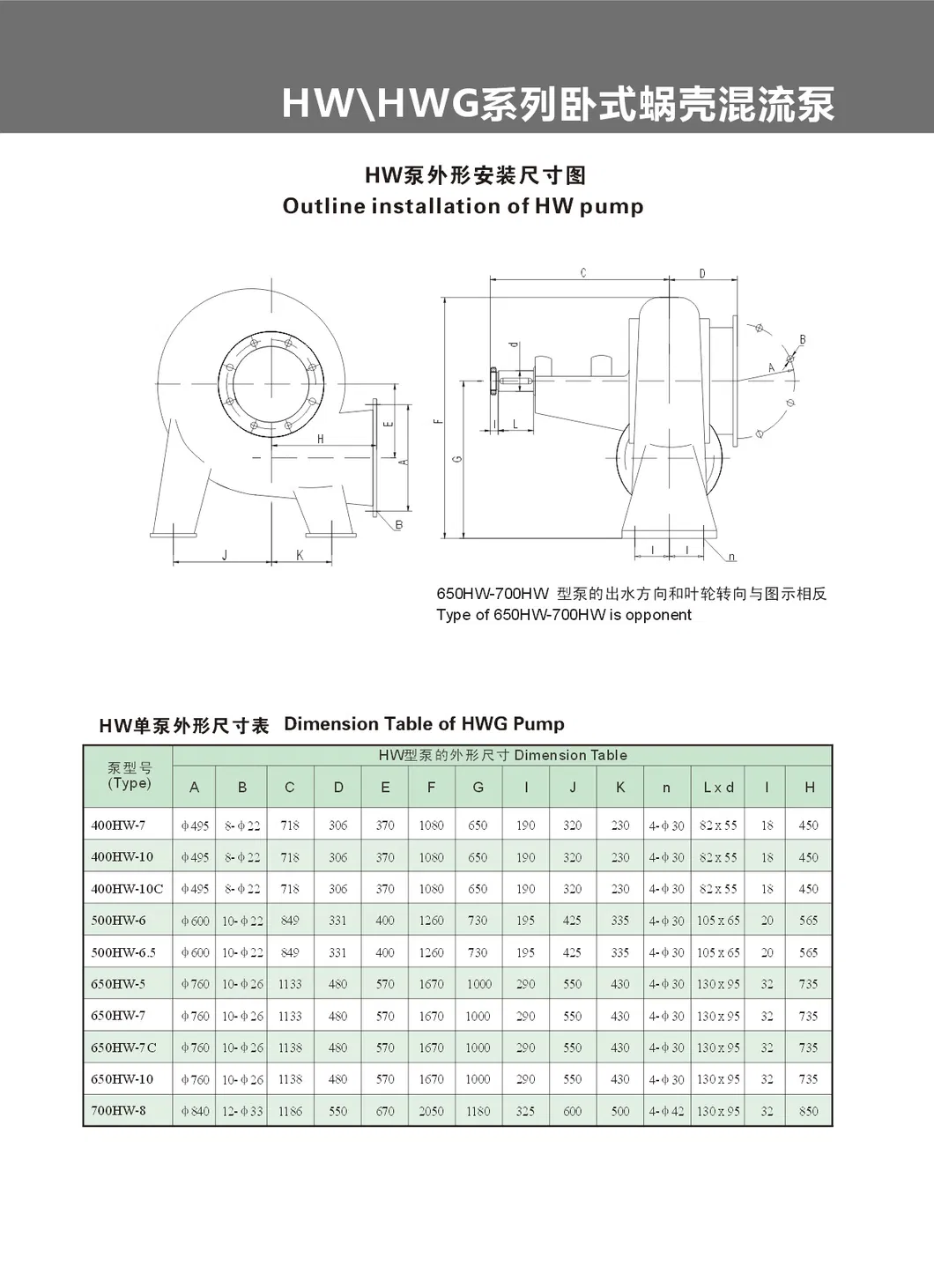

Structure

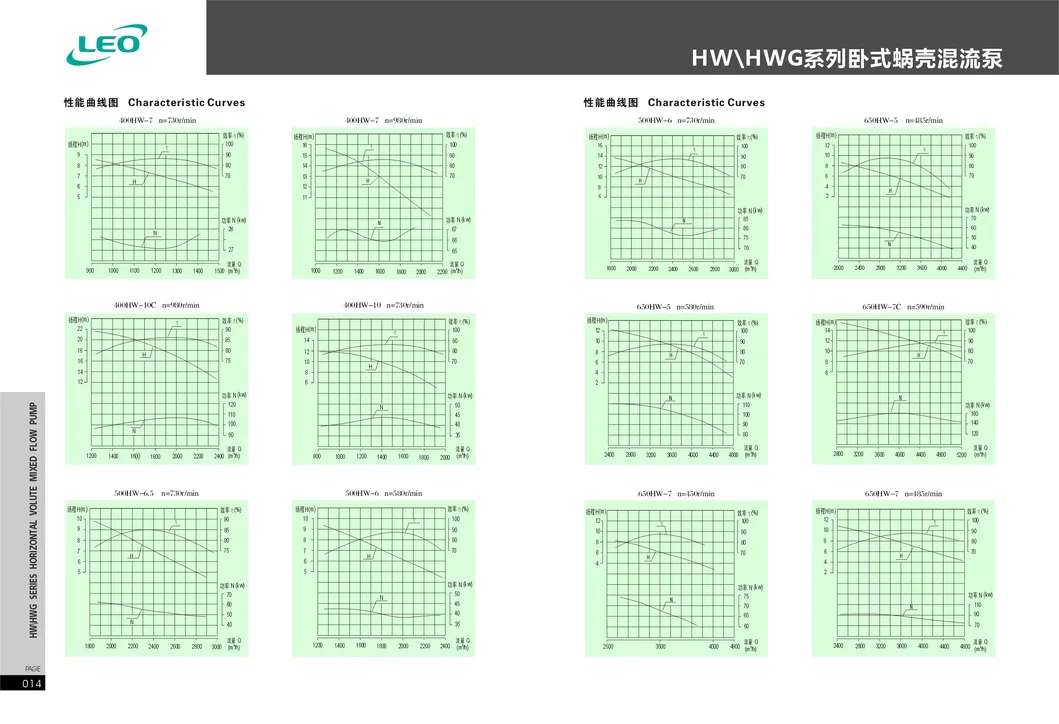

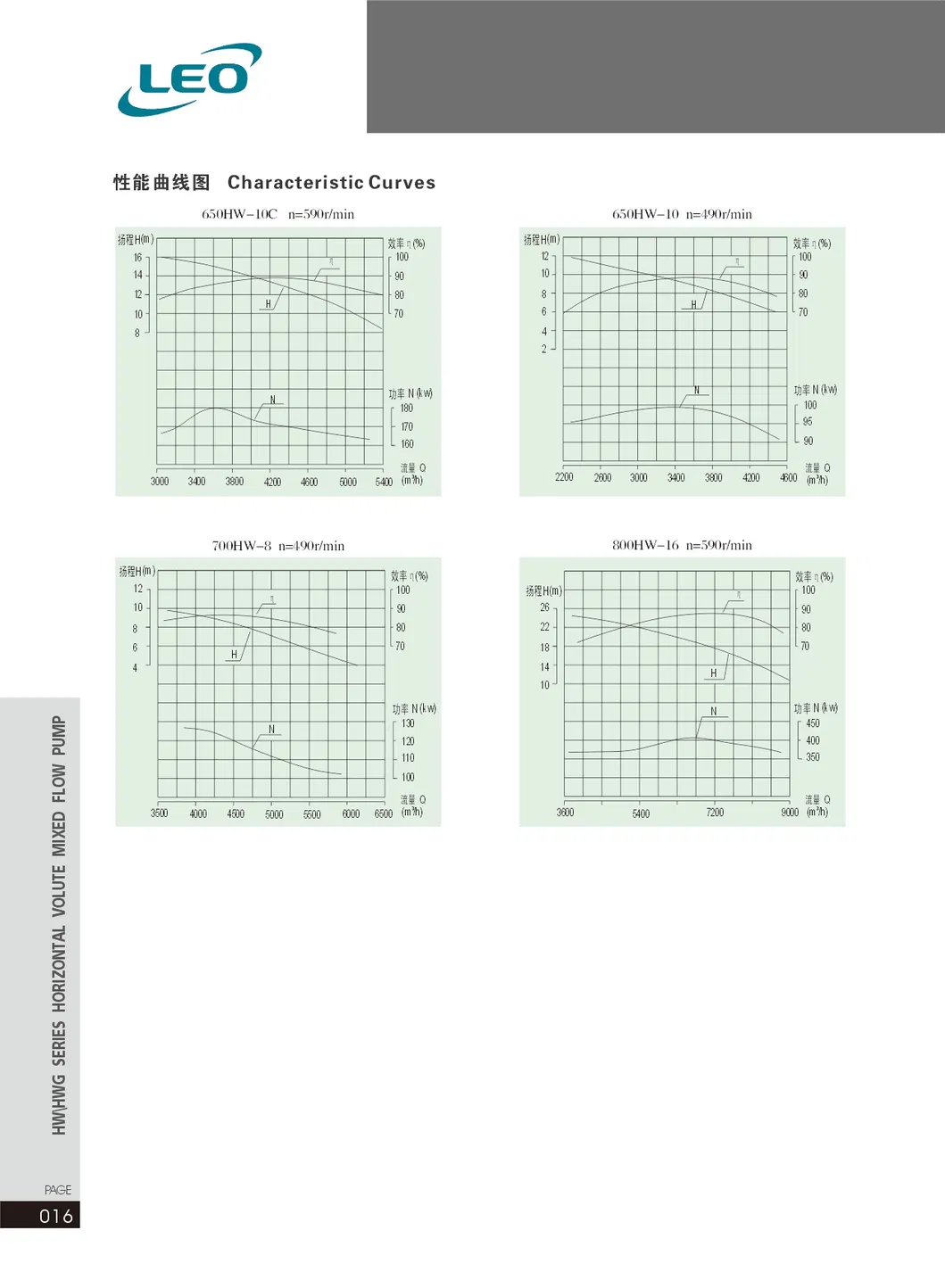

Performance&Curves

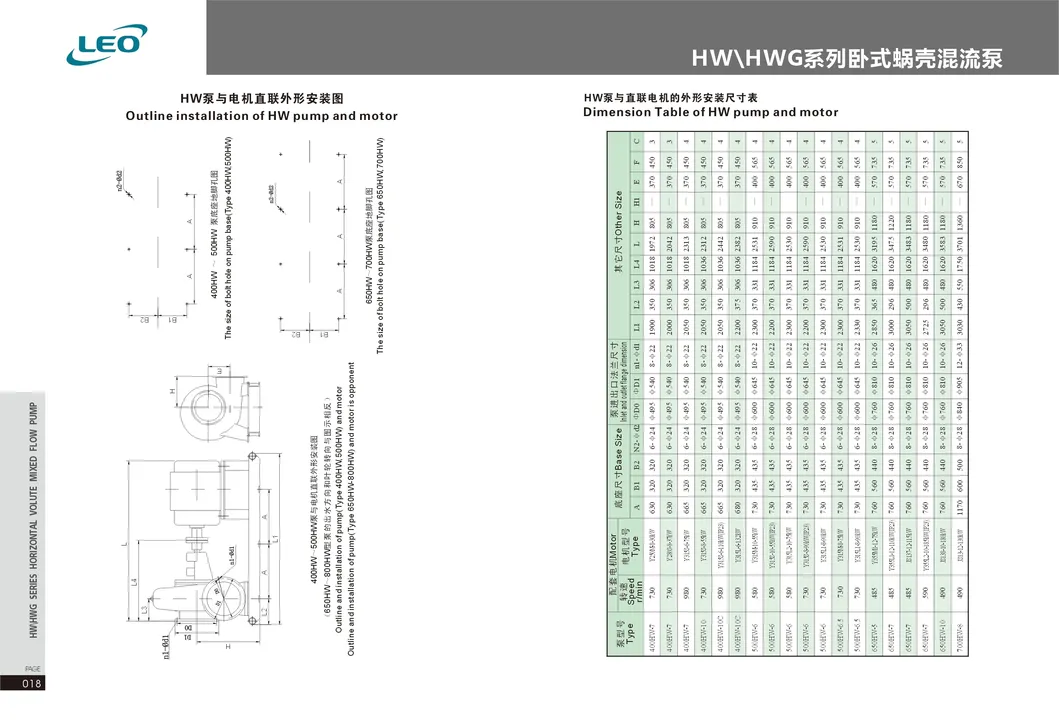

Installation

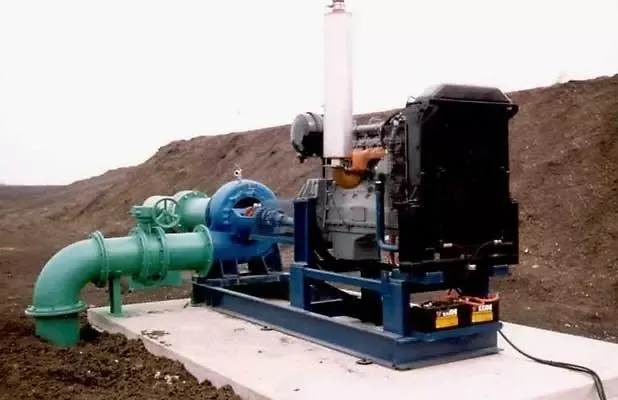

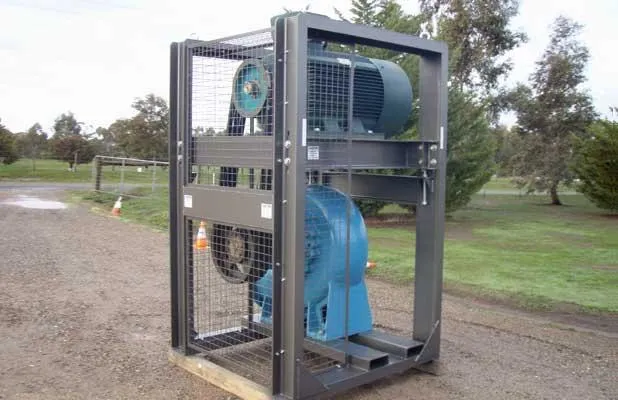

Application by Our Customers
