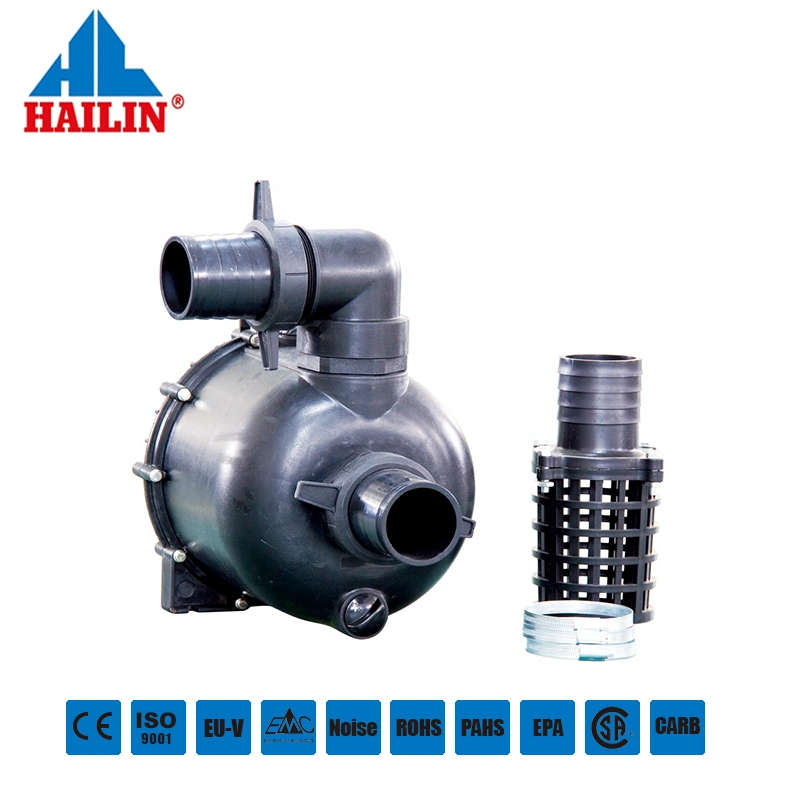

China 1- 3" Sea Water Pump Chemical Pump Diesel Engine Gasoline Engine Driven Pump

Product Description

Model	CP25	CP50S	CP50	CP80
Inlet inch (mm)	1"(25mm)	2''(50mm)	2''(50mm)	3''(80mm)
Outlet inch (mm)	1"(25mm)	2''(50mm)	2''(50mm)	3''(80mm)
Max.head (m)	23	30	35	28
Suction lift (m)	8	8	8	8
Max.flow (L/min)	120	510	550	1000
Pump body	PA66 plastic	304 Stainless steel	PA66 plastic	PA66 plastic
Impeller	PA66 plastic	304 Stainless steel	PA66 plastic	PA66 plastic
Mechanical seal	Carbon-Ceramic	Carbon-Ceramic	Carbon-Ceramic	Carbon-Ceramic
Driving power (KW)	1.2	2.8	4.1	4.8
Working speed (rpm)	4500	3600	3600	3600
Dimension (mm)	200185200	315184182	330280222	425295297
Weight (kg)	1.5	9.3	3.5	4.7

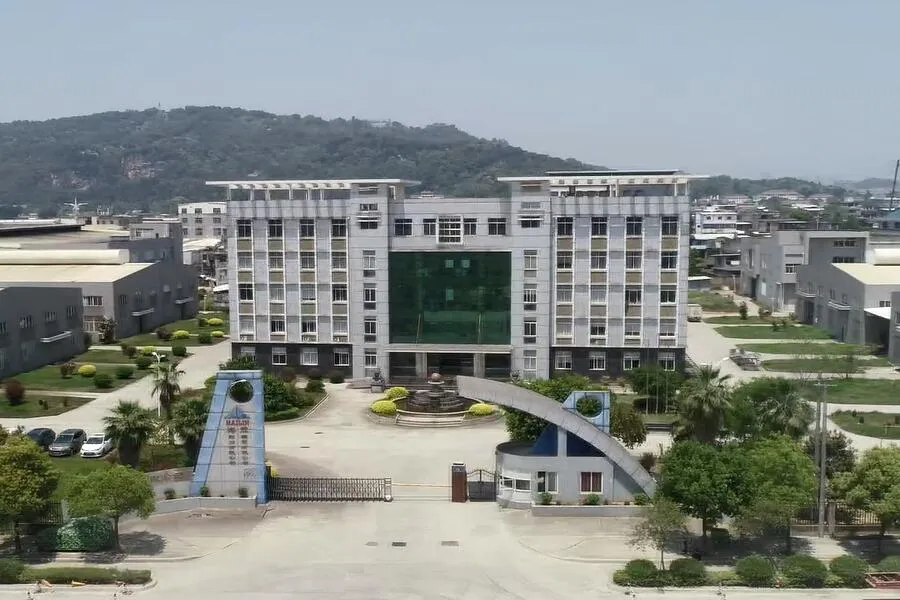

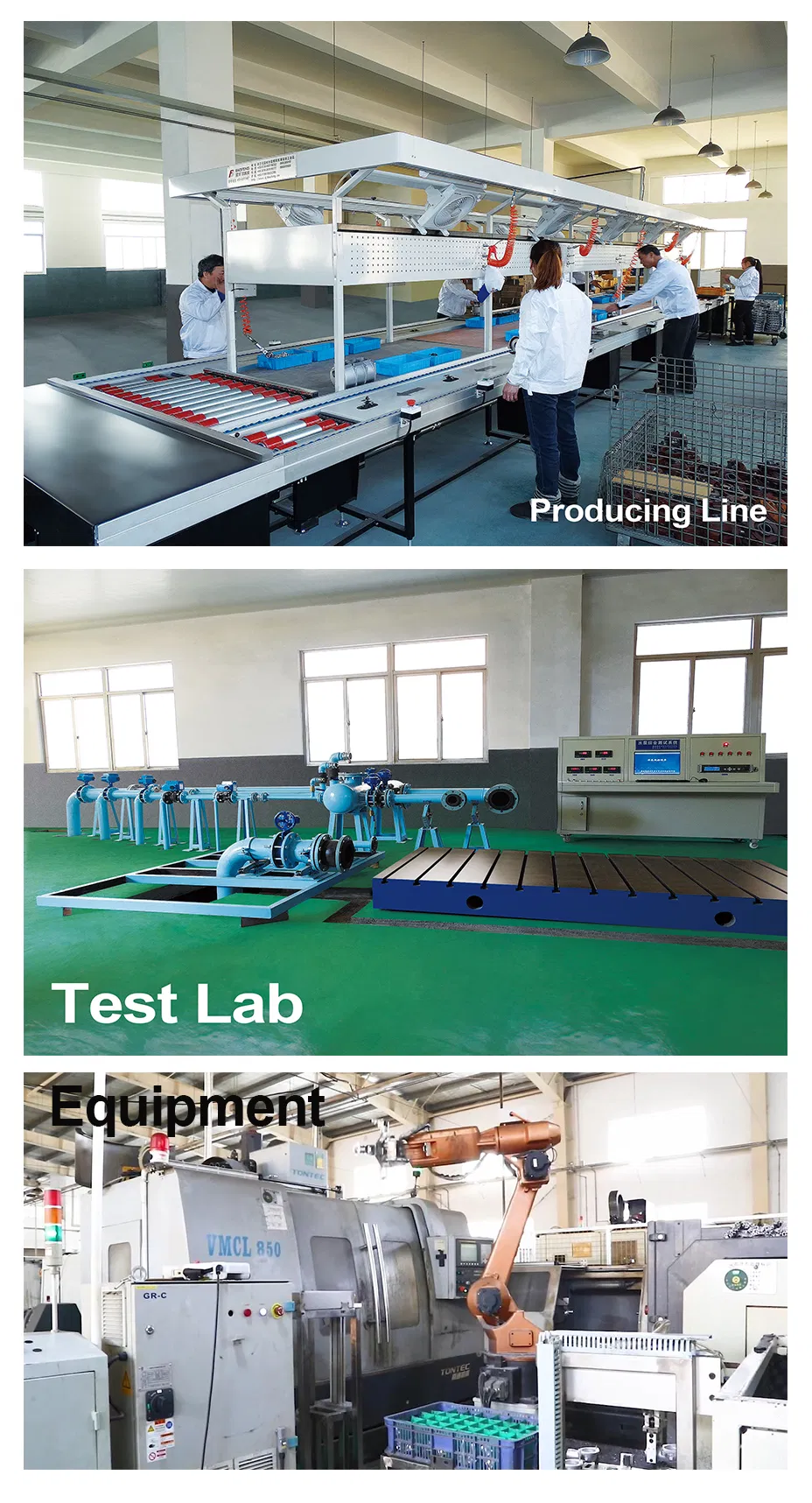

Fujian Hailin Group was founded in 1999. Equiped with advanced production lines for casting, metal plate
processing, maching and coating, Haiin is a modern enterprise that intergrates scientific research and development, production,
sales and service, and import and export trade of water pump set and water pump, diesel generators.
As one of the leading company in terms of company scale, technical strength and product quality within the industry, Hailin has
gained its stable customers basis like HONDA, SAWAFUJI, HITACHI, and other international well-know companies with a series of
related certification including ISO9001, EPAIII, EU-V, CE, EMC, ROHS.
1- 3" Sea Water Pump Chemical Pump Diesel Engine Gasoline Engine Driven Pump
