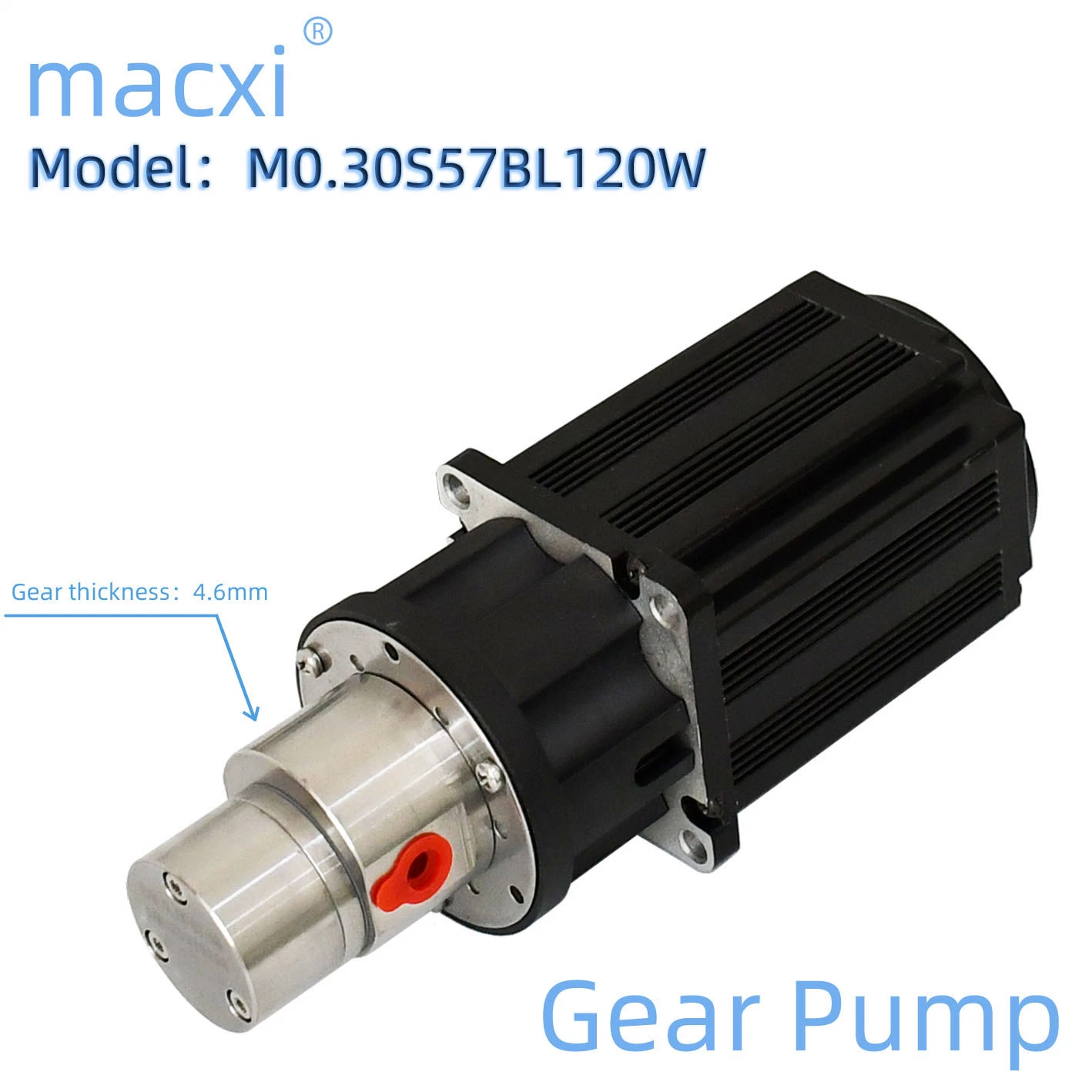

High Quality Small Flow Micropump Stainless Steel Magnetic Gear Pump
Product Model DescriptionProduct InstructionThe brushless DC motor is used as the power driving gear pump. The brushless motor driver is configured to realize the motor function control. It has the functions of speed measurement, speed adjustment, forward and reverse rotation. It can be connected wi......
Send Inquiry
Product Description

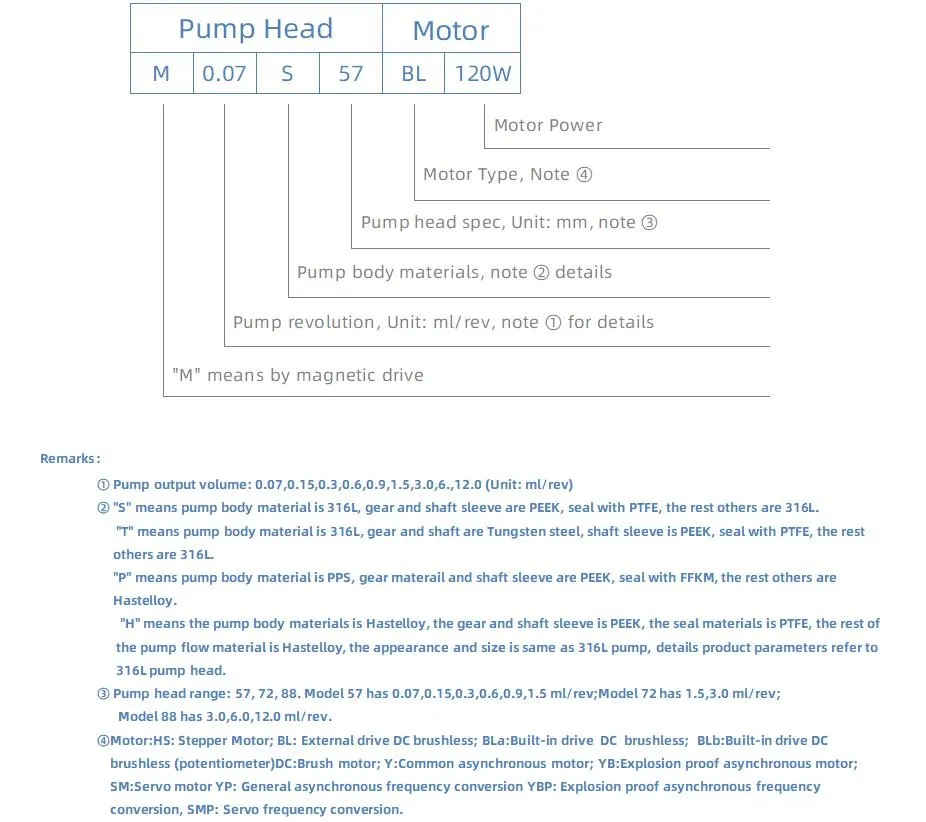

Product Model Description
Product Instruction

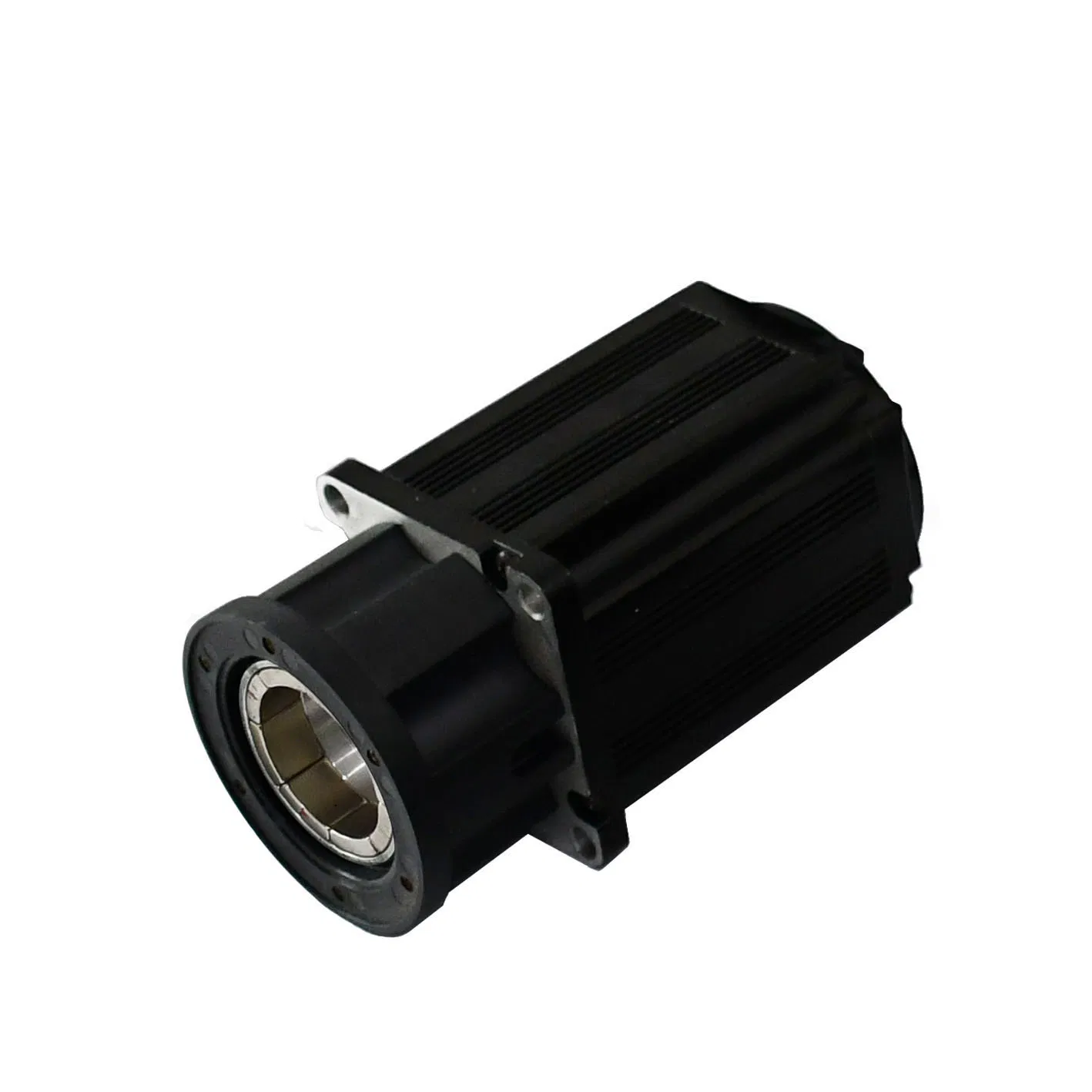

The brushless DC motor is used as the power driving gear pump. The brushless motor driver is configured to realize the motor function control. It has the functions of speed measurement, speed adjustment, forward and reverse rotation. It can be connected with the upper computer to realize intelligent control. It is especially suitable for the workplace with frequent start and stop, such as liquid filling. Step motor or servo motor can be selected as driving power.

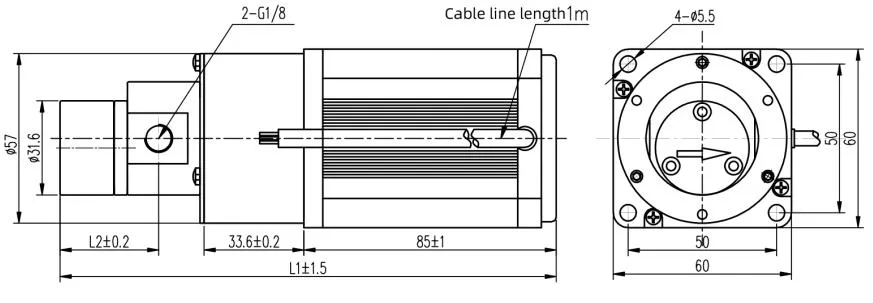

Product Size:

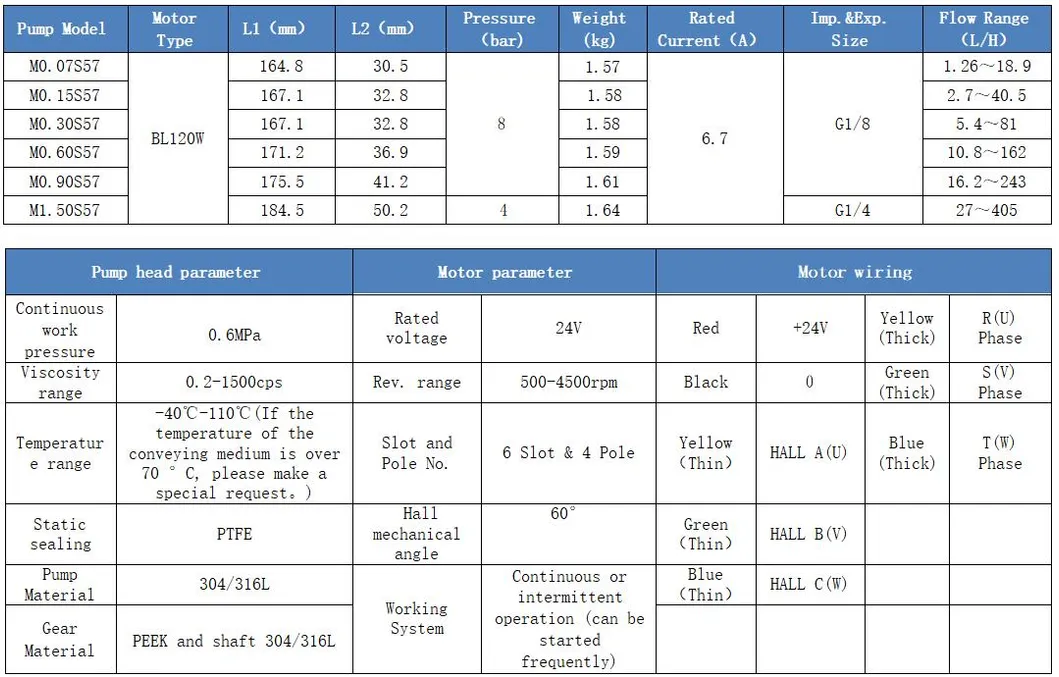

Product Parameters:
Remark: The value in this table is for reference only.
Product Characteristics:
Test Medium: Water
1.Smooth transmission, no pulse, accurate measurement;

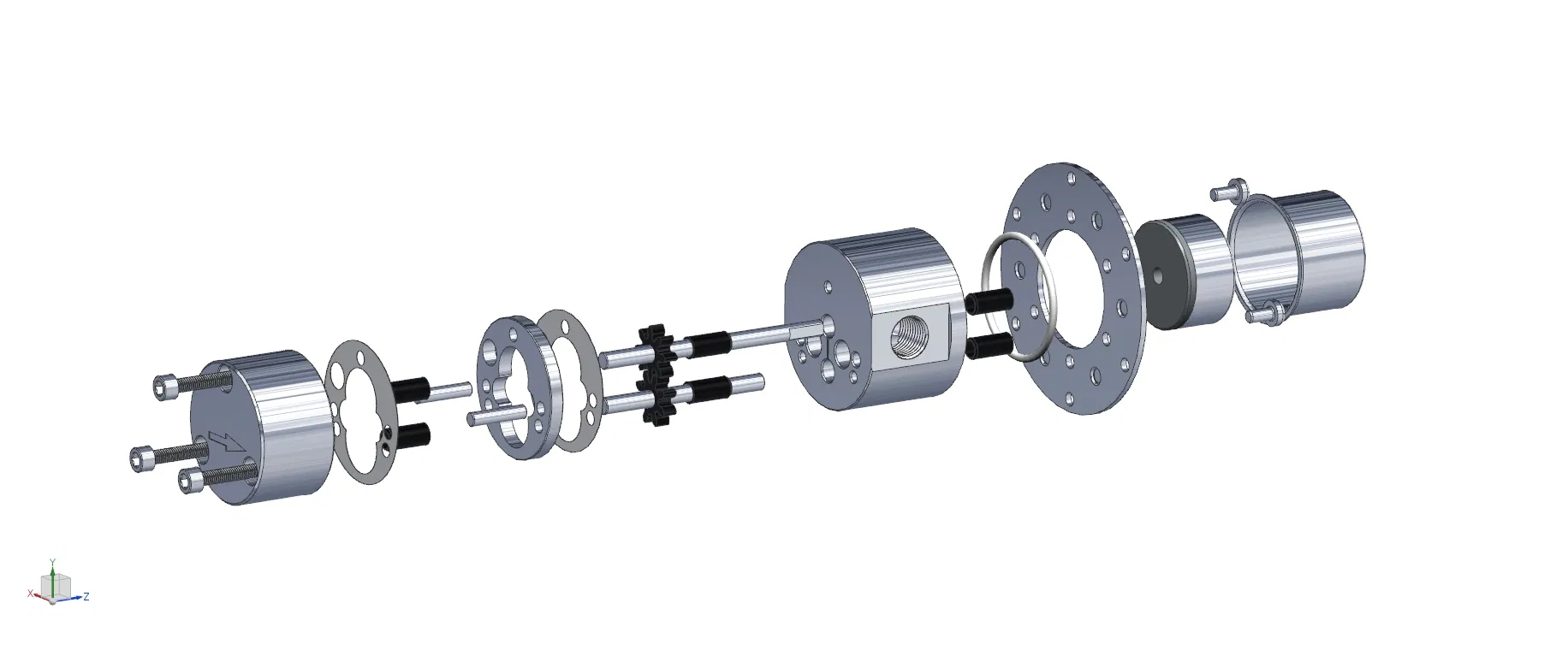

2.Use magnetic drive structure, static seal, truly achieve zero leakage;
3.Diversified drive, wide application in the industry, complete models;
4.High efficiency and energy saving, easy maintenance, low installation cost and long service life.Applications:
Logistics:
CE Certification
Company Profile
Product Instruction
The brushless DC motor is used as the power driving gear pump. The brushless motor driver is configured to realize the motor function control. It has the functions of speed measurement, speed adjustment, forward and reverse rotation. It can be connected with the upper computer to realize intelligent control. It is especially suitable for the workplace with frequent start and stop, such as liquid filling. Step motor or servo motor can be selected as driving power.
Attentions:
1.400 Mesh filter shall be installed at the inlet of gear pump.
2.Before using, squeeze in a small amount of medium to lubricate the gear from the gear pump inlet.
Product Size:

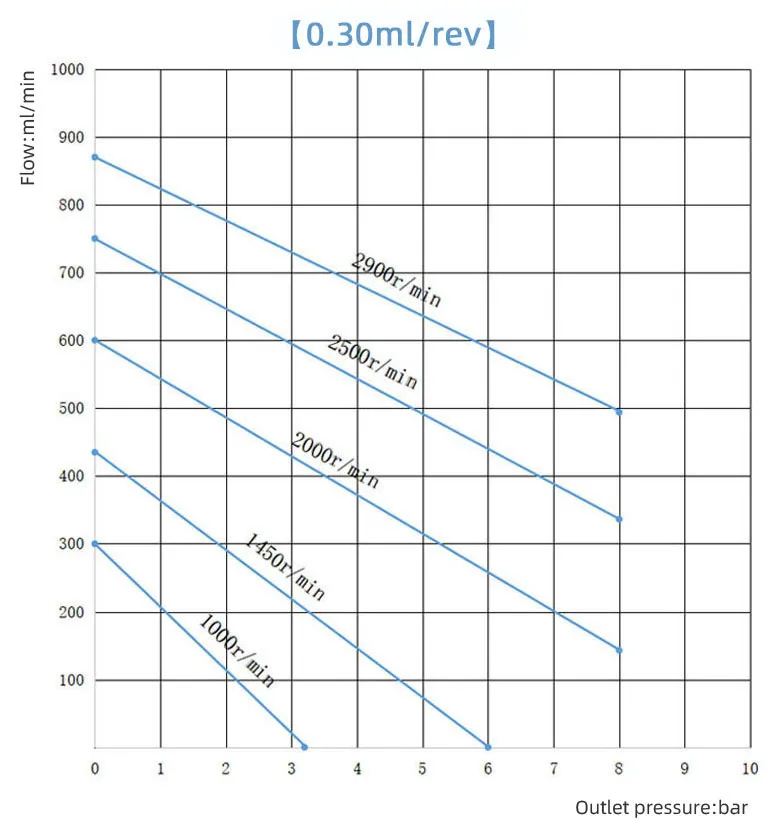

Product Parameters:
Remark: The value in this table is for reference only.
Product Characteristics:
Test Medium: Water
1.Smooth transmission, no pulse, accurate measurement;
2.Use magnetic drive structure, static seal, truly achieve zero leakage;
3.Diversified drive, wide application in the industry, complete models;
4.High efficiency and energy saving, easy maintenance, low installation cost and long service life.
Attentions:
It cannot be used to transport fluids with hard particles;
Filter to be installed at inlet.
Remarks:
OEM service are avaiable according to your request.
The specifications are only for reference, for details checking, please feel free to contact us.

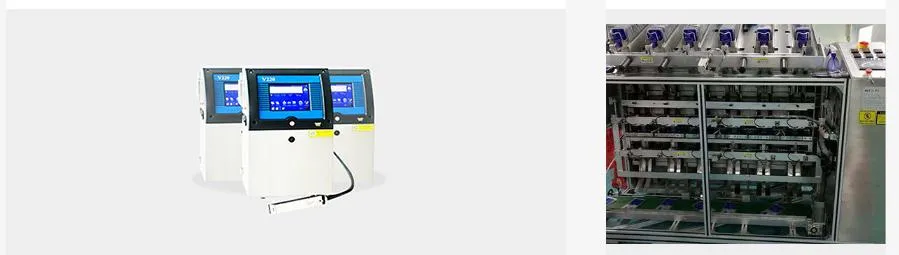

| Industrial machinery and equipment | Water treatment | Food and cosmetics |
| Inkjet printing/painting | Mask making | Food and Beverage filling |
| Oil transportation | Booster pressure | Filling of perfume cosmetics |
| Sand mill/Grinding | Circulating cooling | Quantitative Transport |
Logistics:
CE CertificationCompany Profile
