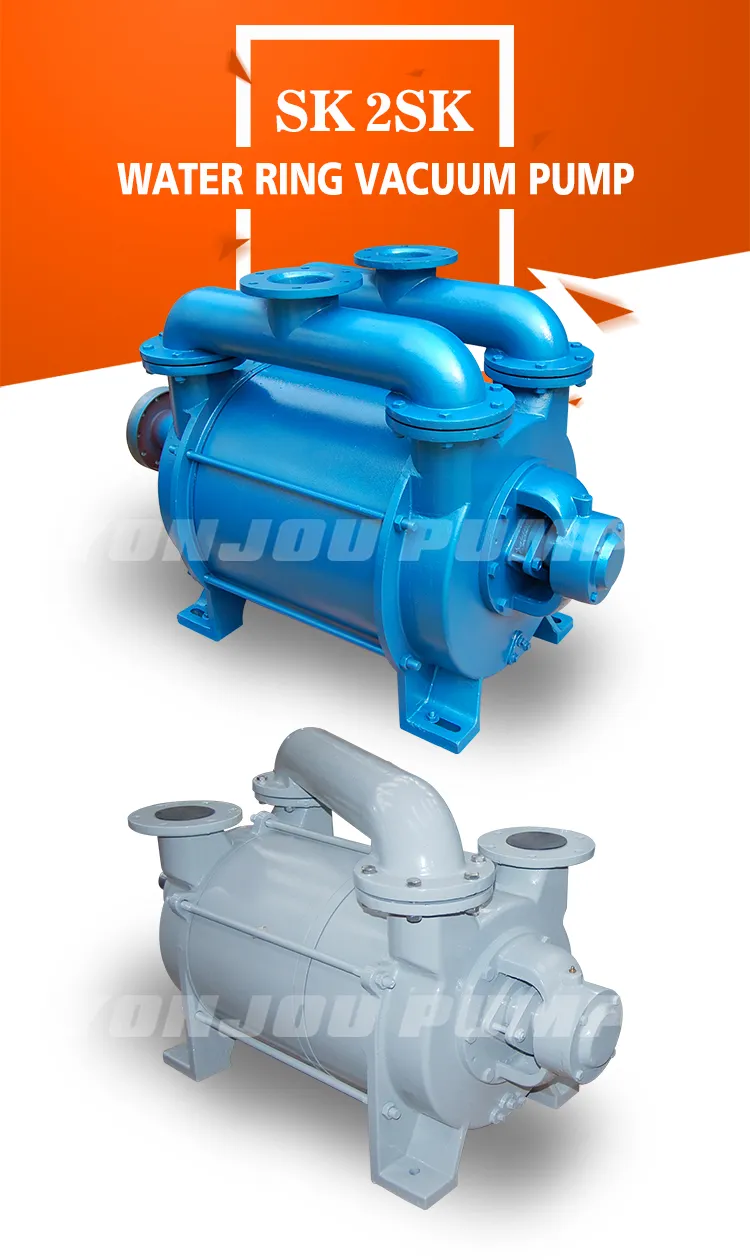

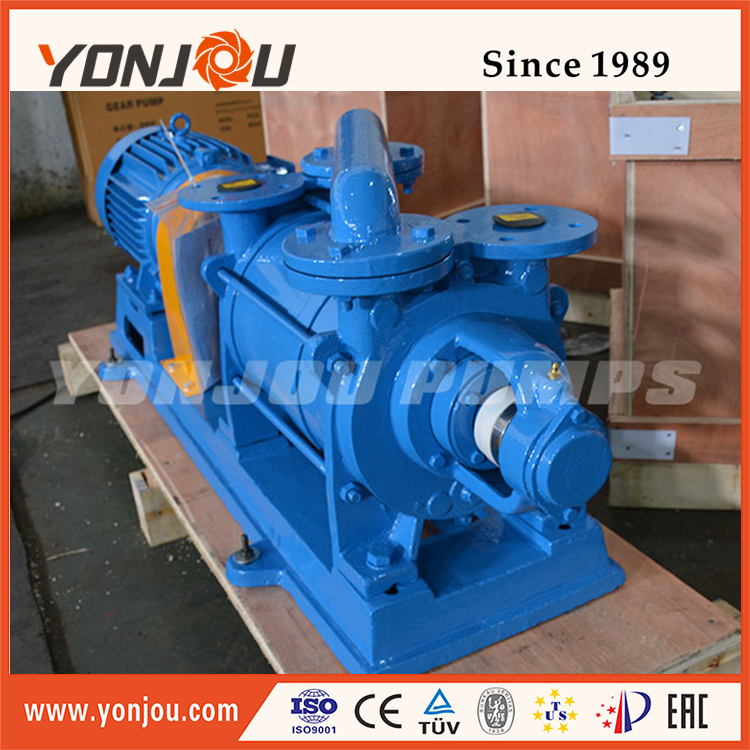

Vacuum Pump for Milking Machine
Summarize:1.2SK/SK vacuum pump suction sewage milking liquid ring vacuum pump is mainly used to pump air and other gas which is little corrosive, insoluble in water & with little solid.2. The water input into the pump revolve with high speed to form pressure and closed water cavity to take away ......
Send Inquiry
Product Description
Summarize:
1.2SK/SK vacuum pump suction sewage milking liquid ring vacuum pump is mainly used to pump air and other gas which is little corrosive, insoluble in water & with little solid.
2. The water input into the pump revolve with high speed to form pressure and closed water cavity to take away air from container in suction end.

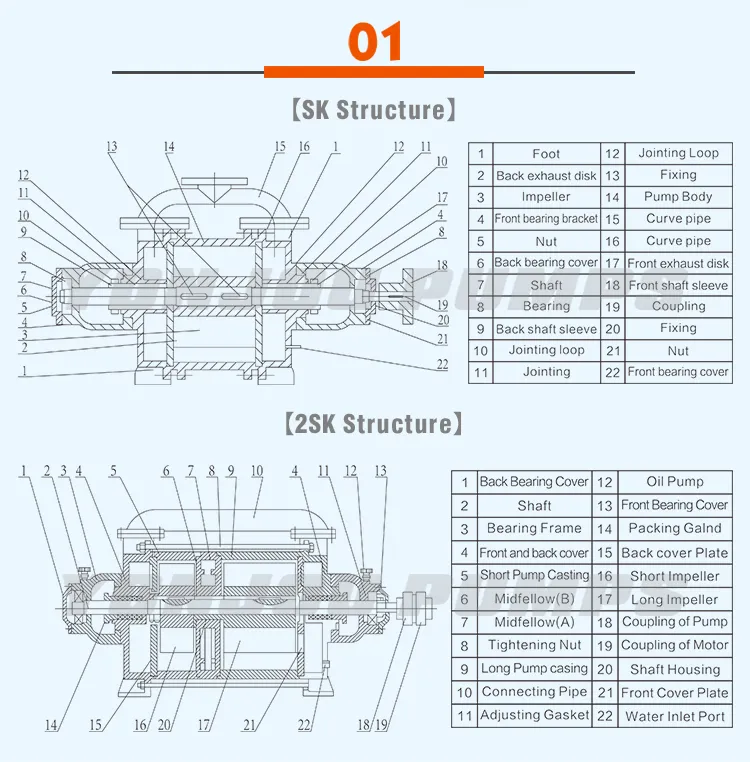

3. Pump with double stage structure is higher vacuum degree, bigger pumping speed, compact structure, reliable operation, easy operating & maintenance.
4. China vacuum pump is widely used in food industry, textile industry, medicine industry, chemical industry, dipping, drying or other craft processes
Product details:
| Working Principle: | Water ring vacuum pump |
| Main applications: | Air & Gas |
| Driver: | Electric motor |
| Power Specs: | 380/415V 3phase; 220/240V 1phase; 50hz/60hz |
| Max.permissible fluid temperature: | 50°C(122°F) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing parts material: | Cast iron, stainless steel |
| Shaft seal type: | Mechanical seal, Packing seal |
| Free passage: | 0mm |
| Limited vacuum: | -0.097Mpa(-0.97bar) |
| Maximum drive rating: | 55KW(75HP) |
| Maximum caliber: | 125mm(5inch) |
| Flow rate range: | 54-1800m3/h(237.6-7920US.GPM) |
Performance data:
| Model | Pumping capacity(m3/min) | Ultimate vacuum pressure | Motor power | Speed | Water consumption | Diameter(mm) | ||
| Max. | When the suction pressure is -0.093MPa (-700mmHg) | (MPa) (mmHg) | (KW) | (r/min) | (L/min) | Inlet | Outlet | |
| 2SK-1.5 | 1.5 | 0.9 | -0.097(-725) | 4 | 1440 | 10-15 | 40 | 40 |
| 2SK-3 | 3 | 2 | -0.097(-725) | 7.5 | 1440 | 15-20 | 40 | 40 |
| 2SK-6 | 6 | 4 | -0.098(-735) | 15 | 1460 | 25-35 | 50 | 50 |
| 2SK-12 | 12 | 8 | -0.098(-735) | 22 | 970 | 40-50 | 100 | 100 |
| 2SK-20 | 20 | 14 | -0.098(-735) | 45 | 740 | 60-80 | 125 | 125 |
| 2SK-30 | 30 | 20 | -0.098(-735) | 55 | 741 | 60-80 | 125 | 125 |
