Sk 2sk China Electric Pumps Liquid /Water Ring Vacuum Pump for Milking Machine or Plastic Extrusion Line Made of Cast Iron and Stainless Steel 304 316 Impeller
COMPANY SHOW:20 Years ZiBo ZhuoXin Pump Industry co,.Ltd is located in a century industrial city known as the Pump Capital of China---Zibo city, Shandong Province. Has over 20 years' experience of manufacturing vacuum pumps and 10+ years' experience of exporting.Various products We can ......
Send Inquiry
Product Description
COMPANY SHOW:
20 Years
ZiBo ZhuoXin Pump Industry co,.Ltd is located in a century industrial city known as the Pump Capital of China---Zibo city, Shandong Province. Has over 20 years' experience of manufacturing vacuum pumps and 10+ years' experience of exporting.
Various products
We can suppply all type of vacuum pumps and spare parts in China, 2BV/2BEA/2BEC/SK/2SK/JZJ2B/ etc, and other industrial machine;
24 Hours
Please do not hestiate to contact us if have any urgent matters,each of your inquiries will be taken into account and get our response within 24 hours.
Product Main feature:
2SKC series liquid ring vacuum pumps(double stage liquid ring vacuum pump) are used for exhausting and compressing air and other noncorrosive, water-insoluble and solid particle-free gases so as to create vacuum and pressure in closed containers. A little liquid is allowed in the gas.
Note:
The performance indexes listed in the table refer to the performance indexes under the following specified conditions:
1,The atmospheric pressure is 0.1013mpa (760mmhg)
2,Inlet water temperature 15 ºC
3,Suction air temperature 20 ºC
4,Relative air temperature 70%
2. The water supply is the value when the suction pressure is - 0.05Mpa (- 400mmhg), which can be greater than this value at the limit vacuum.
3. Performance tolerance ± 10%
4. When the suction pressure is - 0.093mpa, the pumping volume is the air pumping volume when the air pump is controlled by the solenoid valve.
FAQ
A: There is air in the suction pipe or pump, which needs to be discharged. Air leakage is found in the suction pipeline, and the leakage is repaired. If the valve of suction line or discharge line is closed, relevant valve shall be opened. If the suction height is too high, recalculate the installation height. The suction line is too small or blocked.
Q: How to resist cavitation in centrifugal pump?
A: Improve the structure design from the suction to the impeller of the centrifugal pump;Adopt double stage suction impeller and use anti-cavitation material;
Q:What is the function of rubber ball in water ring vacuum pump?
A: Rubber ball in water ring vacuum pump, the correct name is called rubber ball valve. Its role is to eliminate the pump equipment in the operation process of the phenomenon of over compression or insufficient compression.
Q:How long is warranty?
A:One year formain construction warranty.
Q:How can I pay for my items? What is the payment you can provide
A:Usually by T/T, 30%-50% deposit payment once PI/Contract confirmed, then the remaining balance will be paid after inspection and before shipment via T/T or L/C;
Welcome client from home and abroad to contact us for future cooperation.

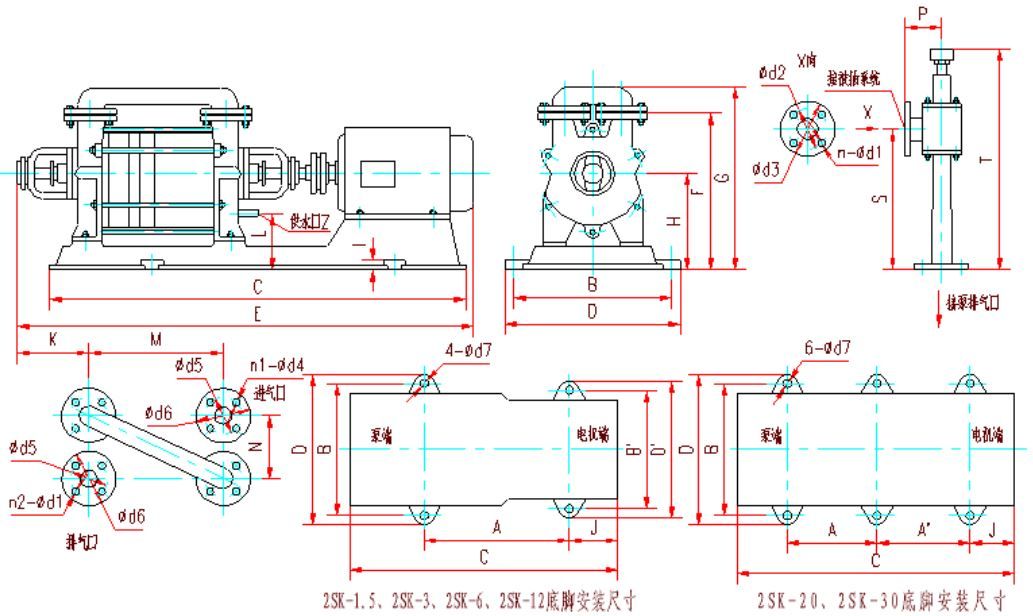

Detail size drawing and install drawing please contact our sales in charge to get;
20 Years
ZiBo ZhuoXin Pump Industry co,.Ltd is located in a century industrial city known as the Pump Capital of China---Zibo city, Shandong Province. Has over 20 years' experience of manufacturing vacuum pumps and 10+ years' experience of exporting.
Various products
We can suppply all type of vacuum pumps and spare parts in China, 2BV/2BEA/2BEC/SK/2SK/JZJ2B/ etc, and other industrial machine;
24 Hours
Please do not hestiate to contact us if have any urgent matters,each of your inquiries will be taken into account and get our response within 24 hours.
Product Main feature:
2SKC series liquid ring vacuum pumps(double stage liquid ring vacuum pump) are used for exhausting and compressing air and other noncorrosive, water-insoluble and solid particle-free gases so as to create vacuum and pressure in closed containers. A little liquid is allowed in the gas.
| Model | Pumping volume m3/min | Extreme pressure MPa (mmHg) | Motor power KW | Speed (Rotation/Point)r.p.m | Water supply (liter/minute)L/min | Suction and exhaust caliber | |
| Maximum air volume | When the inhalation pressure is -0.093 MPa, it is not less than | ||||||
| 2SKC-0.4 | 0.4 | 0.25 | -0.096(-725) | 2.2 | 2840 | 3~5 | G1″ |
| 2SKC-0.8 | 0.8 | 0.5 | -0.096(-725) | 3 | 2880 | 5~8 | G1″ |
| 2SKC-1.5 | 1.5 | 0.9 | -0.096(-725) | 4 | 1440 | 10~15 | φ40 |
| 2SKC-3 | 3 | 2 | -0.097(-730) | 7.5 | 1440 | 15~20 | φ40 |
| 2SKC-6 | 6 | 4 | -0.098(-735) | 15 | 1450 | 25~35 | φ70 |
| 2SKC-12 | 12 | 8 | -0.098(-735) | 22 | 970 | 40~50 | φ100 |
| 2SKC-20 | 20 | 14 | -0.098(-735) | 45 | 740 | 60~80 | φ125 |
| 2SKC-30 | 30 | 20 | -0.098(-735) | 55 | 740 | 70~90 | φ125 |
The performance indexes listed in the table refer to the performance indexes under the following specified conditions:
1,The atmospheric pressure is 0.1013mpa (760mmhg)
2,Inlet water temperature 15 ºC
3,Suction air temperature 20 ºC
4,Relative air temperature 70%
2. The water supply is the value when the suction pressure is - 0.05Mpa (- 400mmhg), which can be greater than this value at the limit vacuum.
3. Performance tolerance ± 10%
4. When the suction pressure is - 0.093mpa, the pumping volume is the air pumping volume when the air pump is controlled by the solenoid valve.
FAQ
Q: What's your MOQ?
A: One set;
A: There is air in the suction pipe or pump, which needs to be discharged. Air leakage is found in the suction pipeline, and the leakage is repaired. If the valve of suction line or discharge line is closed, relevant valve shall be opened. If the suction height is too high, recalculate the installation height. The suction line is too small or blocked.
Q: How to resist cavitation in centrifugal pump?
A: Improve the structure design from the suction to the impeller of the centrifugal pump;Adopt double stage suction impeller and use anti-cavitation material;
Q:What is the function of rubber ball in water ring vacuum pump?
A: Rubber ball in water ring vacuum pump, the correct name is called rubber ball valve. Its role is to eliminate the pump equipment in the operation process of the phenomenon of over compression or insufficient compression.
Q:How long is warranty?
A:One year formain construction warranty.
Q:How can I pay for my items? What is the payment you can provide
A:Usually by T/T, 30%-50% deposit payment once PI/Contract confirmed, then the remaining balance will be paid after inspection and before shipment via T/T or L/C;
Welcome client from home and abroad to contact us for future cooperation.
Detail size drawing and install drawing please contact our sales in charge to get;
