Rorary Vane Vacuum Pump for Milking Machine

Product Description

2XZ series vacuum pump
Characteristic features and purposes:
A compact structure, small size, light weight, low noise, vibration and small advantages. Therefore, it applies to the proliferation of pumps for the first-stage pumps, but also applies to supporting sophisticated equipment and laboratory use. For example: mass spectrometry, refrigerator lines, vacuum freeze-drying machine.

Performance:

Model	Ventilation rate (L/s)	Limit vacuum (pa)	Electric power (v/kw)	Inlet diameter (mm)	NW (kg)	Layman Dimensions (L × W × H) (mm)
2XZ-0.25	0.25	6×10-1	220/0.12	Φ10	15	400×125×224
2XZ-0.5	0.5	6×10-2	380 220/0.18	Φ16	18	445×125×256
2XZ-1	1	6×10-2	380 220/0.25	Φ16	19	445×125×256
2XZ-2	2	6×10-2	380 220/0.37	Φ25	27	478×148×277
2XZ-4	4	6×10-2	380 220/0.55	Φ25	30	518×148×277

2X travel vane vacuum pump
Application:
Department of 2X travel vane vacuum pump oil seal mechanical vacuum pump is used for pumping gas sealed container vacuumequipment. It may be used alone, can also be connected together as forepump use, booster pumps, diffusion pumps, molecular pump and the like ultra-high vacuum.

Widely used in the manufacture of electronic devices, vacuum drying, filtration, impregnated, coated with wax, welding, smelting, chemical industry, light industry, petroleum, medical,pharmaceutical, printing and dyeing, electric vacuum, semiconductor, food, atomic energy, textile and other research institutes, universities and colleges school, industrial and mining enterprises.

Parameters:

Project		2X-4A	2X-8	2X-15	2X-30A	2X-70A	Remark
Pumping speed(L/S)		4	8	15	30	70	Sitting compression mercury vacuum gauge pump port measurements
Ultimate vacuum(Pa)		<=610-2(<=510-4Torr)
Spindle speed(Rpm)		450	320	320	450	420	Thermocouple meter, resistance meter, manometer measurements are for reference only
Motor Power(Kw)		0.55	1.1	2.2	3	5.5
Noise<[dB(A)]		72	75	80	82	86	JB/T6533-1997
Inspiratory caliber(mm)		25	40	40	65	80	786×276×470
The amount of vacuum pump oil(L)		1.0	2.0	2.8	2.0	4.2
Dimensions	Long	500	790	790	780	910
	Wide	340	430	530	500	600
	High	410	540	540	560	700
Weight (kg)		63/61	152	195	241	437
Cooling water consumption(L/H)		Natural cooling			480	480	Access to water screw bar

SHZ-D(III) Circulating-water Multifunction Vacuum Pump

Characteristic features and purposes:

According to the experiment of this pump is a small area, and the design of a new type of desktop-circulating water pumps, their functions and uses the same type and B, used mainly stainless steel. Gao, recycling devices, vacuum stability, good looks, small size, stylish unique.

1 double-tap the machine can be used individually or in parallel with the two vacuum table.

2 mainframe using stainless steel manufacturing, engineering plastics for the box.

3 corrosion-resistant, non-polluting, low noise, mobile convenience, but also in accordance with user needs to install vacuum regulator.

Main technical parameters:

	Performance Distribution				The Performance
Model	Power	Working voltage	Lift	Body material	The largest vacuum	Single-volume ventilation	Exhaust the first few	Tank volume	Size appearance L×W×H	Aircraft Weight
SHZ-D	180	220/50	8	Lcr18	0.098	10	2	15	380×280×420	15

Users notes:
Correct choice vacuum direct impact on the life of its use and the effectiveness of the state in the same conditions, to choose the correct or not, there are several times its pump life several times, and even a few hundred times worse.
1 work Vacuum
2 drawn work of the vacuum exhaust time
3 vacuum system or vacuum tank volume
4 pumped gas media names, temperature and concentration
5 whether flammable, explosive and toxic gases and pH
6 Selection vacuum reference samples can be changed may request the professional and technical staff recommended in order to obtain satisfactory results
7 For special requirements, the provision of special help can be designed and manufactured.

Diaphragm Vacuum Pump
Application:
"Nanbei" GM-0.50B diaphragm vacuum pump has features of more advanced design, higher efficiency, longer operating life. It is an all new product engaging in the new and high technology. It is mainly used in medicinal products analysis, tenuously chemical engineering, biochemical pharmacy, food examination, investigating and solving criminal case, etc. It is an ideal product used with the high-accuracy chromatogram apparatus, rotary evaporators, and it is the essential equipment in the laboratory.

The body of "Nanbei" GM-0.50II diaphragm vacuum pump is made of aluminum alloy through die casting. It is antiseptic, sprayed, agile and beautiful. It has the features of higher antisepsis, wider working range. It can meet requirements of all kinds of working environments.

Technique parameter

Speed of Evacuation (L/Min)	30	Pump Head	2
Ultimate Pressure Vacuum	≥0.095Mpa 50mbar	Voltage Rating	230Vac, 50Hz
Dimensions (L x B x H)(mm)	300×120×235	Temp of the body(ºC)	<55
Motor Power(w)	160	Weight (Kg)	10
Inlet (mm) Outlet (mm)	φ6 Silencer	Diaphragm Valves	NBR NBR
Working Temp(ºC)	7-40	Noise Level(dB)	<50

FAQ
1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.

Company Show

Factory Show

Certification

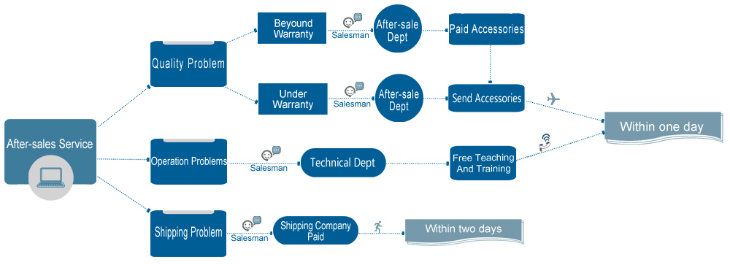

Warranty And After-sale Service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥
