Product Description

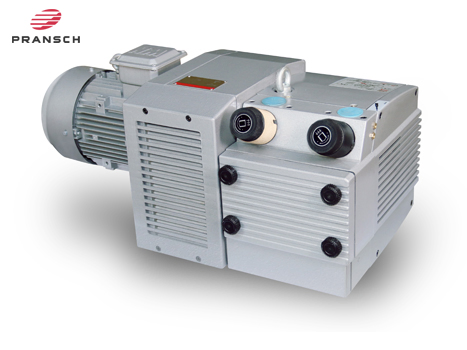

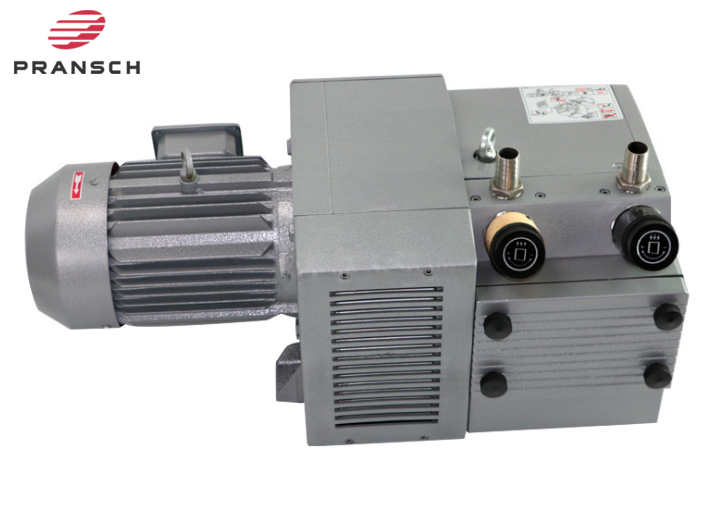

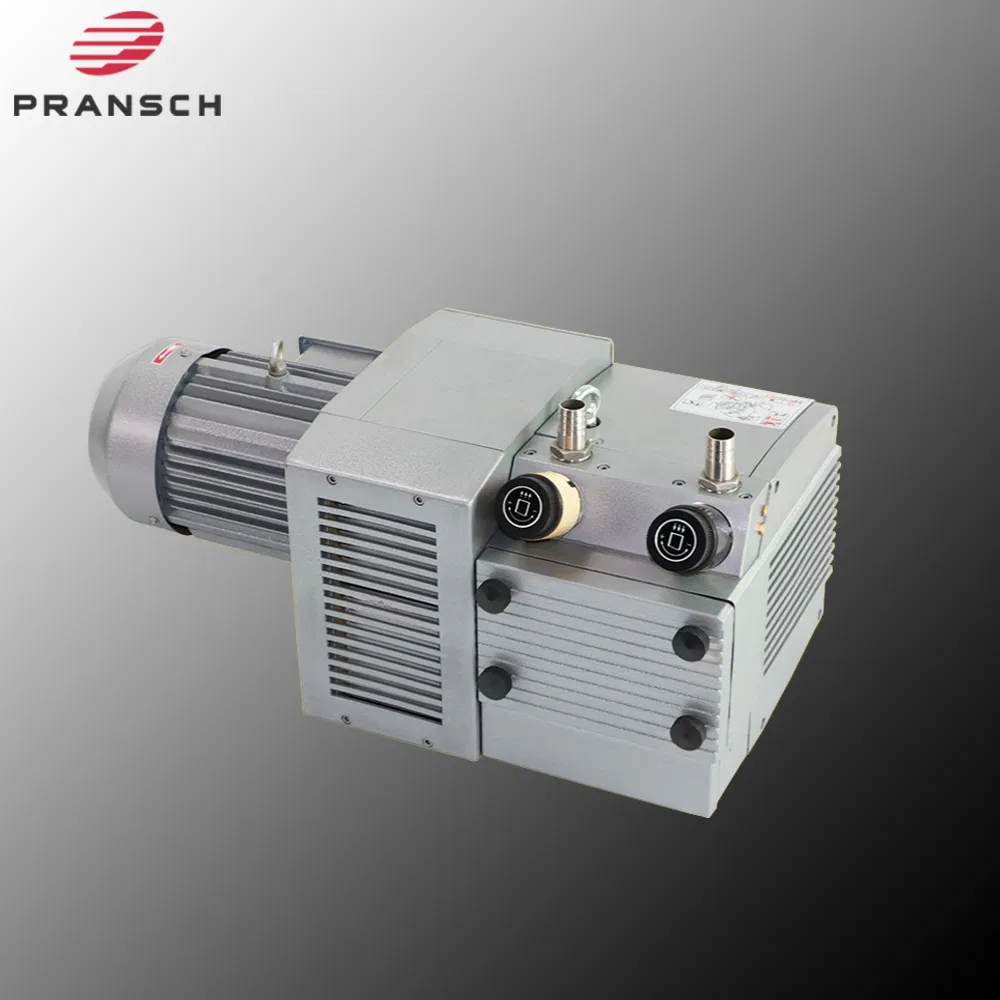

Offsite Printing Machine Rotary Vane Oil Free Vacuum Pump

Dry running rotary vane vacuum pumps, compressors and pressure-vacuum pumps

Introduction:
Rotary vane/pressure vacuum pumps,oil-free,air-cooled

The benefits of the new range are visible at a glance: maintenance and control panel are placed on one side only for easy access to filters and valves. Additional features include heat reduction through large cooling air pathways and vents. Design features such as the solid ribs, optimised cooling air circulation, thermal separation of suction and compression chambers within the filter housing, as well as a minimum number of connected heat transferring parts reduce machine temperatures.

What is an oil-free vacuum pump?

An oil-free vacuum pump, also referred to an oil-less vacuum pump or dry running vacuum pump, is essentially a pump that does not use lubricants in the chamber to create a vacuum or cool the pump. In oil-lubricated machines lubrication is used a seal the vacuum chamber and cool the pump. Oil-free machines use other means to cool the machine during operation such as water or air cooling.

Offsite Printing Machine Rotary Vane Oil Free Vacuum Pump

Type	Suction air rate		Vacuum	Motor capacity(kw)				Speed		Noise Level		Weight	Overall dimensions
	m³/h max.			Necessary		Install		(RPM)		dB(A)		kgs	mm
	50Hz	60Hz		50Hz	60Hz	50Hz	60Hz	50Hz	60Hz	50Hz	60Hz
ZBW60E	55	66	100	1.3	1.7	2.4	3	1420	1715	71	73	69	730360310
ZBW80E	67	78.5	100	1.7	2.2	2.4	3	1420	1715	72	75	69	730360310
ZBW100E	96	112	100	2.6	3.3	3	3.5	1430	1720	75	77	101	882470336
ZBW140E	129	154	100^*	3.3	4.4	4	4.8	1430	1720	76	79	111	884470336
Voltage 2.4-4.8Kw = 190-255/330-440V +5% 50Hz + 190-290/330-500V +5% 60Hz

Offsite Printing Machine Rotary Vane Oil Free Vacuum Pump

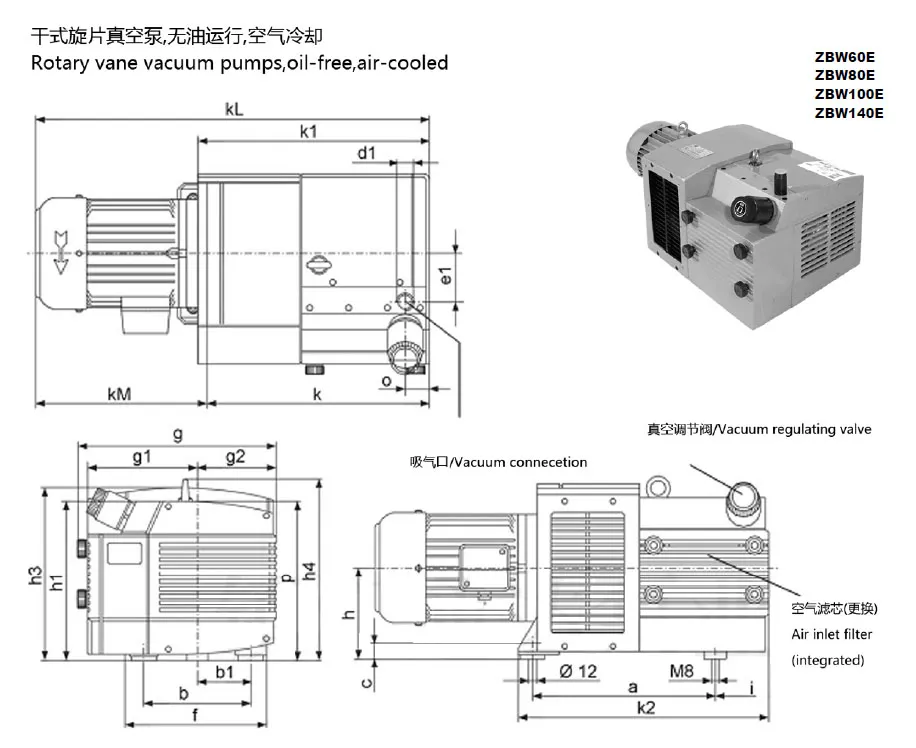

	a	b	b1	c	d1	e1	f	g	g1	g2	h	h1	h3	h4	i	k	k1	k2	kM	kL	o	p
ZBW60E	326	190	95	30	G 1"	85	250	353	195	141	162	289	312	328	96	397	415	448	312	709	46	289
ZBW80E	326	190	95	30	G 1"	85	250	353	195	141	162	289	312	328	96	397	415	448	312	709	46	289
ZBW100E	398	245	123	30	G 1 1/2"	95	295	470	223	230	162	297	330	336	140	501	539	563	334	835	60	297
ZBW140E	398	245	123	30	G 1 1/2"	95	295	470	223	230	162	297	330	336	140	501	539	563	372	873	60	297

Offsite Printing Machine Rotary Vane Oil Free Vacuum Pump

Typical applications are found in widely ranging sectors:

Analytics (mass spectrometry, electron microscopy)
Coating technology (surface protection, decorative films, display units, monitor screens)
Vacuum metallurgy (vacuum soldering, vacuum sintering, vacuum alloys, furnace construction)
Leak detection technology (vacuum systems, automotive tanks, airbag cartridges, packaging)
Lighting industry (light bulb manufacture)
Drying industry (vacuum drying, transformer drying)
