Customized Rotary Vane Vacuum Conveyor System for Medical
ROTARY VANE VACUUM SYSTEMCustomized rotary vane vacuum conveyor system with two sets of vacuum pumps for medicalDetailed Technical Data 2PM200-100 50Hz60Hz Rated airflow m3/h200240 Ultimate pressurembar(abs)0.1 DiameterG or NPTG 2"/G2" VoltageV345-415V/600-720V380-480V/660-720V Nominal ......
Send Inquiry
Product Description
ROTARY VANE VACUUM SYSTEM

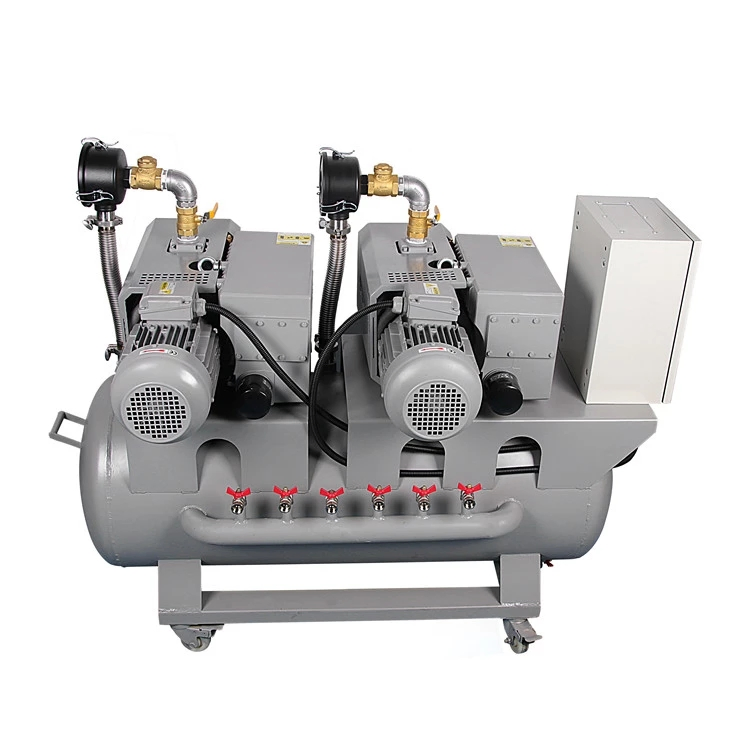

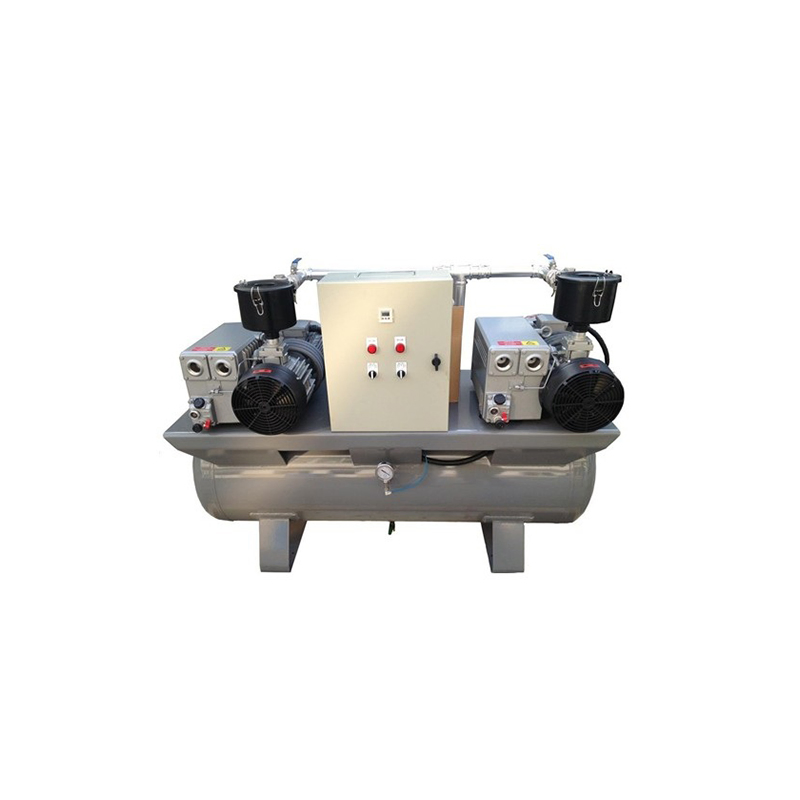

Customized rotary vane vacuum conveyor system with two sets of vacuum pumps for medical
Detailed| Technical Data | 2PM200-100 | ||
| 50Hz | 60Hz | ||
| Rated airflow | m3/h | 200 | 240 |
| Ultimate pressure | mbar(abs) | 0.1 | |
| Diameter | G or NPT | G 2"/G2" | |
| Voltage | V | 345-415V/600-720V | 380-480V/660-720V |
| Nominal motor rating | kW | 5.5 | |
| Current | A | 9.0/5.2A | 9.4/5.2A |
| Nominal speed | rpm | 1455/1720 | |
| Sound(ENISO2151) | dB | 69 | |
| Oil | L | 6.0 | |
| Kilogram | Kg | 149 | |
| Dimension(L*W*H) | mm | 854*492*411 | |
