Cow Milk Vacuum Pump for Milking Machine

Product Description

Cow Milk Vacuum Pump for Portable Milking Machine

Specification:

Capacity (L/min)	220	280	550	850	1500	2100
Pump Speed (r/min)	1440	1440	1440	1440	1440	1440
Vacuum Degree(K pa)	50	50	50	50	50	50
Noise (Db(A))	≤50	≤50	≤60	≤70	≤70	≤70
Ultimate Vacuum(Mp)	≤90	≤90	≤90	≤90	≤90	≤90
Motor Power(kw)	1.1	1.1	2.2	3	4	5.5
Weight(kg)	13.5	14	31	36	57.5	69.5
Size(LWH) (mm)	230220220	230220220	280270220	300220220	430230230	390290290

Note: The above parameters for reference only!

Features:
- Suitable for milking parlor, automatic milking system and milking machine;
- Comfortable and reasonable appearance design
- Reasonable silencer to reduce the noise
- Vacuum air circle fast and rapid
- Perfect oil pot, save oil
- It owns perfect gas circle
- Comfortable appearance design
- It installs fuel valve so that customers can control oil wastage
- Reasonable silencer design reduces noise

Application:
The vacuum pump is the heart of the milking machine. The function of vacuum pump is to extract air from the milking machine system through the belt driven.

Description:
The vacuum pump is the heart of the milking machine. Regular servicing helps preserve the vacuum reserve. Various capacity vacuum pump with different motor power be supplied for choosing. The heavy duty body of the rotary vane vacuum pump is constructed from chemical resistant cast iron, making it durable to any environmental working conditions.

The function of vacuum pump is to extract air from the milking machine system through the belt driven. This milking machine vacuum pump gives flexibility with speeds ranging from about 800-1500 r/min and a corresponding angel of pump capacities to suit different sizes of milking machines.

One whole set milk vacuum pump consists of vacuum pump, silencer (stainless steel muffler), oil can (oil pot), belt (pulley) and some rubber parts. And the pump vane of vacuum pump kits is made of fiber material.

Packaging Details
- Outer package: standard export wooden case
- Inner package: plastic bag
- Negotiable according to buyer's special requirements

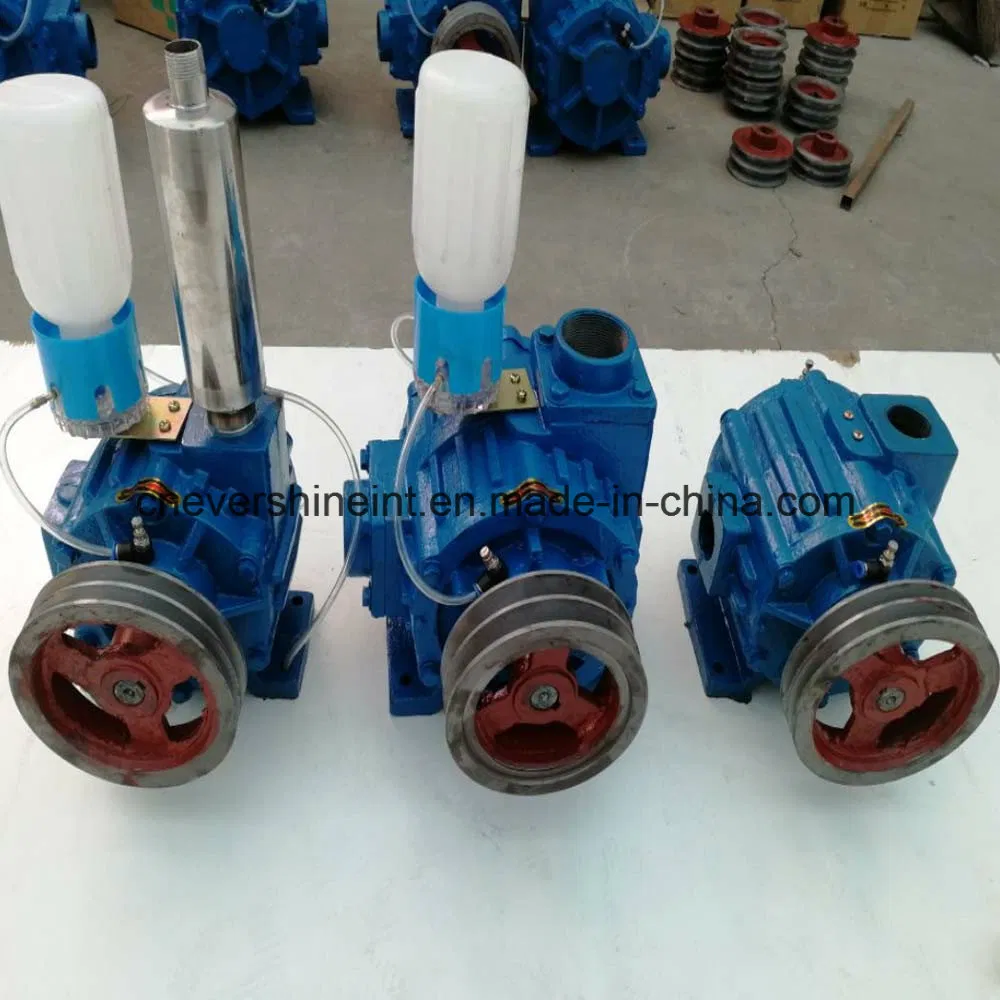

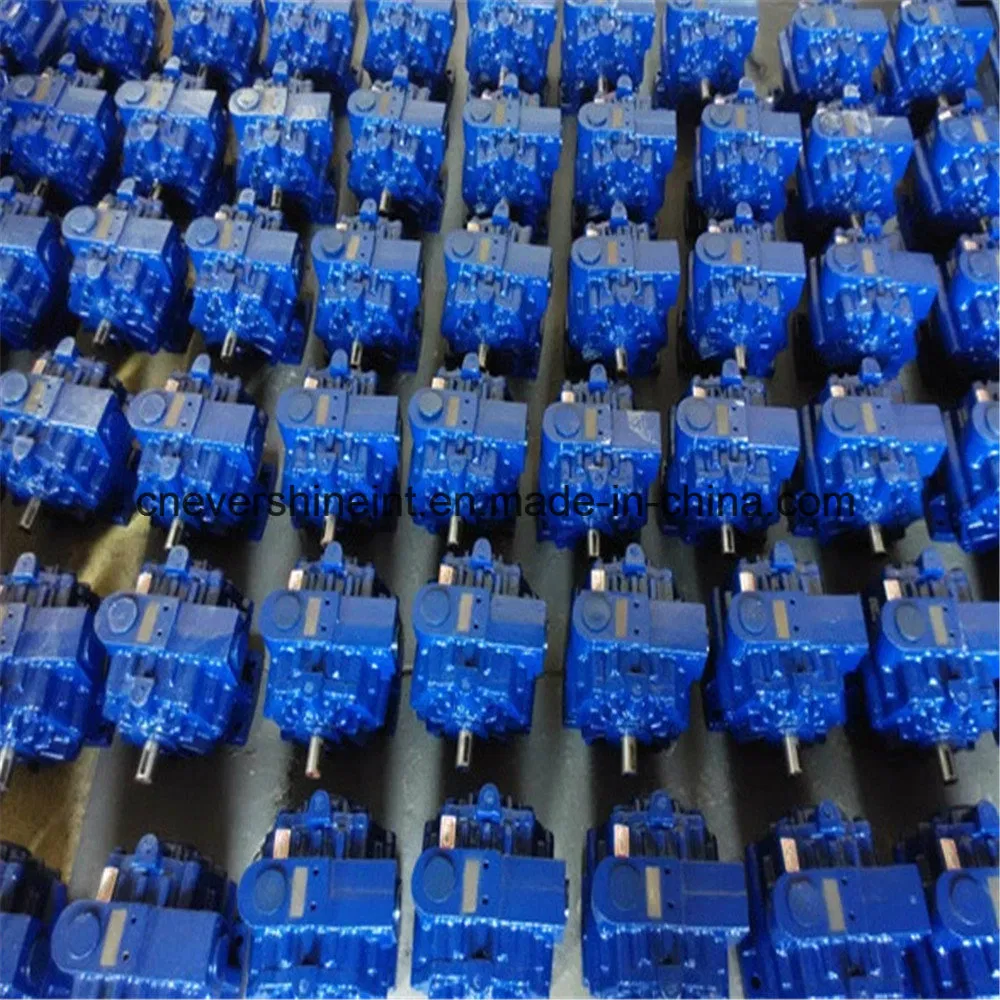

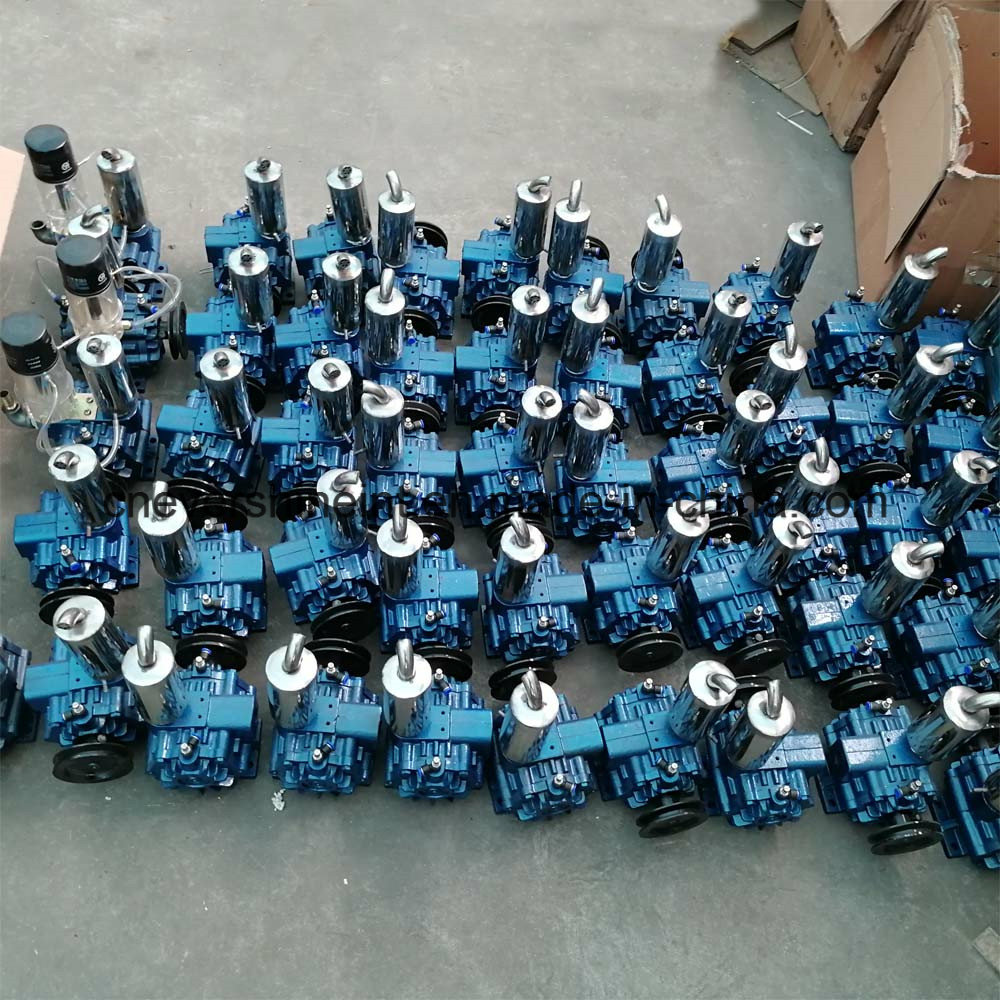

Sample photos :
Cow Milk Vacuum Pump for Milking Machine
