Product Description

Overview

2BV series water ring vacuum pump is suitable for pump air with water vapor, inspiratory pressure can reach 33mbar absolute pressure (97% vacuum degree). When the pump works under the inspiratory pressure is close to limit vacuum (work fluid saturation vapour pressure) for long time, should connecting cavitation protecting tube, to protect the pump. When work as the compressor, the greatest pressure is up to 0.26 MPa (absolute pressure).

As a new generation energy-saving products, with its excellent performance and numerous advantages, 2BV series water ring vacuum pumps will be fully replace SK, 2SK series water ring vacuum pumps and W, WY, WL series reciprocating pump.

Main Features
1. Direct coupling design, save space, easy to install and convenient maintenance.
2. All equipped with cavitation protection tube, if works under limit work pressure, open cavitation protection tube (or with separator connection) can maximum guarantee inspiratory effect under the condition of cavitation, and protect the pump.
3. 2BV series can be equipped with stainless steel impeller, high strength and durability, and improves the corrosion resistance of the pump.
4. Unique flexible air outlet design, won't produce over compression, ensure its performance efficiency is the best.
5. All adopt Y2 series motor, IP54\IP55 pretection (ordinary, IP44), insulation class F (ordinary is class B insulation).
6. The flexible seal can be completely PTFE, which can greatly extend pump service life under harsh conditions.

Code	Model	Max. Capacity		Limit Pre. mbar(MPa)	Power kW	Ex. Grade	Protect. G	Speed r. p. m	Water Flow L/min	dB(A)	W( kg)
Code	Model	m 3 /min	m 3 /h	Limit Pre. mbar(MPa)	Power kW	Ex. Grade	Protect. G	Speed r. p. m	Water Flow L/min	dB(A)	W( kg)
60V	2BV2 060	0.45	27	33mbar (-0.098MPa)	0.81	N/A	IP54	2840	2	62	31
61V	2BV2 061	0.86	52		1.45			2840	2	65	35
70V	2BV2 070	1.33	80		2.35			2860	2.5	66	56
71V	2BV2 071	1.83	110		3.85			2880	4.2	72	65
60V	2BV2 060-Ex	0.45	27		1.1	dIIBT4	IP55	2840	2	62	39
61V	2BV2 061-Ex	0.86	52		1.5			2840	2	65	45
70V	2BV2 070-Ex	1.33	80		3			2860	2.5	66	66
71V	2BV2 071-Ex	1.83	110		4			2880	4.2	72	77
110V	2BV5 110	2.75	165		4	N/A	IP54	1440	6.7	63	103
111V	2BV5 111	3.83	230		5.5			1440	8.3	68	117
121V	2BV5 121	4.66	280		7.5			1440	10	69	149
131V	2BV5 131	6.66	400		11			1460	15	73	205
161V	2BV5 161	8.33	500		15			970	20	74	331
110V	2BV6 110	2.75	165		4	dIIBT4	IP55	1440	6.7	63	153
111V	2BV6 111	3.83	230		5.5			1440	8.3	68	208
121V	2BV6 121	4.66	280		7.5			1440	10	69	240
131V	2BV6 131	6.66	400		11			1460	15	73	320
161V	2BV6 161	8.33	500		15			970	20	74	446

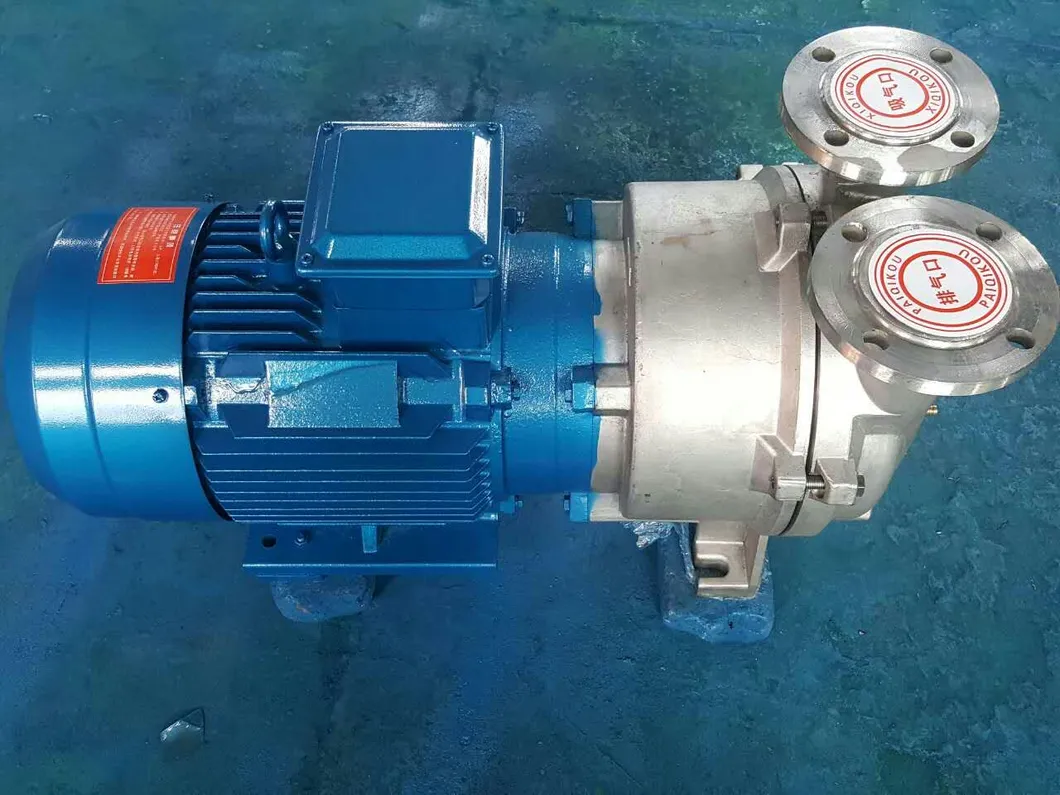

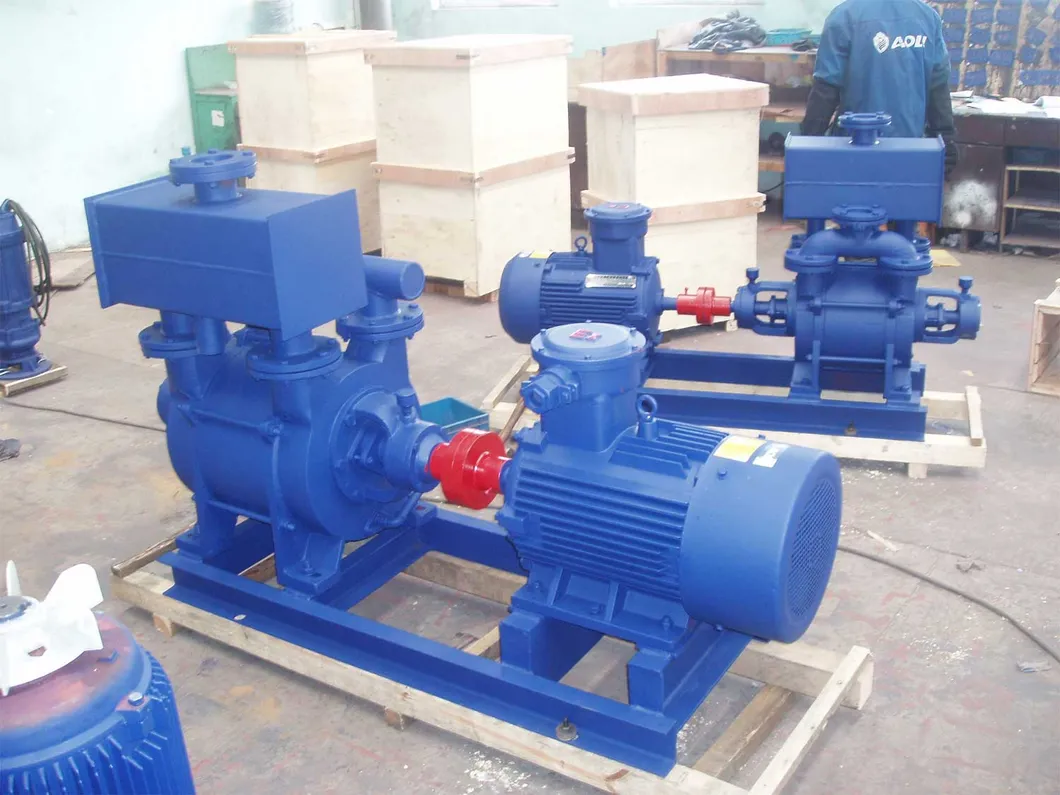

2BV Series Liquid Ring Vacuum Pump with Water separator

Standard Export Plywood Case.
Standard package without original wood, no fumigation needed.

Shanghai Suoto Pump Industrial Co., Ltd. is a professional pump manufacturer integrating R&D, manufacturing, sales and service as a whole, which has been certified by ISO9001 international quality management system.

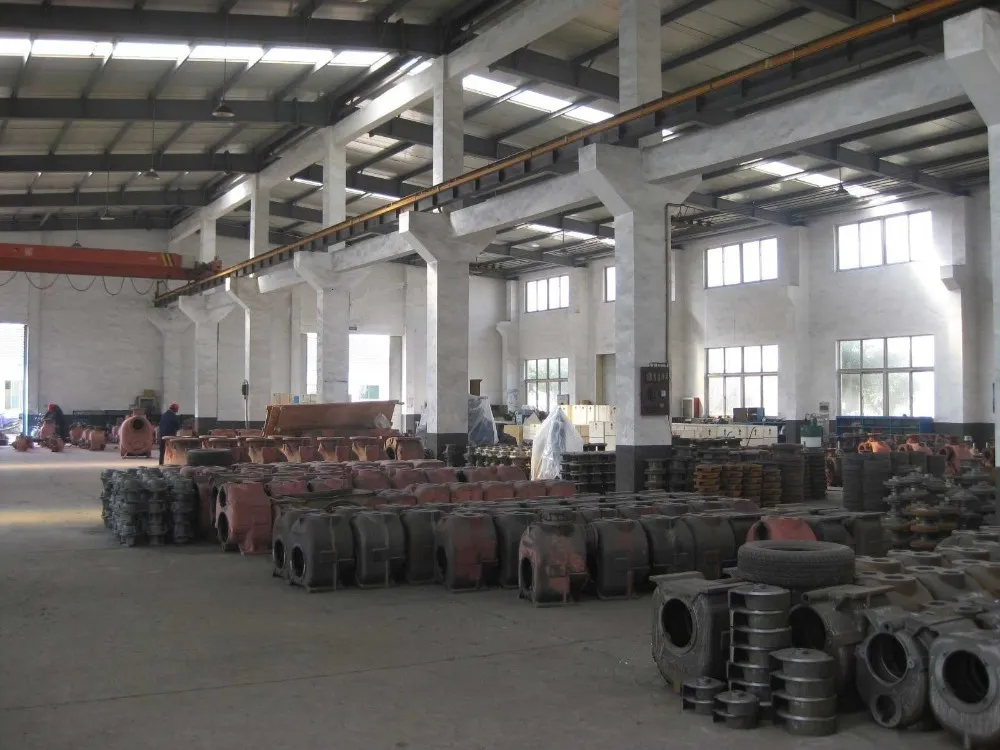

Located in Langxia Industrial Park, Shanghai, Suoto Pump Industrial possesses two manufacturing bases in Shanghai and Zhejiang. Since our inception, Suoto Pump Industrial has been committed to the innovation and development of various pumps. Our leading products include self-priming trash pump, centrifugal pump, submersible pump, diaphragm pump, vacuum pump, diesel pump, fire pump, etc.

Q: Can I chat with you online? What is your company official website?

Q: What type of company SUOTO is?
A: SUOTO is a manufacture and trading company, has factories in Shanghai and Zhejiang, with export and import license.

Q: What kinds of pumps do you supply?
A: Our products including self-priming trash pump, centrifugal pump, diaphragm pump, submersible pump, chemical pump, oil pump, diesel pump, fire fighting pump, etc.

Q: What is your payment terms?
A: Alibaba Trade Assurance, Western Union, Paypal, T/T, L/C, etc.

Q: Can you provide OEM, ODM service?
A: Yes. We have factories in Shanghai and Zhejiang, we can make products according to your requirements.

Q: Why should we buy from you?
A: We are committed to provide best quality products at minimum delivery time and competitive price. We believe this is what customer wants. We are satified until customers are.

Q: What is your warranty period?
A: We provide one year of unconditional warranty on our products for the manufacturing defects.

Q: What about delivery time?
A: Normally our production time is within two weeks. Please confirm before order.
