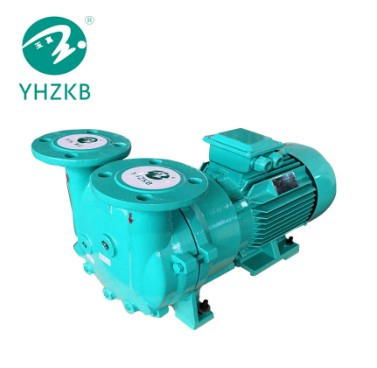

15kw Water Loop Vacuum Pump
Product Description2BV series vacuum pump has small volume, compact structure, directly connected motor, while installation, put it in horizontal plane, no need chassis.2BV series vacuum pump works basing on water ring principle, that is, impeller is installed eccentrically inside of pump body, afte......
Send Inquiry
Product Description
Product Description
2BV series vacuum pump has small volume, compact structure, directly connected motor, while installation, put it in horizontal plane, no need chassis.
2BV series vacuum pump works basing on water ring principle, that is, impeller is installed eccentrically inside of pump body, after the pump start up, working liquid forms liquid ring(which is concentric with pump body ) inside of pump body, impeller passes motor power to liquid ring. Liquid ring pulse periodically between the impeller vanes, while in pulsation, gas is suctioned in through disk suction inlet and discharged from disk exhaust vent.
Pump Specifications:
| Model | Power (kw) | Max Vacuum | Capacity (m³/min) | Weight (kg) |
| 2BV2 060 | 0.81 | -0.095Mpa | 0.45 | 31 |
| 2BV2 061 | 1.45 | 0.86 | 35 | |
| 2BV2 070 | 2.35 | 1.33 | 56 | |
| 2BV2 071 | 3.85 | 1.83 | 65 | |
| 2BV2 060-Ex | 1.1 | 0.45 | 39 | |
| 2BV2 061-Ex | 1.5 | 0.86 | 45 | |
| 2BV2 070-Ex | 3 | 1.33 | 66 | |
| 2BV2 071-Ex | 4 | 1.83 | 77 | |
| 2BV5 110 | 4 | 2.75 | 103 | |
| 2BV5 111 | 5.5 | 3.83 | 117 | |
| 2BV5 121 | 7.5 | 4.66 | 149 | |
2BV5 131 | 11 | 6.66 | 205 | |
| 2BV5 161 | 15 | 8.33 | 331 | |
| 2BV6 110 | 4 | 2.75 | 153 | |
| 2BV6 111 | 5.5 | 3.83 | 208 | |
| 2BV6 121 | 7.5 | 4.66 | 240 | |
| 2BV6 131 | 11 | 6.66 | 320 | |
| 2BV6 161 | 15 | 8.33 | 446 |
Product Details

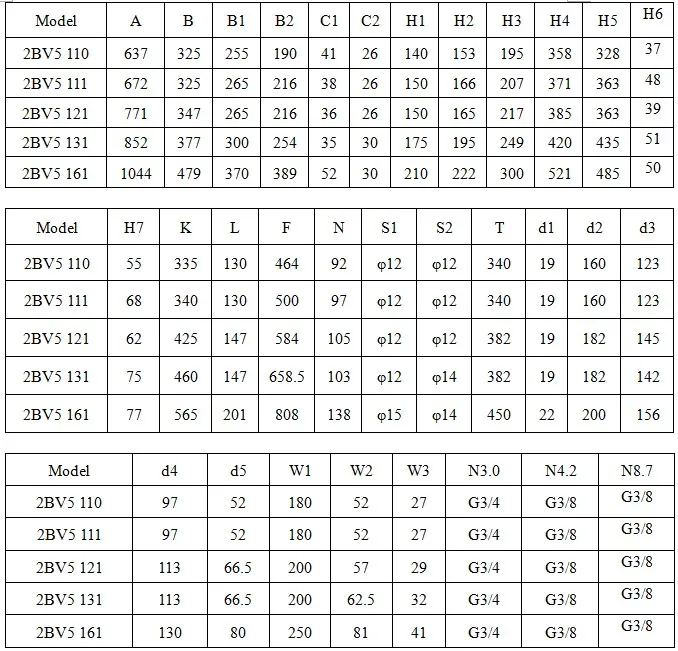

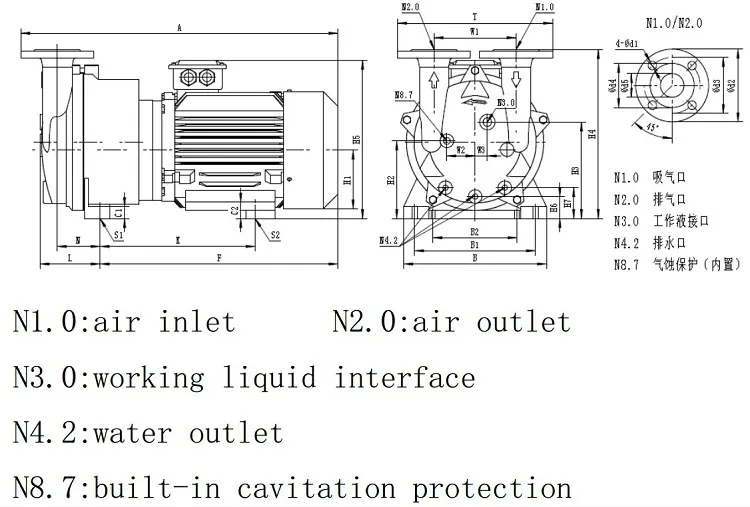

2BV5 series outline dimensional drawing:
Applications:
It's used for plastic extrusion line;EPS foam machine;food-related industry

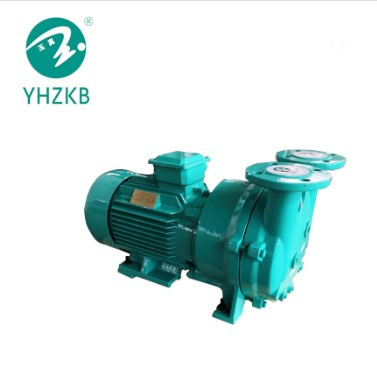

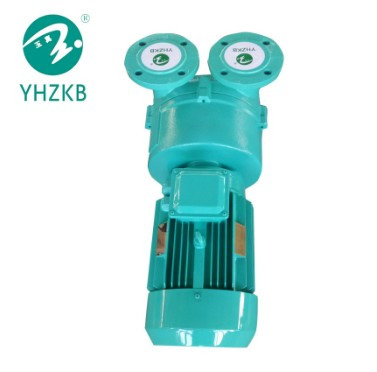

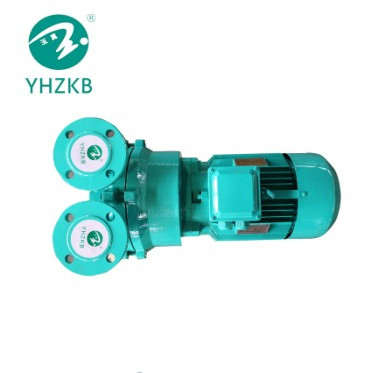

Product display:

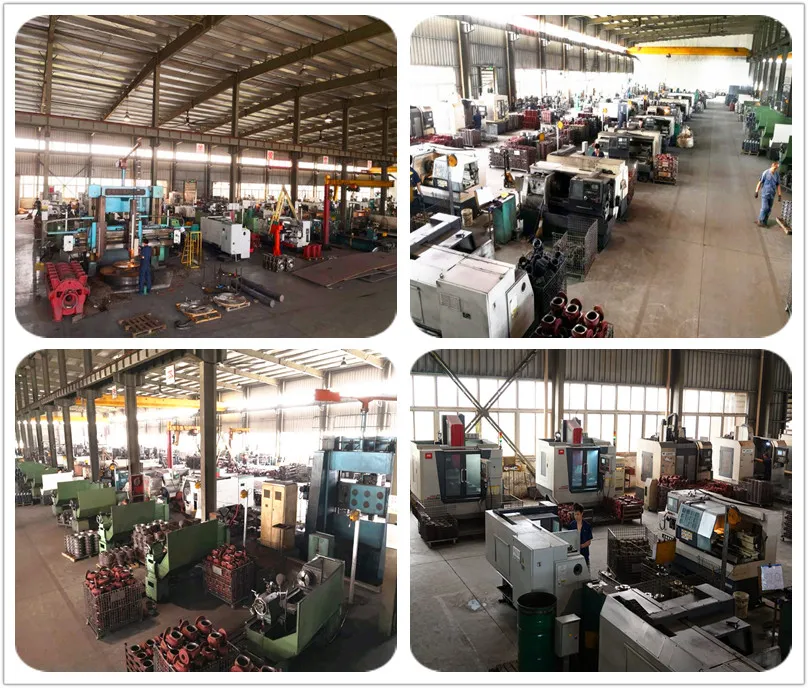

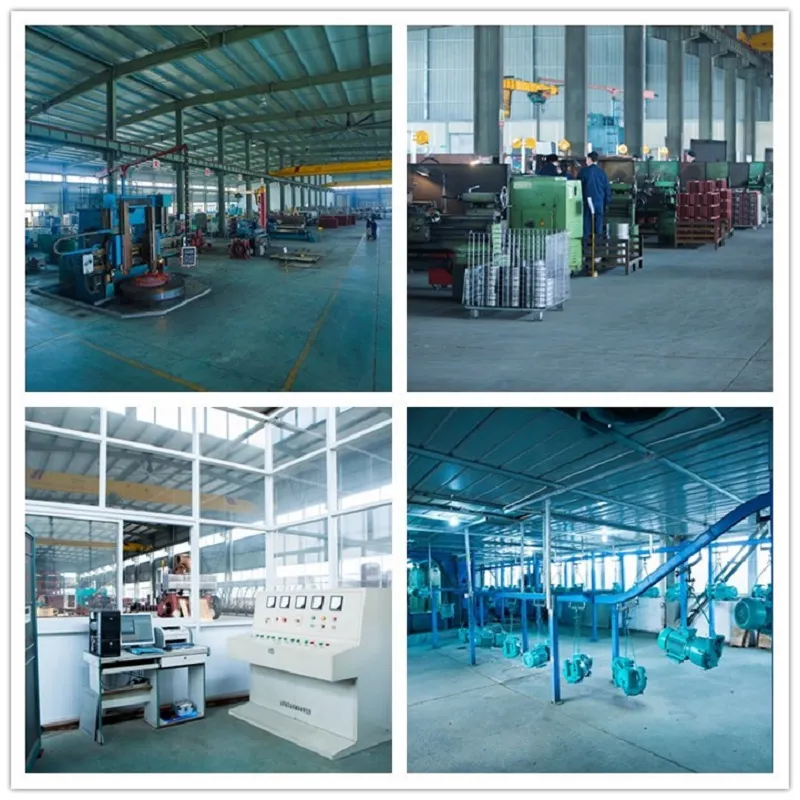

Company overview:
Established in 1986, our company has been focusing on the development and manufacture of vacuum pumps and water pumps.We are a comprehensive pump company integrating production, sales and after-sales maintenance services.
The main products include liquid ring vacuum pumps;rotary vane vacuum pumps;roots vacuum pump;centrifugal water pump and customized vacuum pump system,which are widely used in all kinds of plastic extrusion line;medical and pharmaceutical industry(autoclave sterilizer/capsule filling and sealing machine);food-related industry(beverage machine/milking machine/sugar plant);chemical industry;power plant;coal mine etc.
Packaging:
Standard export polywooden cases.
Customized packaging can be available.
Shipping:
| Shipping method | Note |
| Express | Door to door, very convenient, don't need customs clearance or pick-up. |
| By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport. |
| By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port. |
Our Services
Pre-Sales Service
Provide 24-hour reply.
Provide suitable models according to clients' requirements.
Provide detailed product specifications and reasonal prices.
In-Sales Service
Supervise whole production time.
Provide product's testing performance curve to customers.
Provide inspection pictures to customers after we finish production.
After-Sales Service
Provide installation manual.
Under correct installation, normal maintenance and using,we guarantee one-year warranty.
If product has malfunction,we'll reply you within 24 hour and provide solution or even send technical staff to spot after receiving maintenance notification.
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are manufacturer of vacuum pumps and water pumps in China since 1986.
2. Q: What's your MOQ?
A: One set is ok.
3. Q: What's your payments terms?
A: T/T, Western Union......
4. Q: What certificates do you have?
A: CE, ISO 9001 ....
5. Q: How about the warranty?
A: 12 months warranty since delivery.
6. Q: What's the delivery time?
A: For different models,different motor specs and different material,delivery time is different,please double confirm with our sales team.
7. Q: Can you do OEM brand?
A: Yes, welcome.
8. Q: Quality reliable?
A: We have whole testing system controlled by micro-machine,testing performance curve can be sent to clients before arrange delivery.
