Product Description

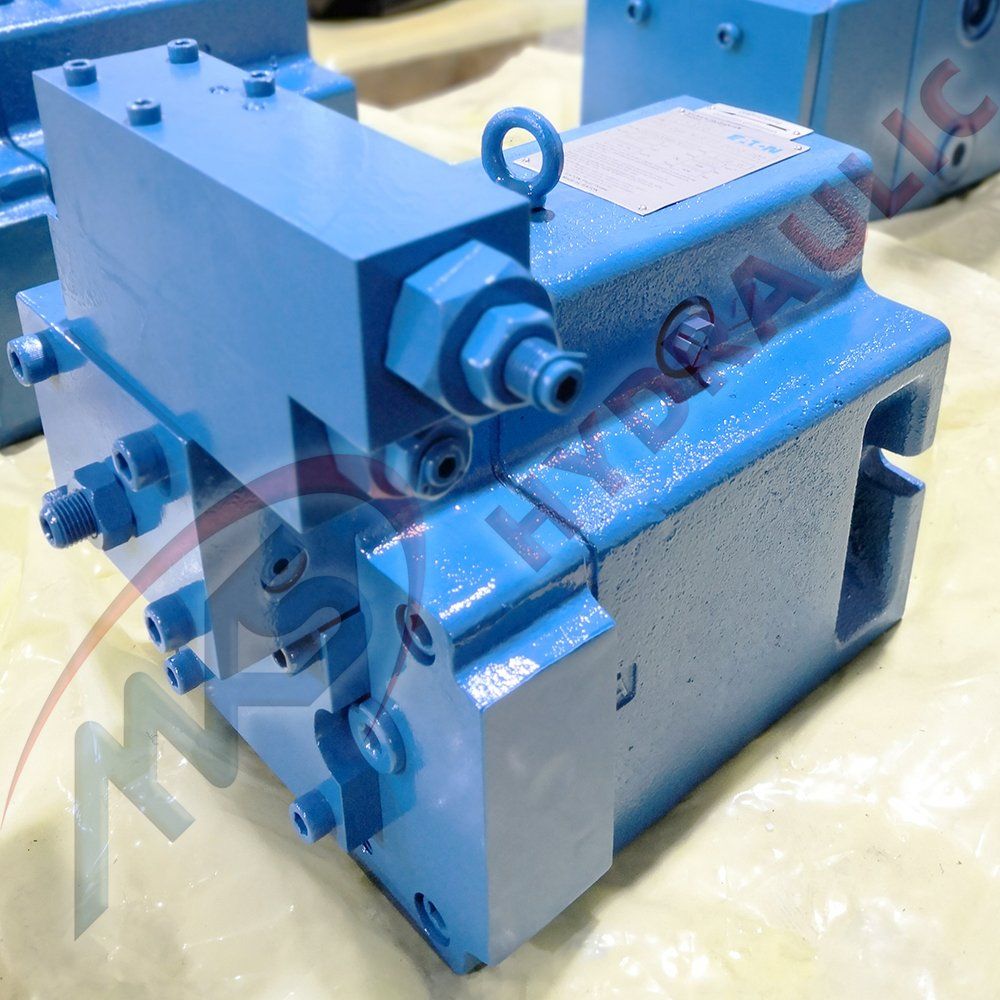

Pvxs130 Hydraulic Open Circuit Pumps_Rexroth Axial Piston Variable High Pressure Pump

Introduction

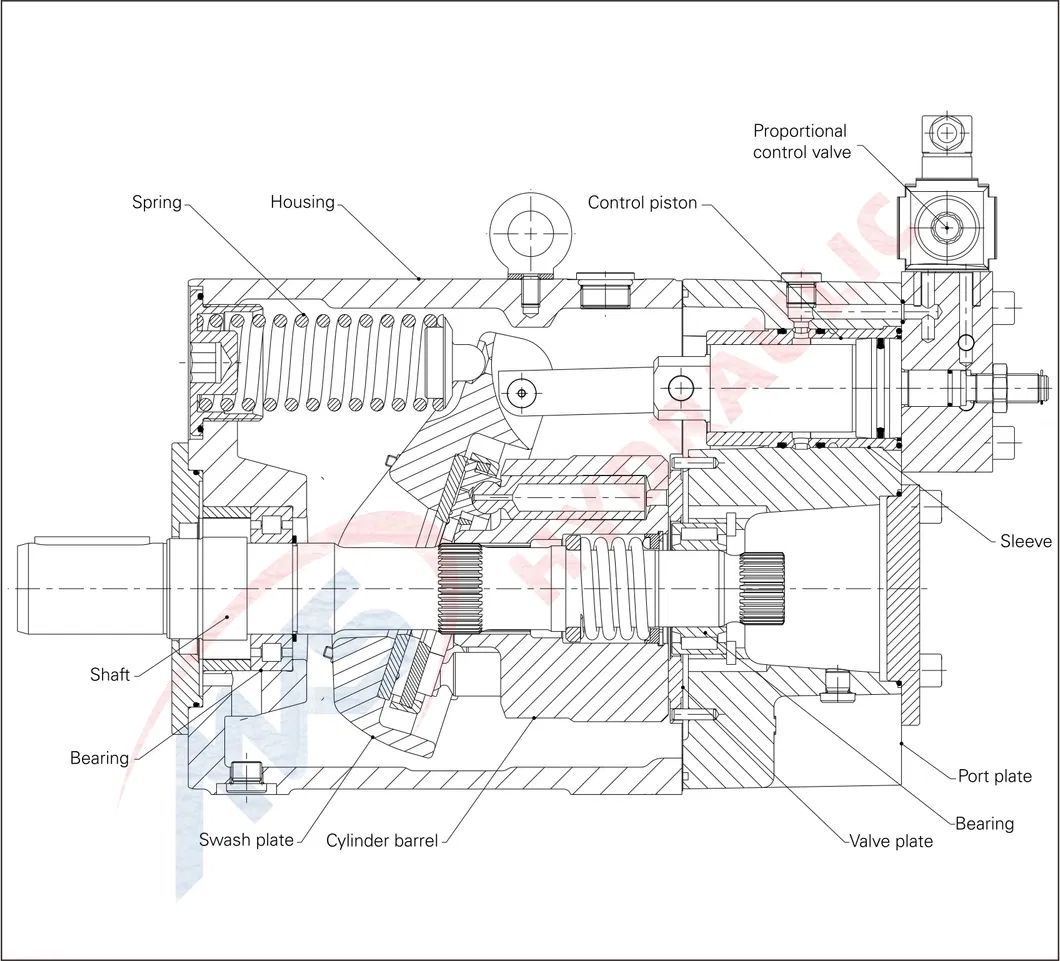

• Axial piston pumps with swashplate design for reliable operation and long life.
• Pressure up to 420 bar. Rated speed up to 1800 min-1. Higher speeds possible.
• Oversize shafts and bearings.
• Rotating and pressure loaded parts are pressure balanced.
• Integrated pilot pump, filter and pressure relief valves available.
• "Building block" design gives these pumps a wide range of application.
• Fast response times.

MODEL		66			90	130	180	250
Design				Swashplate - Axial piston pump
Type of mounting				Flange or foot-mounted. tandem is foot mounted only
Pipe connection SAE/Flange		B	psi	1 1/2" = 3000 2" = 3000 2 1/2" = 3000			2 1/2" = 3000	3 1/2" = 500
		A		1" = 6000 1" = 6000 1" = 6000			1 1/4" = 6000	1 1/4" = 6000
Direction of rotation				Clockwise when viewing shaft end of pump Counterclockwise available on request
Speed range		nmin	min^-1	150
		nmax		1800
Installation position				Optional, see mounting information
Ambient temperature range		min	°C	-20
		max		50
Weight		m	kg	55	75	106	114	212
Mass of inertia		J	kg m²	0.016	0.016	0.045	0.045	0.146
HYDRAULIC CHARACTERISTICS
Nominal pressure (100% duty cycle)		pN	bar	350
Input pressure		p1min p1max	bar bar	0.85 abs 50
Maximum pressure to DIN 24312		p2max	bar	420
Hydraulic fluid				Hydraulic oil to DIN 51524 part 2. Refer to section Application Data-Fluid Recommendations
Hydraulic fluid temperature range		min max	°C	-25 (on start up) 90
Viscosity range for continuous operation		min	cSt	10
		max	cSt	75
Maximum permissible start viscosity		max	cSt	1000
Filtering		ISO 4406		18/15/13
Maximum geometric displacement	n= 1500 min^-1 n= 1800 min^-1	Vg	cm³	66	90	130	180	250
Maximum geom.	n= 1500 min^-1	Qg	L/min	99	135	195	270	375
pump flow	n= 1800 min^-1			118	162	234	324	450
Case pressure pv max bar max. 0,5 bar over p1. pmax = 4 bar abs.
DRIVE
Maximum driving torque - single unit (p_{2 max.}, -r= 100%)		M1 Single	Nm	440	600	868	1202	1671
Maximum power consumption - single unit P1 Single (p_{2 max.}, -r= 100%; n= 1800 min^-1)			kW	69	94	136	189	265
Maximum driving torque limited to splined shaft only - comb. unit		M1 Comb.	Nm	2x440	2x600	2x868	2x1202	2x1671

Pvxs130 Hydraulic Open Circuit Pumps_Rexroth Axial Piston Variable High Pressure Pump

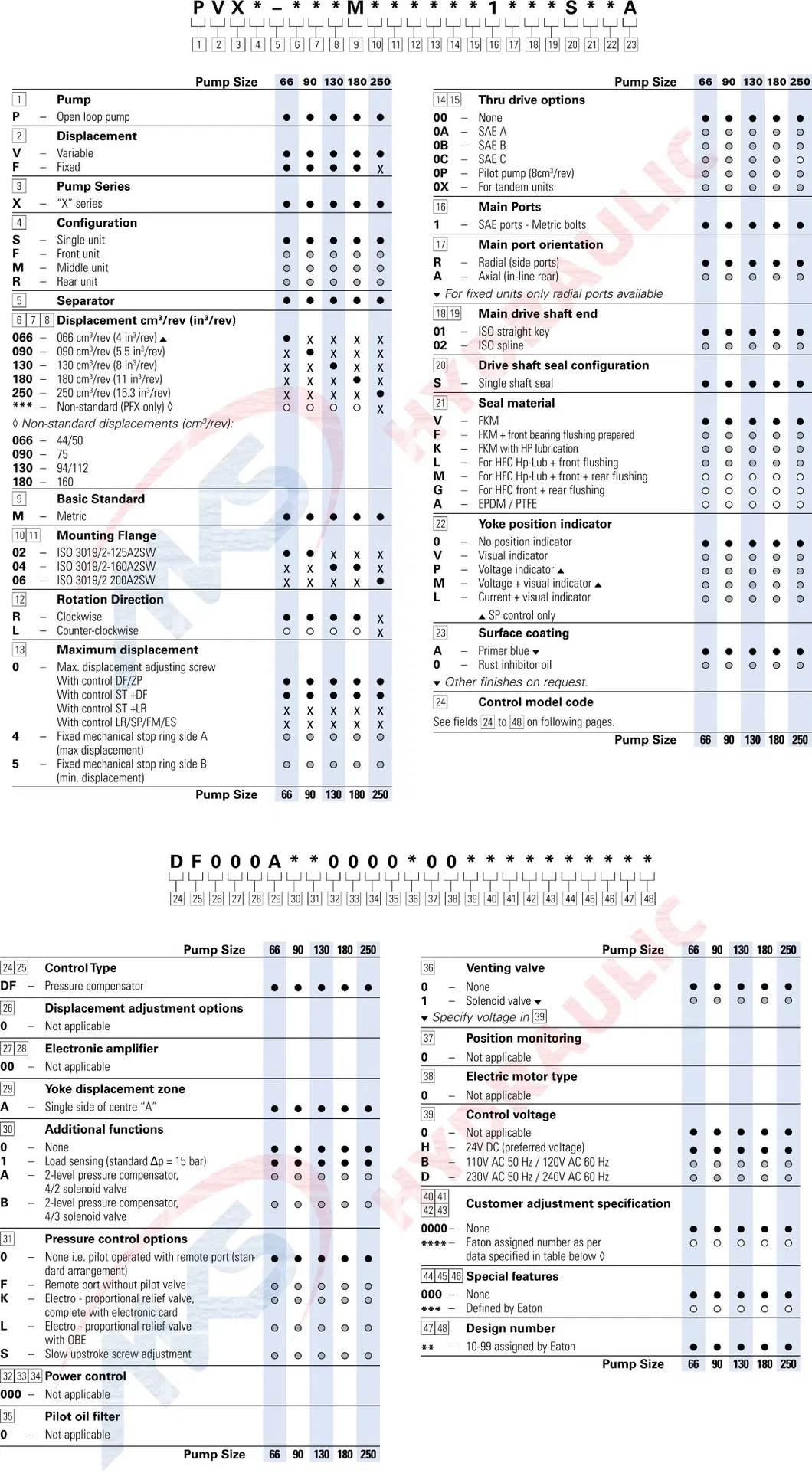

PVXS130 Product model summary
HC206072024183 PVXS-130-M-R-DF-0000-000 Hydraulic Piston Pump PVXS-130-M-R-DF-0000-000 Hydraulic Piston Pump PVXS-130M04L00A1R01SVVAL R000A300180100H016621810
COMPLETE THRU-DRIVE S/A PVWS250/360-PVXS-130/180 PVXS-130-M-R-DF-0000-000 HC806062040200 HC806062043708
PVXS-130-M-R-DF-0051-000 Hydraulic Piston Pump HC806062042110 PVXS-130-M-R-DF-0000-000 Hydraulic Piston Pump PVXS-130M04L00A1R01SVVAL R000A300180100H016621810
HC806062010600 PVXS-130-M-R-DF-0000-000 PVXS-130M04R0001A01SV0AD PVXS-130-M-R-LR-0000-000
PVXS-130-M-R-DF-0051-000 Hydraulic Piston Pump PVXS-130M04R0001R01SVVADF000A0F00000000000000010 HC806062041400 HC806062043800
PVXS-130-M-R-ES-0000-000 Hydraulic Piston Pump PVXS-130-M-R-DF-0000-000 Hydraulic Piston Pump PVXS-130M04R0001A01SV0AD PVXS-130-M-R-LR-0000-000
HC806062020702 HC806062043100 PVXS-130M04R0001A01SV0ADF000A0000000000000000010 PVXS-130-M-R-LR-0000-000 Hydraulic-Piston-Pump
PVXS-130-M-R-ES-0000-000 Hydraulic Piston Pump PVXS-130-M-R-DF-0000-000 Hydraulic Piston Pump PVXS-130M04R0001R01SVVAD HC806062043805
PVXS-130-M-R-ES-0000-000 Hydraulic Piston Pump PVXS-130-M-R-DF-0000-000 Hydraulic Piston Pump HC806062042002 PVXS-130-M-R-LR-0000-000 Hydraulic-Piston-Pump
HC806062020710 HC806062043101 PVXS-130M04R0001R01SVVAD PVX-130-R-DF-0321-000-10 Hydraulic Piston Pump
PVXS-130-M-R-ES-0000-000 Hydraulic Piston Pump PVXS-130-M-R-DF-0000-000 Hydraulic Piston Pump PVXS-130M04R0001R01SVVADF000A0000000000000000010 HC806062044205
PVXS-130-M-R-DF-0000-010 Hydraulic Piston Pump PVXS-130-M-R-LR-0094-000 PVXS-130M04R0001R01SV0AD PVX-130-R-DF-0321-000-10 Hydraulic Piston Pump
HC806062037309 HC806062043701 HC806062042003 PVXS-130M04R0001R01SDVADF000A0000000000032100010
PVXS-130-M-R-DF-0000-010 Hydraulic Piston Pump PVXS-130-M-R-LR-0094-000 PVXS-130M04R0001R01SV0AD PVXS130M04R0001A01SV0ADF
HC806062037311 PVXS-130 PVXS-130M04R0001R01SV0ADF000A0000000000000000010 HC806062044300
PVXS-130-M-R-DF-0000-000 HC806062043703 PVXS-130-M-R-DF-0000-000 Hydraulic Piston Pump PVXS130M04R0001A01SV0ADF
HC806062037804 PVXS-130 HC806062042101 PVXS-130M04R0001A01SV0ADF000A0F00000000000000010
PVXS-130-M-R-DF-0000-000 PVXS-130M04R0001R01SV0ALR000A2F03000000000000010 PVXS-130-M-R-DF-0000-000 Hydraulic Piston Pump LAGERSCHALENSATZ PVXS-13 0 ( KUNDE:GRIBI )
HC806062042102 LAGERSCHALENSATZ PVXS-13 0 ( KUNDE:GRIBI ) PVXS-130-M-R-DF-0000-000 Hydraulic Piston Pump HC966062091200
