Product Description

Concrete Mixer Pump

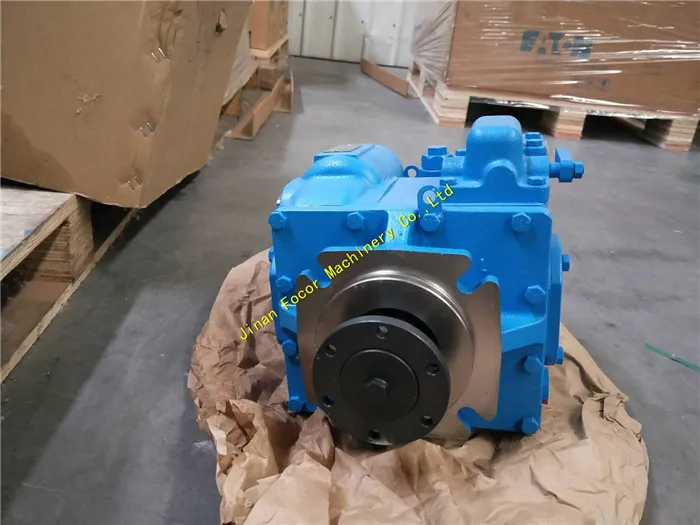

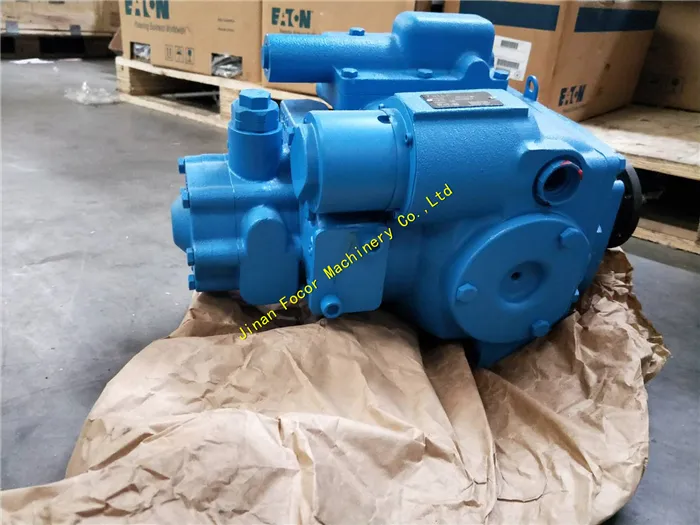

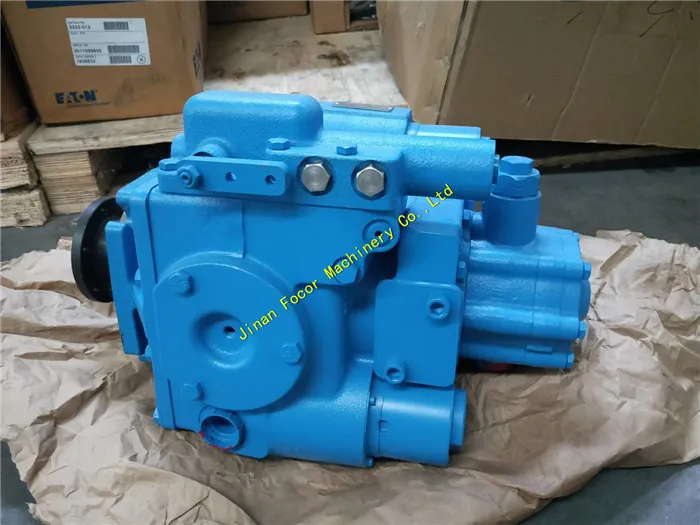

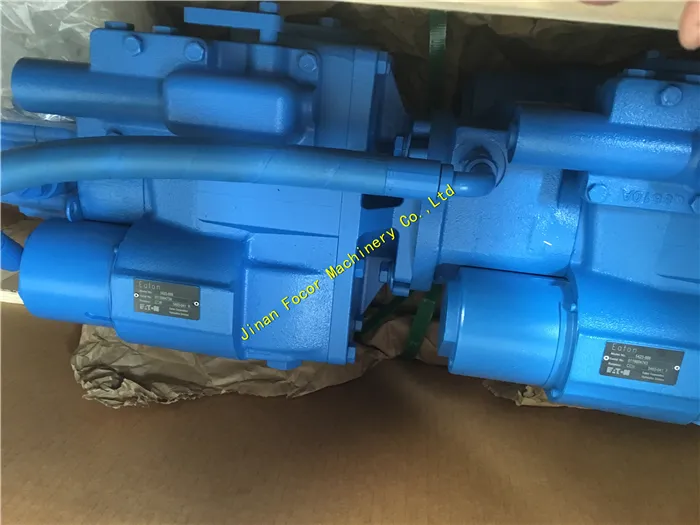

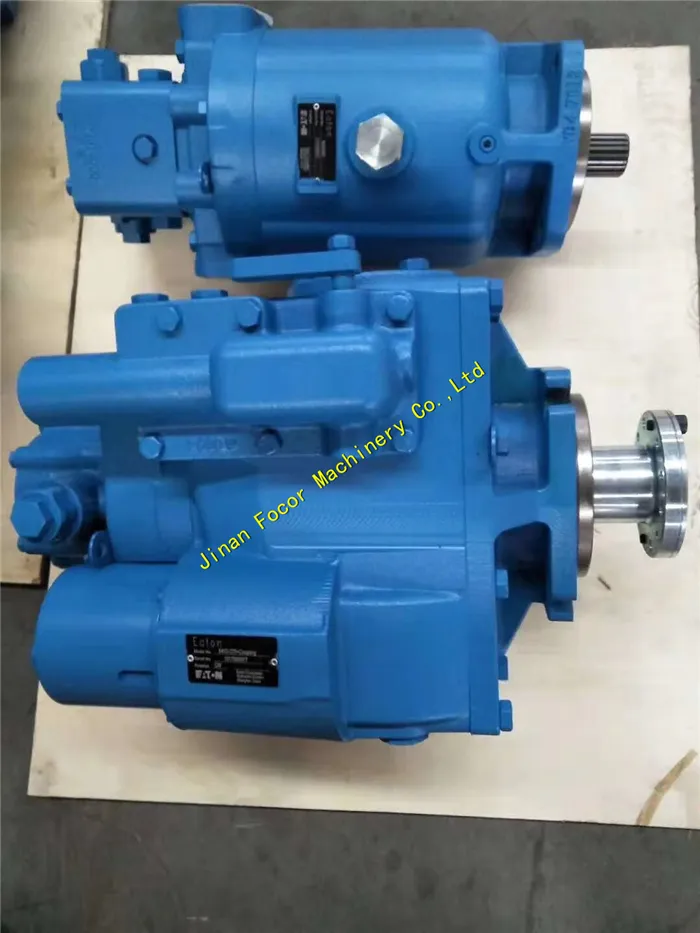

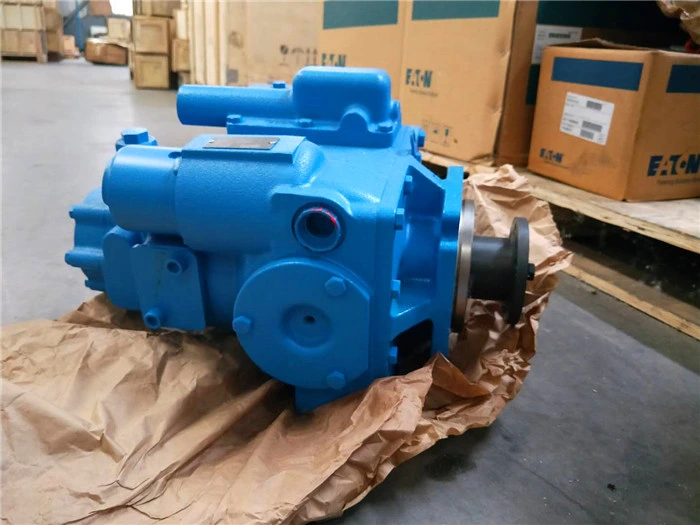

Transit Mixer Eaton 4623 5423 6423 7620 pump

Hydraulic Eaton concrete mixer truck pump 4623 5423 6423 7620

Description

Closed circuit
Nominal Pressure: 420 bar (6000 psi) and Peak Pressure 480 bar (7000 psi)
Displacement from 63.7 to 124,8 cm3/r (3,89 to 7,62 in3/r)

Eaton has the lead position in providing reliable and durable system solutions for transit mixers-vehicles on which downtime can mean disaster. Whether the truck is traveling down a highway or idling at a traffic light, the drum must maintain a consistent rotation speed. That's no problem when Eaton is on the inside. Eaton pump and motor provide the high pressure and high flow required to keep drums rotating.

Drive shafts - a wide variety of options are available to suit every need.
High strength swash plates on variable pumps and motors - resist deflection under high load.
High strength cast iron housings - provide greater noise damping and wall strength.
High flow check valves in pumps - keep the system primed with minimal pressure drop.
Charge pumps on pumps - gerotor type, several displacement options are available to suit the needs of every application. All cast iron construction.
Cartridge shaft seal - lends itself to easy serviceability. Mechanical face seal design tolerates high speed and high case pressures.

Technical Data
Table of values (theoretical values, without efficiency and tolerances; values rounded)

Eaton ACA pump		3923	4623	5423	6423	7620
Displacement	in3/rev	3.89	4.6	5.44	6.44	7.62
Displacement	cm3/rev	63,7	75,3	89,1	105,5	124,8
Maximum Shaft Speed*	Rpm @ 18°	4160	4160	3720	3720	2775
Nominal Pressure**	psi	6000	6000	6000	6000	6000
Nominal Pressure**	(bar)	(420)	(420)	(420)	(420)	(420)
Peak Pressure***	psi	7000	7000	7000	7000	7000
Peak Pressure***	(bar)	(480)	(480)	(480)	(480)	(480)
Output Flow	gpm @3500 psi	67.3	79.2	84.1	99.1	87.9
Output Flow	lpm @241 bar	255	300	318	375	333
Input Torque	lb-in @3500 psi	2346	2786	3285	3900	4552
Input Torque	Nm @241 bar	265	315	371	441	514
