China Diaphragm Pump 5.2lpm 100psi High Pressure Pump

China Diaphragm Pump 5.2LPM 100PSI High Pressure Pump

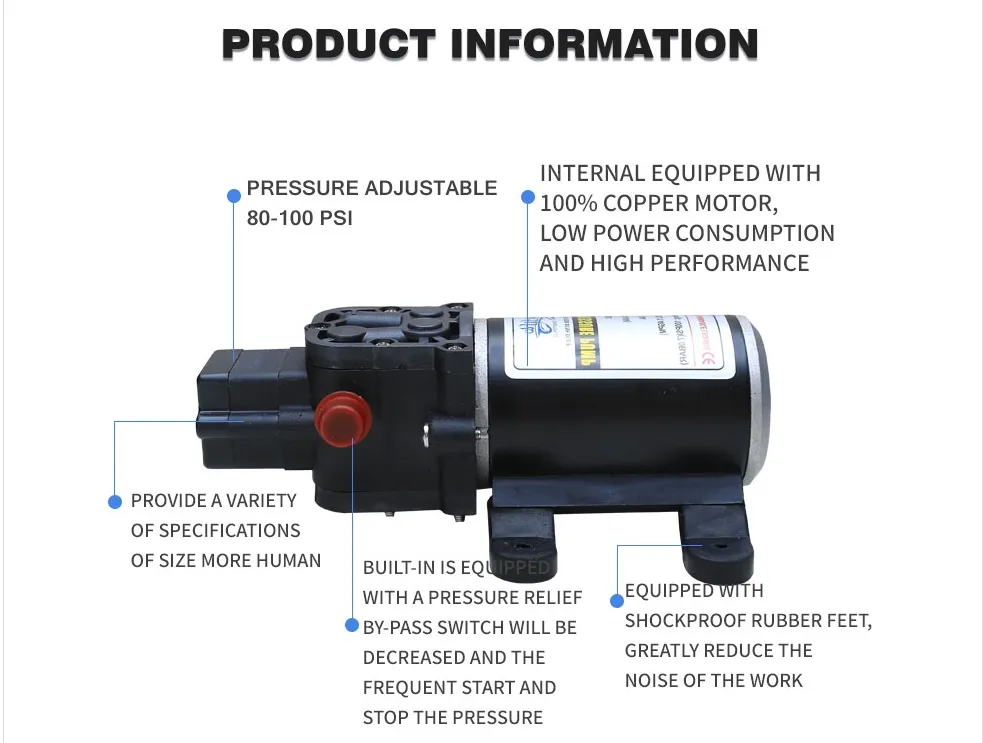

The 30-Series Pumps are compact and designed for a wide range of applications including liquid transfer, spraying, circulation, filtration and dispensing. The 30-series of diaphragm pumps are self-priming, can be run dry without harm and have an internal bypass feature which reduces pump cycling. It provides up to 1.6 gallons per minute. Miniature multi outlet water pressure pump serves 1 or 2 3/8" (10 mm) outlets at any one time. This compact automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed.

How a Diaphragm Pump Works

The pump is driven by an AC or DC motor

In front of the motor is a valve assembly containing two to five valve pump chambers. Each valve chamber has a diaphragm behind it in the lower pump housing. As the motor shaft turns, an internal cam positioned behind the diaphragms causes the diaphragms to be pushed forward, then back in a continuous sequence creating a suction. As this suction builds, fluid is pulled through the inlet, through the various valve chamber check valves to the outlet

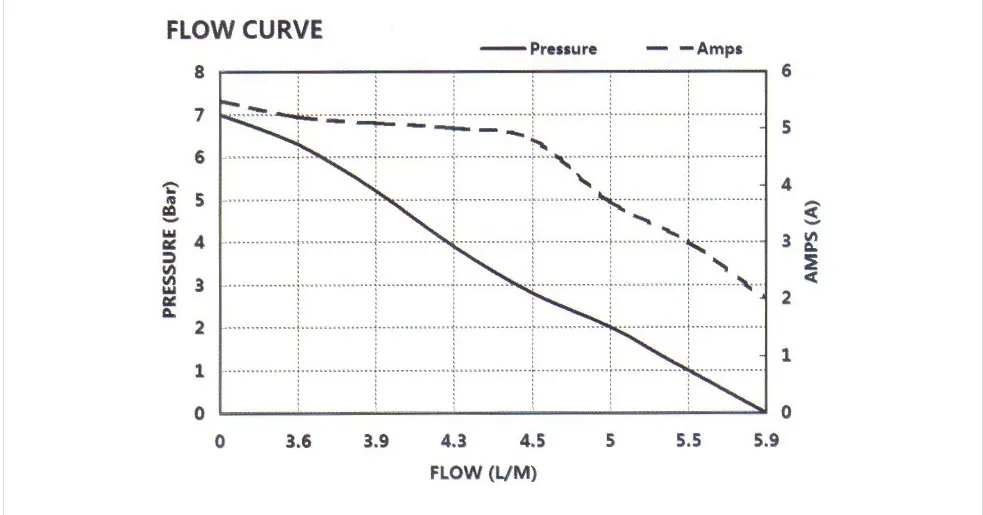

The volume of flow is determined by several factors including: the number and size of the pump chambers, cam offset,
operating pressure, fluid viscosity

Application
1. Agriculture/Yacht / RV/Caravan pressurized water system
2. Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
3. Cleaning machine, Humidifier, Water purification, Medical apparatus
4. Food beverage filling & liquid transfer
5. Any other pressurization system

Backed 1-Year Warranty!
Colors: Balck or required

Fuan Realon Electrical Machinery Co.,Ltd locates in Fuan City,Fujian Province which is well known as "city of electric machinery and appliances" in China.

We are a modern enterprise specializes in the Research,Design,Manufacture and Market of Marine,RV,Food & Beverage liquid transfer.Our main products are electric diaphragm pumps, bilge pumps, macerator pumps,gear pumps,solar pumps,blowers,bottled water system,water boost system and similar items.

We have received international authentications including CE, RoHS and produce according to ISO 9001:2015 system.Our products have been exported mainly to Europe,America,Australia and other countries.

We sincerely welcome customers all over the world to negotiate business and build up good relationship for creating bright future.

1. What is your MOQ?

100 pieces in general, but we also sale about 10--50 pieces for new costumers for their sample testing.

2. What about the delivery time?
It depends on your order quantity; it usually takes 15-25days upon receipt of your 30% deposit by T/T.
Sample can be delivered within 7days.

3. Can I buy different types in one container?
Yes, you can mix different types in one container.

4. Do you have oversea agents?
1. Of course. Welcome oversea agents!

5.Do you accept OEM/ODM
Yes. We are also the OEM supplier of many famous companies, such as WALMAT.

6. What is your terms of payment.
T/T, 30% in advance, balance against B/L copy.

7. What is your warranty?
5 years, and within 24 hours reply will be provided to solve customers' problems.

8. What is your port of loading?
Fuzhou Port.
