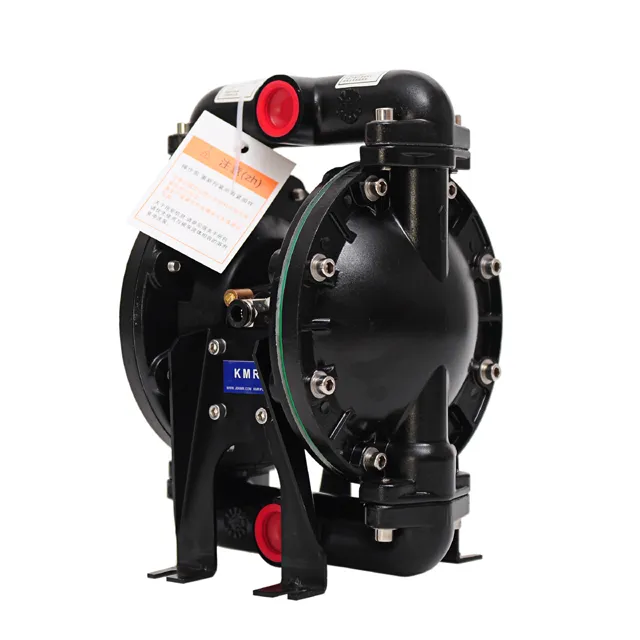

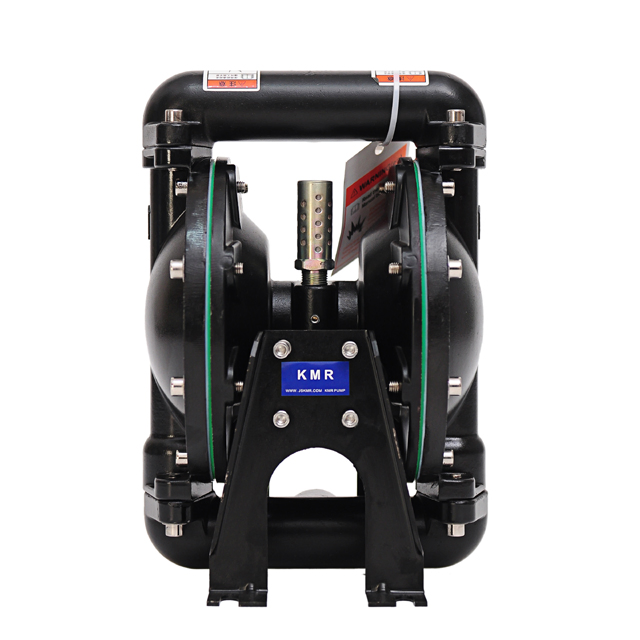

1′ ′ Aodd Double Pneumatic Diaphragm Pump for Petrochemical Industry
MASS_APP4_1186_BEGIProduct Description Product namePneumatic diaphragm pumpWetted partAluminum Motor body Aluminum alloyDiaphragm PTFE/santoprene Max Flow133L/minAir inlet1/4''BSPTGross weight11kgWarranty1 year(except wearing part) [MAIN PARAMETER]~Material: Aluminum; Diaphragm Material: ......
Send Inquiry
Product Description

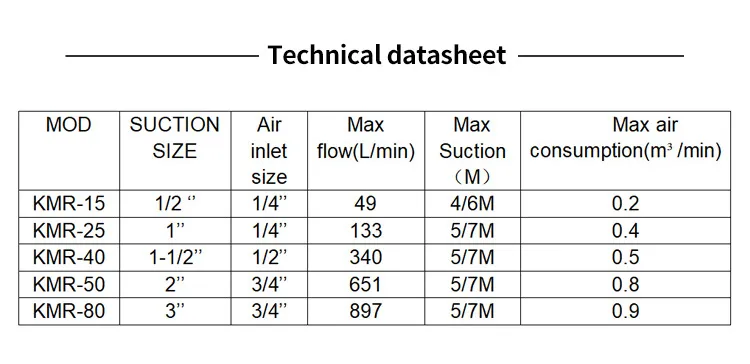

| Product name | Pneumatic diaphragm pump |
| Wetted part | Aluminum |
| Motor body | Aluminum alloy |
| Diaphragm | PTFE/santoprene |
| Max Flow | 133L/min |
| Air inlet | 1/4''BSPT |
| Gross weight | 11kg |
| Warranty | 1 year(except wearing part) |
[MAIN PARAMETER]~Material: Aluminum; Diaphragm Material: Nitrile;
Type: Double diaphragm;
Operation Type: Air-operated;
Inlet/Outlet Port Size/Standard:1 inch (25 mm);
Air Inlet Size: 1/4 inch (6.35 mm)

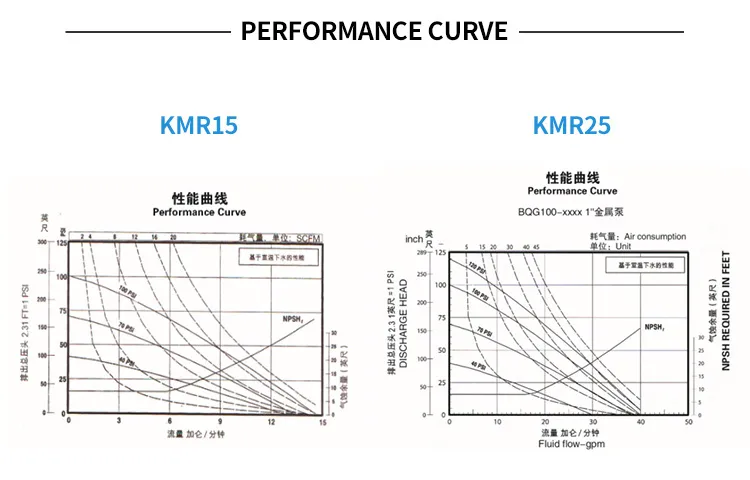

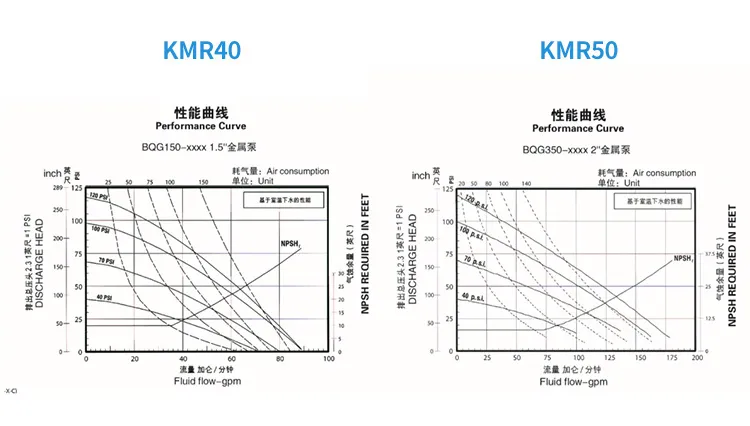

[Quality Performance ~Maximum Head:275.59FT/84M,
Max Pressure: 120PSI.
Max Temp : 150 ºF.
Top quality glyd ring, a double-acting seal that delivers better performance.
[UNIQUE DESIGN]~Features an externally serviceable air distribution system and all-bolted construction. Modular air valve is stall-free, this low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes down time.
[EXCELLENT CONSTRUCTION]~Rugged construction - resists corrosion for reliable performance and long life. Bolted construction is designed for leak-free fluid handling.

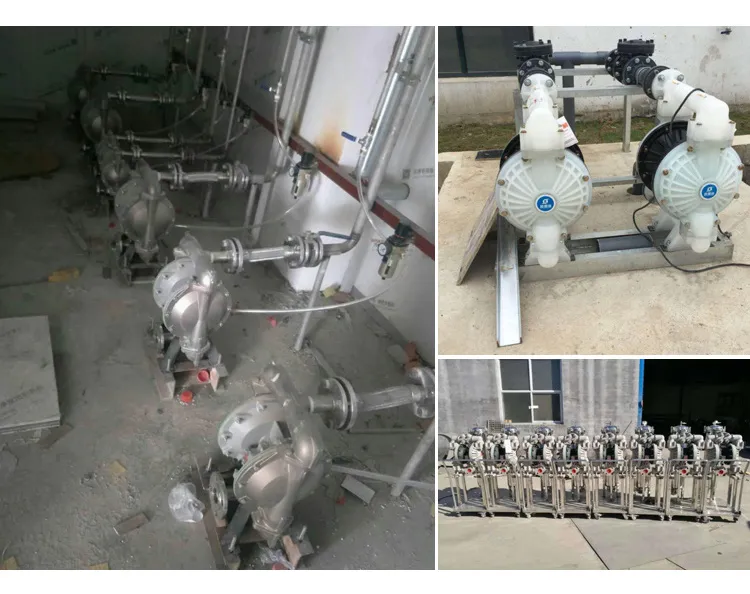

[VERSATILE USE]~The diaphragm pump with convenient operating are widely used in various industries, such as petroleum, metallurgy, mining, coating material, printing, paper making, water treatment, automotive etc.
