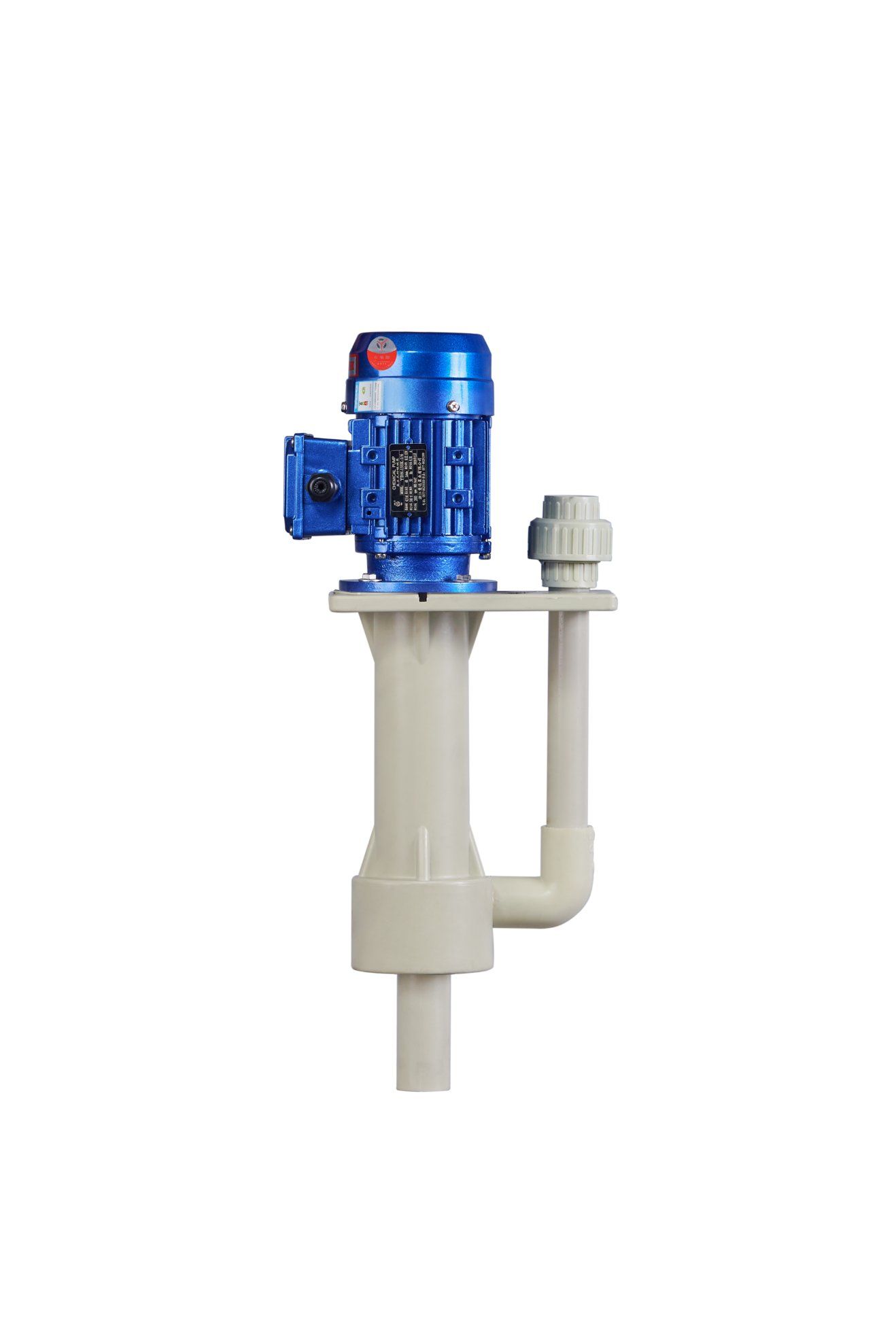

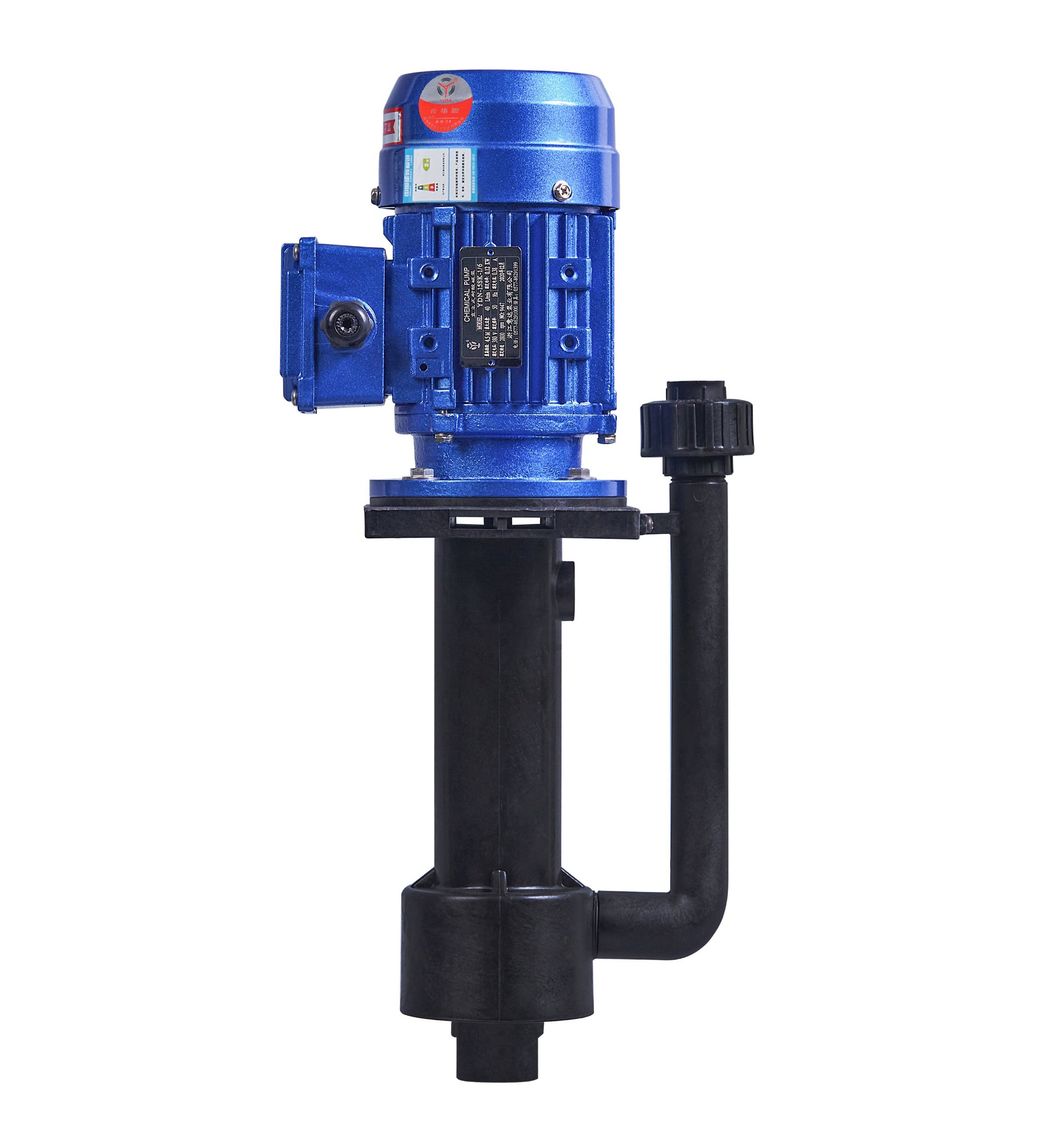

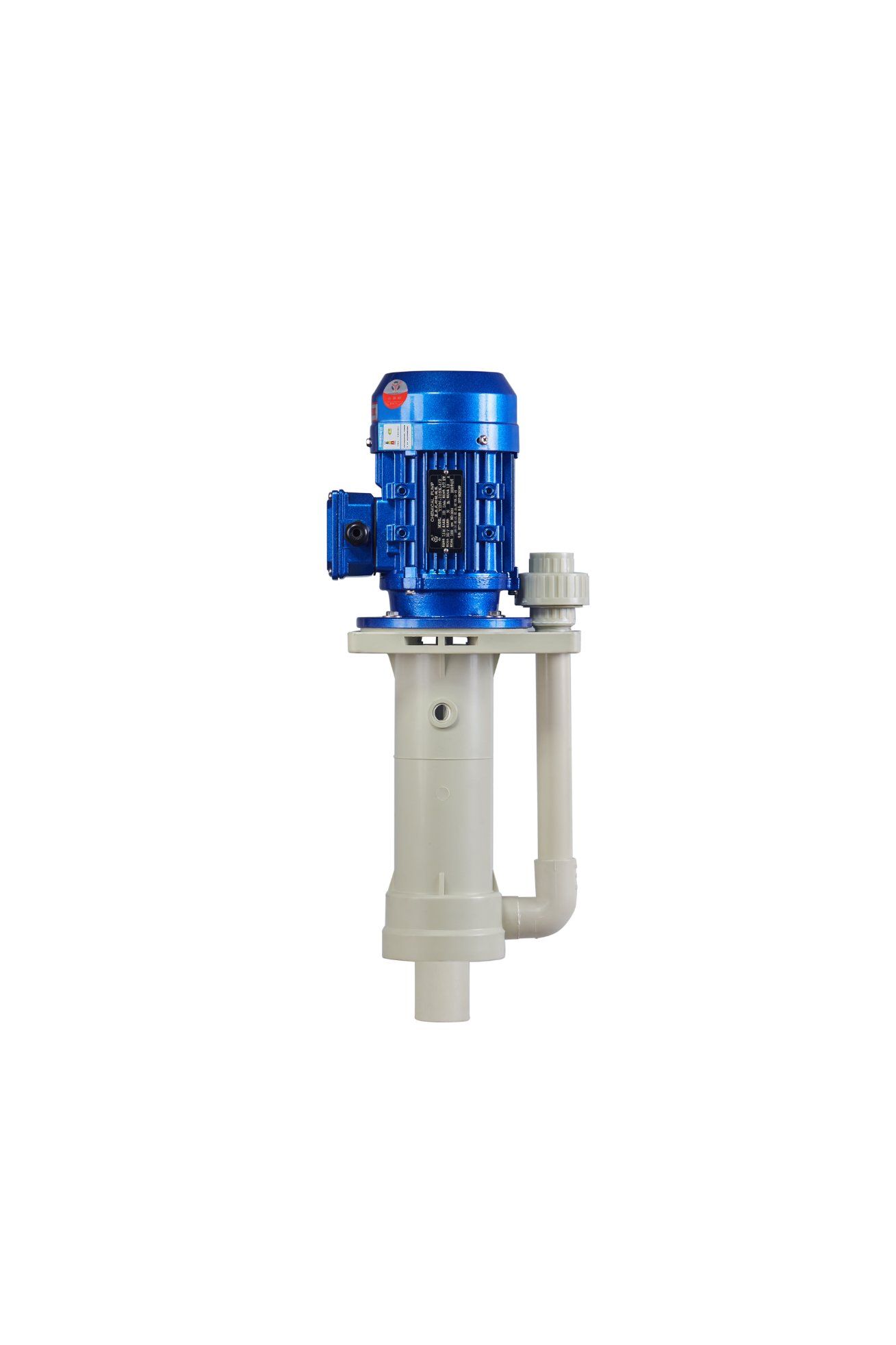

Ydn Series Idling -Capable Vertical Chemical Pump
1.Innovative dry external shafts free the electric motot of friction.2.Long-time waterless idling won't damage the machine.No risk of leakage.3.Suitable for horizontal plating line and treatment of waste gases.4.Long lifespan and energy-efficient.5.Corrosion resistant.Material:GFRPP,PVDF.6.Resis......
Send Inquiry
Product Description

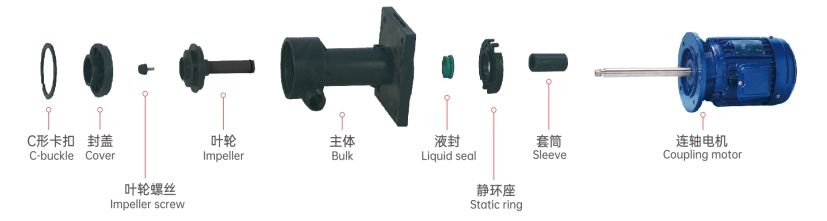

1.Innovative dry external shafts free the electric motot of friction.
2.Long-time waterless idling won't damage the machine.No risk of leakage.
3.Suitable for horizontal plating line and treatment of waste gases.
4.Long lifespan and energy-efficient.
5.Corrosion resistant.Material:GFRPP,PVDF.
6.Resistant to strong acids and alkalis.
YDN SPECIFIVATIOU
| Model | in/outlet (mm) | MAXIMUM OUTPUT | STANDARD OUTPUT | MOTOR | ||||
| Flow (L/min) | Head (m) | Flow (L/min) | Head (m) | Horsepower (HP) | Power (KW) | Valtage (v) | ||
| YDN-15SK-1/15 | 20/15 | 30 | 2.5 | 20 | 2 | 1/15 | 0.06 | 220 |
| YDN-15SK-1/8 | 20/15 | 35 | 3.5 | 25 | 2.5 | 1/8 | 0.09 | 220 |
| YDN-15SK-1/6 | 20/15 | 40 | 4.5 | 30 | 3 | 1/6 | 0.12 | 220/380 |
| YDN-20SK-1/4 | 40/20 | 60 | 5 | 40 | 3.5 | 1/4 | 0.18 | 220/380 |
| YDN-20SK-1/3 | 40/20 | 80 | 6 | 60 | 4.5 | 1/3 | 0.25 | 220/380 |
| YDN-20SK-1/2 | 40/20 | 100 | 7.5 | 75 | 6 | 1/2 | 0.37 | 220/380 |
| YDN-40SK-15 | 50/40 | 250 | 9 | 200 | 7 | 1 | 0.75 | 380 |
| YDN-40SK-25 | 50/40 | 290 | 10 | 250 | 8 | 2 | 1.5 | 380 |
| YDN-40SK-35 | 50/40 | 330 | 11 | 290 | 9 | 3 | 2.2 | 380 |
