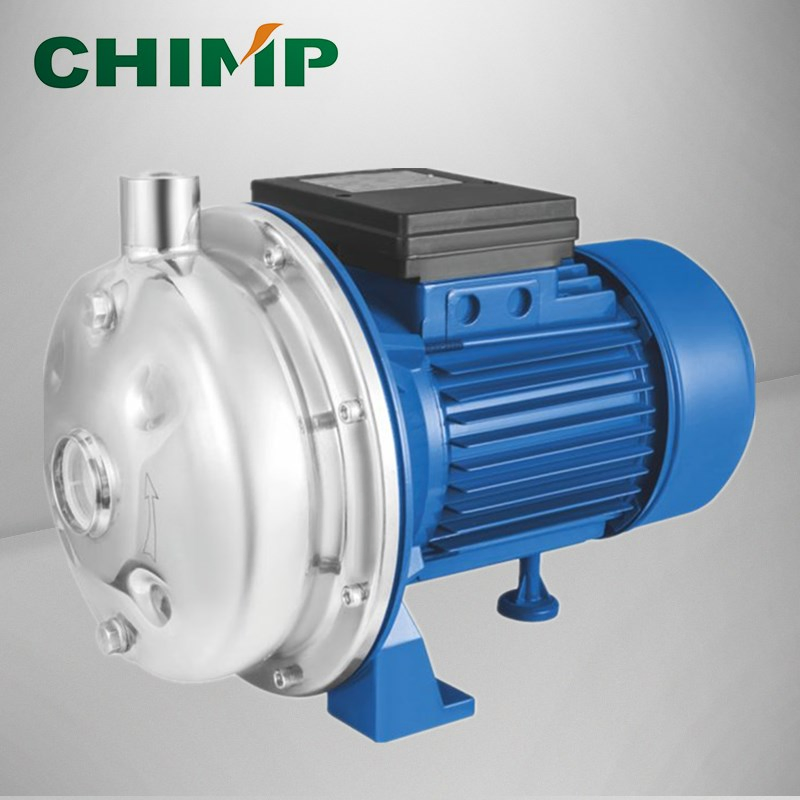

Wb120 Series Stainless Steel Centrifugal Water Pumps
WB120 Series Stainless steel Centrifugal Water Pumps PUMPCast iron pump body and supportStainless steel/Brass impellerMax. Liquid temperature: +40ºCMax.Suction:+8m MOTORInsulation class: B or FProtection class: IPX4Max. ambient temperature: +40ºCCooling: External ventilation PUMP I......
Send Inquiry
Product Description
WB120 Series Stainless steel Centrifugal Water Pumps
PUMP
Cast iron pump body and support
Stainless steel/Brass impeller
Max. Liquid temperature: +40ºC
Max.Suction:+8m
MOTOR
Insulation class: B or F
Protection class: IPX4
Max. ambient temperature: +40ºC
Cooling: External ventilation
PUMP INSTALLATION AND APPLICATIONS
It can be used to transfer clean water or other liquids similar to water in physical and chemical properties. It is suitable for industrial use and urban water supply, garden irrigation, long-distance water transfer, heating ventilation and air controlling, circulation and pressure bossting for cold and hot water, and supporting equipment etc.
| MODEL | POWER | MAX.FLOW (l/min) | MAX.HEAD (M) | MAX.SUCT (M) | INLET/OUTLET (in) | G.W. (kg) | PACKING DIMENSION (MM) | |
| kW | HP | |||||||
| WB120/075D | 0.75 | 1.0 | 180 | 19 | 8 | 1 1/4" X 1" | 9 | 230*215*250 |
| WB120/110D | 1.1 | 1.5 | 180 | 26 | 8 | 1 1/4" X 1" | 9.5 | 380*255*280 |
| WB120/150D | 1.5 | 2.0 | 180 | 31 | 8 | 1 1/4" X 1" | 11 | 380*255*280 |
| WB120/185D | 1.85 | 2.5 | 180 | 37 | 8 | 1 1/4" X 1" | 12 | 415*250*280 |
Company Information
Taizhou Qiantao Pumps Co., Ltd. is a modern enterprise with a combination of development, production, service. It is specialized in producing electric pump and motor with more than 50 series and 1000 specifications.
Our company centers on people, equipped with a large technology team and management talent, forming significant human resource and powerful technology advantagement.
We own advanced electric pumps and assembly line for motors as well as online automatic testing systems. All these equipments supply favorable managing condition and reliable detecting methods. Our company has passed the ISO9001:2000 international quality system certification and "3C" electrician product certification. The products have won the producing licence granted by the national technical supervision bureau and "Agricultural Machinery popularization licence" granted by the national agriculture ministry.
Customers' satisfaction is the everlasting pursuit of "Qiantao" staff. Quality and credit standing is the forever main topic of Qiantao. We sincerely wish to cooperate and develop together with all partners. At the same time, we warmly welcome the new and old customers from home and abroad to do business with us and direct us.
At all times, Qiantao Pump Company is appling ourselves to normalized technology development and quality management construction. We constantly solidify, perfect and improve the company's total quality management standard. We also popularize ISO9000 quality management system. These not only uprise the management standard, promise the product quality, strengthen the running belief of "Customers' satisfaction is Qiantao people's persistent pursuit. Quality and credit standing is the forever main topic of Qiantao.", but also win the customers' trust.
