Trailer Mounted Multistage Water Cooler Engine Centrifugal Fire Pump

Product Description

Trailer Mounted Multistage Water Cooler Engine Centrifugal Fire Pump

1.Technical Parameters

125D(DF,DY,MD)25× (2-9)
Stage	Capacity		Head	Rating Speed	Efficiency	Shaft power	NPSHr	Impeller Dia	Pump Weight
	Capacity		Head	Rating Speed	Efficiency	Shaft power	NPSHr	Impeller Dia	Pump Weight
	m3/h	L/s	m	r/min	%	KW	m	mm	kg
2	72	20	51.2	2950	70.5	14.20	3.2	φ156	183
	101	28	43.0		77.5	15.20	3.6
	119	33	35.0		77.0	15.30	4.3
3	72	20	76.8	2950	70.5	21.30	3.2	φ156	219
	101	28	64.5		77.5	22.80	3.6
	119	33	52.5		77.0	22.90	4.3
4	72	20	102.4	2950	70.5	28.40	3.2	φ156	256
	101	28	86.0		77.5	30.40	3.6
	119	33	70.0		77.0	30.60	4.3
5	72	20	128.0	2950	70.5	35.50	3.2	φ156	292
	101	28	107.5		77.5	38.00	3.6
	119	33	87.5		77.0	38.25	4.3
6	72	20	153.6	2950	70.5	42.60	3.2	φ156	328
	101	28	129.0		77.5	45.60	3.6
	119	33	105.0		77.0	45.90	4.3
7	72	20	179.2	2950	70.5	49.70	3.2	φ156	365
	101	28	150.5		77.5	53.20	3.6
	119	33	122.5		77.0	53.55	4.3
8	72	20	204.8	2950	70.5	56.80	3.2	φ156	401
	101	28	172.0		77.5	60.80	3.6
	119	33	140.0		77.0	61.20	4.3
9	72	20	230.4	2950	70.5	63.90	3.2	φ156	438
	101	28	193.5		77.5	68.40	3.6
	119	33	157.5		77.0	68.85	4.3

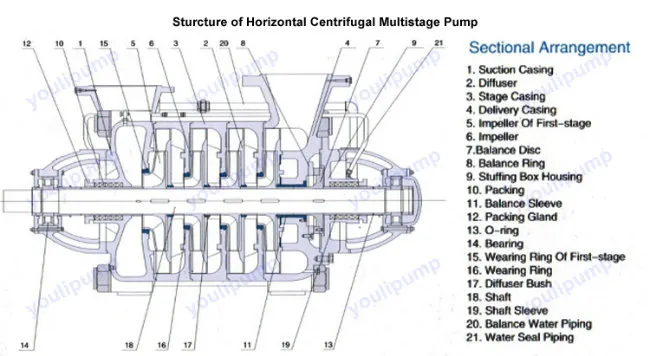

2.Structure

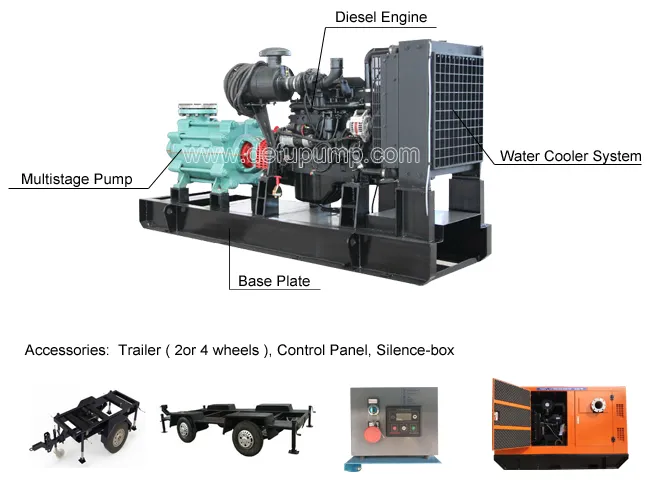

Trailer Mounted Multistage Water Cooler Engine Centrifugal Fire Pump

3.Introduction
The pump is of sub-horizontal, multistage single suction and centrifugal , using state-recommended hydromodule. The pump is efficient, reliable, and durable with low noise performance, easy maintenance and wide scope of usages.

4. Technical Features
1.High efficiency and energy saving
2.advanced process equipment
3.Unique Structure
4.Material choosing
5.Fine appearance

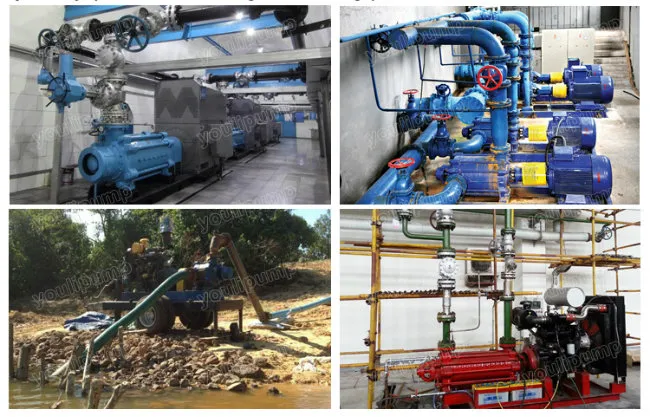

5.Application
1.Transporting clean water or liquid with physicochemical property similar to that of the clear water.
2.Delivering hot water ,oil, corrosive liquid or medium containing abrasive material through special employment of material .sealing mode,or cooling system.
Trailer Mounted Multistage Water Cooler Engine Centrifugal Fire Pump

6.The Service
1.Delivery: Delivery time will be on time as the contact. Usually, the delivery time is of centrifugal pump is for 15-25 working days.
2.Warranty: 1 year for the pump body, 3 months for the main working parts.
3.Package:According to your quantity, we use plywood case which is durable for ocean transport.
4.Shipping: By Sea and By Air
5.Payment: We are accept T/T,L/C,West Union and so on.
6.Pre-sales Service:According to your requirement, we will give your our profession advice of pump solution.
7.On-sales Service:We will clearly show you everything in fact when you place an order with us. We will takes photos or videos to show you order production situation.
8.After-sales Service: We will full report you the production progress and plan. Meanwhile, we will follow up the pump working conditions per three months when the pumps put into use, and can send the spare parts to you within one week if you need.

7.About US
Trailer Mounted Multistage Water Cooler Engine Centrifugal Fire Pump
