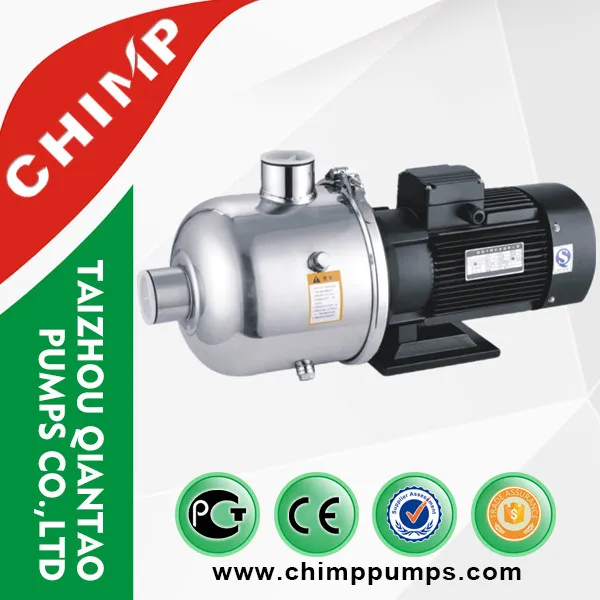

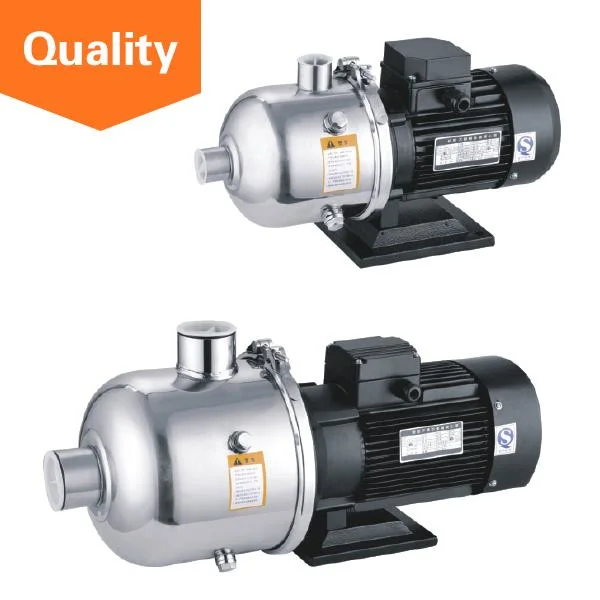

Three Phase Stainless Steel Horizontal Multistage Centrifugal Water Pumps
CHIMP CHL(K)4-40 electric three phase motor water pumpPUMPMax. liquid temperature: +85ºCLiquid pH :5~9Max. inlet pressure:based on Max.operating pressurePump body:Cast iron / Stainless steelMOTORCopper windingBuild-in therminal protector for single phase motor]AISI 304 shaftInsulation class......
Send Inquiry
Product Description
CHIMP CHL(K)4-40 electric three phase motor water pump

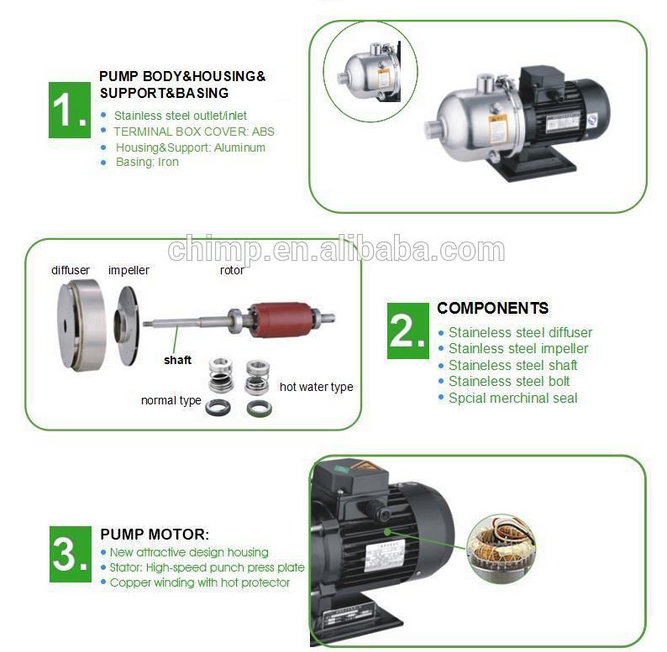

PUMP
- Max. liquid temperature: +85ºC
- Liquid pH :5~9
- Max. inlet pressure:based on Max.operating pressure
- Pump body:Cast iron / Stainless steel
MOTOR
- Copper winding
- Build-in therminal protector for single phase motor]
- AISI 304 shaft
- Insulation class: B or F
- Protection class: IP X4
- Max.Ambient temperature:+40ºC
- Cooling: External ventilation
PUMP INSTALLATION AND APPLICATIONS
It is applicable to household water supply,equipment support,pipeline pressurization,garden watering,vegetable greenhouse watering,fish farming and poultry raising,industrial and mining,water supply and frainage of enterprises and high-rise buildings,central air conditioner and centralized heating circulation system.
| Model | Power | FLOW (m³/h) | HEAD (m) | MAX.SUCT (m) | INLET/OUTLET | G.W. (kg) | PACKING DIMENSION (mm) | |
| kW | HP | |||||||
| CHL(K)2-20 | 0.37 | 0.5 | 2 | 14 | 8 | 1"x1" | 13 | 400X165X230 |
| CHL(K)2-30 | 0.55 | 0.75 | 2 | 21 | 8 | 1"x1" | 13 | 400X165X230 |
| CHL(K)2-40 | 0.55 | 0.75 | 2 | 28 | 8 | 1"x1" | 13 | 400X165X230 |
| CHL(K)2-50 | 0.55 | 0.75 | 2 | 35 | 8 | 1"x1" | 14 | 400X165X230 |
| CHL(K)2-60 | 0.75 | 1.0 | 2 | 42 | 8 | 1"x1" | 15 | 445X165X245 |
| CHL(K)4-20 | 0.55 | 0.75 | 4 | 15 | 8 | 1 1/4"x1" | 12 | 400X165X230 |
| CHL(K)4-30 | 0.55 | 0.75 | 4 | 22 | 8 | 1 1/4"x1" | 15 | 445X165X245 |
| CHL(K)4-40 | 0.75 | 1.0 | 4 | 30 | 8 | 1 1/4"x1" | 15 | 445X165X245 |
| CHL(K)8-10 | 0.75 | 1.0 | 8 | 8.5 | 8 | 2"x2" | 20 | 560X230X265 |
| CHL(K)8-20 | 0.75 | 1.0 | 8 | 17 | 8 | 2"x2" | 20 | 560X230X265 |
| CHL(K)8-30 | 1.1 | 1.5 | 8 | 25.5 | 8 | 2"x2" | 25 | 560X230X265 |
| CHL(K)8-40 | 1.5 | 2.0 | 8 | 34 | 8 | 2"x2" | 25 | 580X230X270 |
| CHL(K)8-50 | 2.2 | 3.0 | 8 | 42.5 | 8 | 2"x2" | 30 | 580X230X270 |
| CHL(K)12-10 | 0.75 | 1.0 | 12 | 9.5 | 12 | 2"x2" | 20 | 560X230X265 |
| CHL(K)12-20 | 1.2 | 1.6 | 12 | 19.5 | 12 | 2"x2" | 21 | 560X230X265 |
| CHL(K)12-30 | 1.8 | 2.4 | 12 | 29.5 | 12 | 2"x2" | 25 | 580X230X270 |
| CHL(K)12-40 | 2.4 | 3.2 | 12 | 39.5 | 12 | 2"x2" | 29 | 580X230X270 |
| CHL(K)12-50 | 3.0 | 4.0 | 12 | 50 | 12 | 2"x2" | 34 | 610X230X270 |
| CHL(K)16-10 | 1.1 | 1.5 | 16 | 10 | 16 | 2"x2" | 20 | 560X230X265 |
| CHL(K)16-20 | 2.2 | 3.0 | 16 | 21 | 16 | 2"x2" | 27 | 580X230X270 |
| CHL(K)16-30 | 3.0 | 4.0 | 16 | 32 | 16 | 2"x2" | 34 | 610X230X270 |
| CHL(K)20-10 | 1.1 | 1.5 | 20 | 9.5 | 20 | 2"x2" | 21 | 560X230X265 |
| CHL(K)20-20 | 2.2 | 3.0 | 20 | 21 | 20 | 2"x2" | 28 | 580X230X270 |
| CHL(K)20-30 | 4.0 | 5.5 | 20 | 33 | 20 | 2"x2" | 42 | 650X230X270 |

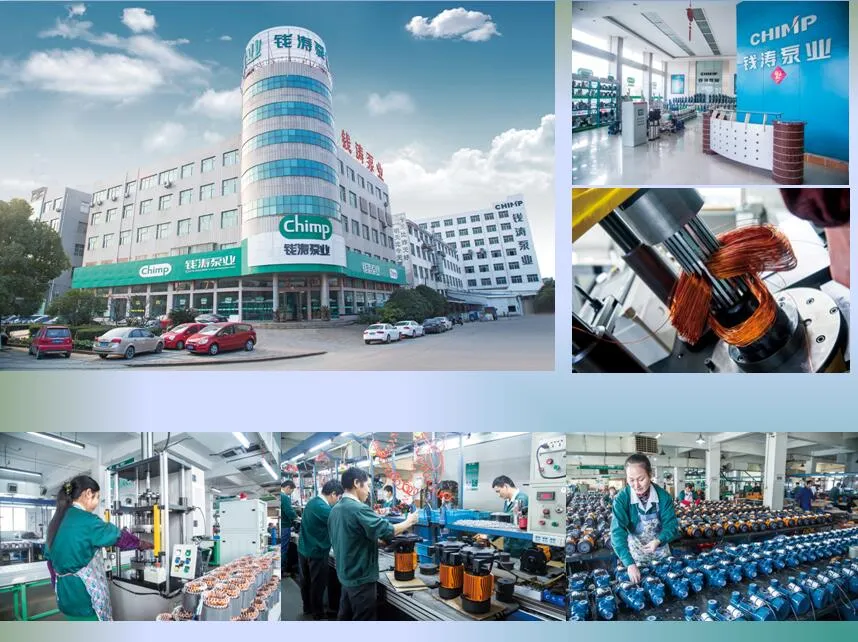

CHIMP PUMP is established in 1998 ,with about 20 years experience and start exporting at 2002. Now we have more than 300 workers
Our present market is Saudi Arabia, Dubai, Russia, Belarus, America, Iran, Ukraine, Egypt, Malaysia, Bangladesh, Turkey , Ghana, Vietnam and so on.
FAQ
Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container, first time cooperation, we accept trial order to check quality.
Q: Is it acceptable to make customers' own brand?
A: Sure, we can do OEM.
Q: What are your payment terms?
A: 30% T/T deposit, 70% against documents, or L/C at sight.
Q: How long is your warranty?
A: One year!
Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.
