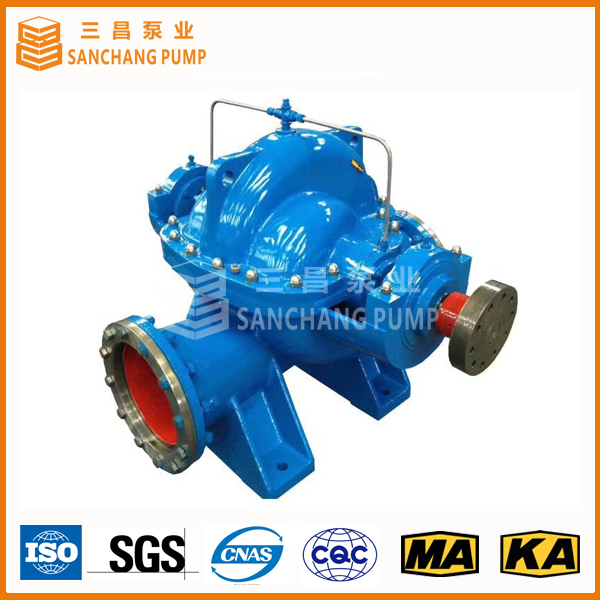

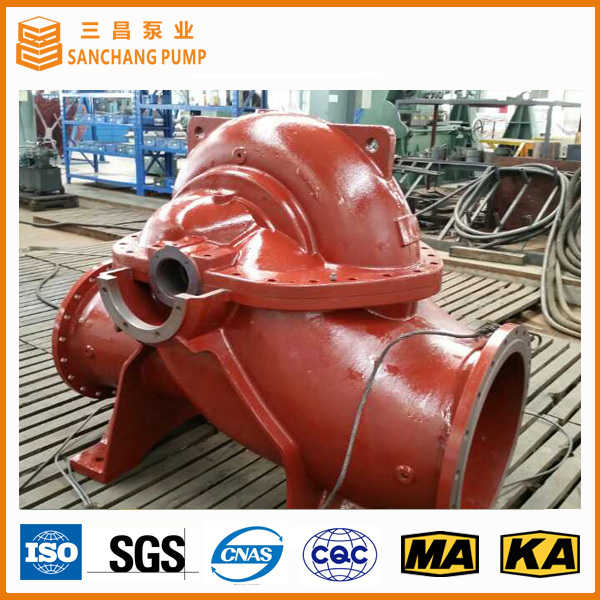

Split Case Pump Cos80-370

Description

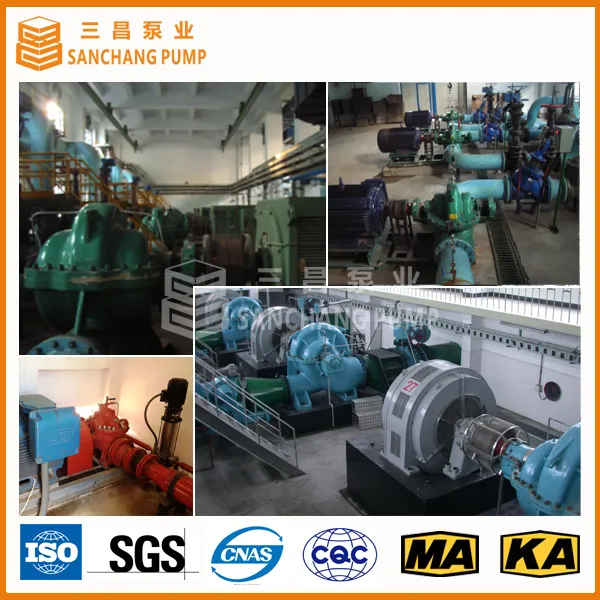

COS series split case pump/split casing pump/double suction centrifugal pump is a new generation of single stage double suction centrifugal split case pump with high performance and reliability, it is mainly applied to liquid transferring occasions like water works, air conditioner circulation water, heat supply pipe network system, building water supply, irrigation, drainage pump station, power station, industrial water supply system, fire fighting system, ship industry, water supply and drainage for mines, etc.

Model Definition
Model: COS80-370A/B/C
COS: Split case pump / Split casing pump / Double suction centrifugal pump
80: Outlet diameter
370: Nominal impeller diameter
A/B/C...: Impeller code

Performance Data:
Speed=1450rpm
Flow: 50 - 135 m3/h
Delivery Head: 17-40m
Outlet Dia.: 80mm
Working Pressure: ≤ 5Mpa
Solid Particle: ≤ 80mg/L
Liquid Temp.: 0ºC-80ºC

Material of flow passage components:
The COS series Split case pump/Split casing pump/Double suction centrifugal pump could be customized with
different material, main material configuration followed :

1) Features:
a) Compact structure
b) Attractive design
c) High efficiency, steady performance
d) High flow, medium pressure
e) High concentricity of components
